Product name:Tabletop Flat Labeling Machine

Model Number: LM-30114

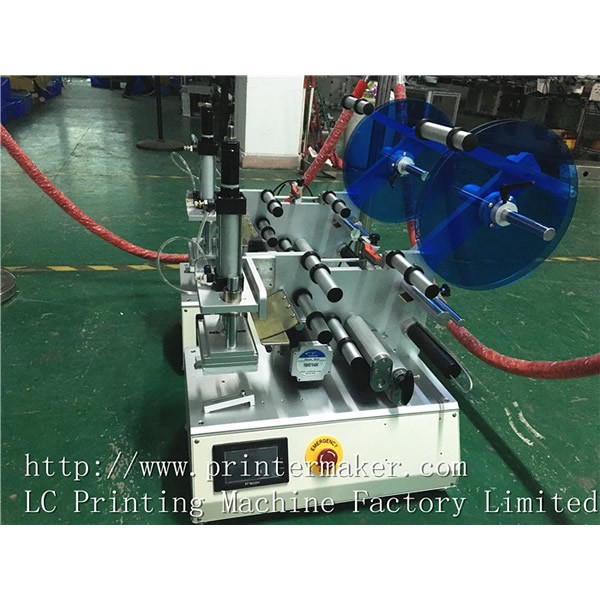

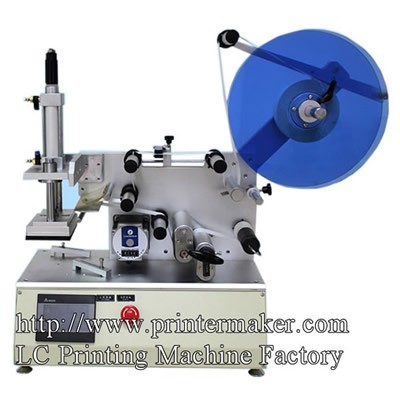

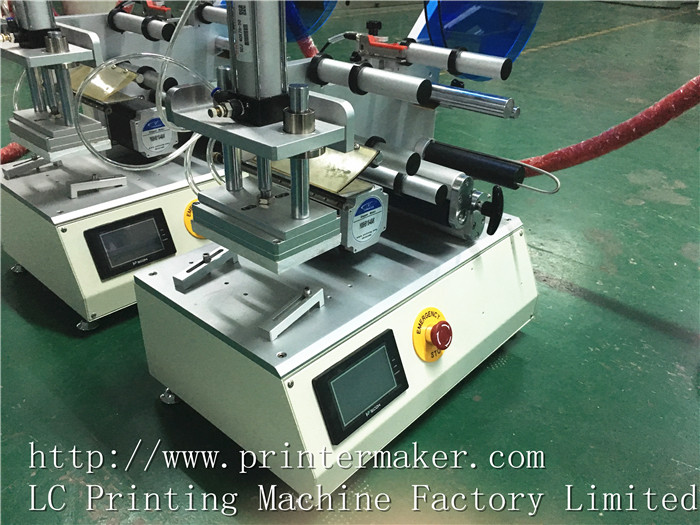

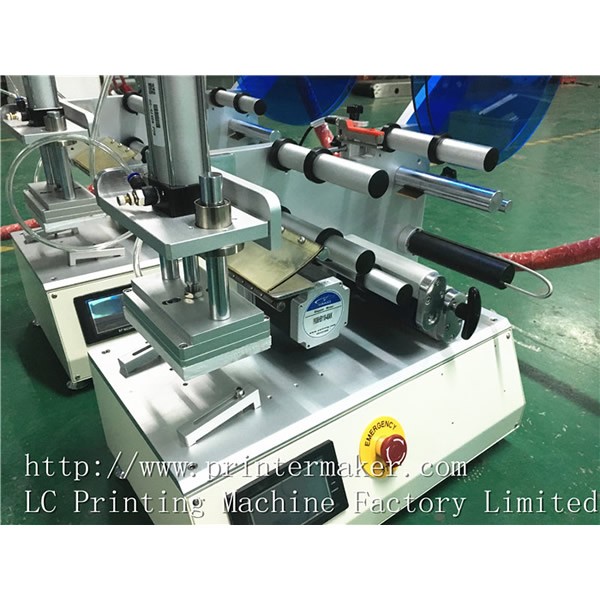

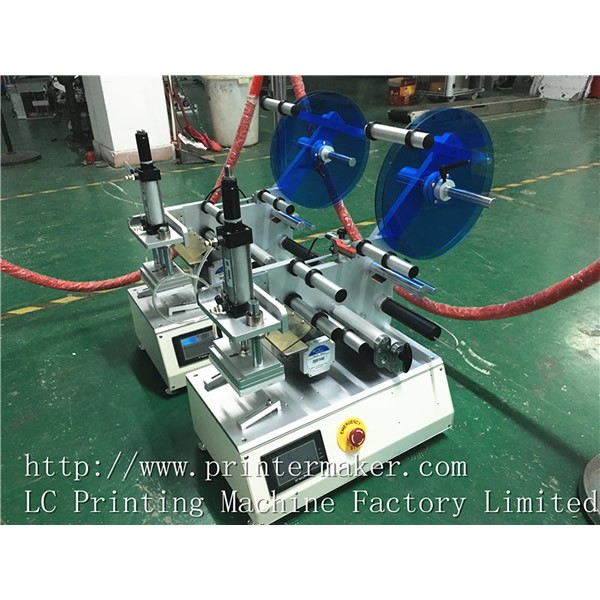

Tabletop Flat Labeling Machine
Description
This machine is applied to label the self-adhesive label on various flat surface products.
This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc
industries.
Feature
1.Suitable for labeling all objects with flat surface
2.Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
3. All metal are made of 304 stainless steels with surface finishing and special treatment, so this machine’s quality can be guaranteed.
4. Small size labeling machine, very easy to operate.
Specification
1.Label width:  15-150mm
2.Label length:15-100mm
3.Products Diameter:
Length: 20mm-200mm
Height: 20mm-150mm
Thickness: 0.2mm-120mm
4.Max Outside diameter of label roll: φ340mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 50pcs /min
7.Accuracy of labeling:±0.5mm
8.Power: 220V/110V 50/60Hz    145W
9.Air Pressure: 4-6bar   or  0.4-0.6Mpa
10. Machine Net Weihgt : 55KG
11.Machine Dimension: 850mm x 410mm x 720 mm

12.Packing Size:950*670*940mm Wooden Case (Add Code Printer)

Tabletop Flat Labeling MachineTabletop Flat Labeling MachineTabletop Flat Labeling Machine
