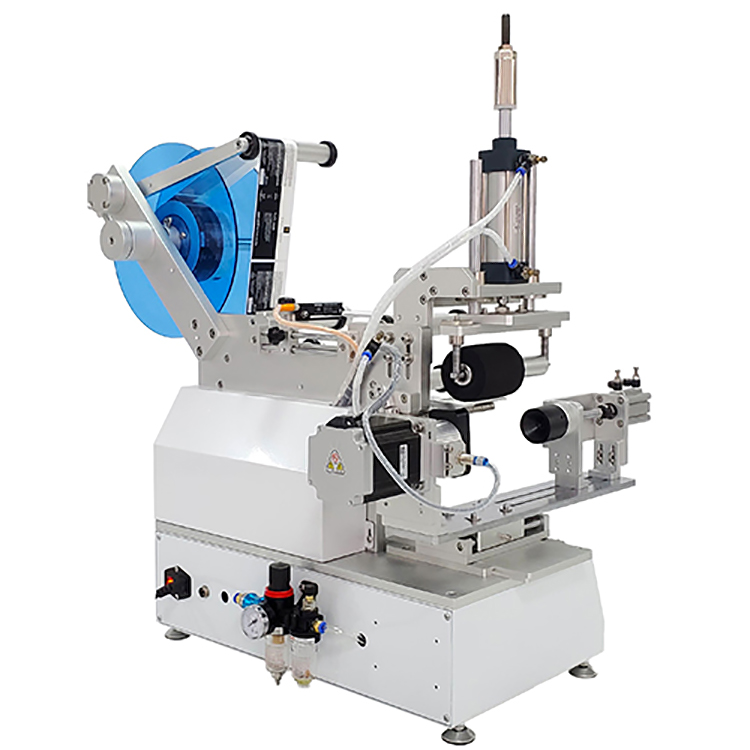

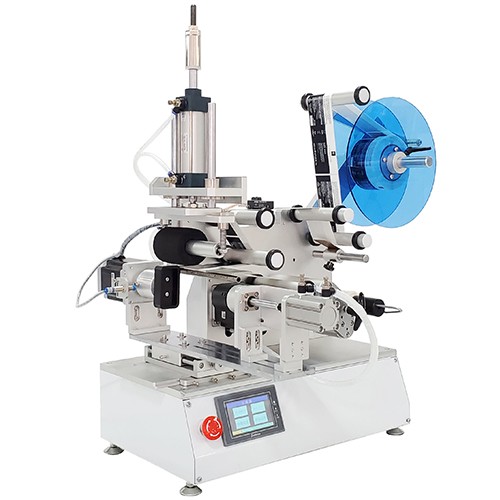

Semi Automatic Square Bottle Labeling Machine

  • Semi Automatic Square Bottle Labeling Machine
  • Semi Automatic Square Bottle Labeling Machine
  • Semi Automatic Square Bottle Labeling Machine
  • Semi Automatic Square Bottle Labeling Machine
  • Model Number: LM-805
  • Product price: US$:negotiated
  • Category: Semi Auto Labeling Machine
  • Views: 7575
  • Product Description:Semi Automatic Square Bottle Labeling Machine
  • PRODUCT DETAIL
  • Video

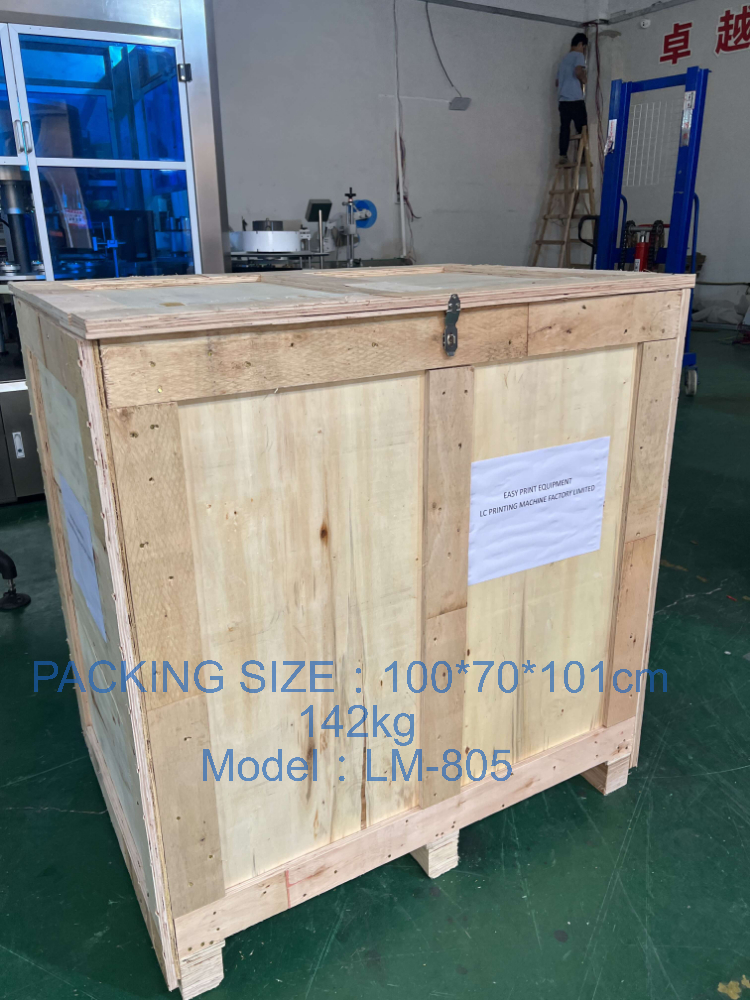

  • Packing Photo

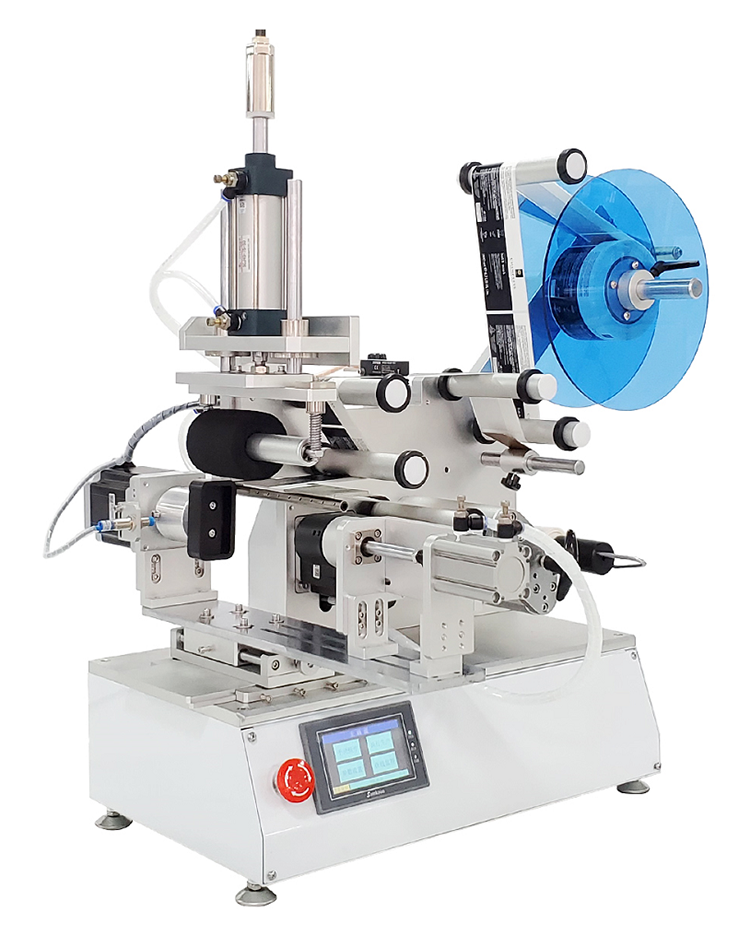

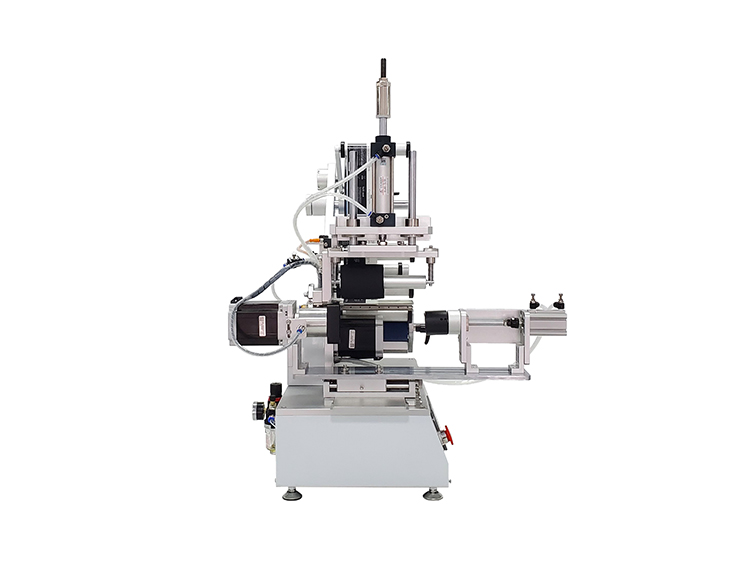

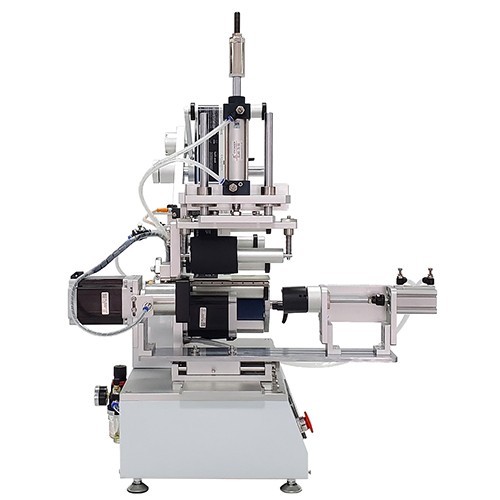

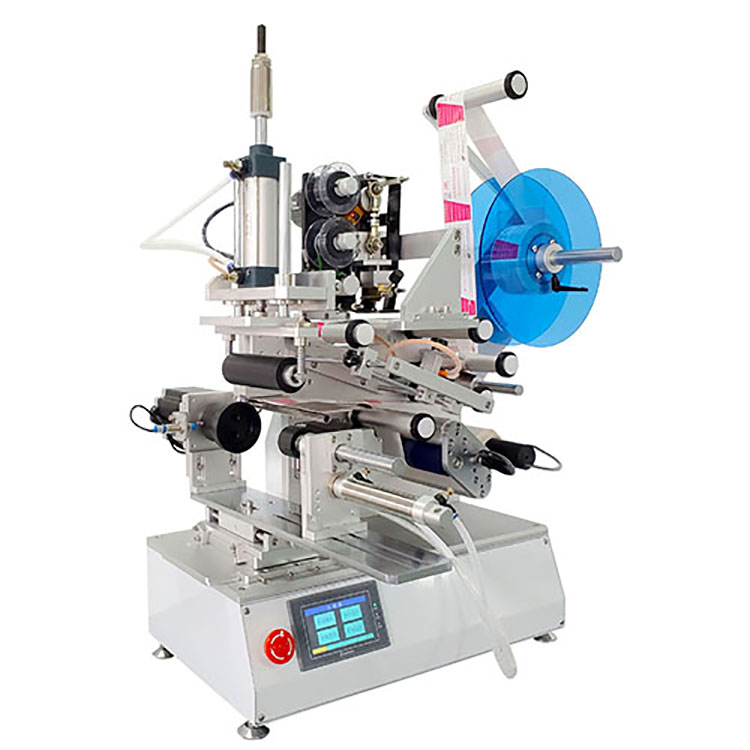

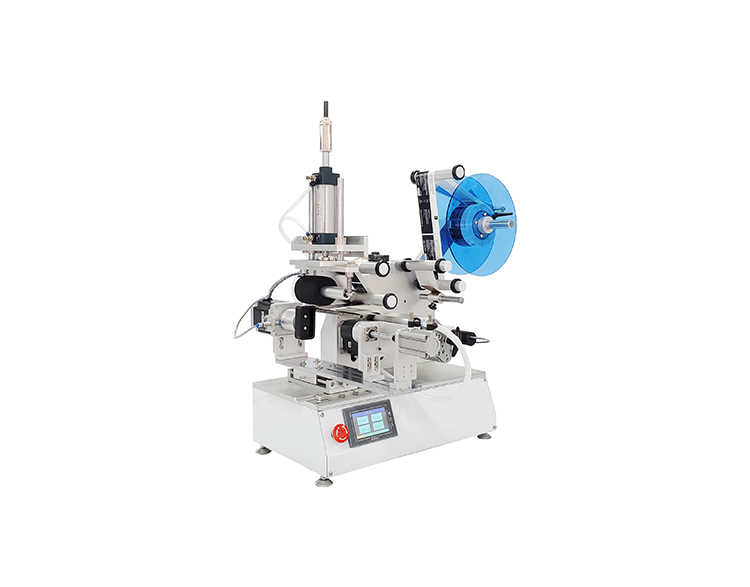

Product name:Semi Automatic Square Bottle Labeling Machine

Model Number: LM-805

1.     Basic information:

Semi- automatic square bottle Labeling Machine

1 Labeling Accuracy:±0.5mm (errors caused by product and label are not concerned)

2Labeling Speed: 15-30pcs/mininfluenced by the size of the product and label);

3Applicable Product(mm): L 20mm200mm W 20mm150mm H 5mm120mm

4Applicable Label: L 15mm200mm W(release paper height)20mm150mm

5Applicable Label Roll:Inner diameter 76mm Outer diameter≤260mm

6Device Dimensions:about 950mm×780mm×900mmlength×width×height

7Power:220V/50HZ; 660W

8Weight:about 60KG

9:  Gross Weight:100KG

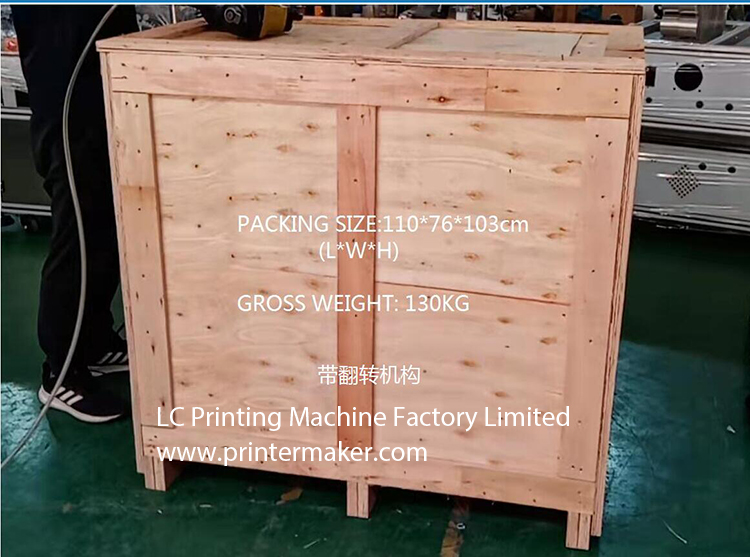

10: Packing Size:960*630*1050
11: Add Double sided labeling for square bottles Gross Weight:120KG
12: Add Double sided labeling for square bottles Packing Size:1020*800*950

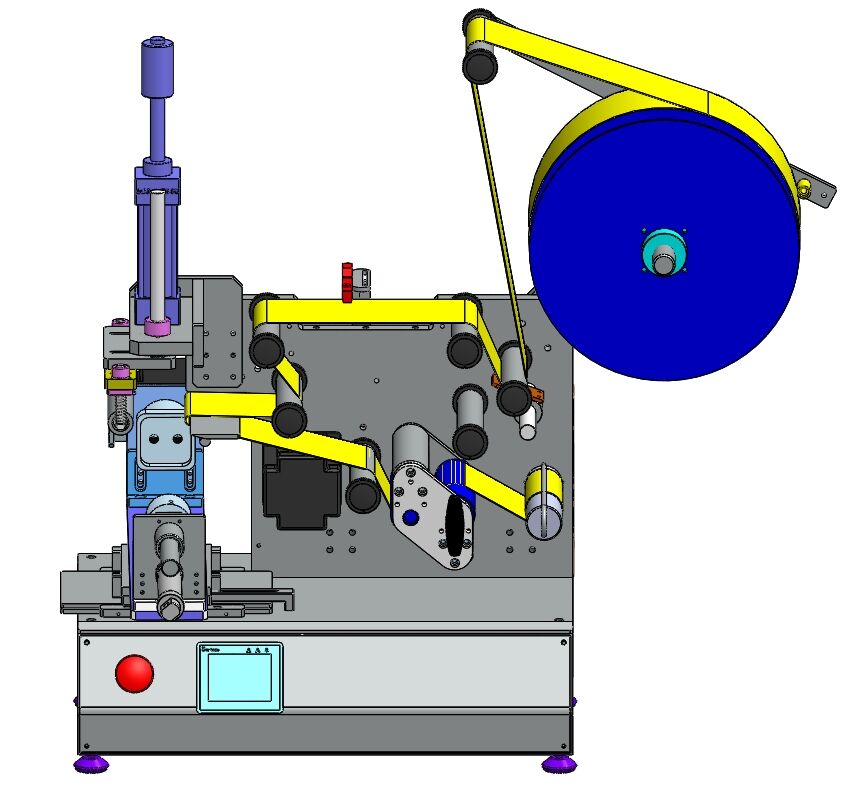

II、List of Standard Configurations

1.Major Mechanical Configurations

Name
Material
Function

Label Tray


Aluminium alloy Acrylics


Place the label roll,

the tray roll to send

the label out .



Pressing Plate


Silica gel


Keep balance of the label

Traction Device


Aluminium alloy;Stainless steel


Driven by a stepper motor,drawing the label out



Roller


Aluminium alloy


maintain the tension of the label



Label Sensor


Datasensor(Italy)


Detect the label to control the label

be peeled one by one



Label-peeling Plate


Stainless Steel


When the label pass the plate,

the label and release paper are

separated:the label stick to the

bottle while the release paper

keep moving.


Release paper Recycling Device


Stainless Steel


Recycle the release paper



Electric Box


Metal plate


Place electronic configurations

like power,PLC,relay,motor

driver,gas valve.



Air Cylinder



Drives the strengthening devic

Strengthening device
Rubber Rod/High-density foam
Make label stick tighter

Jig

Aluminium alloy;Stainless Steel


left part is driven by a motor,

right part is driven by a cylinder;

2 parts work together to fix products

from 2 ends,usually be customized

for round/square bottle wrap around labeling.


Conveyor

Driven by a stepper motor to do flat labeling.

Foot Switch



Press the foot switch to start labeling

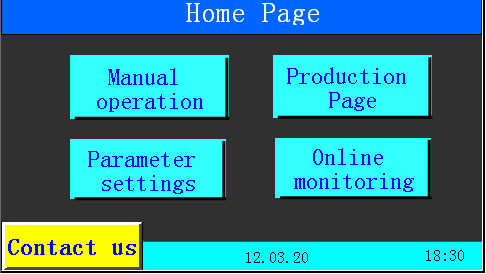

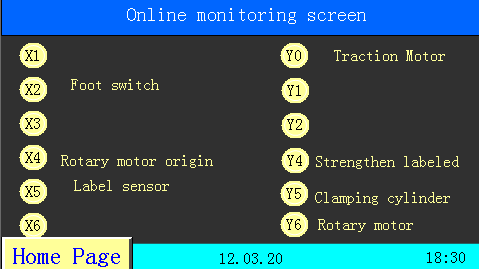

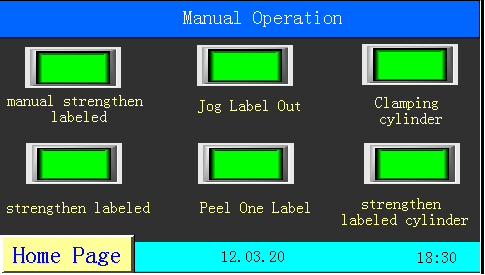

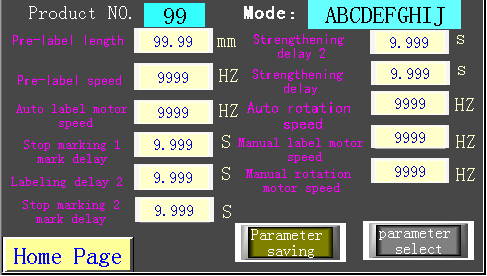

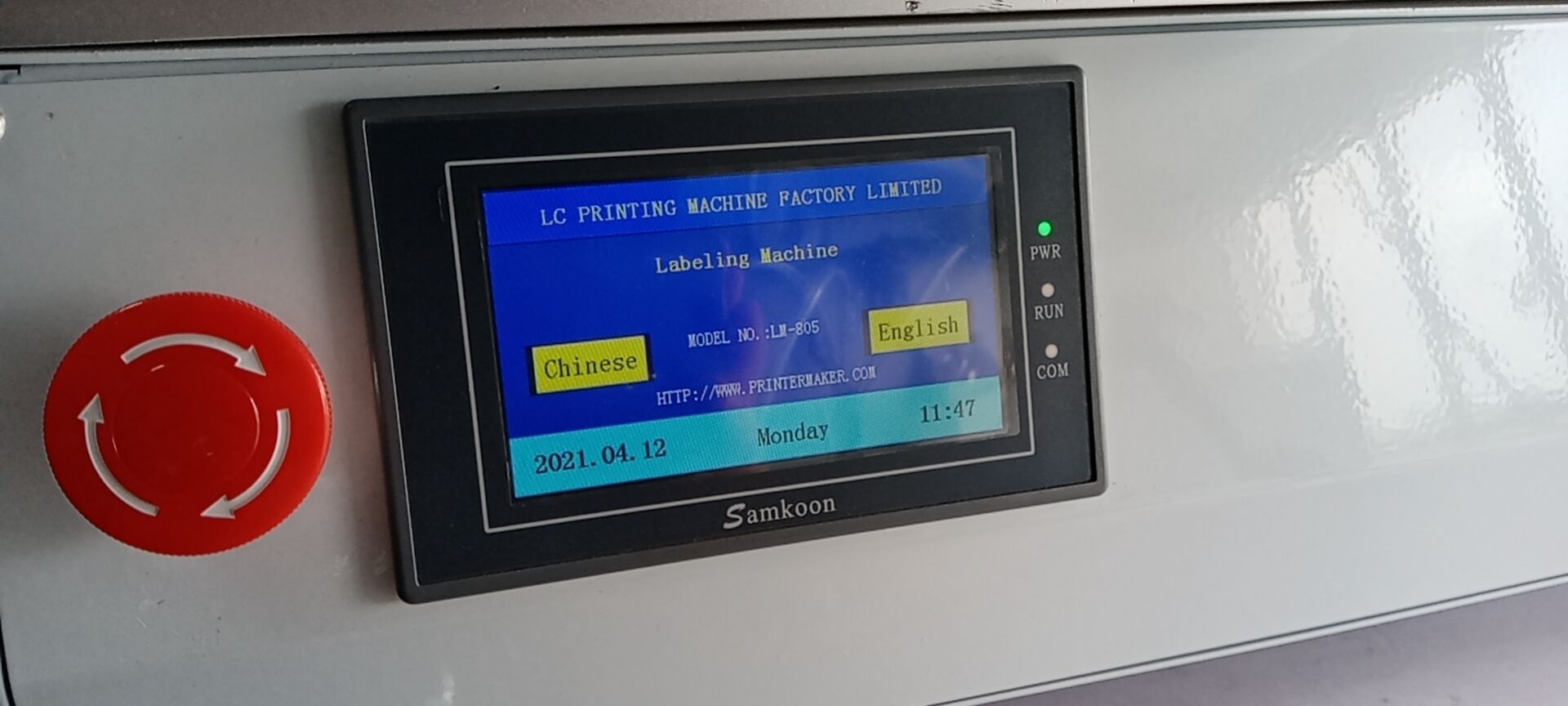

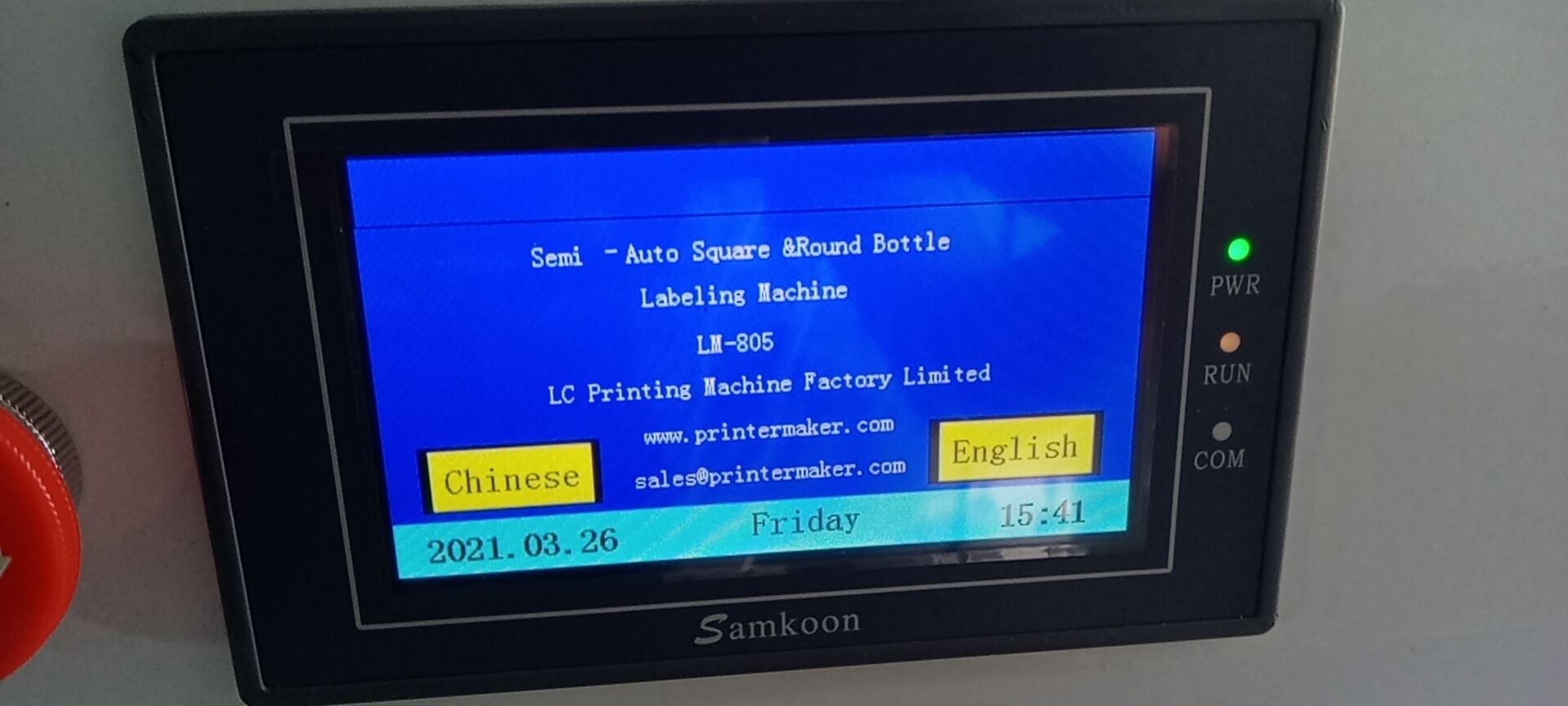

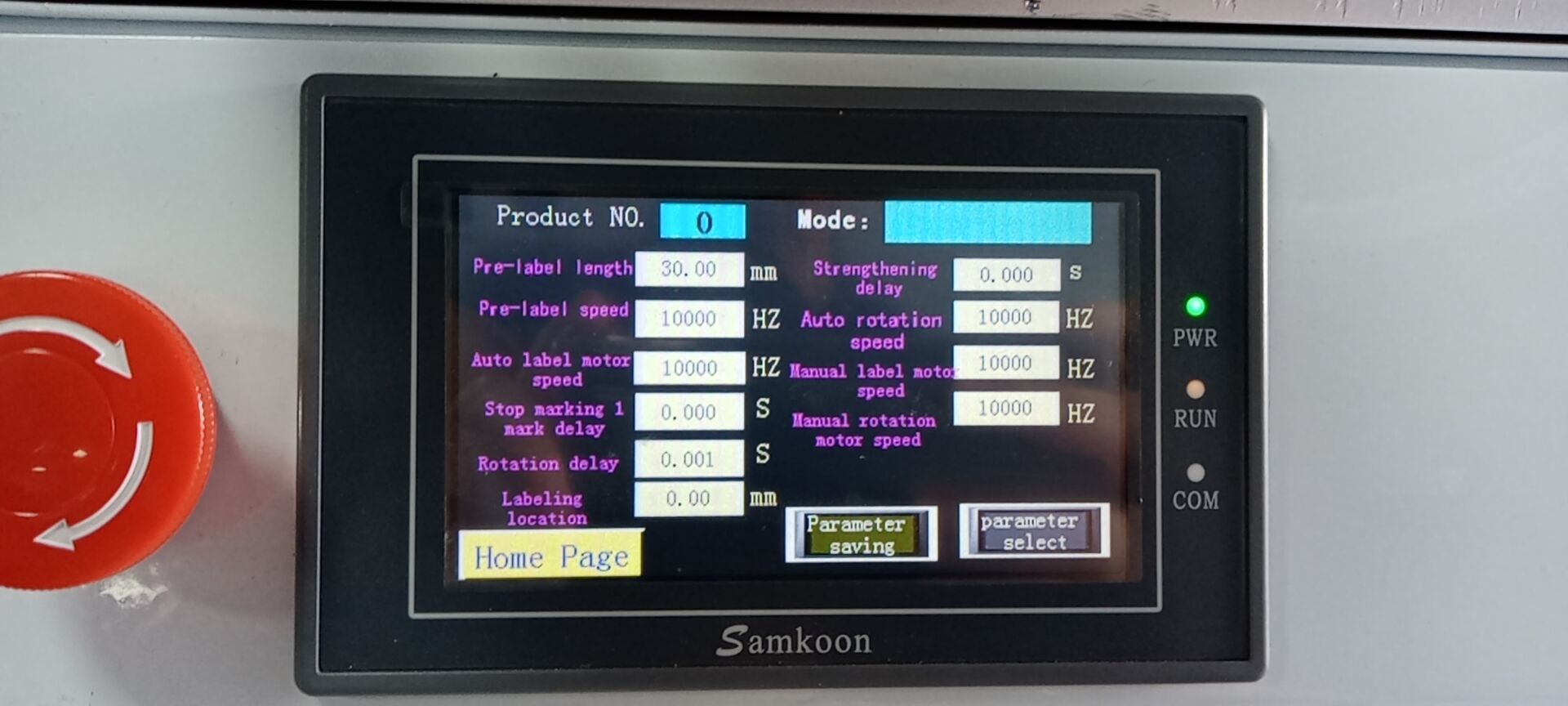

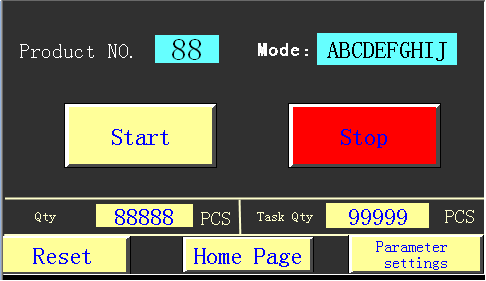

Touch Screen



Control machine and Set parameters here

2.Electric Configurations

Name

Brand

Quantity

Country

Label Sensor

SICK

1

Germany

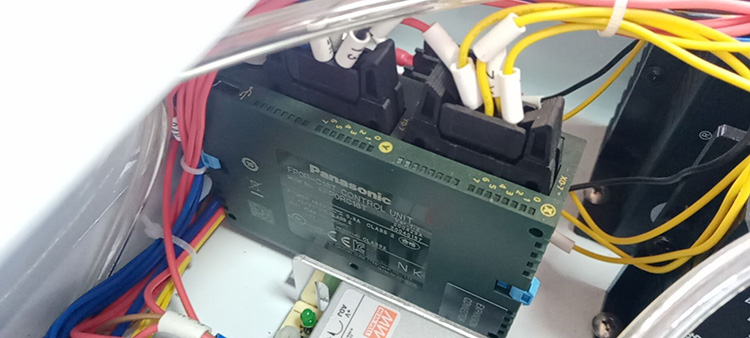

PLC

Panasonic

1

Japan

Traction Motor

Leisai

1

China

Jig Motor

Leisai

1

China

Power

Mingwei

1

China Taiwan

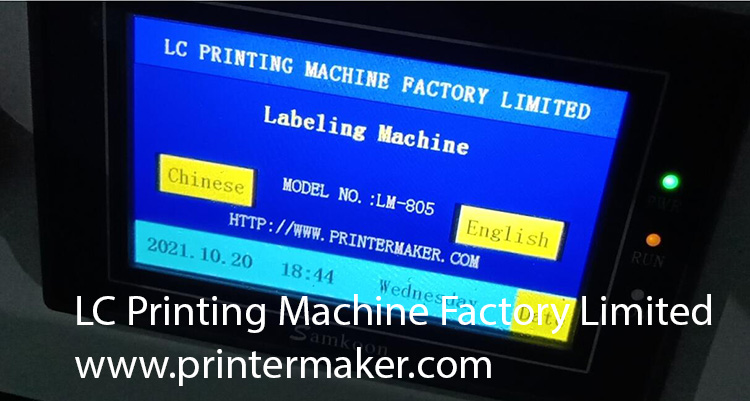

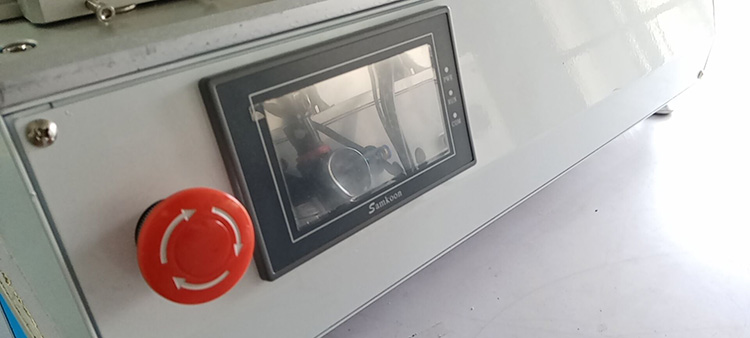

Touch Screen

Samkoon

1

China

Air Cylinder

Xingchen

1

China

III Transaction Details:

1.About Payment:30% deposit and 70% before delivery.

2.About Delivery Date:Delivery within 10 days after the seller confirming deposit receipt.

3.About Installment:the machine would be adjusted before delivery,instruction manual and video would be sent as well.

IV About After-sale Service

(1)One year machine warranty and lifetime maintenance.We guarantee to replace the broken parts caused by quality problem free of charge,not including the quick-wear parts.We will charge fees for maintaining after 1 year.

(2)We will be your lifetime machine spare parts and technology provider.
