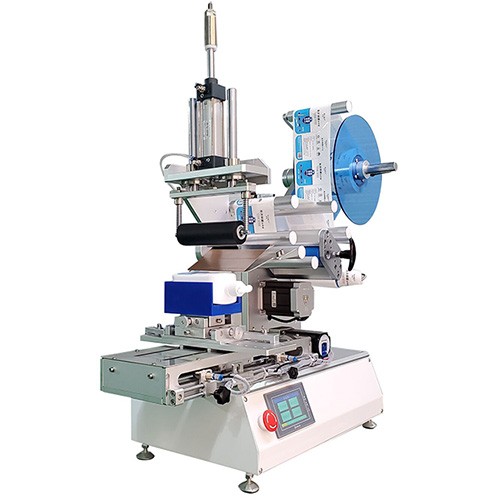

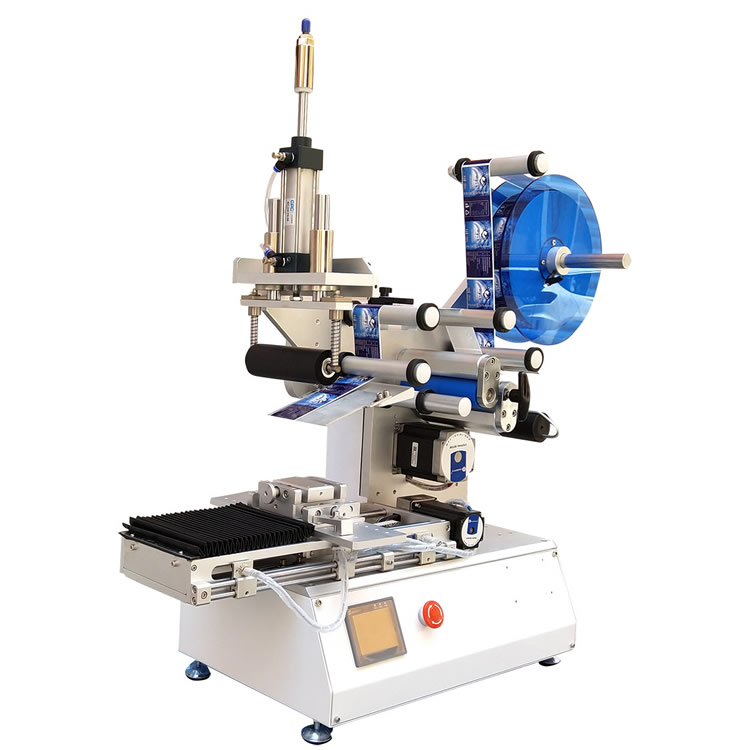

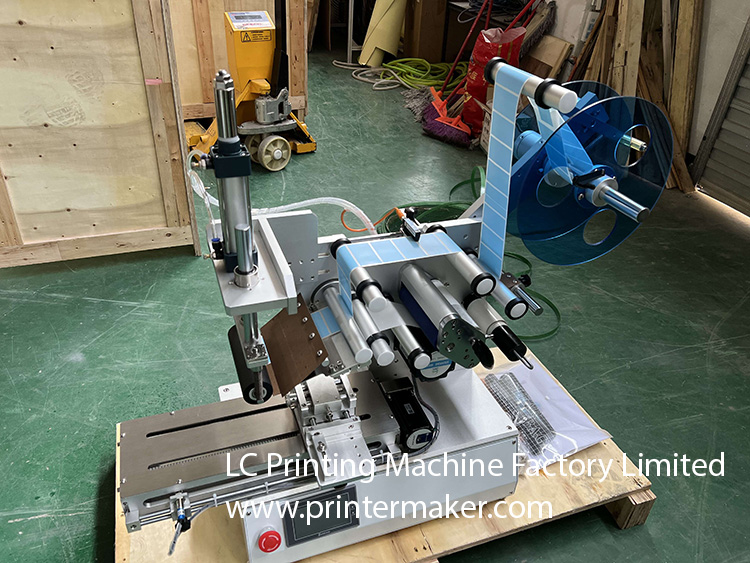

Semi Automtic Rollinane Labeling Machine

Product name:Semi Automtic Rollinane Labeling Machine

Model Number: LM-803

Application:

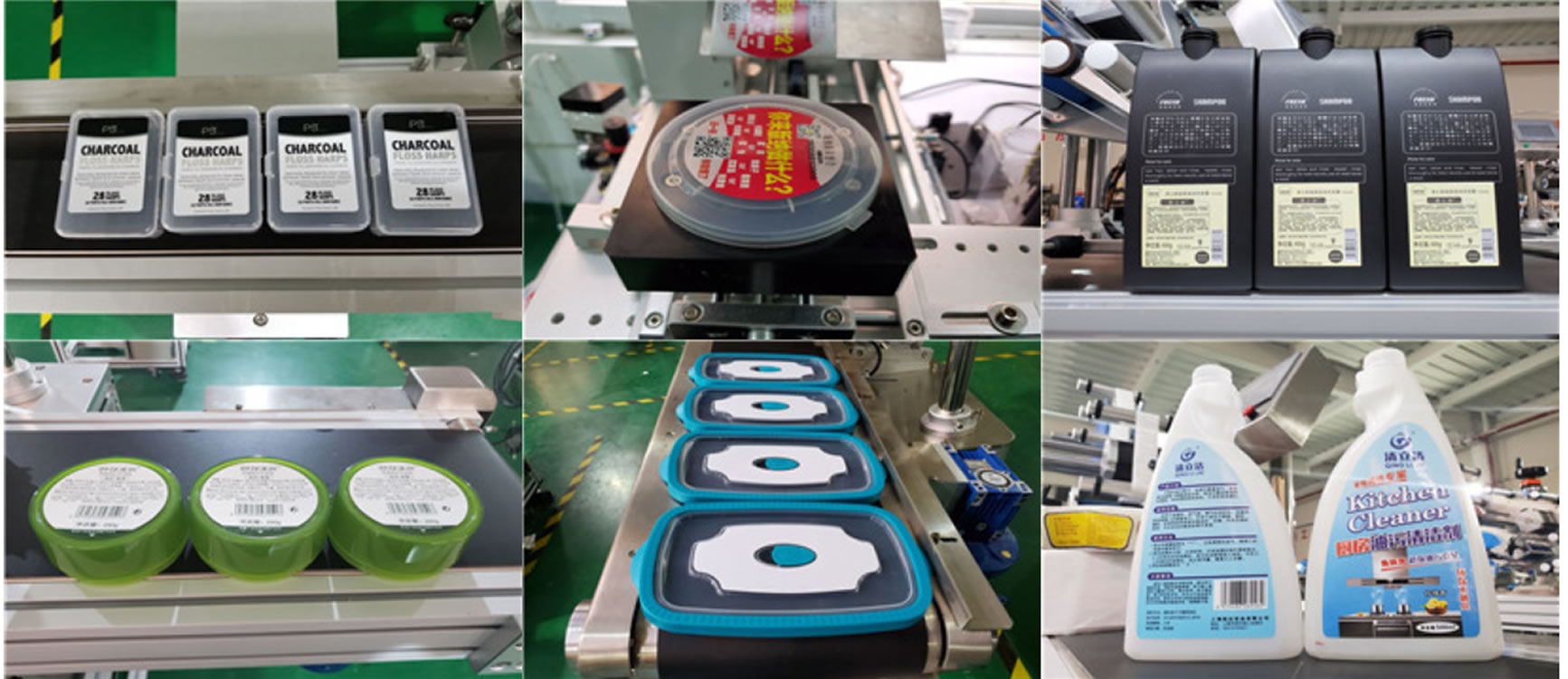

*For all kinds of flat/ slightly arc surface labeling ,such as flat bottle, cosmetics boxes, plastic cap labeling, etc.

*Date printer can be added to printer production date ,batch lot and expiry date while labeling.

*Widely used in food, cosmetic, chemical, pharmaceutical and other industries.

*support customization.

Parameters：

Parameters	Date
Label specification	Adhesive, sticker, transparent or opaque
Labeling Tolerance	±0.5mm
Capacity(pcs/min)	15~30
Suit bottle size(mm)	L:20~120W:20~180H:0.2~75,can be customized
Suit label size(mm)	L:15~300; W(H):15~130
Machine size(L*W*H)	≈880*540*880(mm)

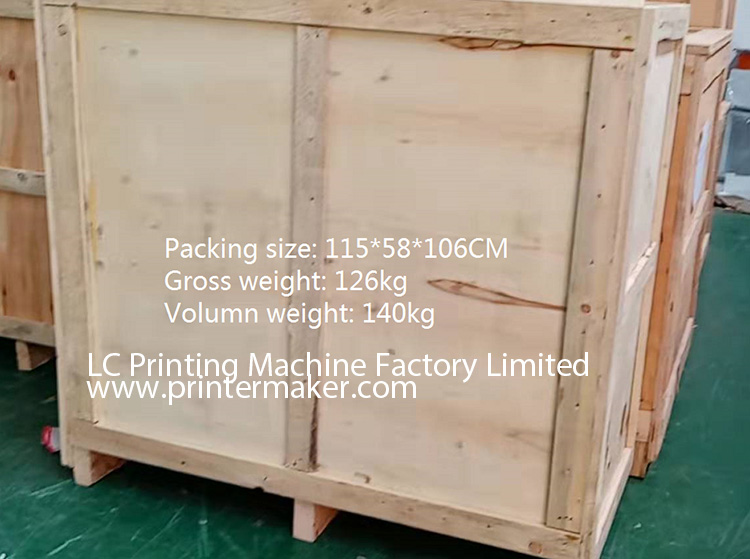

Pack size(L*W*H)	≈960*580*930(mm)
Voltage	220V/50HZ; can be customized
Power	330W
N*W(kg)	≈58
G*W(kg)	≈73
Label roll	ID:φ76mm;OD:φ300mm
Air supply	0.4~0.6Mpa

Features:
1) Control system: Japanese Panasonic control system, with high stability and extremely low failure rate.
2) Operation System: Color touch screen, directly visual interface easy operation, Chinese and English available, Easily to adjust all electrical paramete
counting function, which is helpful; for production management.
3) Detection System: Using German SICK label sensor and Japanese Panasonic sensor, which are sensitive to label and product, thus ensure high acc
labeling performance , Greatly saves labor.
4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance a
6) Equipment with a voltage transformer to adapt to local voltage.
