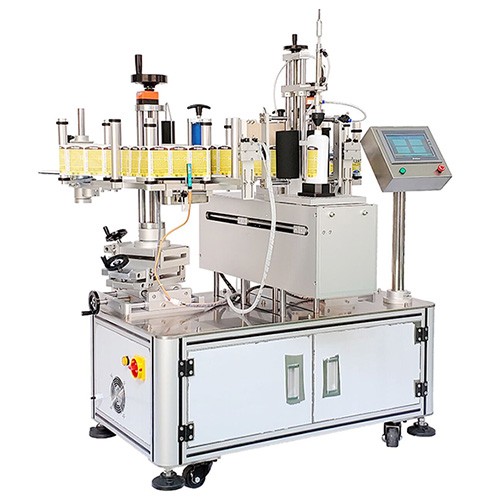

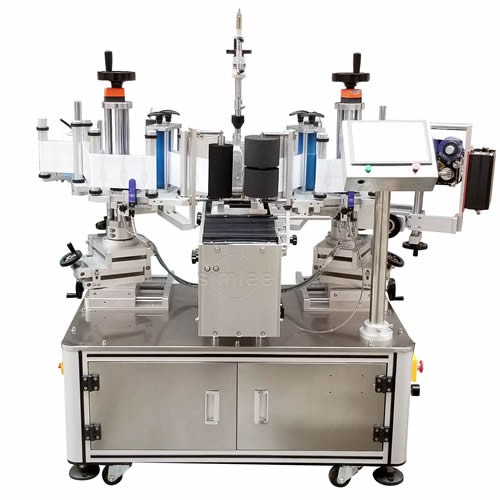

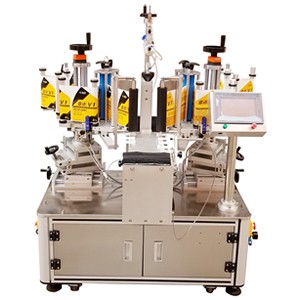

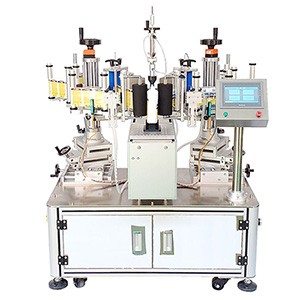

Semi Automatic Double Side Labeling Machine

  • Semi Automatic Double Side Labeling Machine
  • Semi Automatic Double Side Labeling Machine
  • Model Number: LM-806
  • Category: Semi Auto Labeling Machine
  • Views: 354
  • Product Description:Semi Automatic Double Side Labeling Machine
  • PRODUCT DETAIL
  • Video

Product name:Semi Automatic Double Side Labeling Machine

Model Number: LM-806

Application;

*For all kinds of double side labeling ,such as flat bottle, cosmetics boxes, plastic cap labeling, etc.

*Date printer can be added to printer production date ,batch lot and expiry date while labeling.

*Widely used in food, cosmetic, chemical, pharmaceutical and other industries.

*support customization.

Parameters:

Parameters
Date
Label specification
Adhesive, sticker, transparent or opaque
Labeling Tolerance
±0.5mm
Capacity(pcs/min)
15~30
Suit bottle size(mm)
L:50~350W:20~200H:50~400,canbe customized
Suit label size(mm)
L:20~100; W(H):15~110
Machine size(L*W*H)
≈1220*1250*1470(mm)
Pack size(L*W*H)
≈1280*1300*1500(mm)
Voltage
220V/50HZ; can be customized
Power
780W
N*W(kg)
≈270
G*W(kg)
≈350
Label roll
Air supply
0.4~0.6Mpa
Features:
1) Control system: Japanese Panasonic control system, with high stability and extremely low failure rate.
2) Operation System: Color touch screen, directly visual interface easy operation, Chinese and English available, Easily to adjust all electrical paramete
counting function, which is helpful; for production management.
3) Detection System: Using German SICK label sensor and Japanese Panasonic sensor, which are sensitive to label and product, thus ensure high acc
labeling performance , Greatly saves labor.
4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance a
6) Equipment with a voltage transformer to adapt to local voltage

Semi Automatic Double Side Labeling Machine

Semi Automatic Double Side Labeling Machine
