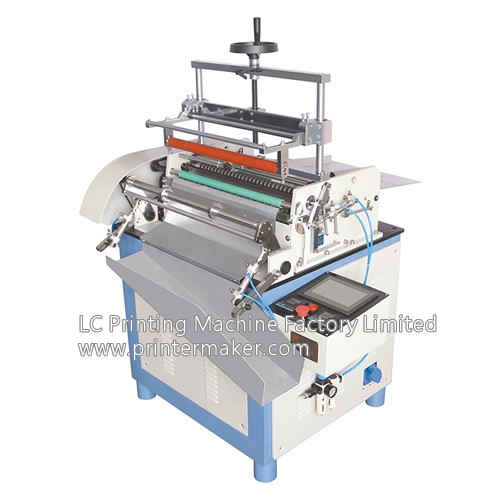

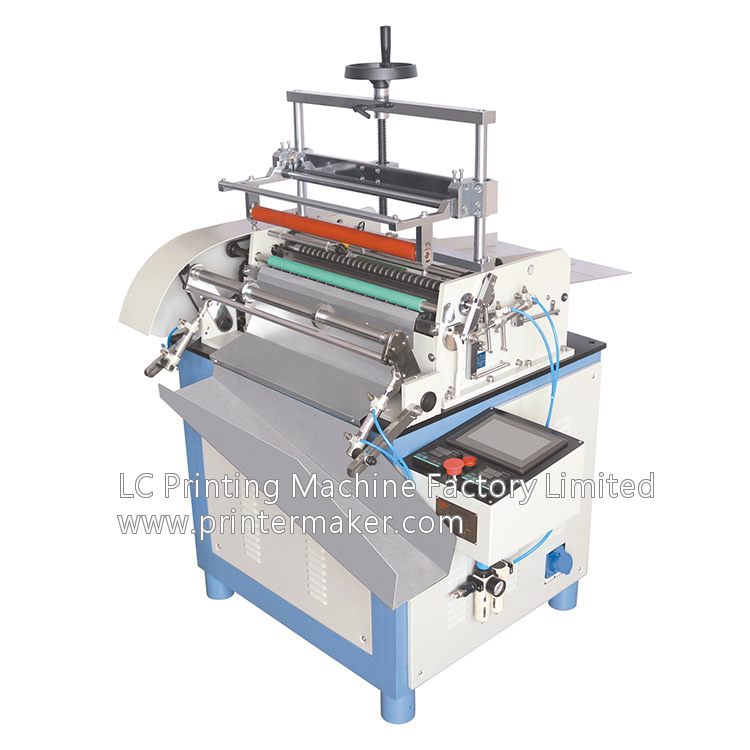

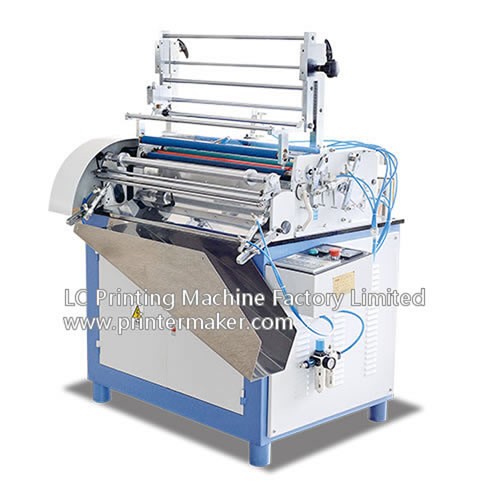

Semi-Auto Hot melt Paper tube labeling machine

  • Semi-Auto Hot melt Paper tube labeling machine
  • Semi-Auto Hot melt Paper tube labeling machine
  • Semi-Auto Hot melt Paper tube labeling machine
  • Model Number: LM-A2
  • Category: Semi Auto Labeling Machine
  • Views: 64
  • Product Description:paper tubes hot melt glue labeling machine, food paper tubes glue labeling machine, badminton cone tube glue labeling machine, paper tube hot melt glue lableing machine
  • PRODUCT DETAIL
  • Video

Product name:Semi-Auto Hot melt Paper tube labeling machine

Model Number: LM-A2

Machine Parameter
1:Min-diameter: 32mm
2:Max-diameter: 200mm
3:Min width of the label:60mm
4:Max width of the label: 500mm (600mm optional)
5:Productivity:15-35Pcs/Min
6:Operator: 1Person
7: Input power: Custom
8: Unload mode: Automatically
9: Gross Weight: 370Kgs
10: Size(L*W*H): 1100*1070*1500mm
11: Motor power: 120W 1:12 BEILUN
12: Heating power: 3.5KW
13: The motor of label feeding: 0.75KW
14: Motor rotating speed: 1300R/Min
15: Air Cylinder: AIRTAC
16: Human-computer interface: XINJIE integral
17: Working air pressure:0.4-0.8KPA
18: Magnetic valve: XENO
19: Actuator: CHINT
Features:
1: It is mainly used for labeling of paper tube labels, which can be used for gluing all or
gluing on both ends.
2: No need to change any mold parts, just adjust the positioning of the label and tube
and set the specification data through the human-machine interface touch to complete
the adjustment.
3: In operation, it is only necessary to put the labels into the standard library in batches.

The photoelectric automatic detection of the paper tube, the marking, the gluing, the labeling,

and the automatic drop tube are automatically completed by the machine for one second.

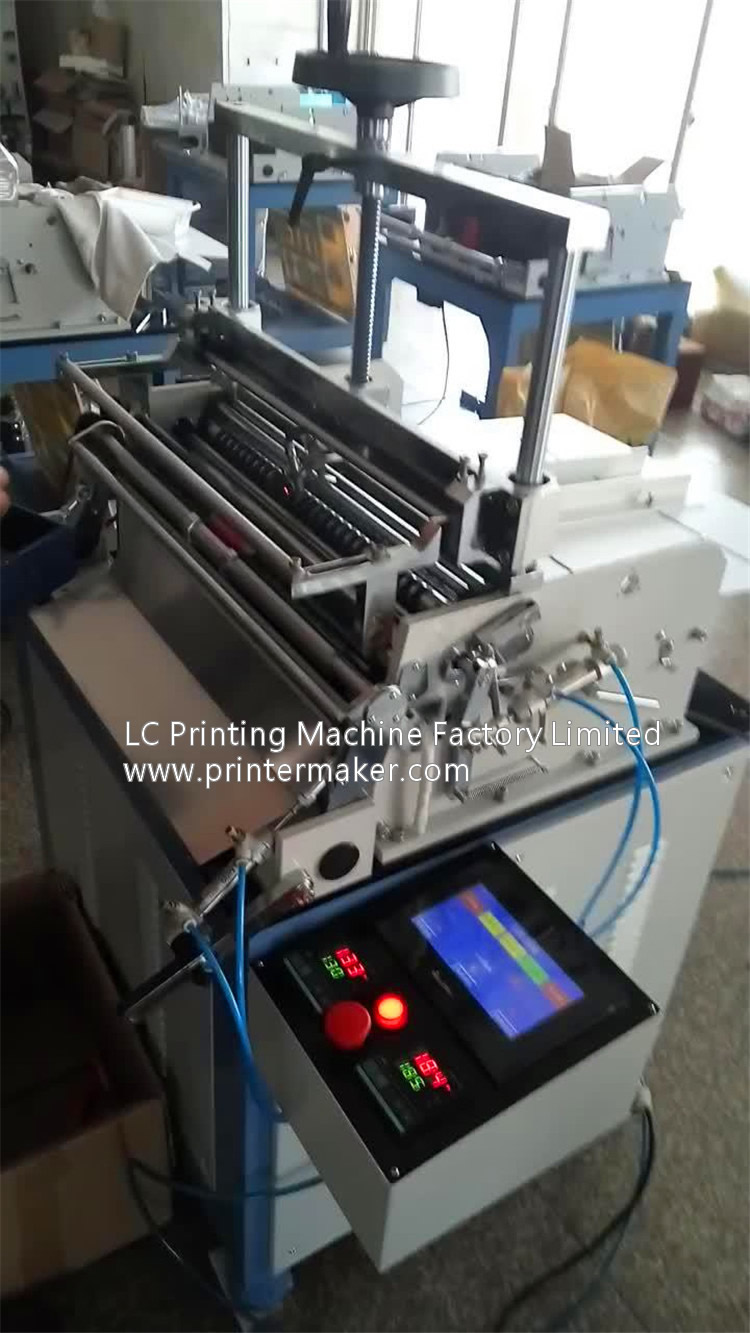

4:It adopts PLC control system and touch screen, set up, and operate is easily.

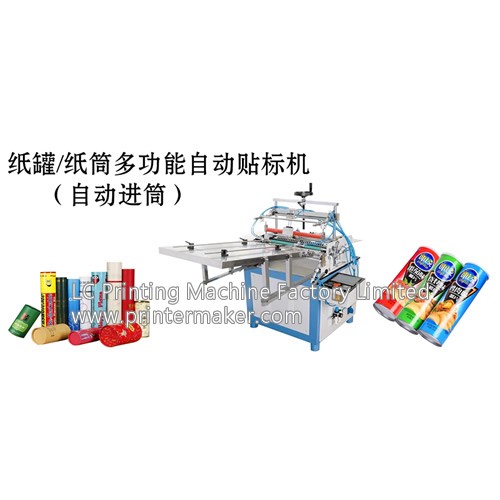

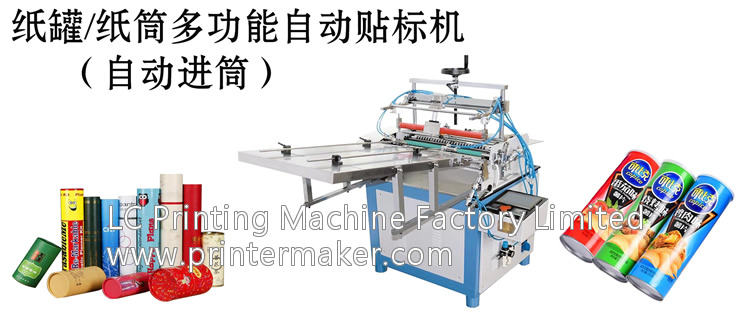

Application: It is designed and used for all those cylindrical tubes such as paper tubes, Food

paper tube, Badminton cone tubes etc.
