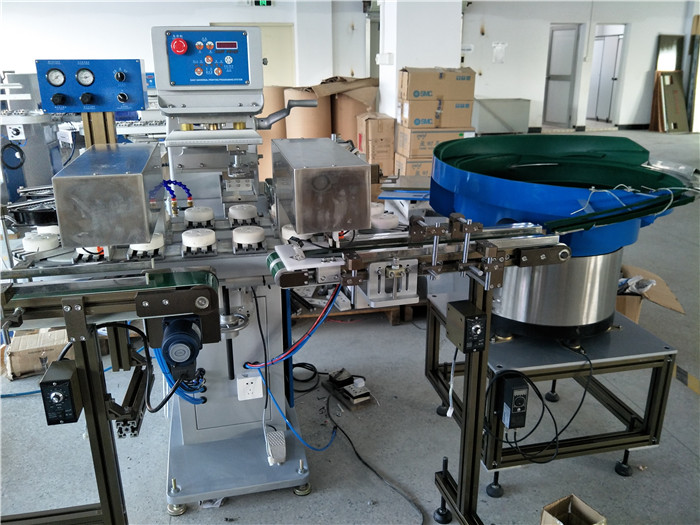

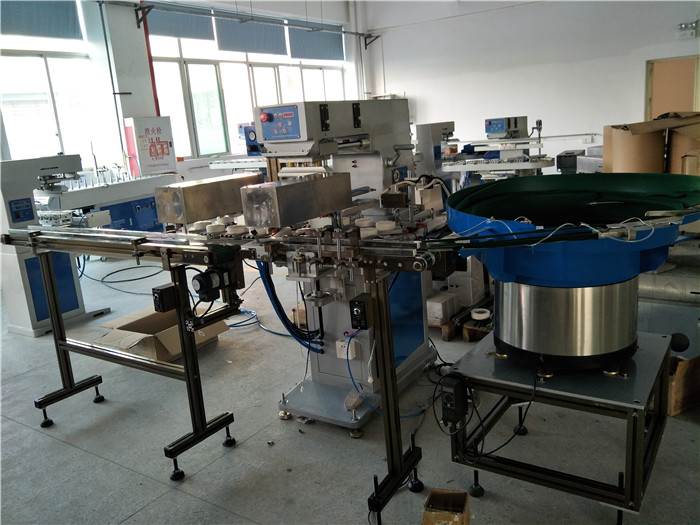

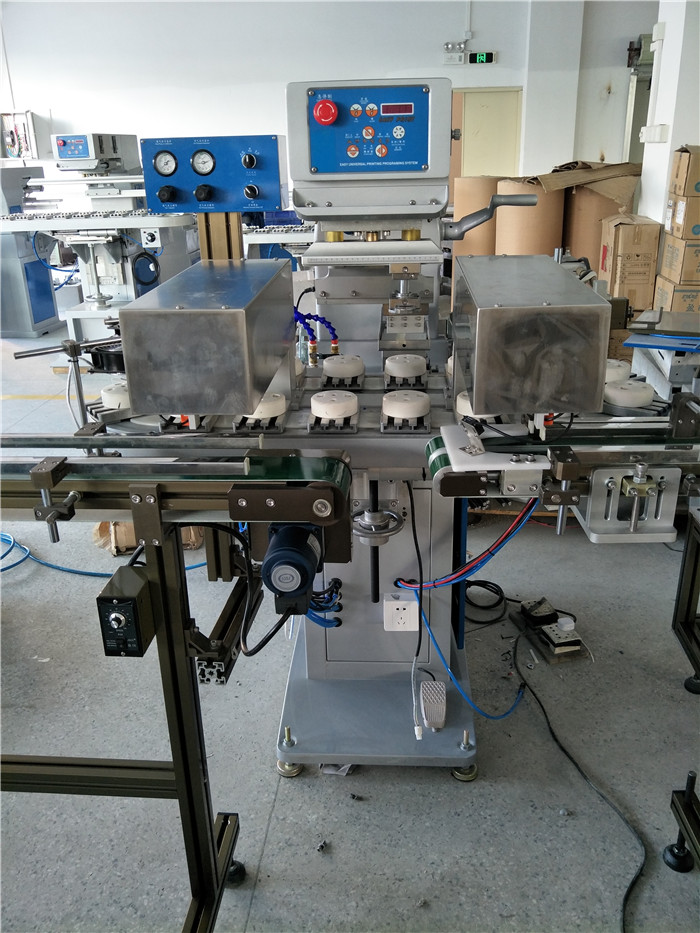

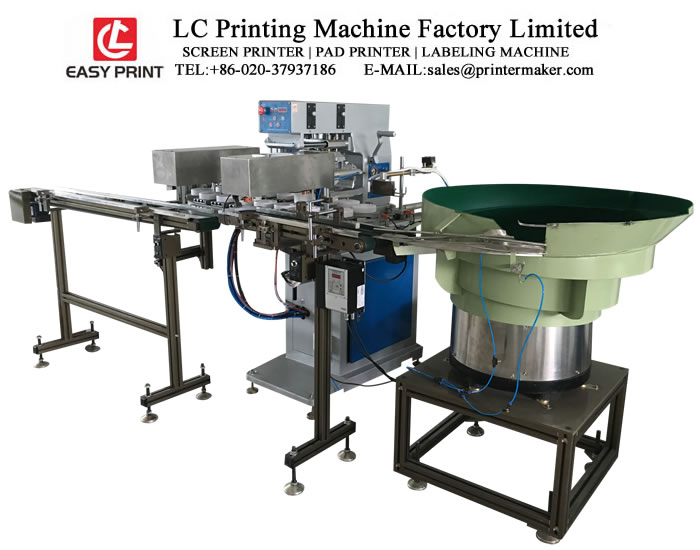

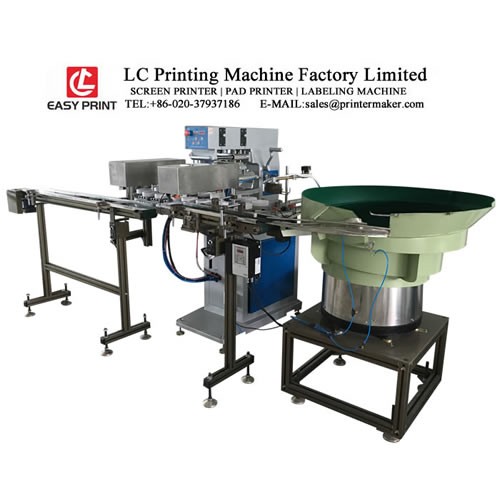

Automatic Pad Printing Machine For Plastic Cover
Specifications︰
P2/C
1.Max. plate size: 100x150mm;
2.Max. worktable area: 95x150mm;
3.Max. printing Area: 90×130mm;
4.Max Products Dimension: 100*140mm;
5.Max. printing speed: 1800pcs/hr;
6.Printable color quantity:2
7.Air consumption: 166Litre/min(5bar);
8.Dimensions: 920*700*1350mm;
9.Weight: 180Kg;

Advantages︰
1. 2-color,gear-type conveyor with 8 stations;
2. Microprocessor control for each function ;
3. 4-Digit auto counter built-in;
4. Coin aluminium structure frame ensures sturdiness;
5. ink roller used for ink applying is easy to remove and clean;
6. Independent stroke and speed adjustment for pad up/down;
7. Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
8. Adjustable printing speed meets different printing requirements;
9. Ink roller keeps working while pad doesn't lower down ;
10. Pad takes ink twice and prints once to get thicker ink;
11. Independently adjustable ink tray base,easy to overprint;
12. Auto air drying available;
13. Japan SMC Cylinder & Germany Festo Pneumactic Parts
Machine Fittings︰
1. Two plates,
2. Two pads
3. Two blades
4. A tool box.
Application:
Applicable for small round surface as well as flat surface printing, such as cell phone button,golf, toy, Pens, PC Mouse, Small electronic accessories etc
