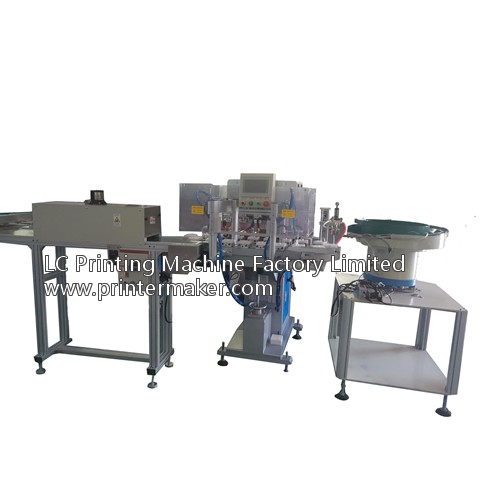

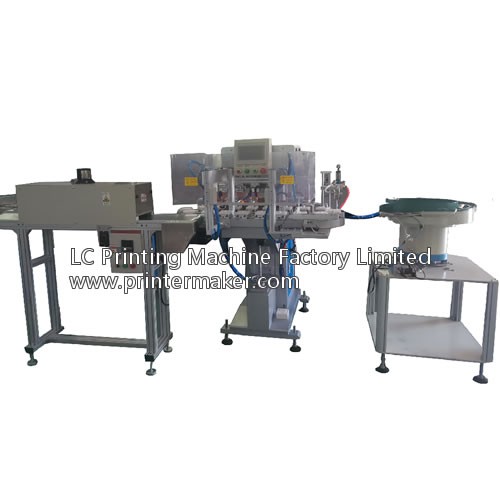

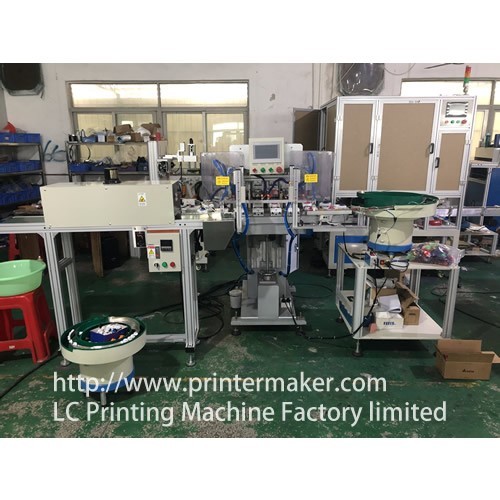

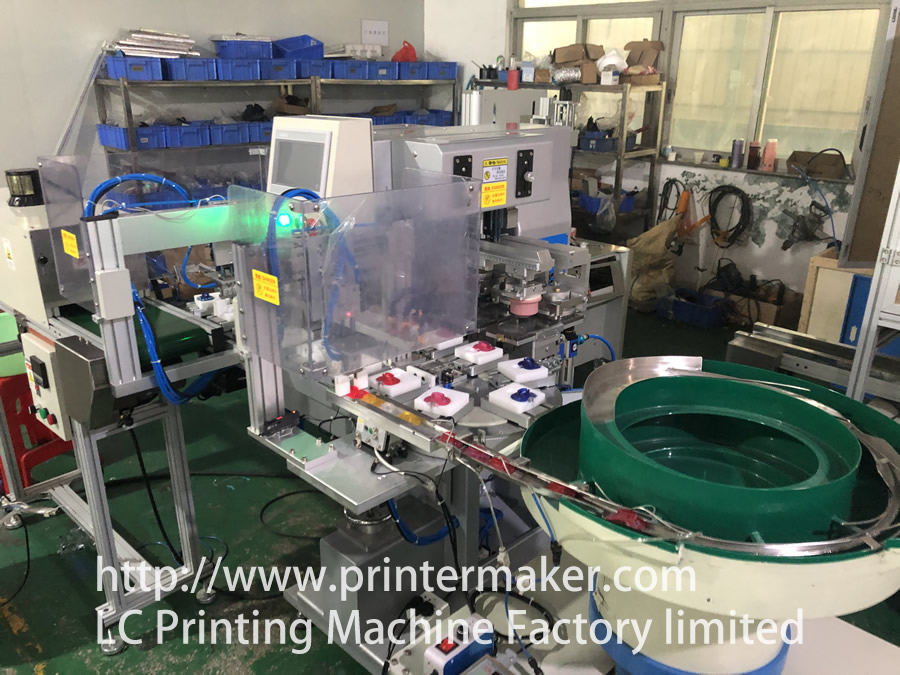

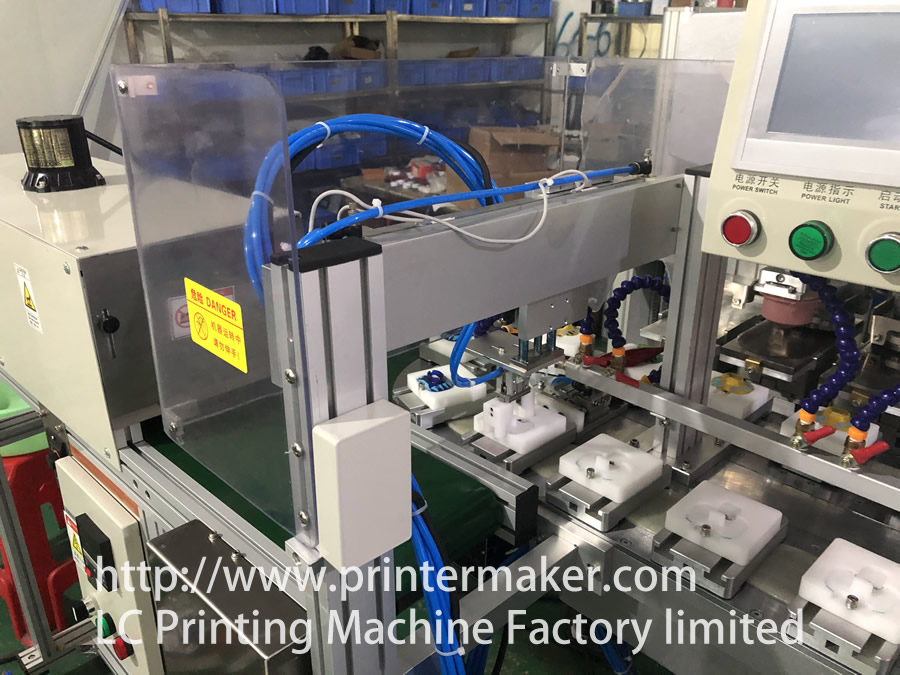

Product name:6-Color Automatic Pad Printer for pacifier shield
Model Number: M6-CP1. Maximum printing size: 75mmx100mm
2. The steel plate size: 100mmx250mmx0.5mm
3. Ink cup diameter:90mm; Ink cup center distance: 127mm
4: Ink cup front&back stroke: 150mm; Rubber pads up and down stroke: 75mm
5. printing precision: + 0.10mm
6. Turntable worktable drive: cylinder
7. Worktable guide: chain
8. Workstation workstations: 18
9. Table size: 80mm*125mm; Max. Produce height:0~80mm

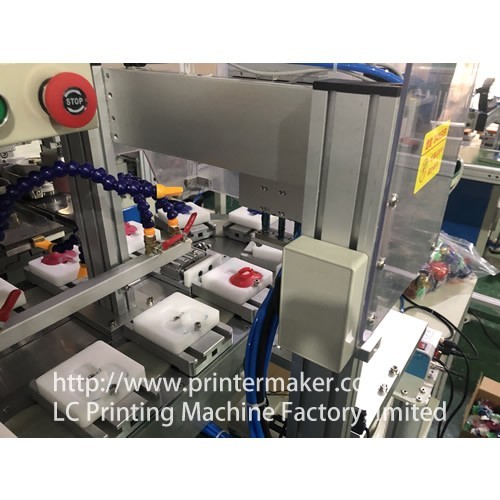

10. Positioning mode: pin positioning,
11. Capacity: 800-1000PCS/ hours
12. Working pressure: Mpa 0.5~0.6Mpa
13. Working cycle: about 5S
14. Machine platform structure: casting
15. Power supply: 220V; 50/60Hz; 3.5KW
16. Machine size: 3100*1600*1550MM
17. Machine net weight: 680KG, Gross weight: 890kg
18. Extra set of auto feeder: Optional
19: Flame treatment system, Optional
20: Drying tunnel: 1000meters length * 200mm width
21: Drying tunnel temperature: 0-100 degree
22: Packing size: 2600*1700*1750mm
Machine Feature & Configuration:

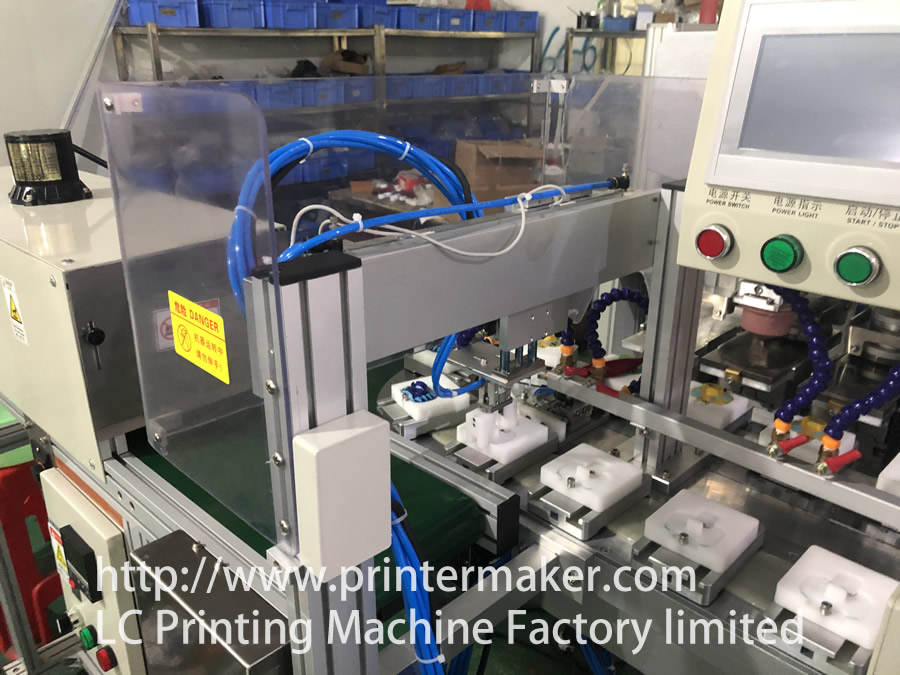

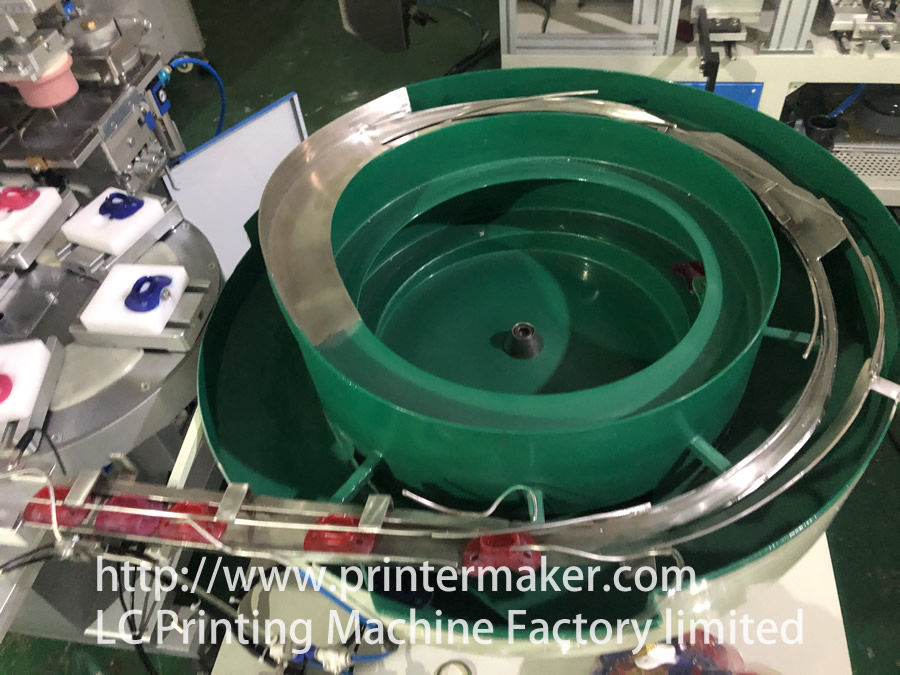

1: Automatic loading and unloading,

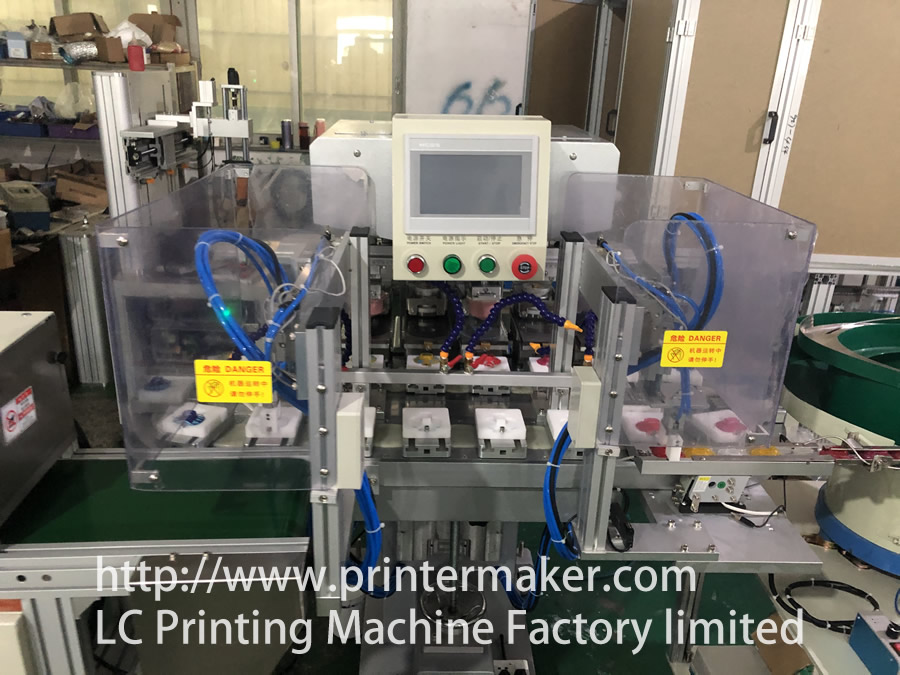

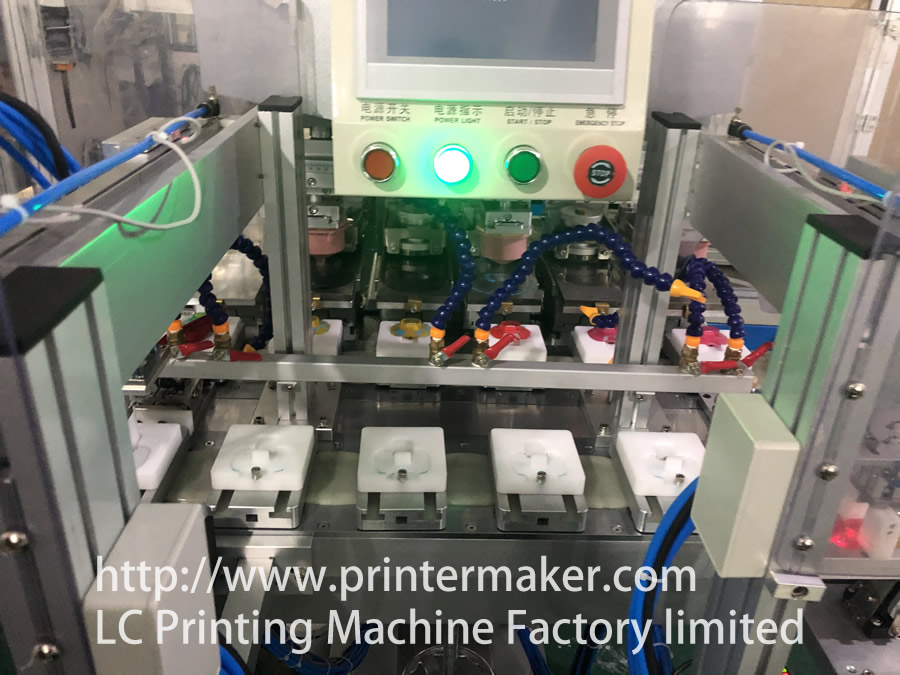

2: PLC controls each function, touch screen operation, simple and convenient.
3: Touch screen features counter,
4: Alarm list screen.
5: Ink cup system with the advantages of, ink-saving, environmental effect.
6: Printing speed is adjustable to meet different printing requirements.
Bench can be adjusted X, or Y ﹑ Z-axis direction.
7: Printed position is adjustable to accommodate different sizes of products.
8: Fuselage made of high-quality aluminum alloy, light, and durable.
9: Built-hydraulic buffers to reduce mechanical vibrations and reduce noise.
10: Flame treatment system: optional
11: Pneumatic parts are mainly used in Japan SMC and Germany Flexto Brand
12: Panasonic Brand motor
1. Six stainless steel plates,
2. Six Rubber Pad pads

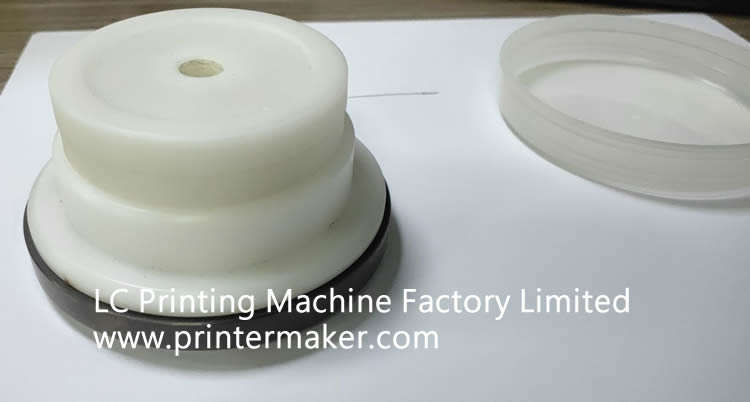

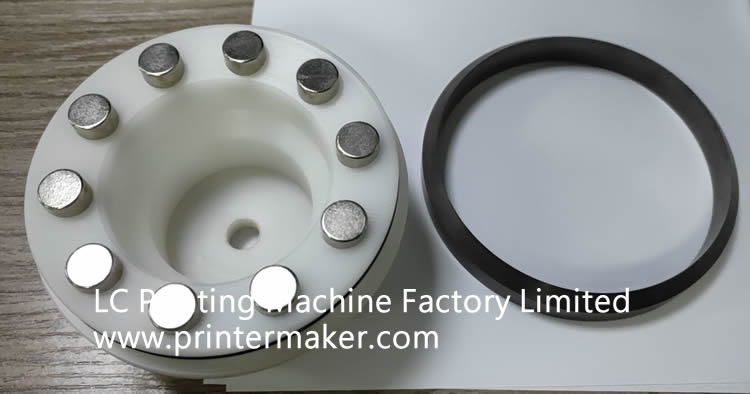

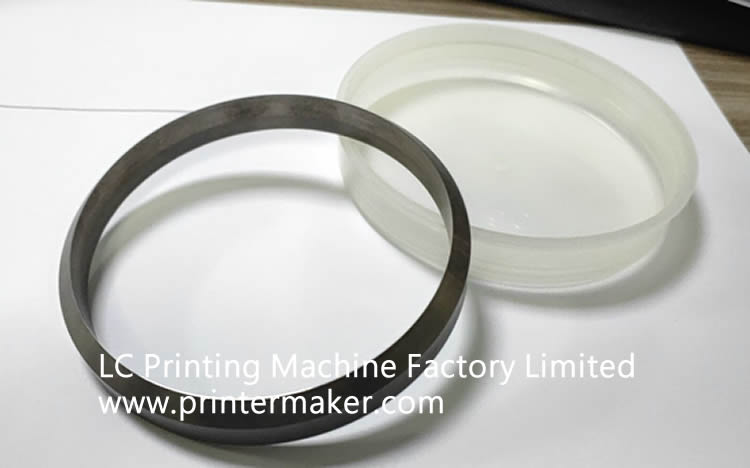

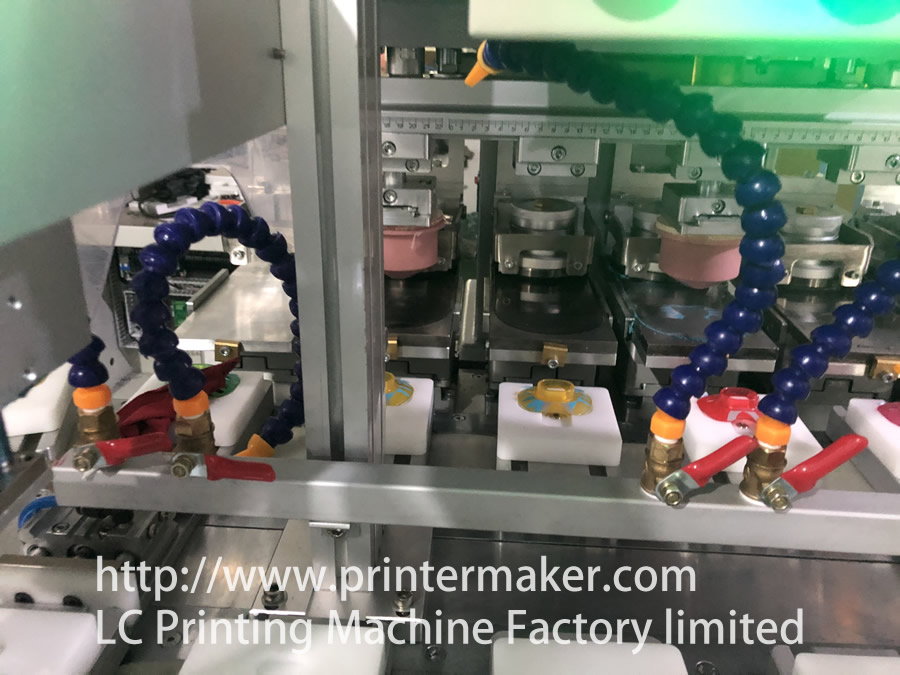

3. Six ink cups
4. A toolbox.

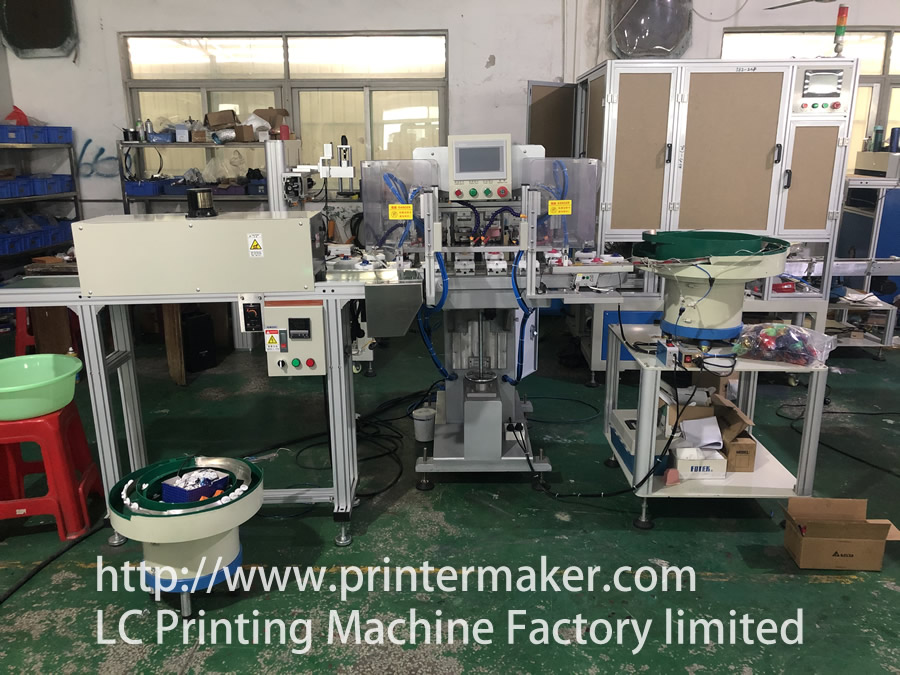

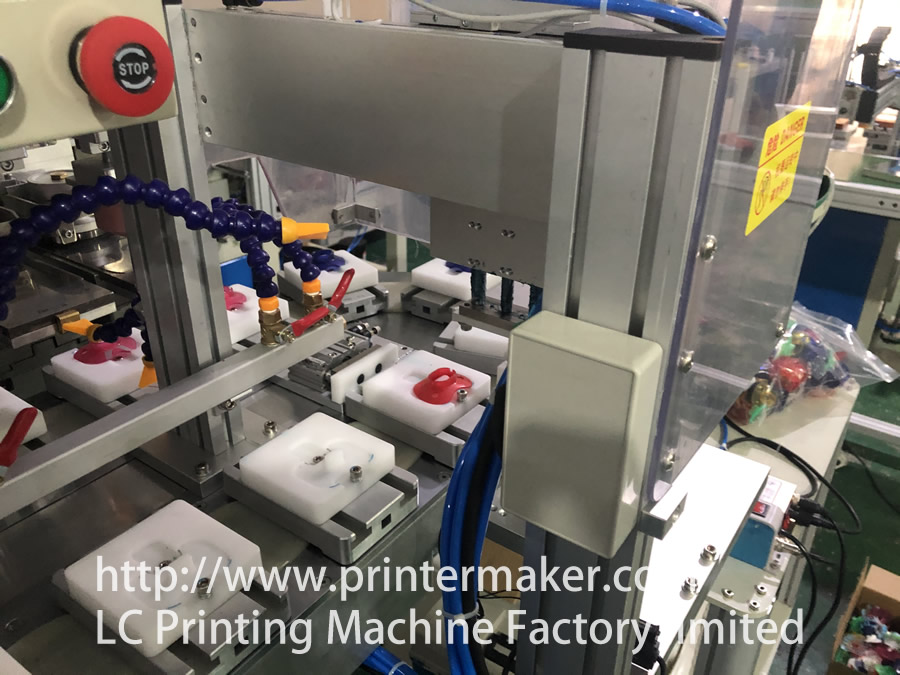

This machine is specially designed for the pacifier shield in multi-colors pad printing. It is also could be modified to
fit for other small round surfaces as well as flat surface printing,such as cell phone button, golf, toy, Pens, doll head,
PC Mouse, Small electronic accessories etc
