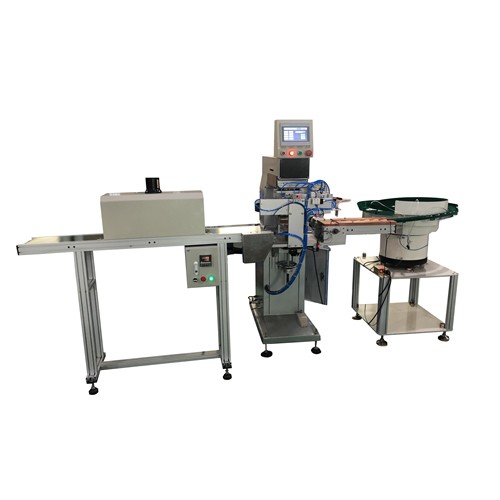

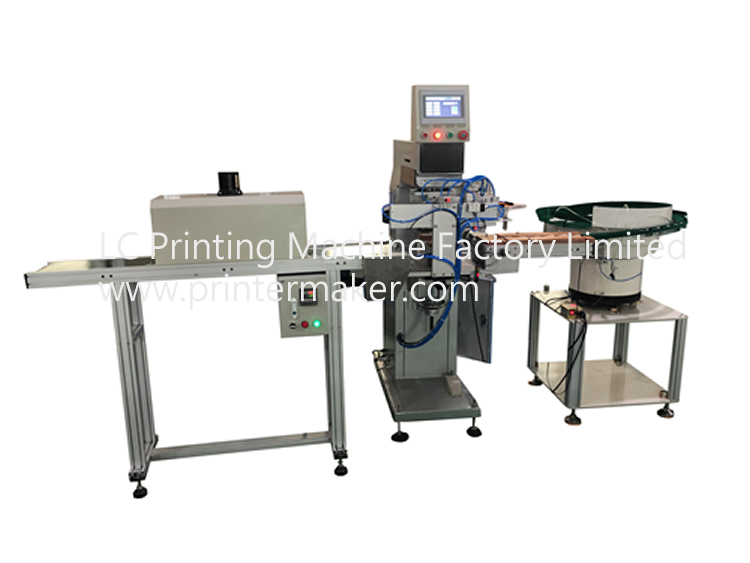

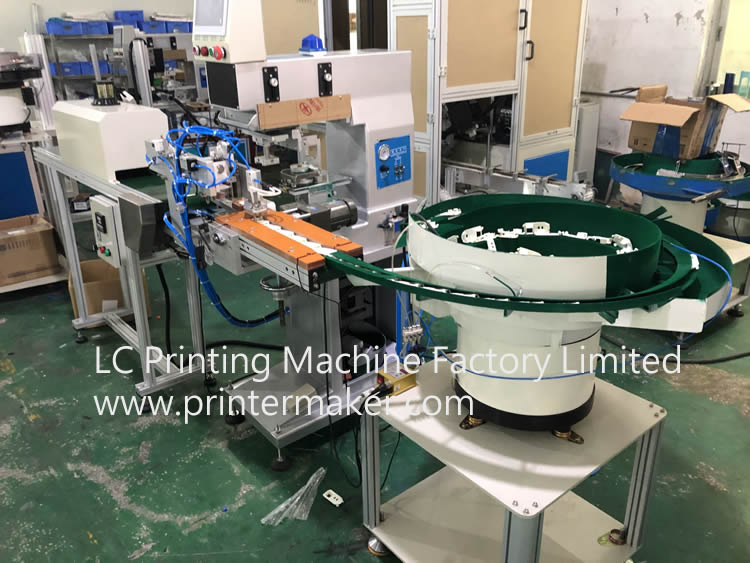

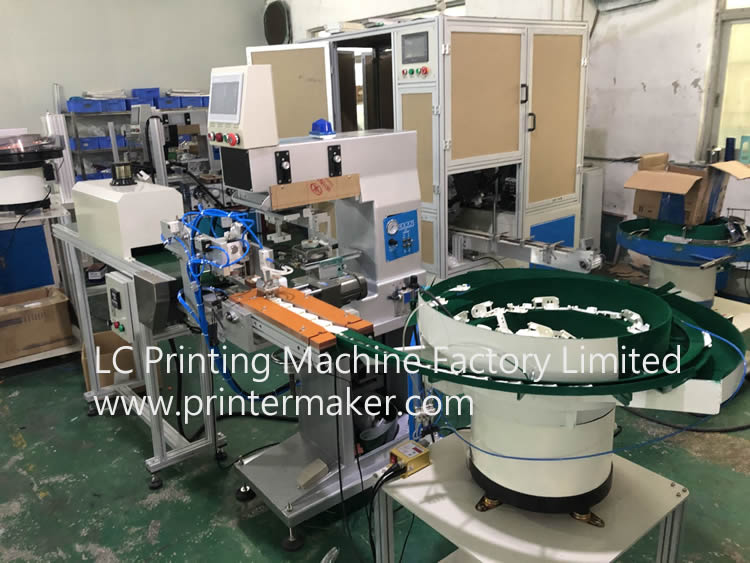

Product name:Automatic Single Color Pad Printer with IR Oven

Model Number: M1-CP

1. Maximum printed area:130mmx130mm
2. Maximum steel plate size: 150mmx150mm
3. Printing precision: + 0.10mm
4. The height of the workpiece: 0~80mm
5.Turntable worktable drive: cylinder
7. Worktable guide: Conveyor
8. Workstation workstations: 2 PCS
9. Table size: 125mm*50mm

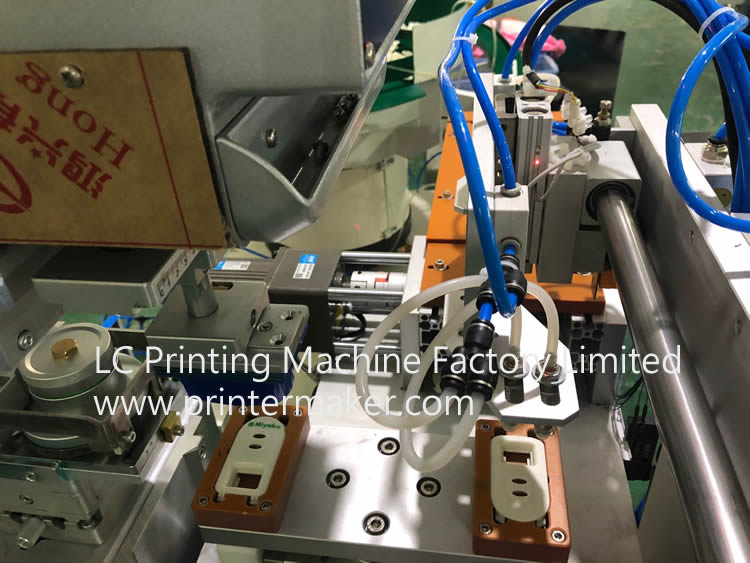

10. Positioning mode: pin positioning
11. Capacity: 800-1000PCS/ hours
12. Working pressure: Mpa 0.5~0.6Mpa
13. Working cycle about: 2 Second
14. Machine platform structure: Iron casting
15. Power: 220V 50/60Hz
16. Machine weight: 650KG
17: Packing size:
18:
Machine Feature:

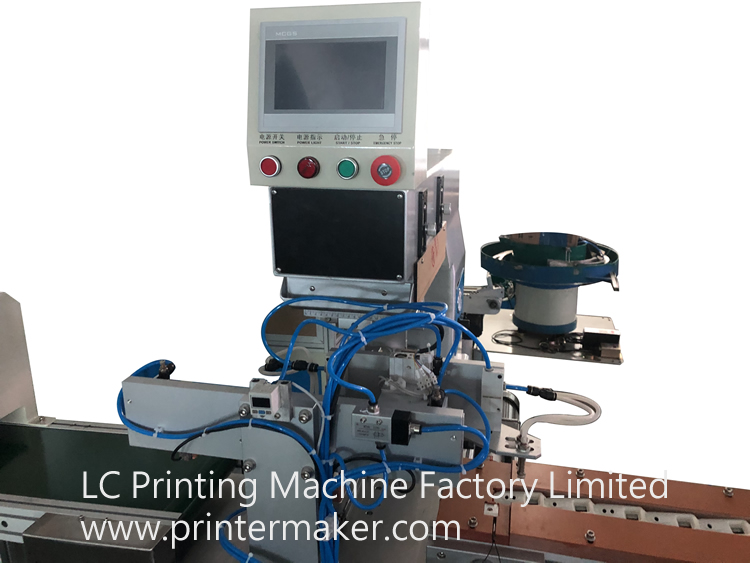

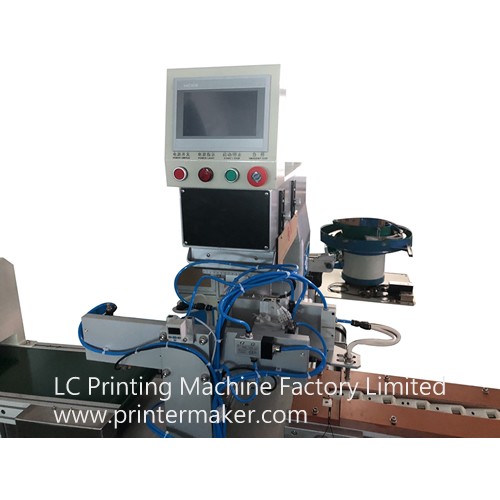

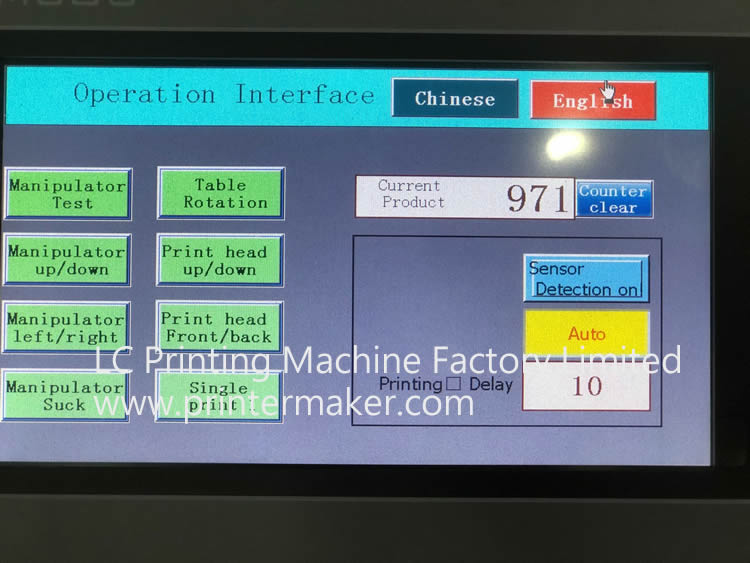

Automatic loading and unloading, PLC control each function, touch screen operation, simple and convenient.

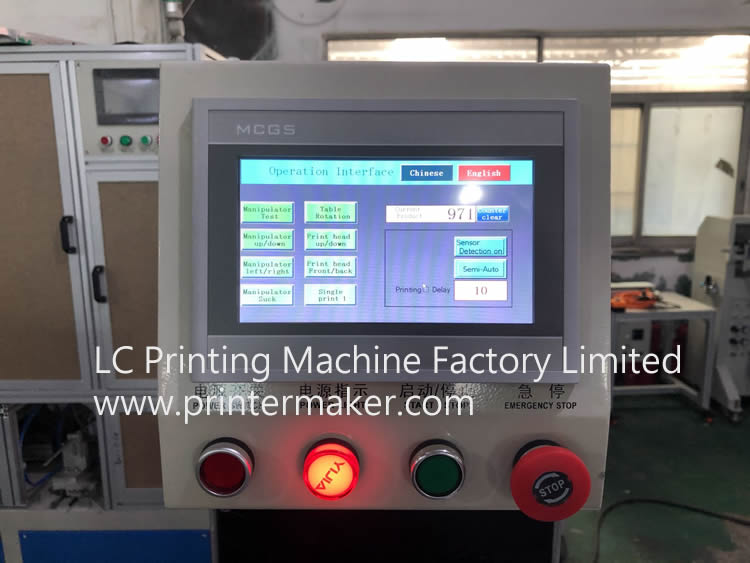

Touch screen features counter, fault alarm information.
Reciprocating scraper with ink cup for and materials saving and ink-saving, environmental protection effect.
Printing speed is adjustable to meet different printing requirements.

Bench can be adjusted X, or Y ﹑ Z-axis direction.
