Product name:Two Colors fully Automatic Pad Printer with Conveyor

Model Number: P2-CA

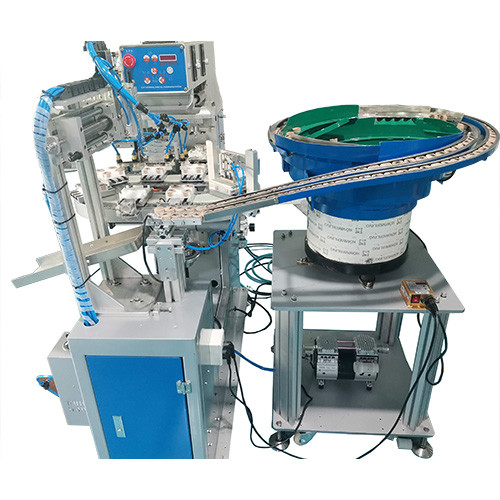

Two Colors fully Automatic Pad Printer with Conveyor
Parameter:
Model: Customizing P2/CA
Name: Two-color pad printing machine with conveyor
Suitable for pad printing product size at: 0 28~0 38
Height: 15~30mm
Cover type top printing products
Number of colors: 2
Number of stations: 8

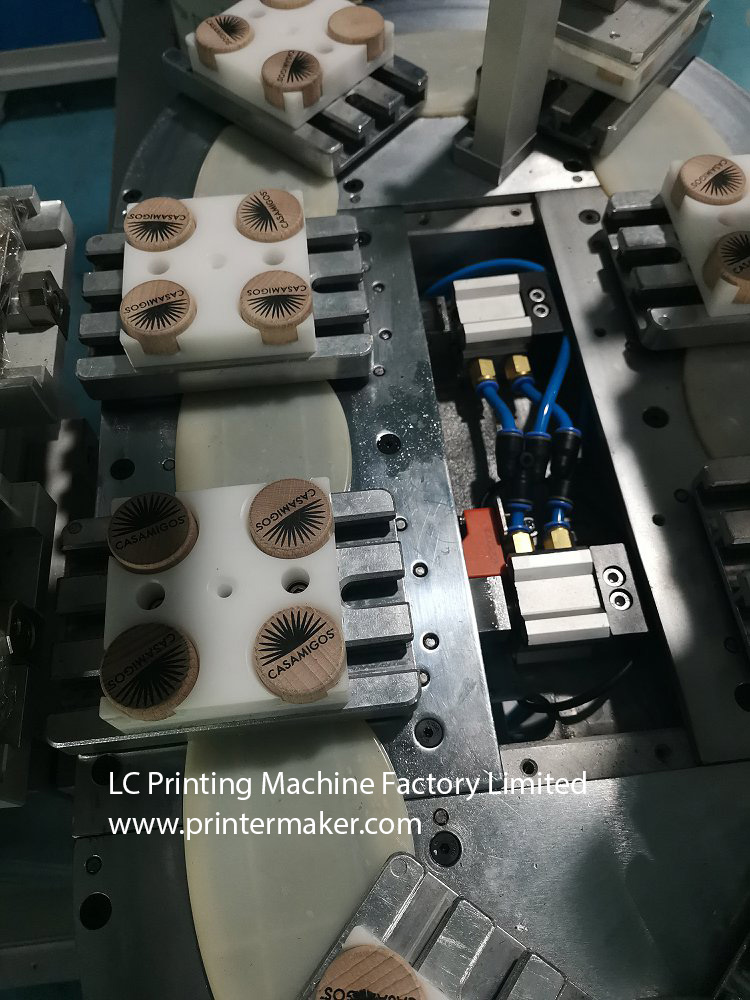

(1 jig for 4 caps)
Area of pad printing steel plate: 100x250x0.25MM (WxH) mm
Printing speed: 25~30 Pcs/min
Overall dimension: (LxWxH) cm
Weight: (KG)

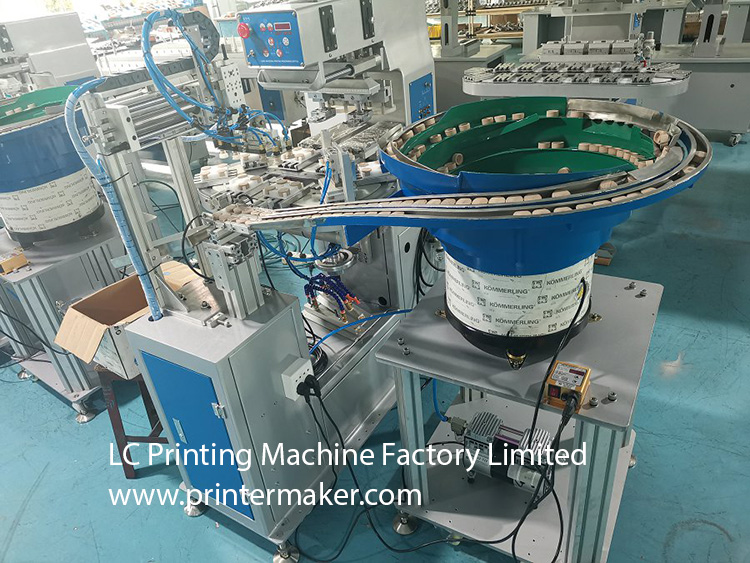

Machine Features:

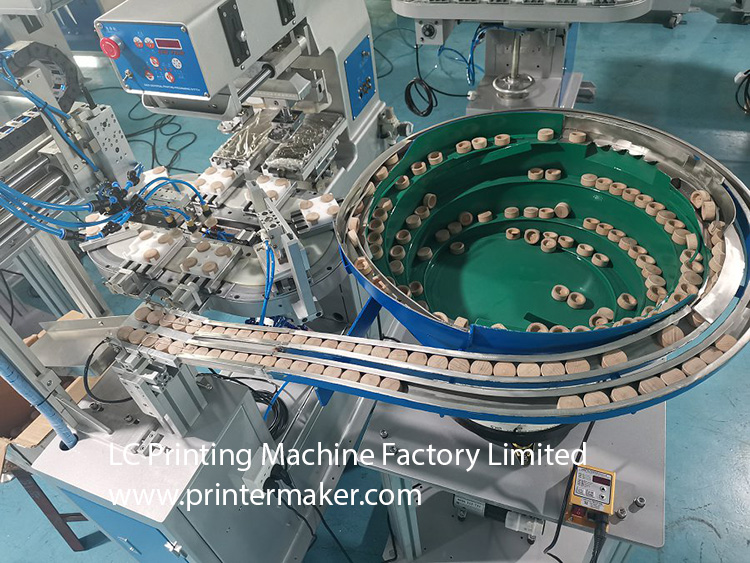

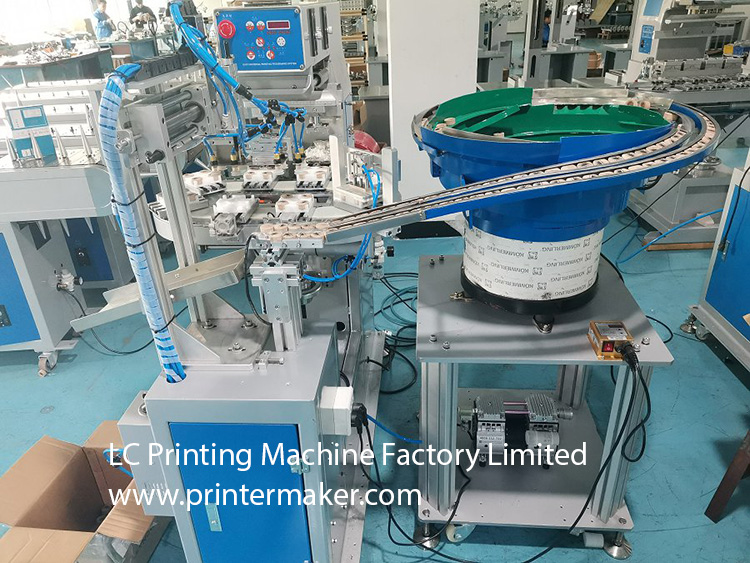

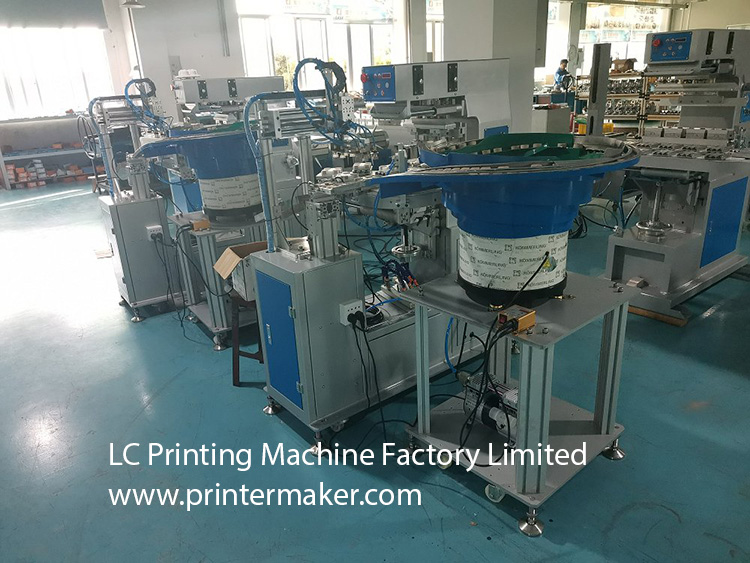

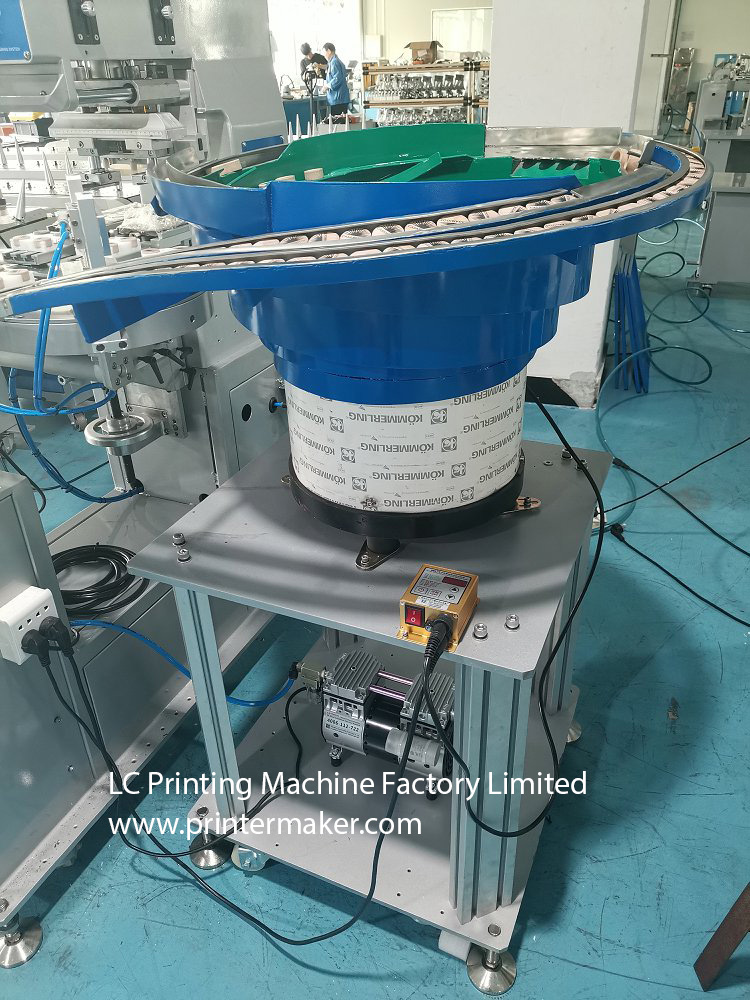

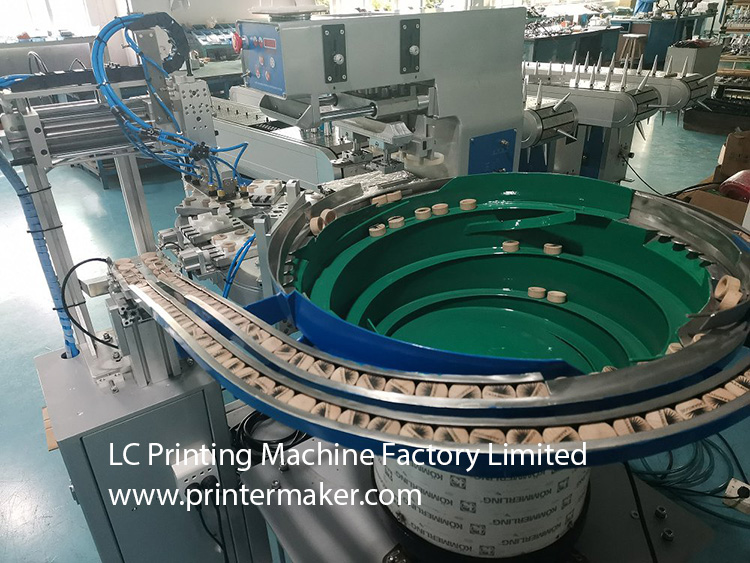

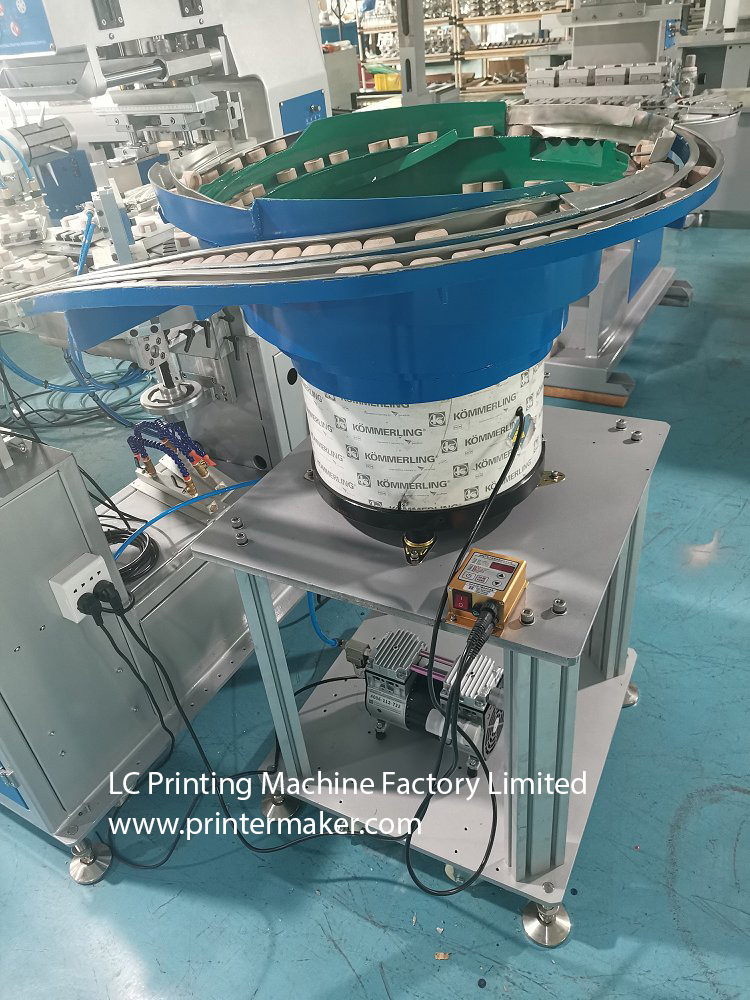

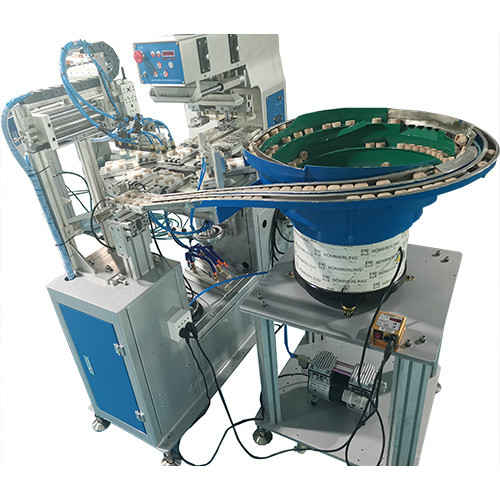

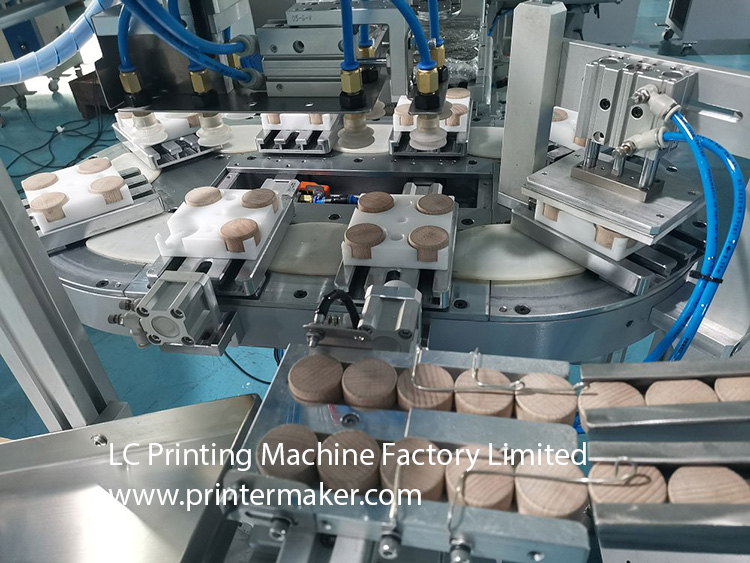

1. Feed by vibration.

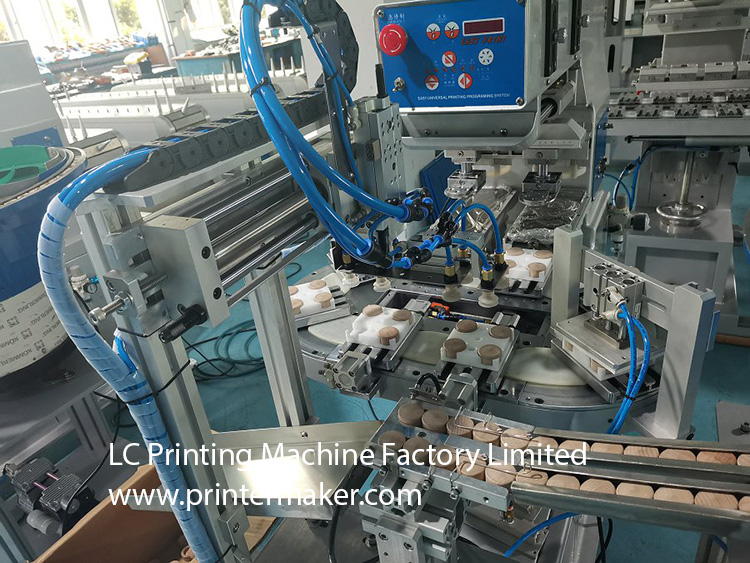

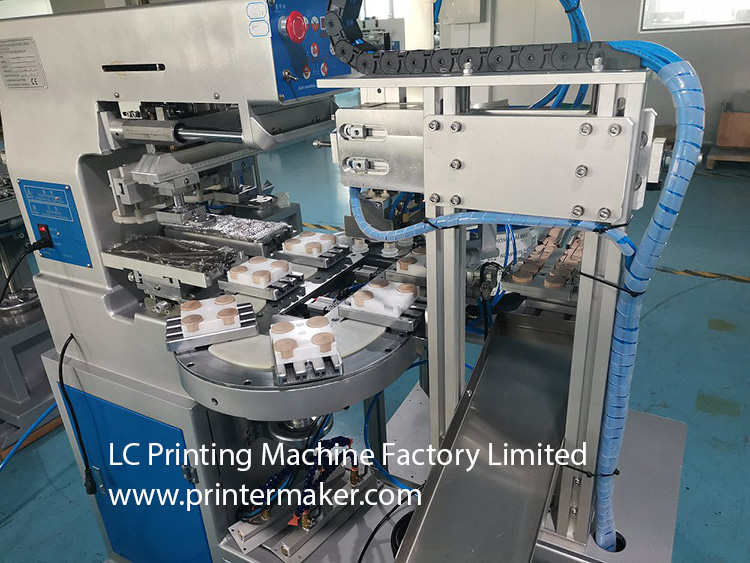

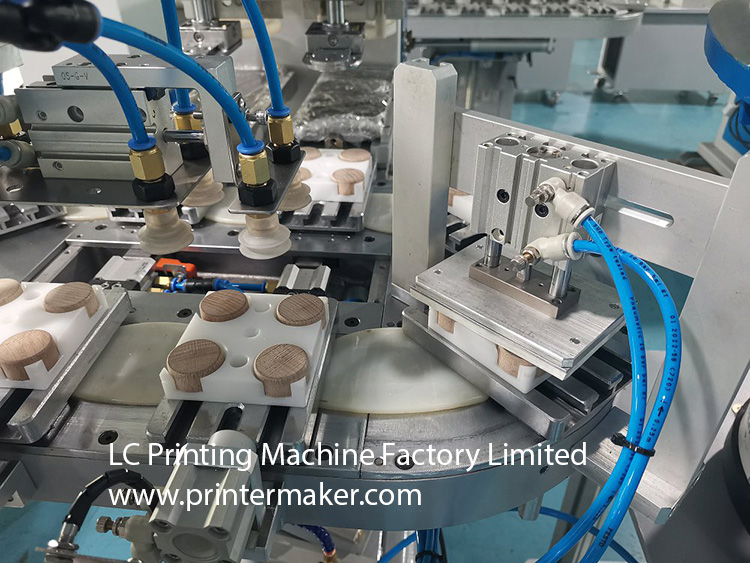

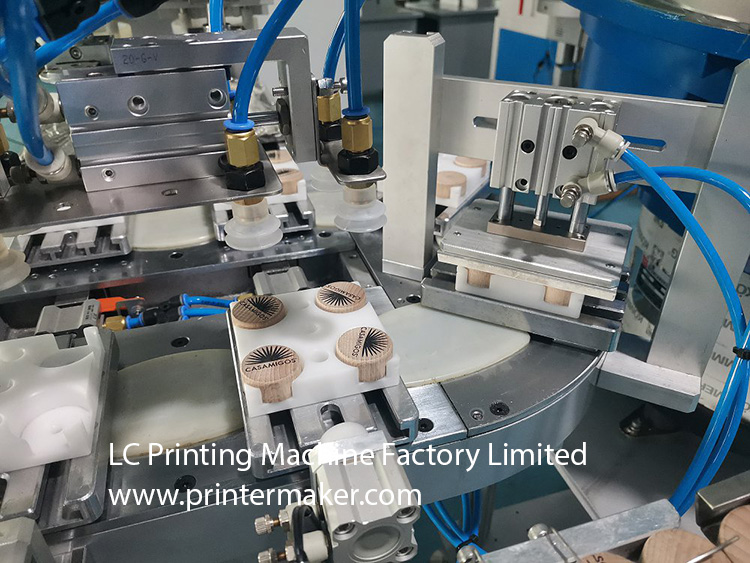

2. The cylinder sucks the product onto the rotary table fixture of the machine

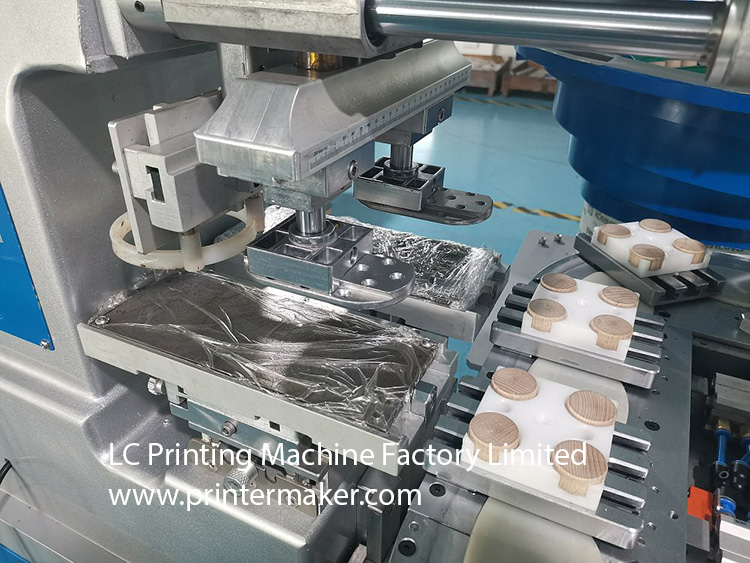

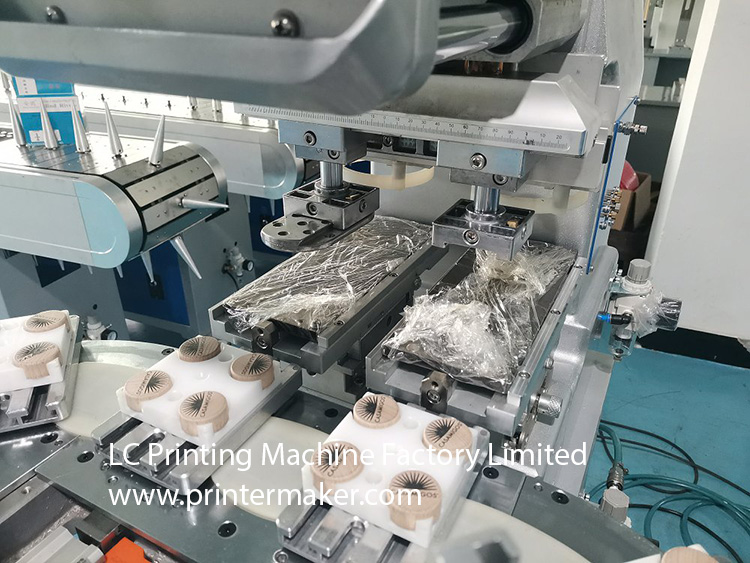

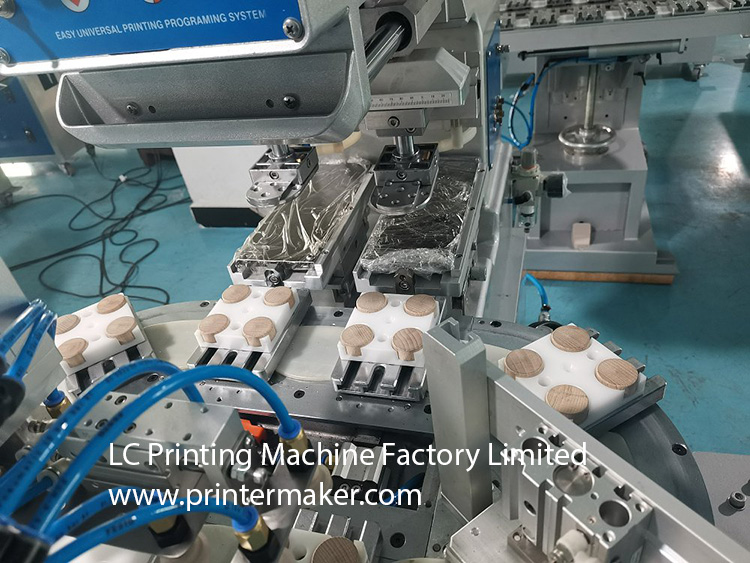

3. Perform pad printing
4. Dry with hot air

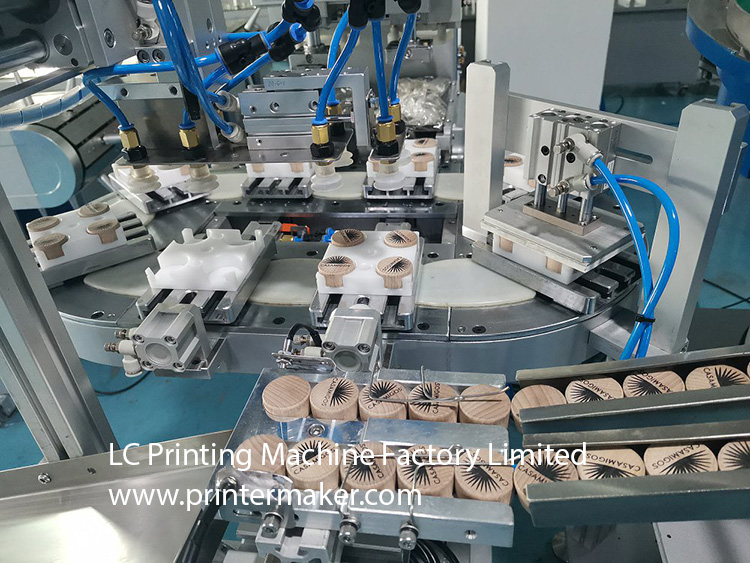

5. The cylinder sucks out the product and drops it into the chute
