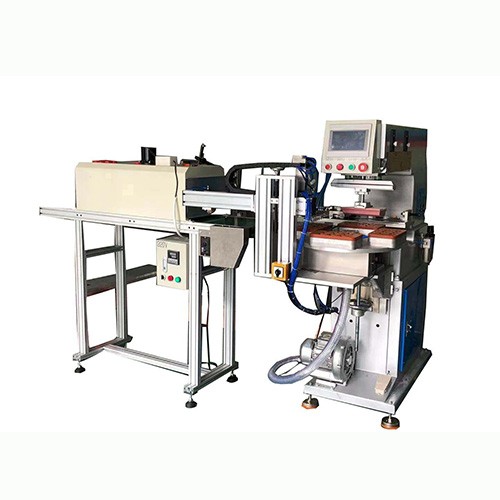

Single Color Automatic Pad Printing Machine on Plastic Cover

Model NumberM1-C4T
Product PriceUS$: negotiated
CategoryAutomatic Pad Printing Machine
Views8785

Product Description

aluminum cap's pad printing machine, plastic cover pad printing machine, single color automatic pad printer, automatic pad printer on mask cover, mask lid automatic pad printing machines.

Single Color Automatic Pad Printing Machine on Plastic Cover （Horizontal Sideway shuttle)
Parameter:
1. Steel plate size: 100 * 450 * 0.5mm
2. Closed ink cup: 100 mm (outer diameter)
3. Maximum printing area: 1500 times / hour (6 bottle caps can be printed in one printing cycle), which can reach 5200-90000 pieces / hour
4.Pwer supply: 220 V or 110 V
5. Air pressure: 5-7bar
6. Color: single color, horizontal and horizontal shuttle working mode
7 machine size: 2500 * 1350 * 1550mm
8. Package size: 1350 * 1600 * 1700
9 gross weight: 425
10. Touch screen: English &Chinese version.
11:IR heating tunnel power rate：2KW. Total power rate: 2.5KW
12: IR hearting tunnel size: 1500MM*300MM width; heating zone: 800MM infeed: 400MM outfeed:300MM
13: Temparature ranges: 0-100℃
Features:
1. Mitsubishi PLC+ Wiron touch screen
2. Manual feeding and automatic offloading robot
3. China ShangYin precision guide rail
4. AirTec pneumatic components
5. Precision splitter divider
6. Air source requirements: 5-7bar
7, Power requirements: voltage 220V, 50-60Hz
8, Printing speed: 5200-9000pcs per hour
9, IR heating tunnel after printing
Application:
This machine is perfect for those plastic covers, wooden lids, aluminum caps, and all those small pieces or any regulation shape small size products in a single color with high-speed printing.
