Atmospheric Plasma Cleaning System

Main Applications：

It is mainly used for pre-treatment processes such as printing, coating, dispensing, laminating, and bonding in the electronics industry, as well as surface treatment of mobile phone screens; surface cleaning of aerospace electrical connectors in the national defense industry; and pre-treatment for screen printing and transfer printing in the general industry.

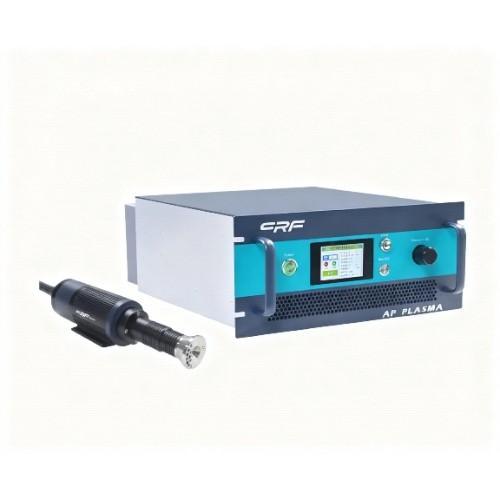

Atmospheric Plasma Cleaning System
Model: CRF-APO-DP1000
Power supply: 220V/AC,50/60Hz
Plasma Power: 1000W/25-30KHz
Processing height: 3-20mm
Processing width: 1.5-15mm (Option)
Internal control mode: Local control, digital control, remote I/O control, PLC remote (RS485/RS232)
Gas: N₂+CDA (0.4mpa)
Power factor: 99%
Detection function: Air pressure detection, main board temperature monitoring, output high voltage monitoring, transformer primary peak current monitoring, grid voltage detection, grid current detection, 24V power supply detection, gun head rotation speed monitoring, plasma arc breaking monitoring (optional)
Fault alarm: Output short circuit, output open circuit, gas pressure, input over/under voltage, main board error alarm
Gun head size: 290mm42mm52mm
Plasma generator size: 500mm310mm170mm
Muzzle specifications: Optional 1.5mm, 2mm, 3mm, 4mm, 6mm nozzle / fan nozzle

Product Features：

• Multiple types of nozzles can be optionally configured for different scenarios, meeting the needs of various products and processing environments.
• Compact equipment size, easy to carry and move, saving customers' usage space.
• It can be installed in the customer's equipment production line in an In-Line manner, reducing the customer's investment cost.
• Long service life and low maintenance cost, facilitating customers' cost control.

Application Scope：
