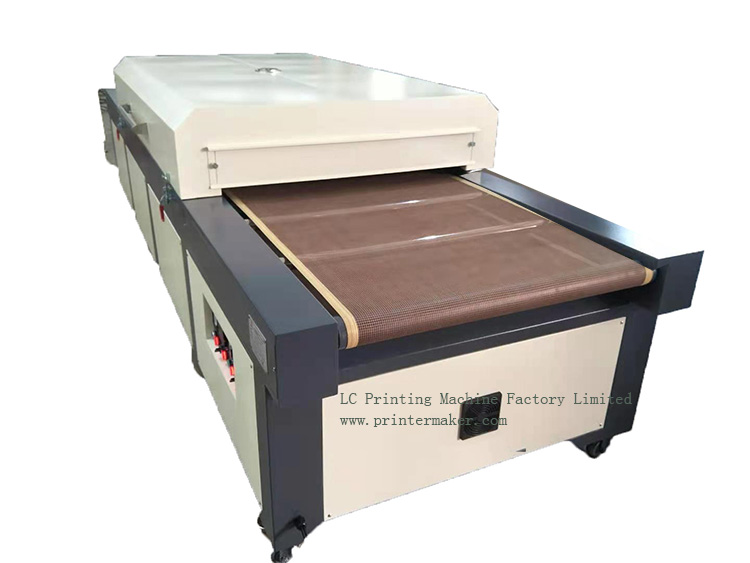

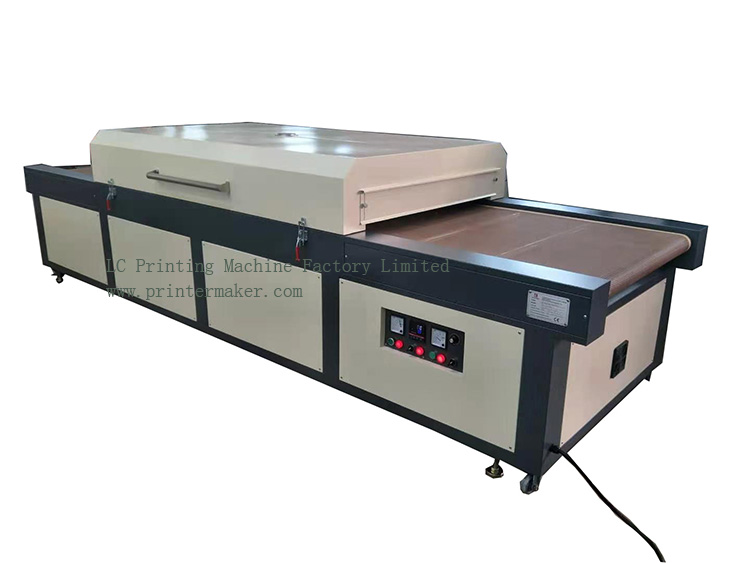

Paper Infrared Drying Tunnel

Product name:Paper Infrared Drying Tunnel

Model Number: DT-900

Paper Infrared Drying Tunnel

Specifications :

1:Model No:DT-900

2:Conveyer size: width: 90cm; infeed length:100cm; outfeed length:100cm, heating zone:200cm; Total length 4 meters;Max.infeed height at12CM

3:Total wattage: 10KW

4:Circulating air motor ：750W*2=1500W

5:Conveyer motor wattage(invertor):500W;velocity rate:60RPM,every 70 seconds;

Max. speed at9000mmper minute.

6:Heating temparature: 80-200 degree.

Heating Tube length: 900mm*12pcs;

Heating Tube power rate: 2700W--U Shape

7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; 8.Machine Power:380V 3 Phase

9.Machine dimension: 410cm*91cm*130cm(W*L*H)

9:Gross/Net weight:680KG/800KG

10:Package: Wooden case

11:Warranty : 1 years

Package: Export polywood case
