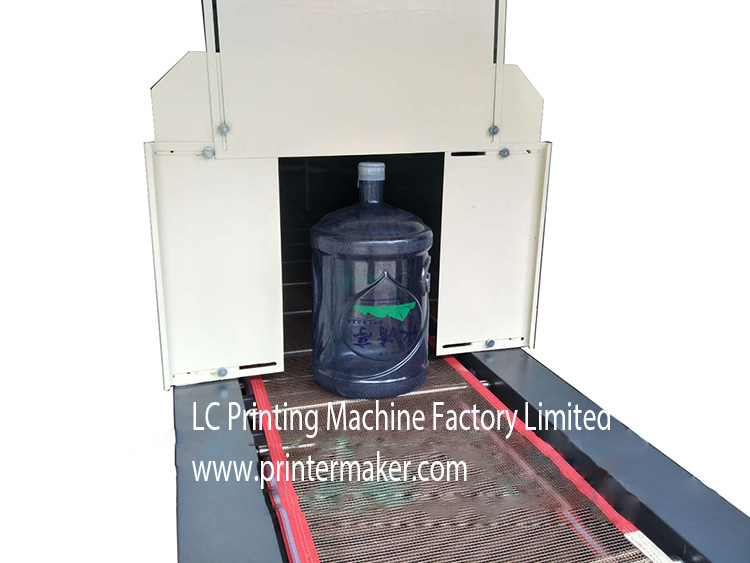

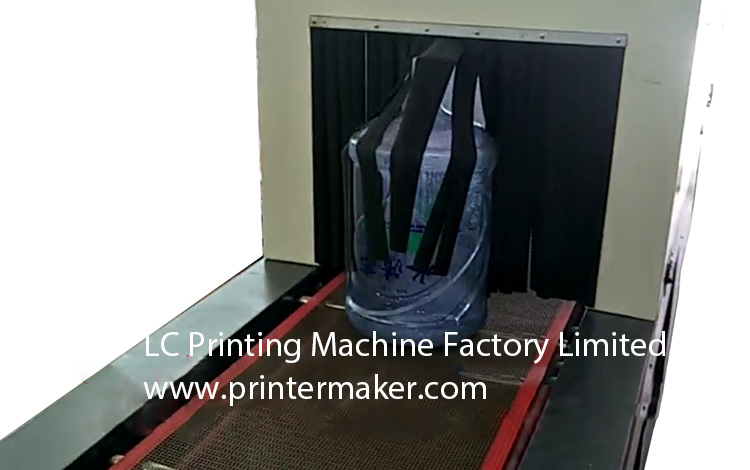

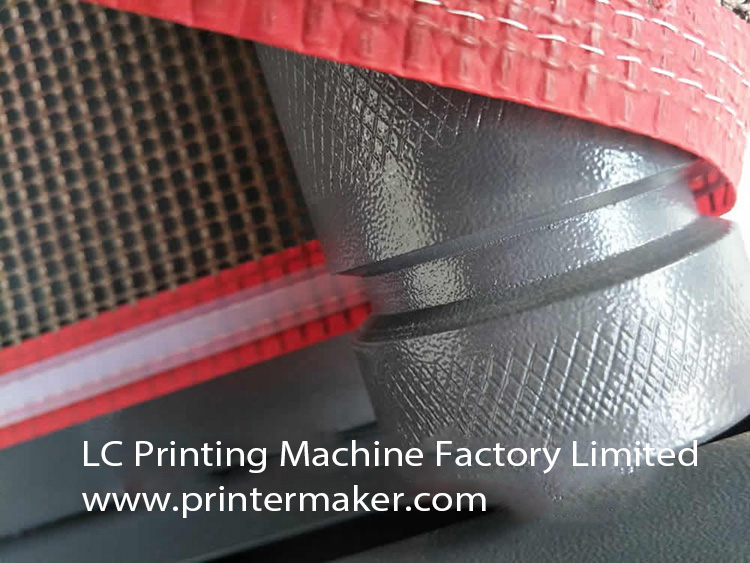

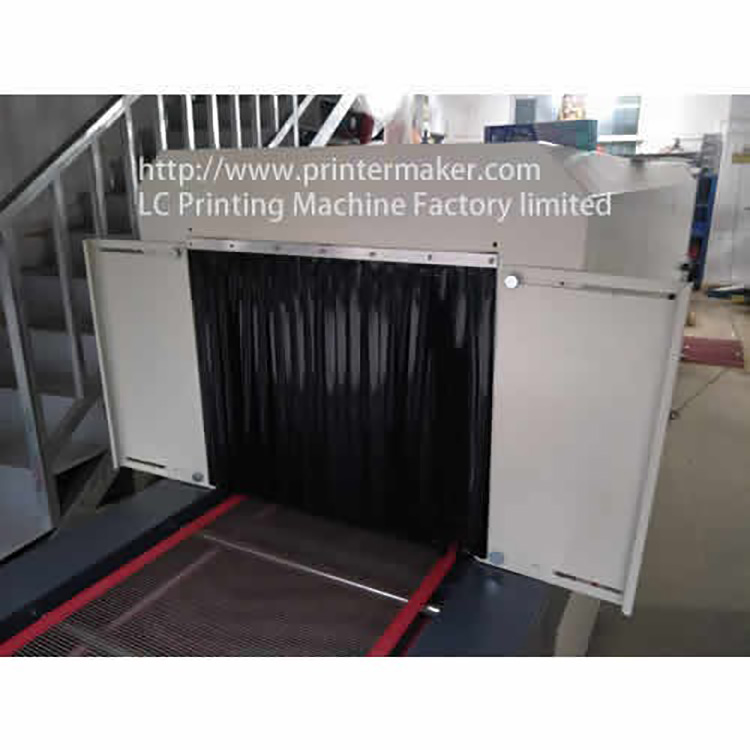

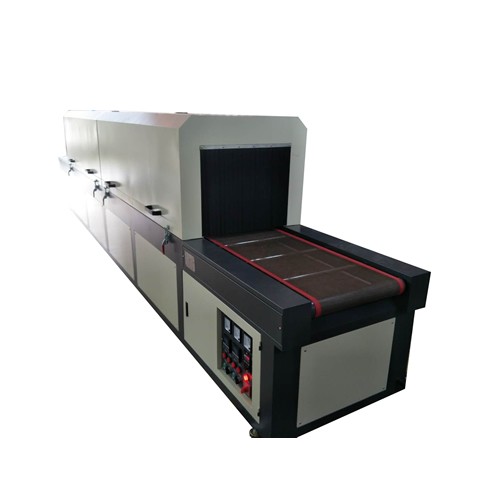

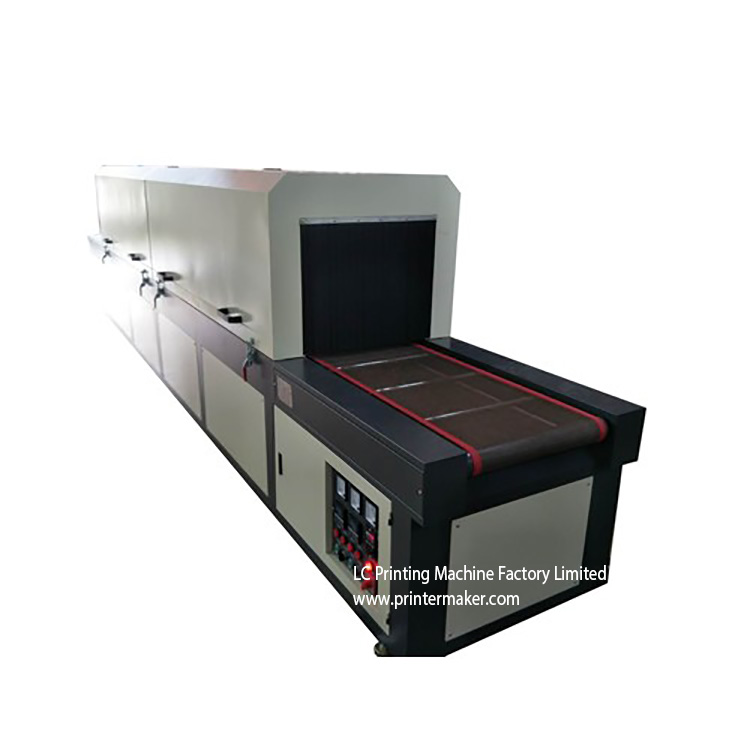

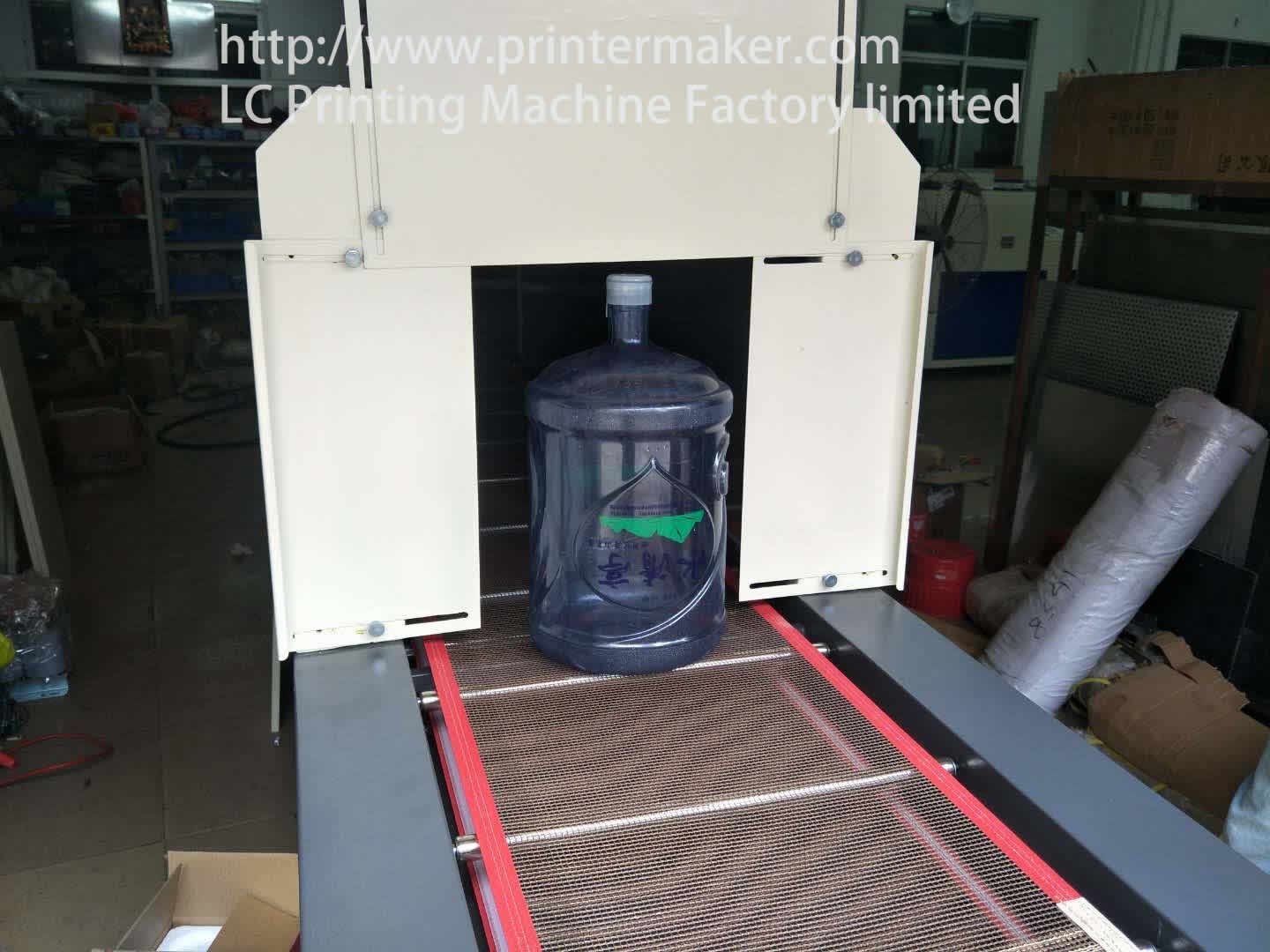

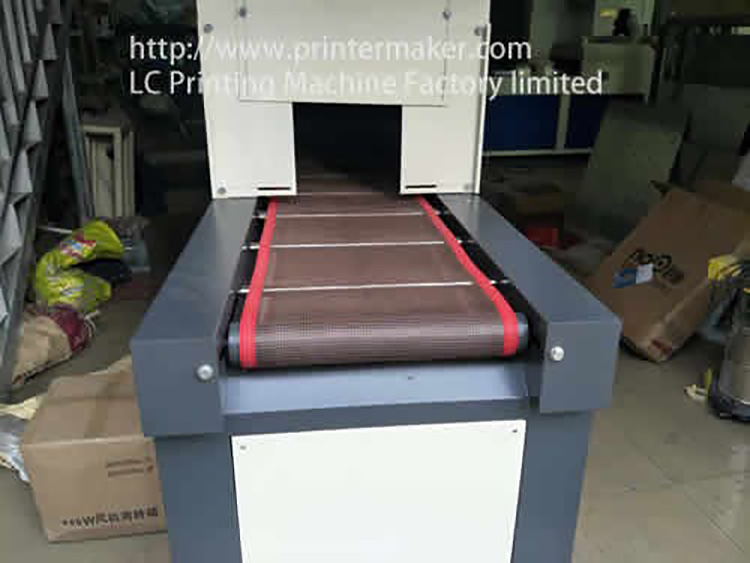

Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)

  • Infrared Drying Tunnel For Bottle  (Telftlon Conveyor Belt for 5 Gallon bucket)
  • Infrared Drying Tunnel For Bottle  (Telftlon Conveyor Belt for 5 Gallon bucket)
  • Infrared Drying Tunnel For Bottle  (Telftlon Conveyor Belt for 5 Gallon bucket)
  • Infrared Drying Tunnel For Bottle  (Telftlon Conveyor Belt for 5 Gallon bucket)
  • Model Number: DT-500B
  • Category: Drying Oven
  • Views: 461
  • Product Description:5 Gallon water bottles infrared heating tunnel DT-500B, 5 Gallon water bottle drying tunnel, Infrared Heating Tunnel on buckets; IR Heating tunnel for pails; 20L barrels pails drying tunnel on the pla
  • PRODUCT DETAIL

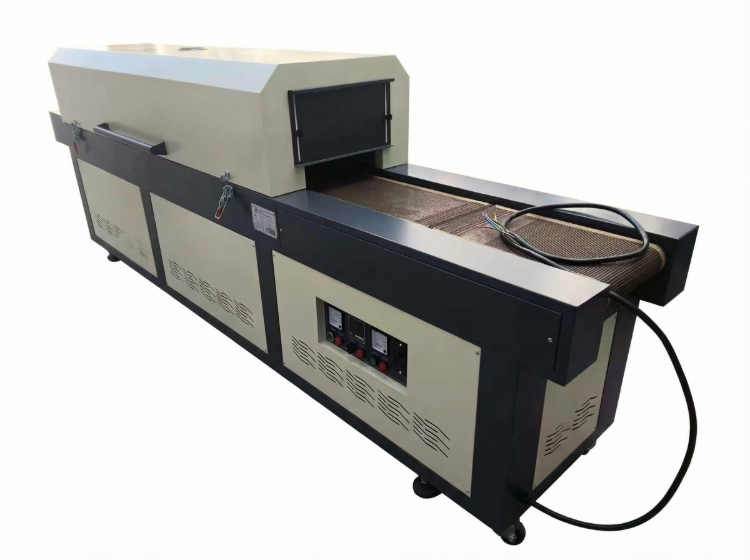

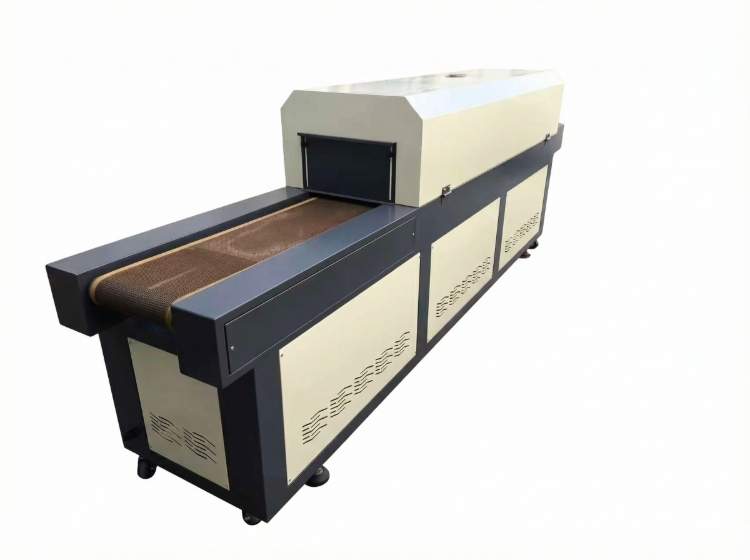

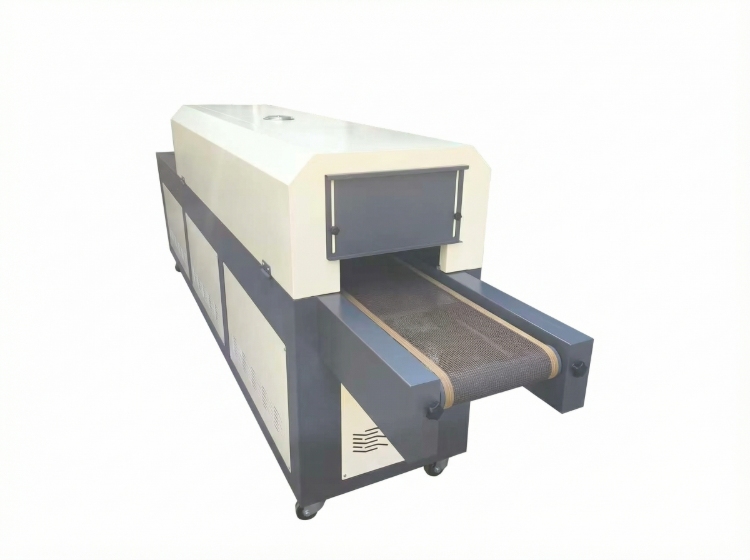

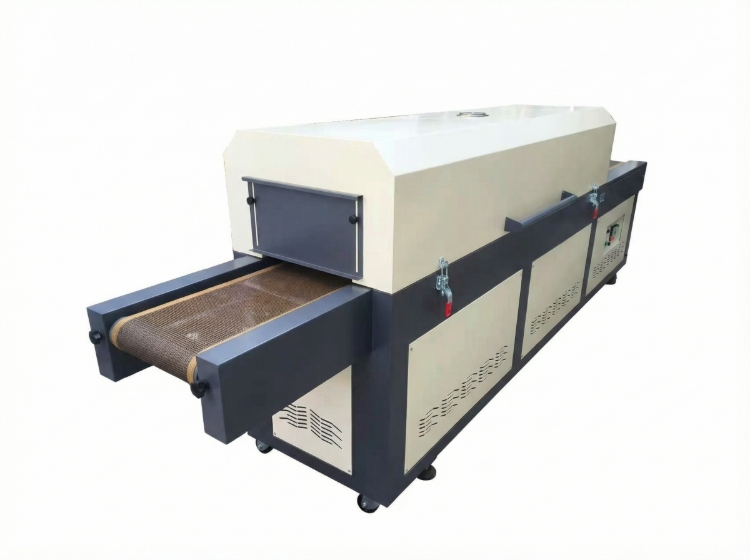

Product name:Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)

Model Number: DT-500B

Specification
1:Model No:       DT-500B
2:Conveyer size: width: 500mm; infeed&outfeed length:1000mm; heating zone: 2000mm*2 zones; total length at 6 meters;Max.infeed height at 50CM
3:Total wattage:   12KW
4:Circulating air motor :550W*2=1100W
5:Conveyer motor wattage:160W;velocity rate:50RPM,every 70 seconds
6:Heating temparature:100-150 degree; Heating tube length:450mm*24pcs;tubes power rate: 400W
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt
8:Machine dimension:  620mm width*6000mm length *1600 height(lxwxh)
9:Gross/Net weight:    980KG/900KG

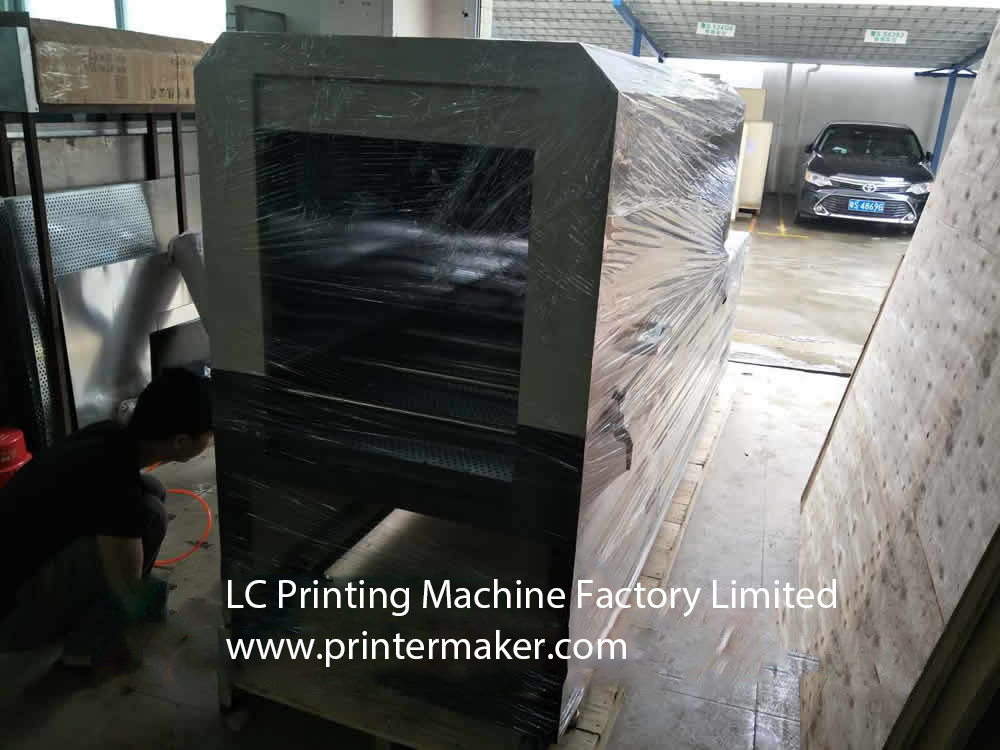

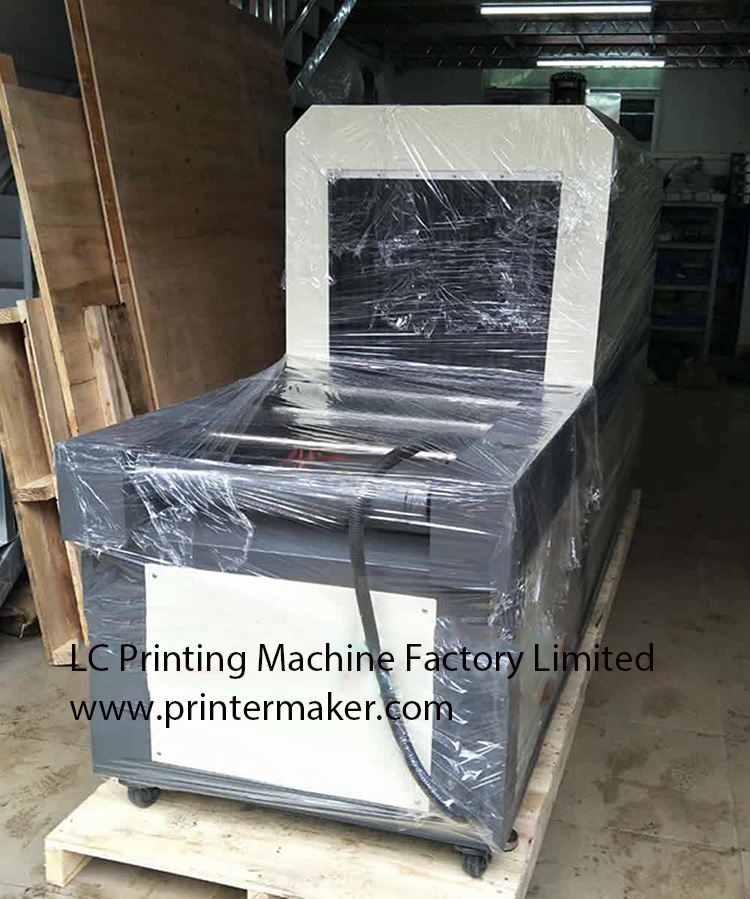

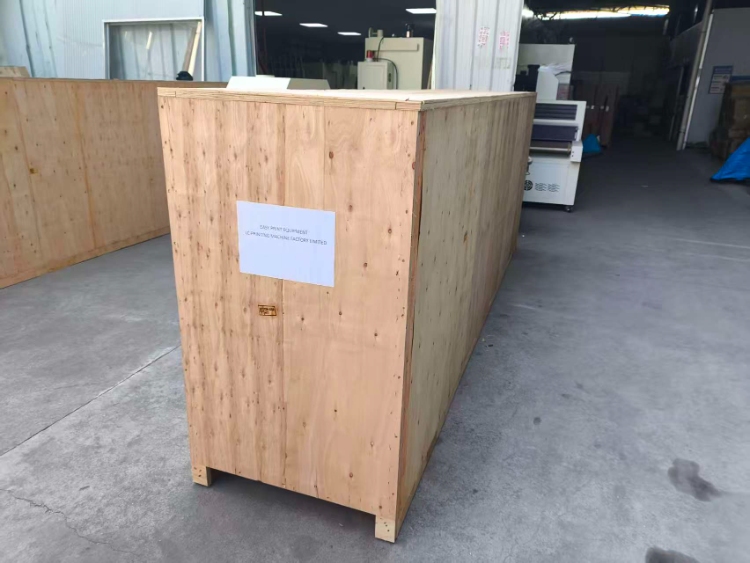

10:Package:  Wooden case
11:Automatic Grade:  Manual
12:Warranty       :  2years
13:Usage:  Round,Oval and flat plastic or glass bottles
14:packing size:  612*81*175CM
Package:               Export polywood case
Automatic Grade: Manual
Warranty       :      2 years

Usage:                  Round,Oval and flat plastic or glass bottles

Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)Infrared Drying Tunnel For Bottle (Telftlon Conveyor Belt for 5 Gallon bucket)
