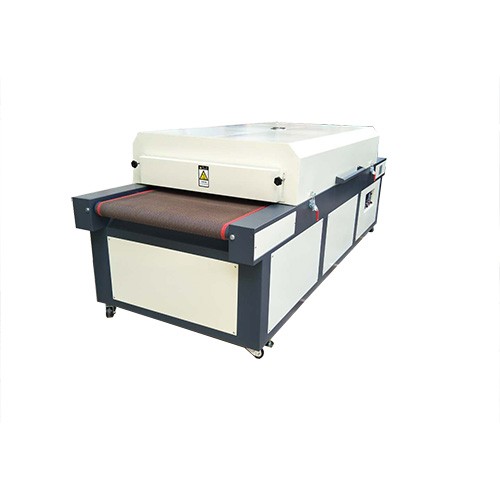

  • Infrared Heating Dry Tunnel - Image 1 - Infrared Heating Dry Tunnel photo 1

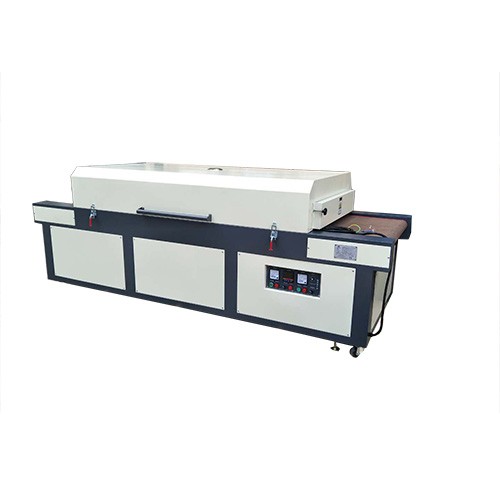

  • Infrared Heating Dry Tunnel - Image 2 - Infrared Heating Dry Tunnel photo 2
  • Model NumberDT-400
  • Product PriceUS$: negotiated
  • Views9300
Share
  • Product Detail

Infrared Heating Dry Tunnel

The IR heating tunnel could be made customizing, stainless steel conveyor material, Teflon conveyor material, maximum temperature, width, infeed, and outfeed belt,  drying zone length is optional!

Model: DT-400



Specifications︰

1.Conveyer width:400mm; Lenth: 2500mm, infeed&outfeed: 500mm each;

2.Total wattage:10KW

3.Wind fan wattage:500W

4.Conveyer motor wattage:400W/1P

5.ConveyEr speed:0~10m/min

6.Speed adjustment:stepless

7. Machine dimension:4000×520×1600mm(l×w×h)

8. Net weight:520KG, Gross Weight: 600kg

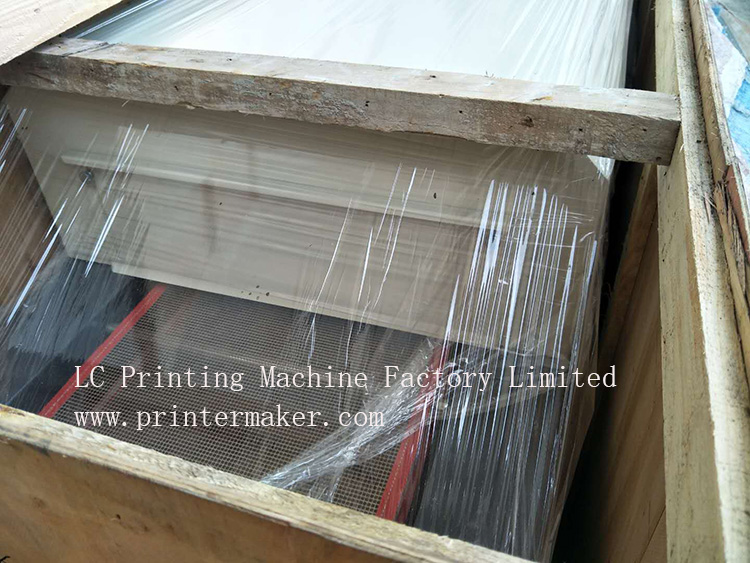

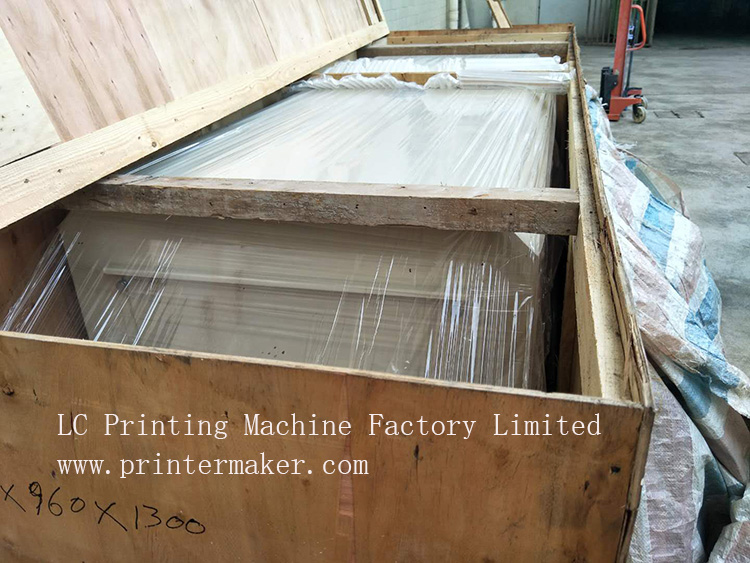

9. Package: Export poly wooden case.

10. Power supply: 380V,50HZ,3 Phrases; 220V-240V, 60HZ, 3 Phrases (optional)
