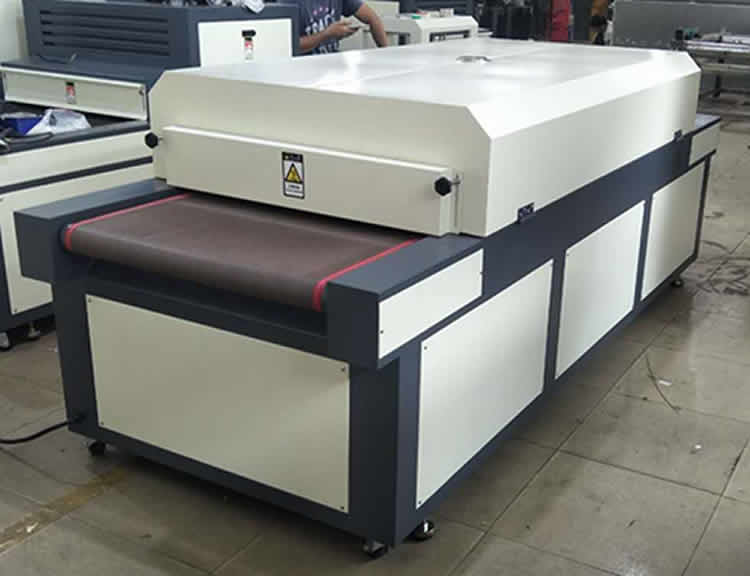

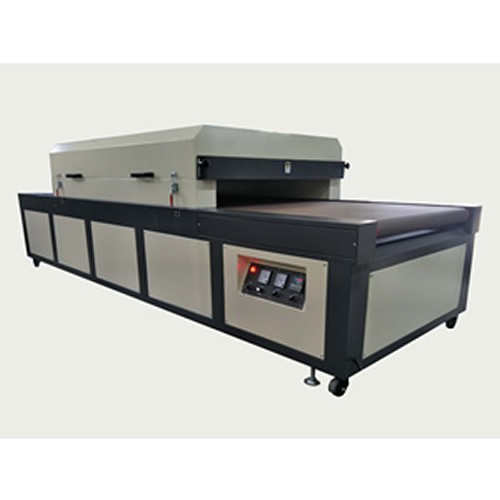

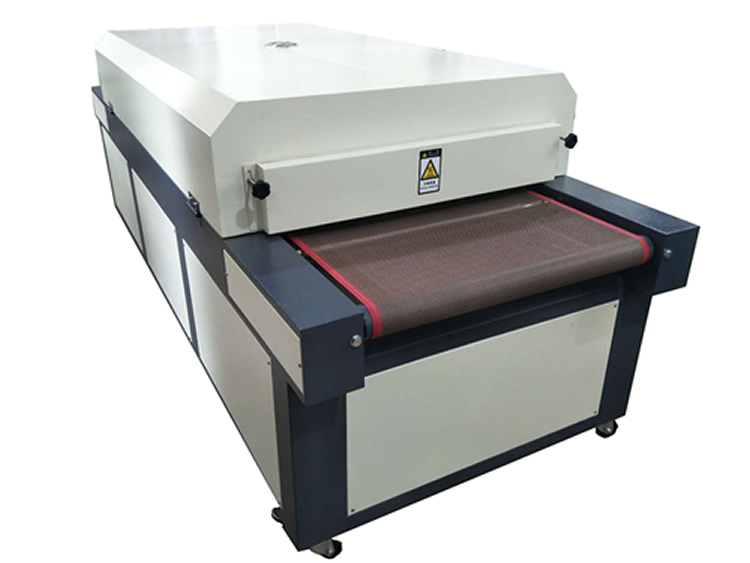

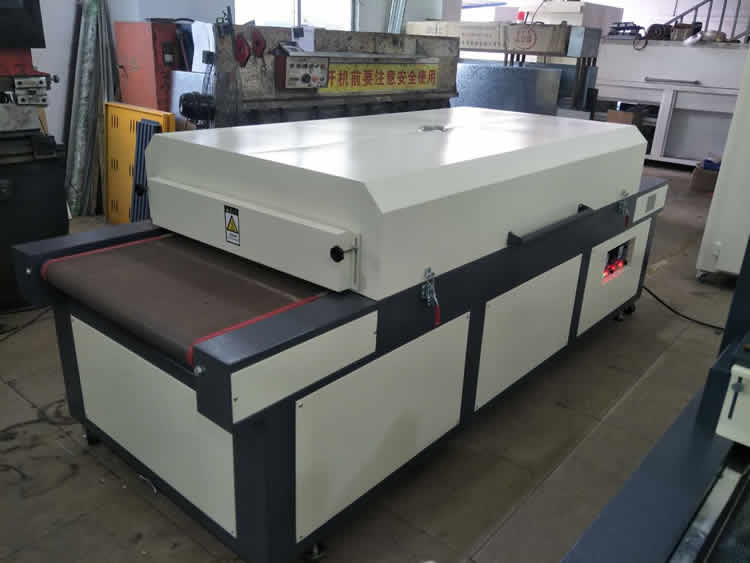

Teflon Belt IR heating Tunnel

  • Teflon Belt IR heating Tunnel
  • Teflon Belt IR heating Tunnel
  • Teflon Belt IR heating Tunnel
  • Teflon Belt IR heating Tunnel
  • Model Number: DT-100
  • Category: Drying Oven
  • Views: 950
  • Product Description:T-Shirt IR Heating tunnel, Teflon Belt IR heating Tunnel; Infrared drying tunnel; film drying tunnel, paper drying tunnel, carton box drying tunnel; plate Infrared drying tunnel;
  • PRODUCT DETAIL

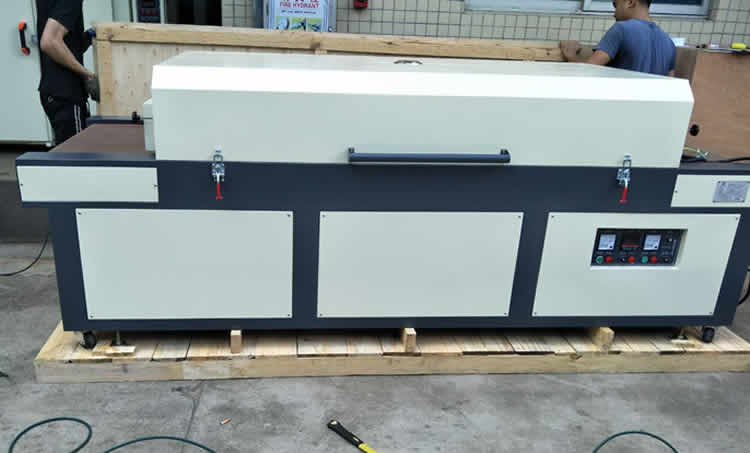

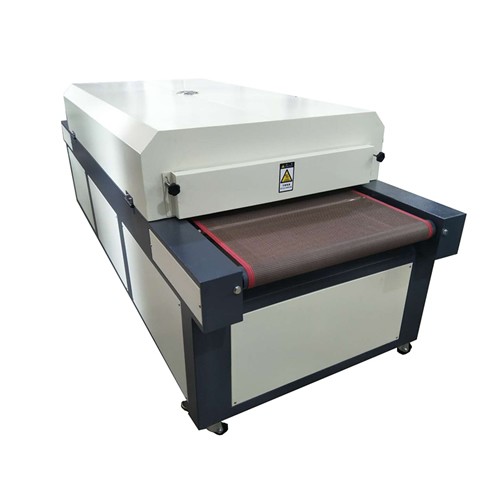

Product name:Teflon Belt IR heating Tunnel

Model Number: DT-100

Conveyer size: Conveyer width1000mm;

Infeed Length:1000MM

Heating zone:2000MM

Outfeed length:1000mm

Total Conveyor Length:4000mm;

Max infeed height10-25CM;(Customizing)

3:Total wattage:   13.3KW

4:Circulating air motor 750W

5:Conveyer motor wattage:200W;velocity rate:30RPM,every 50 seconds

6:Heating temparature:0-200degree;

Heating tube length:1010mm*24pcs;tubes power rate: 900W

7:Conveyer Speed adjustment: Stepless 0-12meters/minutes;

8:Machine dimension:  1230*6000*1600mm (W*L*H)

9:Gross/Net weight:   1500KG/1300KG

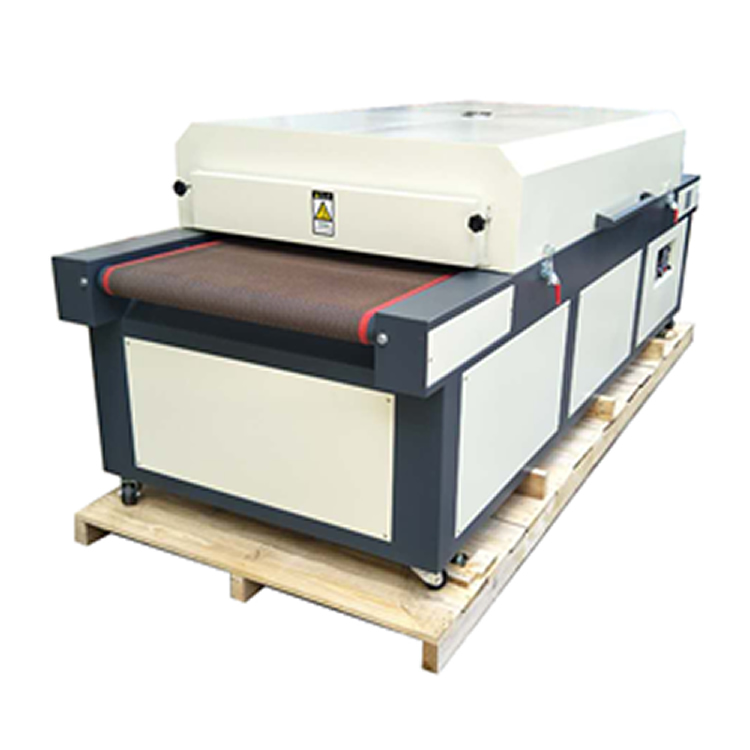

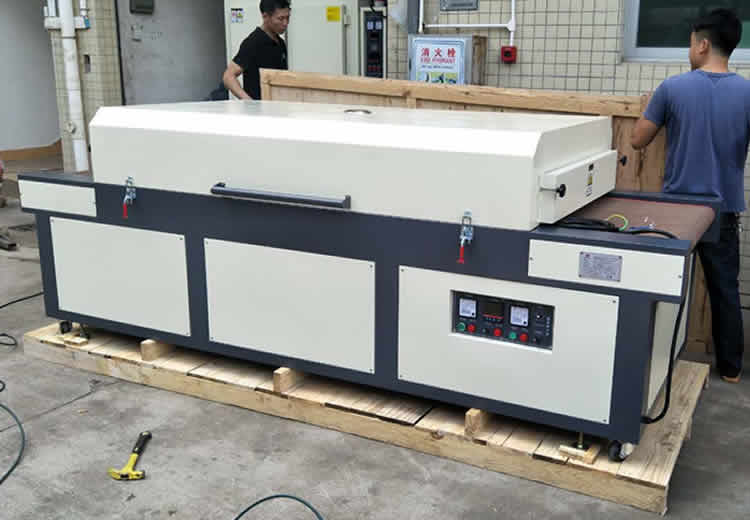

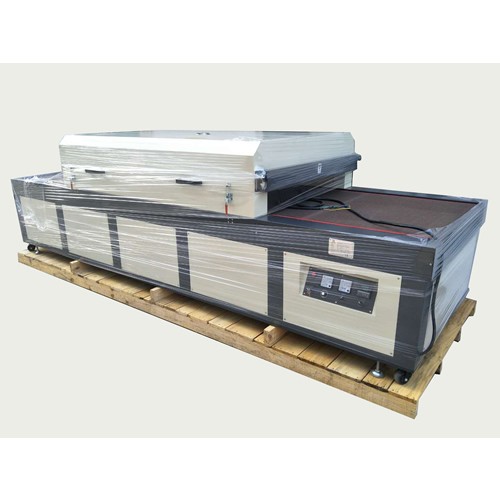

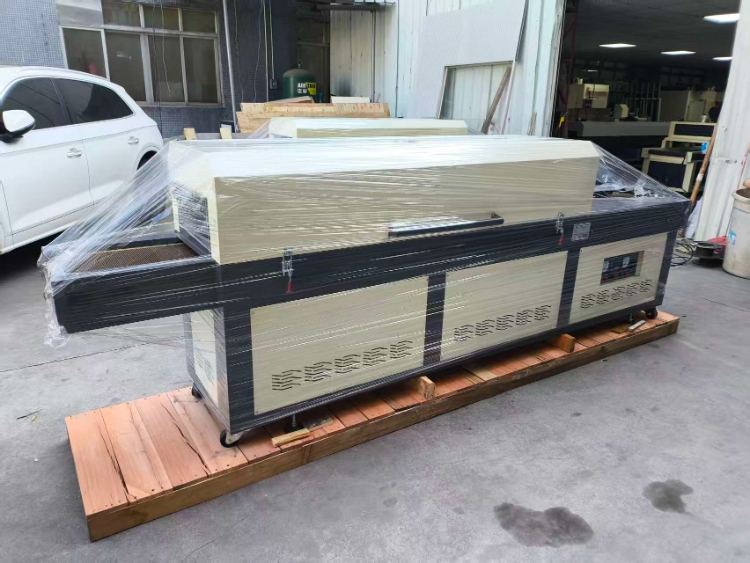

10:Package:  Export Wooden case

11:Automatic Grade:  Manual

12:Warranty       :  2 years

13: Conveyor materila: Telflon

14: packing size: 4090*1480*1350MM

15: Power supply: 380V,50HZ,3 Phrases; 220V-240V, 60HZ, 3 Phrases (optional)

Teflon Belt IR heating TunnelTeflon Belt IR heating TunnelTeflon Belt IR heating TunnelTeflon Belt IR heating Tunnel
