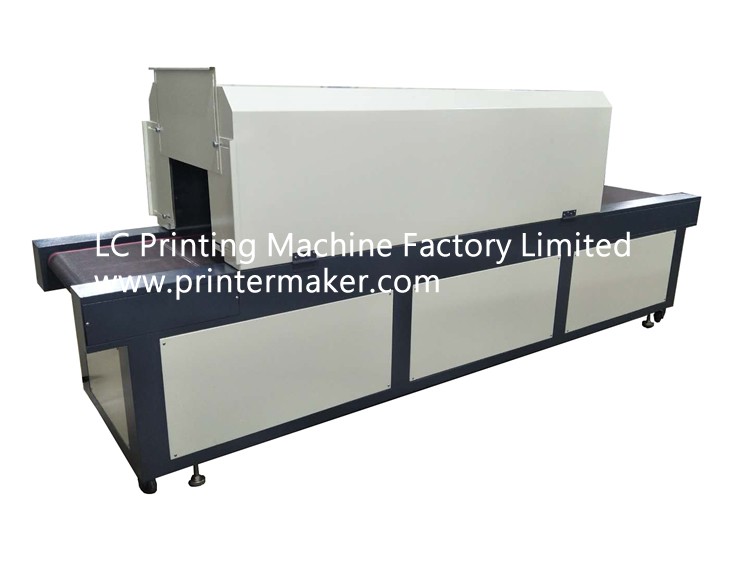

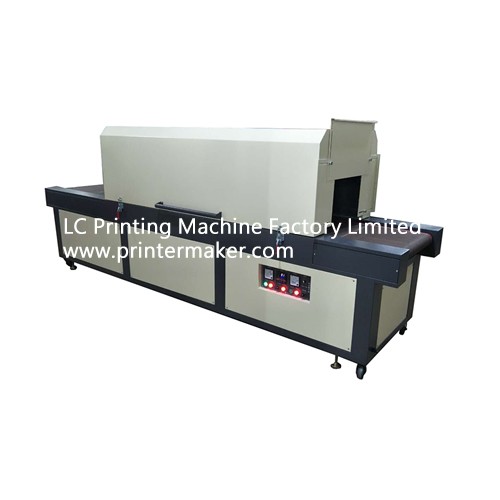

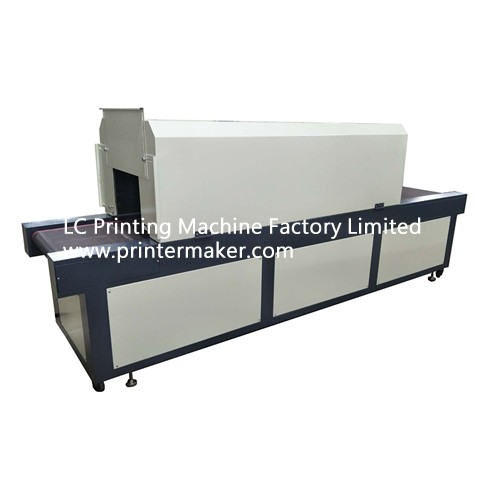

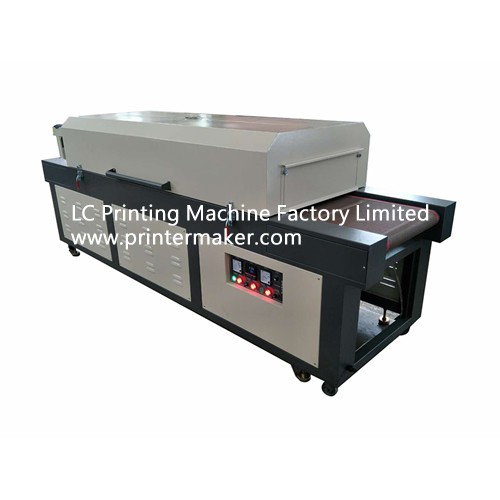

Product name:Infrared Drying Tunnel For plastic buckets

Model Number: DT-500

Product name: Infrared Drying Tunnel For plastic buckets
Model Number: DT-500

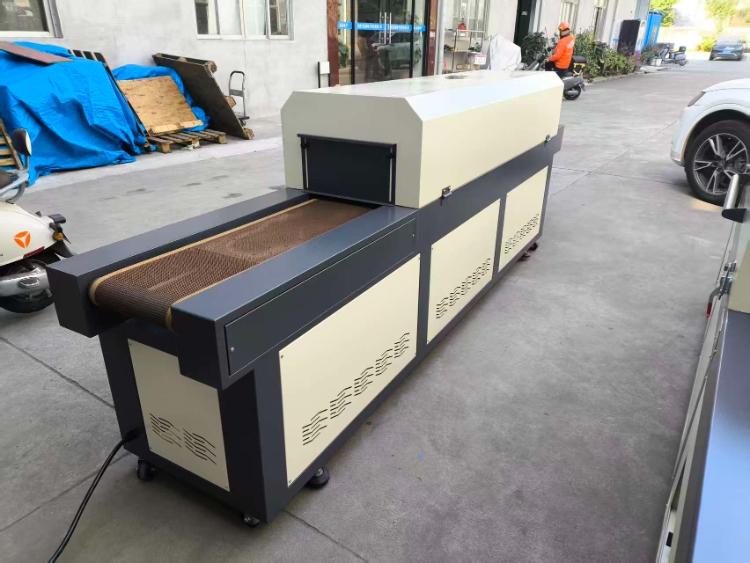

Infrared Drying Tunnel For Barrels Bucket
Technical Parameters:
1:Model No:         DT-500

2:Conveyer size: width: 500mm; infeed length:500mm; outfeed length:1000mm; heating zone: 3000mm ;

total length at 3.5 meters;Max.infeed height at 420mm

3:Total wattage:   8KW
4:Circulating air motor :750W
5:Conveyer motor wattage:160W;velocity rate:50RPM,every 70 seconds
6:Heating temperature:0-200 degree; Heating tube length:750mm*3pcs;tubes power rate: 2600W
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt
8:Machine dimension:  560mm width*3600mm length *1900 height(lxwxh)
9:Gross/Net weight:    1200KG/1000KG
10:Package:  Export Poly Wooden case
11:Automatic Grade:  Manual
12:Warranty:  2years
13:Usage:  Round,Oval and flat plastic or glass bottles
14:packing size:  390*75*175CM
Package:               Export polywood case
Automatic Grade: Manual
Warranty       :      2 years
Usage:                  Round,Oval and flat plastic or glass bottles
Application

The machine is suitable for drying and curing the round, oval plastic or glass bottles. It is widely used in the

cosmestic, house hold product bottles final step printing curing. The tooling holder is removable so it is also

suitable for flat products curing.Advantages

1. Conveyer Made by stainless steel and high temperature resist ,
2. Famous brand motor drive,stepless speed adjustment.
3. High quality automatically temperature controlling system.
4. Fast drying for products after printing.
Product Description:

Fast drying after pad printing, screen printing, painting by solvent ink ; stepless transmission speed adjustment

to match with printing request; invariablenes temperature controlling ensure production quality.

Infrared Drying Tunnel For plastic buckets

Infrared Drying Tunnel For plastic bucketsInfrared Drying Tunnel For plastic buckets
