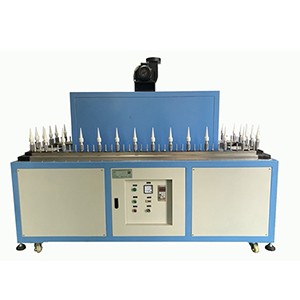

Automatic Round Bottle UV Curing Machine

  • Model Number: UV-300R
  • Product price: US$:negotiated
  • Category: UV Curing Machine
  • Views: 440
  • Product Description:Automatic Round Bottle UV Curing Machine
  • PRODUCT DETAIL

Product name:Automatic Round Bottle UV Curing Machine

Model Number: UV-300R

Feature
1 .UV  drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light .
3.  UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
Parameter
1.Max UV curing   round bottle  high :320mm
2.Max  UV curing Products width  :  400mm
3. UV Curing  bottle diameter : 12-60mm
4. curing size of workpiece: Cylinder  products :320X400mm
5.Conveyor speed:0~10m/min ;
6.. (United Kingdom)UV lamp power:4KW
7.  UV Drying products  speed:1800~3000PCS/HR
8.Total power:5KW
