Two Color Ink Cup Pad Printing Machine for Cap's Top

  • Two Color Ink Cup Pad Printing Machine for Cap's Top
  • Two Color Ink Cup Pad Printing Machine for Cap's Top
  • Two Color Ink Cup Pad Printing Machine for Cap's Top
  • Two Color Ink Cup Pad Printing Machine for Cap's Top
  • Model Number: S2-250C/8TC
  • Category: Ink Cup Pad Printing Machine
  • Views: 120
  • Product Description:Automatic pad printing machine on wood caps, Highspeed Cap's top pad printing machine, Plastic capsules pad printing machine, automatic printing machines on caps top
  • PRODUCT DETAIL
  • Video

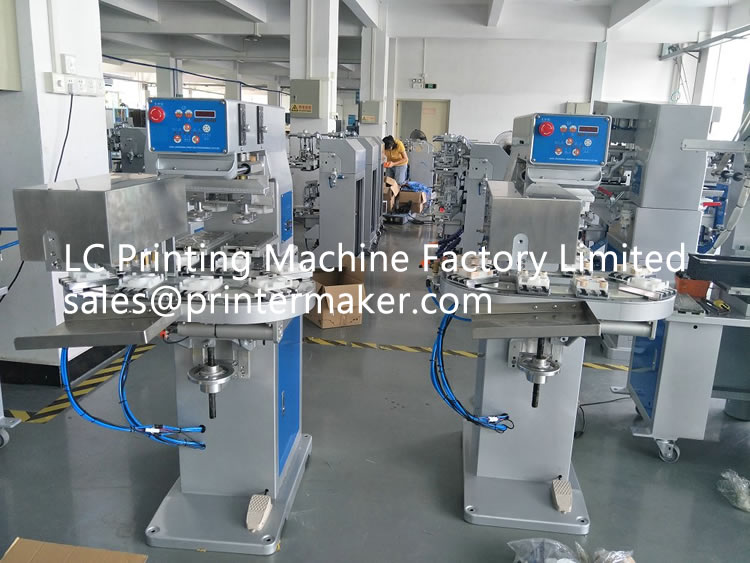

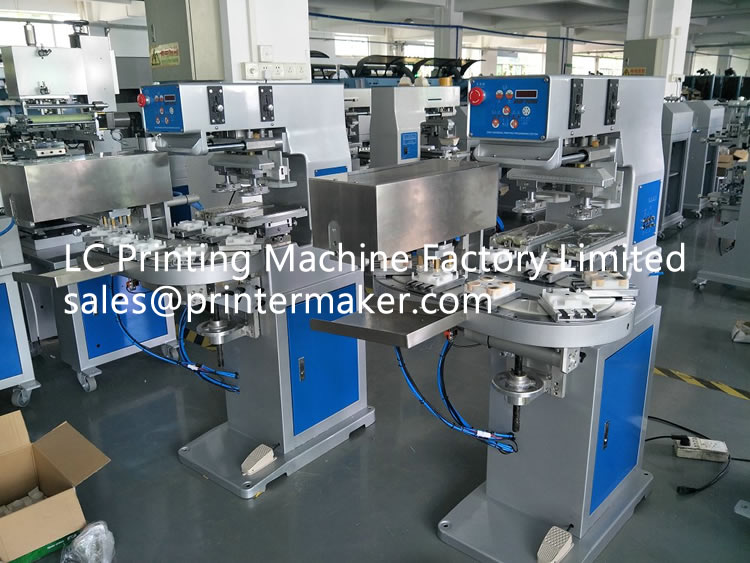

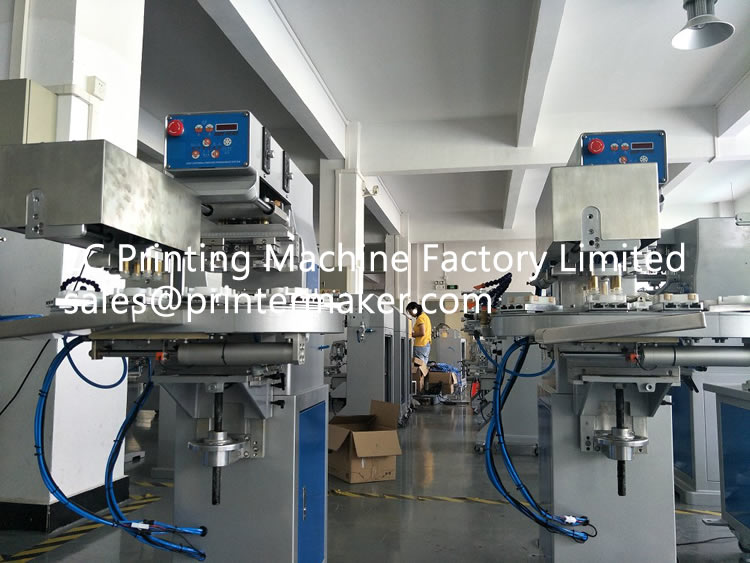

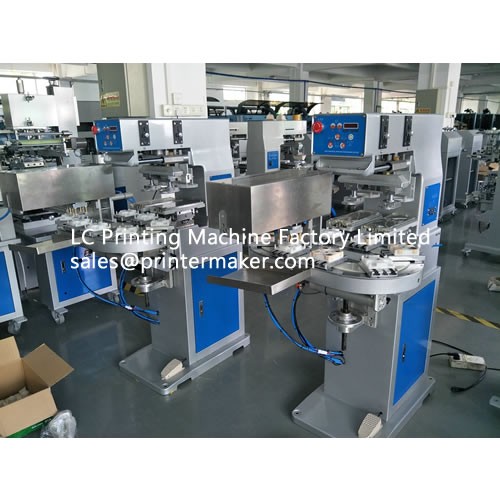

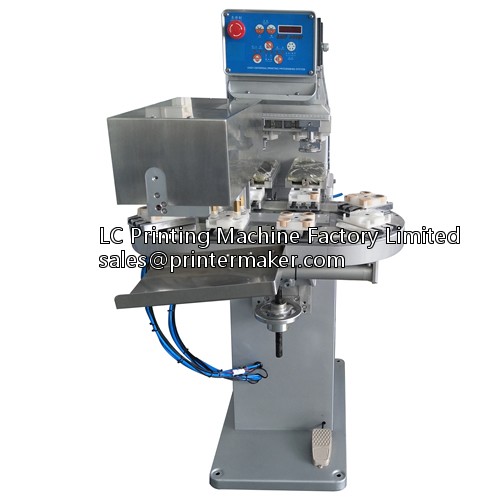

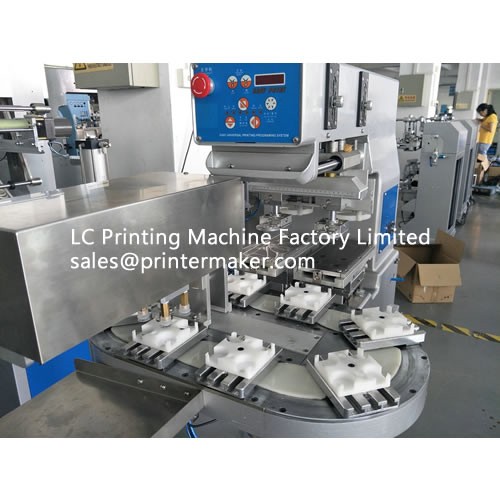

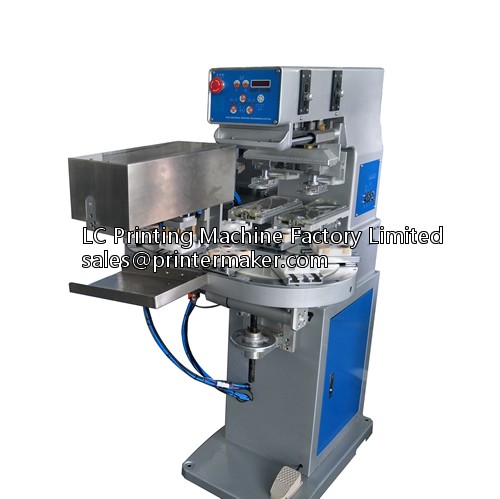

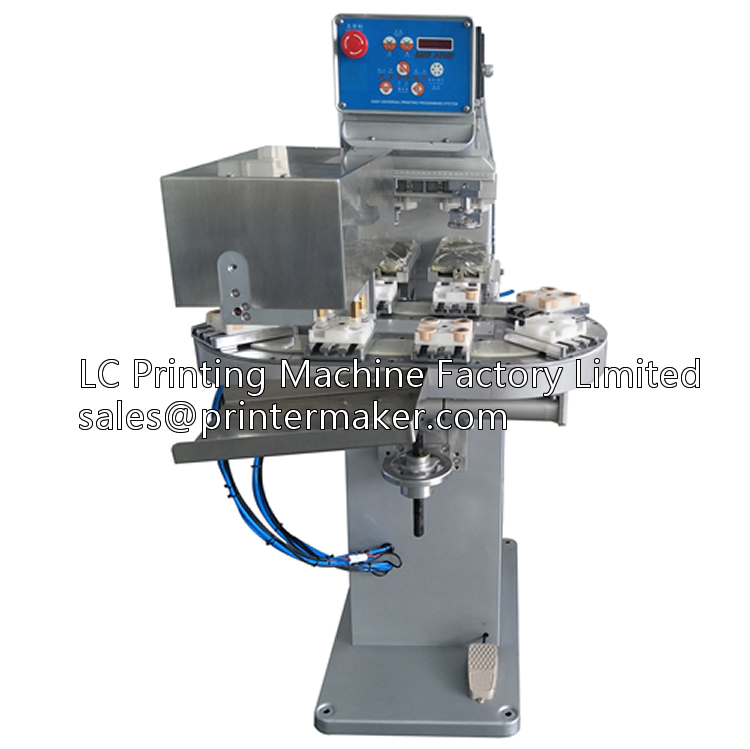

Product name:Two Color Ink Cup Pad Printing Machine for Cap's Top

Model Number: S2-250C/8TC

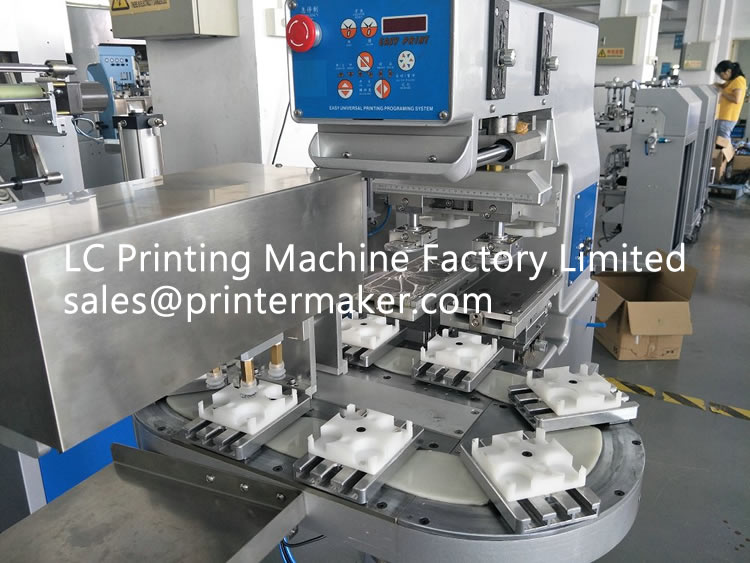

Two Color Ink Cup Pad Printing Machine with Conveyor has 8 PCS printing position as well as
an automatic unloading system. It can print 8 PCS products and two colors at one cycle
Specifications
1. Model No: S2-250C/8TC
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80x135 mm
5. Plate area: 100*250*0.3mm
6. Sealed ink cup diameter:  90mm
7. Max printing speed: 6000PCS/H(one cycle print for 4 pcs; 25 cycle time per minute)
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 98×95×155cm
11. Machine weight: 240kg
12. Packing Size:116*98*151cm
13. Gross Weight:280KG
Features:
1. Controlled by microprocessor, easy operation, running stably, and accurately.
2. 4-digit auto counter built-in. One cycle time printing with 4pcs to greatly increased the printing speed.
3. Cast aluminum machine frame, low weight, and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. The ink cup is turnable and adjustable in the vertical and horizontal directions.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable

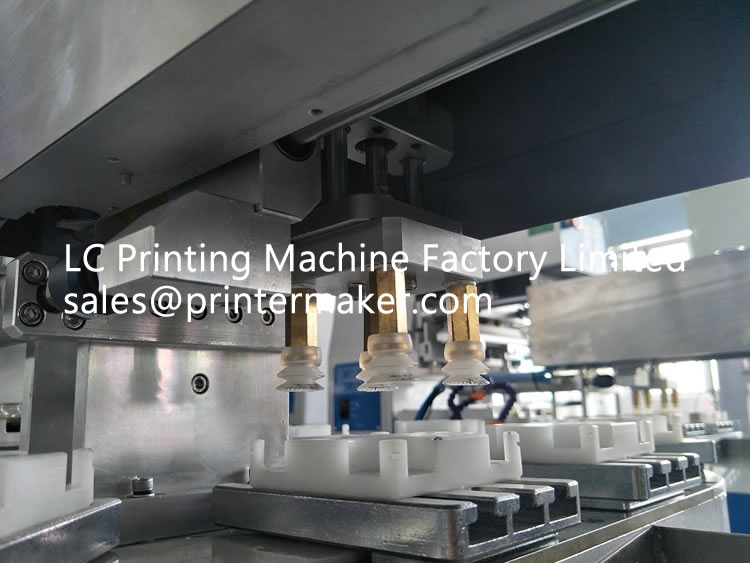

10. Auto unloading system to greatly save labour cost
11.Pheunatic Parts Brand: Japna SMC CYLINDER ,Germany Festo Tubes

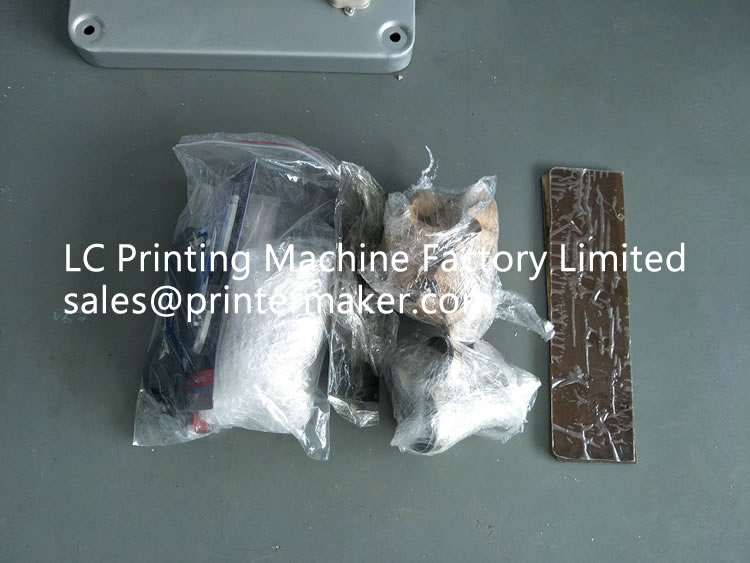

Free Fitting:
1 Two PCS pad steel plate
2. Two PCS silicone rubber pad
3. Eight PCS jig
4. Tooling box
5. English specifications
Price Terms --EXW,FOB or CFR
Payment Terms --T/T
Packing --Wooden case
Lead Time ---5days after confirming PO
Standards Certificate--- CE
Cubic Meter--- 1.42

Pheunatic Parts Brand: Japna SMC CYLINDER ,Germany Festo Tubes
