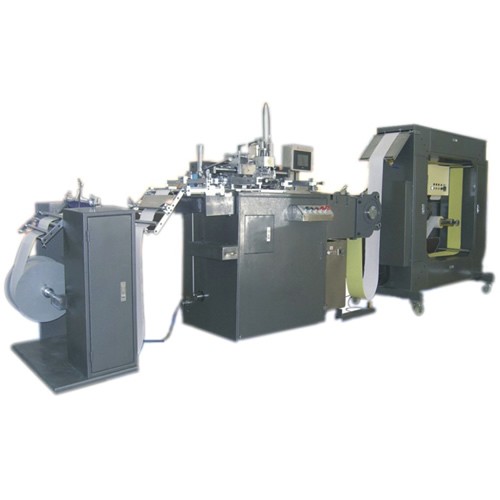

Automatic Roll to Roll Silk Screen Printer on Films

  • Model Number: RTR-320
  • Category: Custom Solutions
  • Views: 353
  • Product Description:Automatic Roll to Roll Silk Screen Printer on Films
  • PRODUCT DETAIL

Product name:Automatic Roll to Roll Silk Screen Printer on Films

Model Number: RTR-320

Description:
Automatic Roll to Roll Silk Screen Printer on Films
Specifications:
1: Max. Rolling Diameter: 450mm
2: Speed: 10-40 times/Min.
3: Max. Roller Width: 320mm
4: Max. Print Width: 300mm
5: Max. Print Length: 320mm
6: Localization Accuracy:+_0.15mm
7: Main Motor Power: 1.2KW
8: Oven Power: 4.1KW
9: Air Pressure:4.5-6kg/cm
10: Machine Size:2400*950*1500mm
11:Oven Size:1750*600*1800
12: Machine G/W: 1100KG
Advantages:
1: The feeding adopts computerized numerical control (cnc) servo delivery
2: The part of transmission adopts pneumatic actuator
3: Printing parts adopts photo-electric tracing control the front and back as well as on the sides.
4: High accuracy,
5: Feeding steady,
6: Automatic counting,
7: Alarm,adjustment easy, compact structure.
8: IR drying oven
Application:

This machine is applied to the industry of packaging printing and printing of flexible circuit board, electronic, thin film switch.

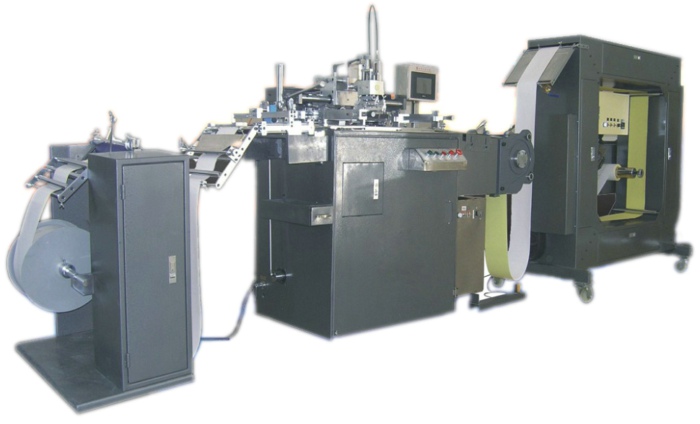

Automatic Roll to Roll Silk Screen Printer on Films
