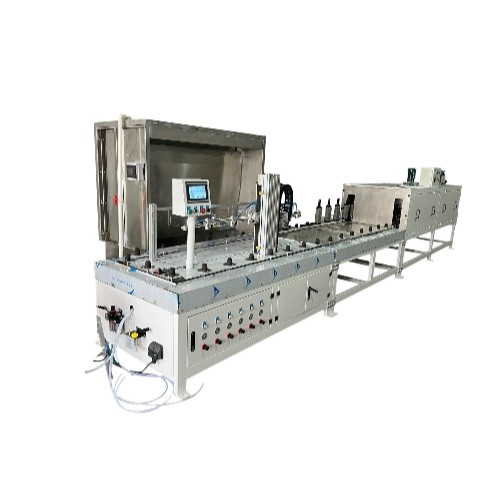

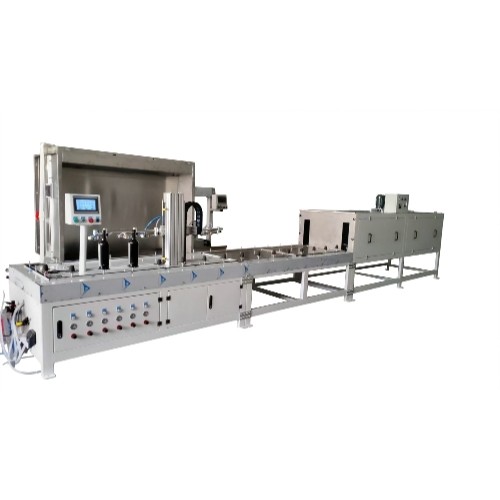

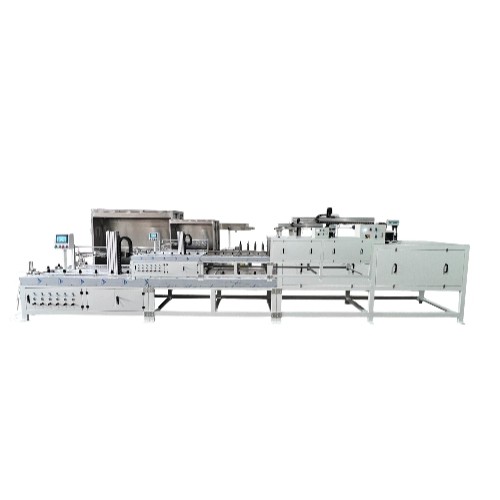

Automatic Paint Spraying Machine line on glass bottles # perfume bottles

Product name:Automatic Paint Spraying Machine line on glass bottles # perfume bottles

Features and Parameters：

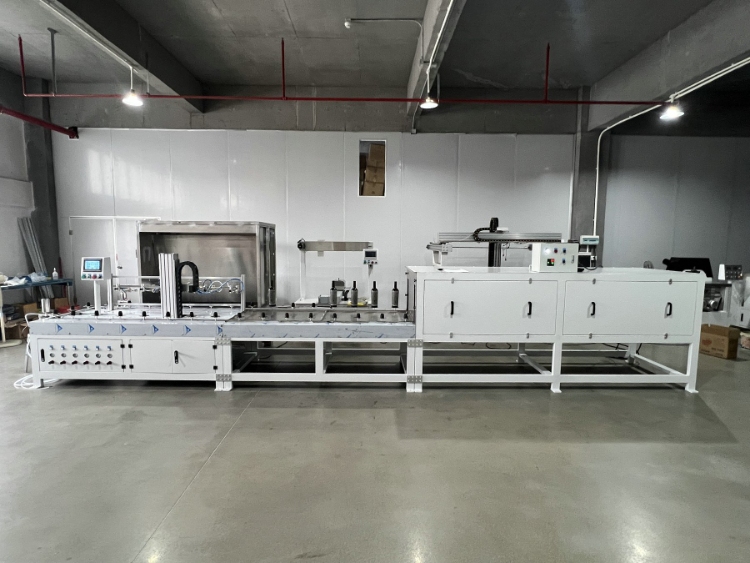

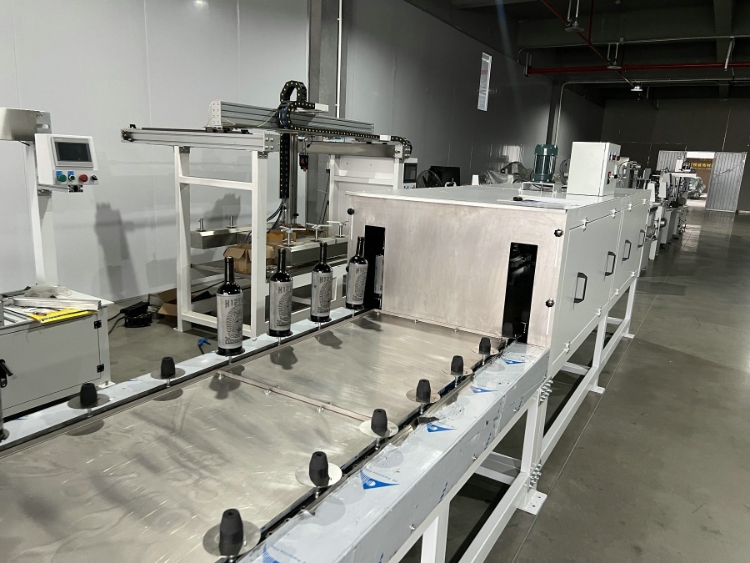

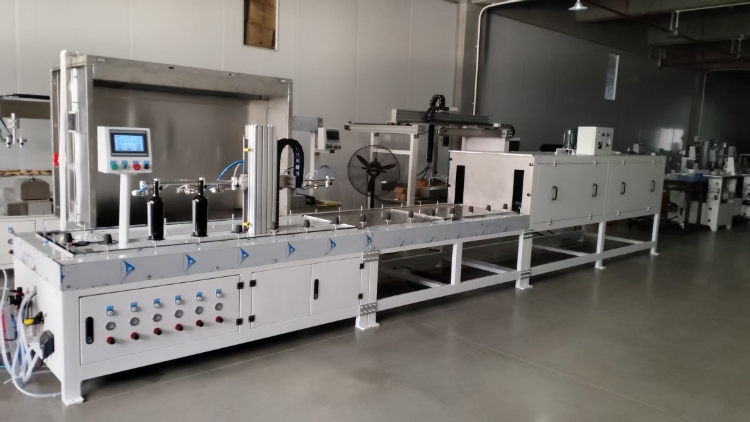

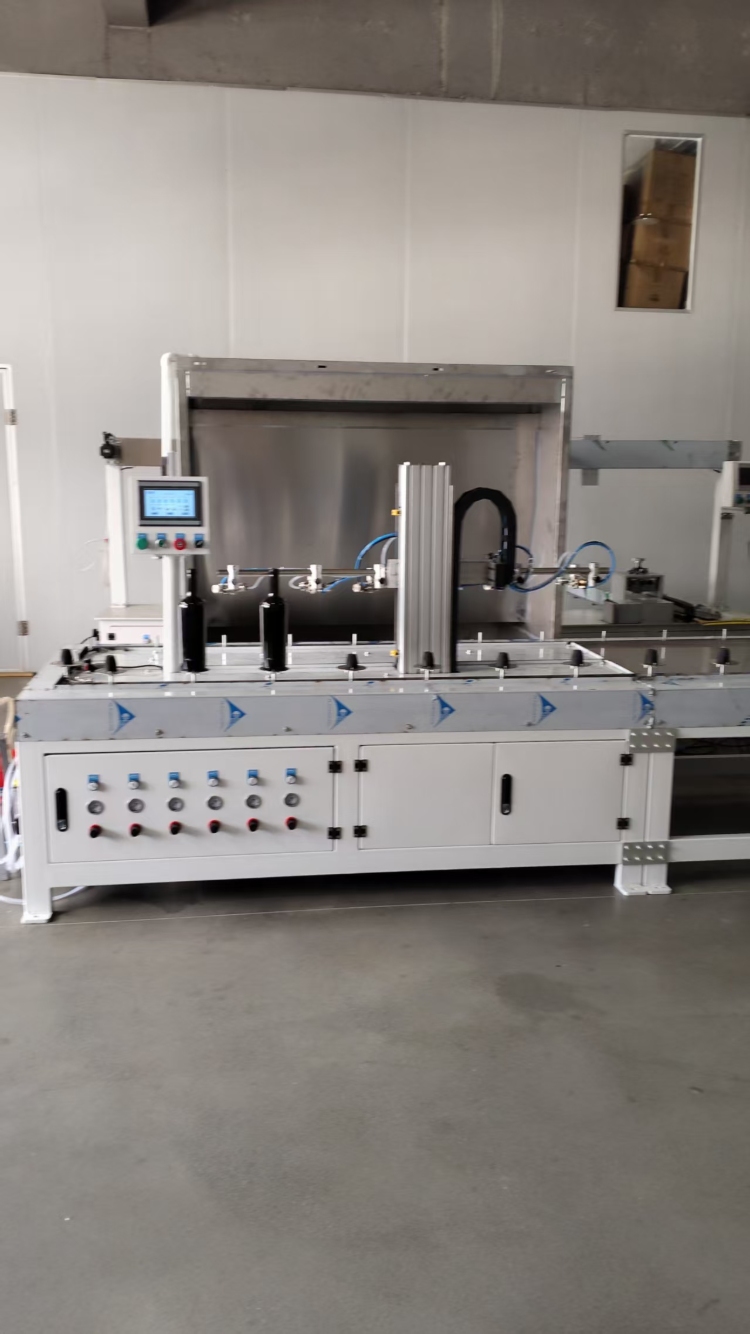

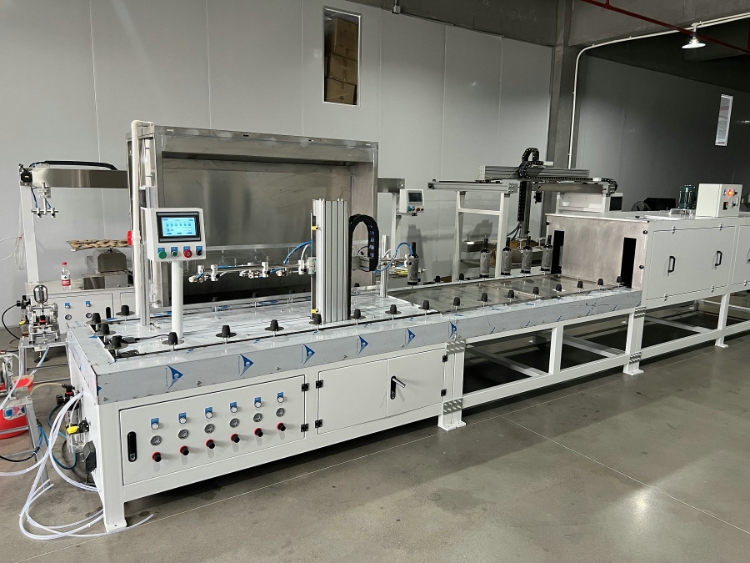

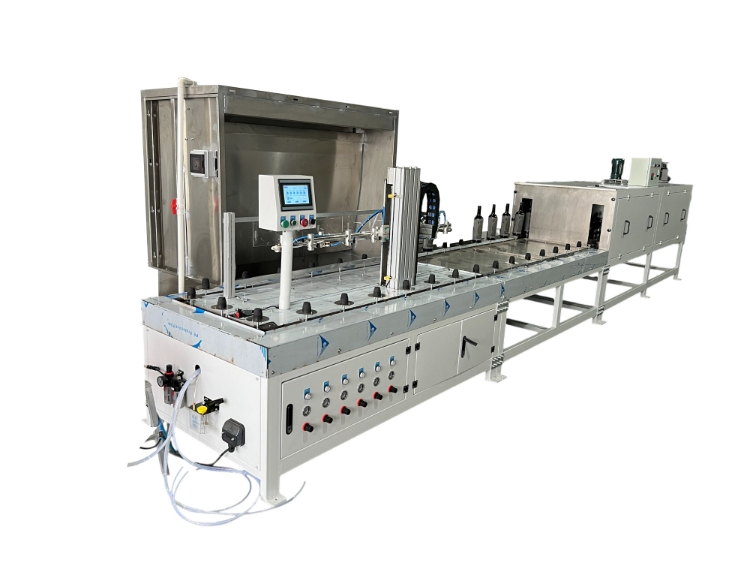

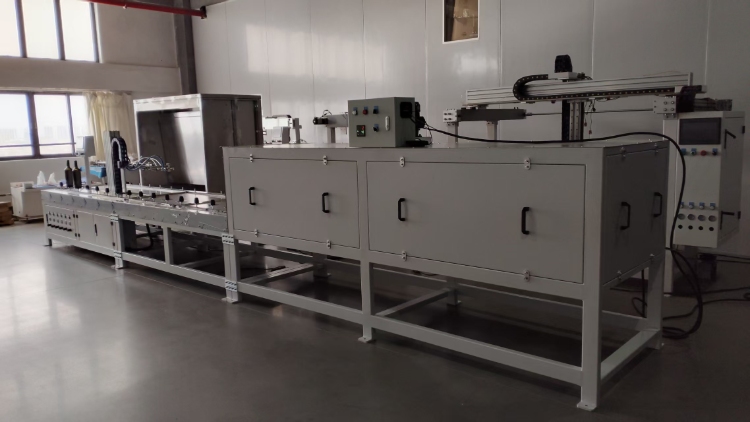

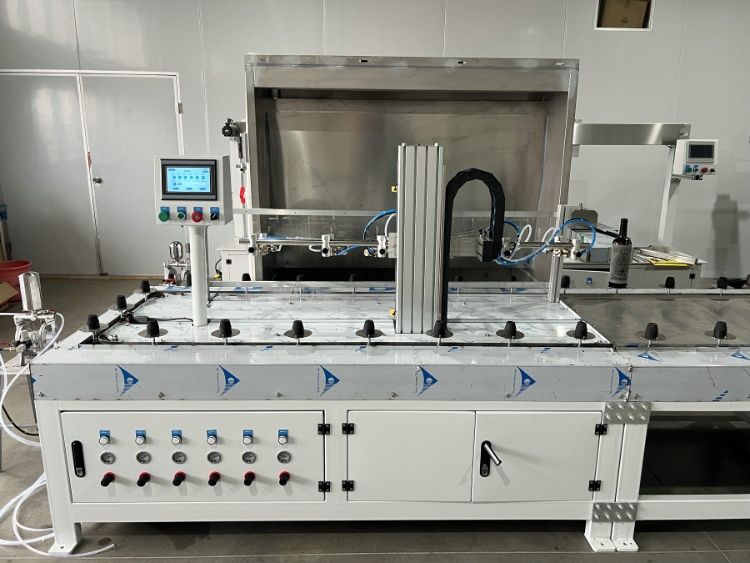

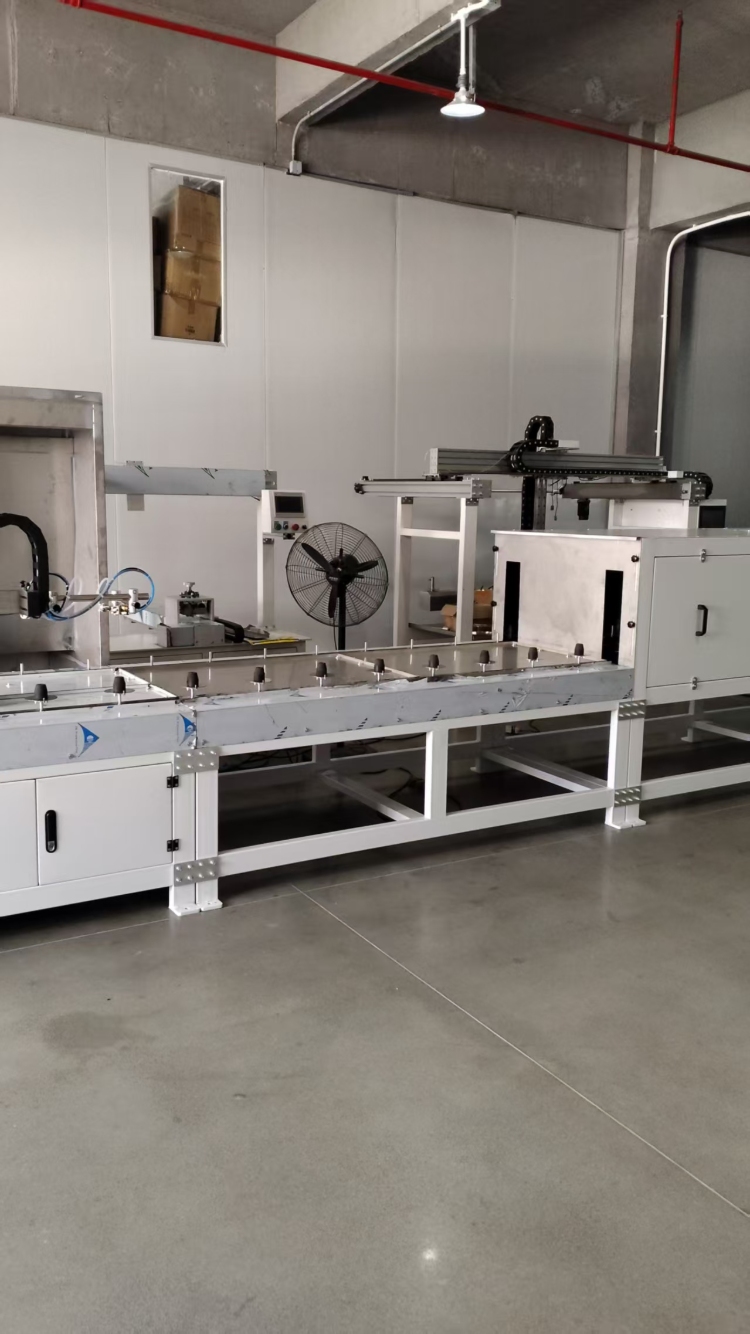

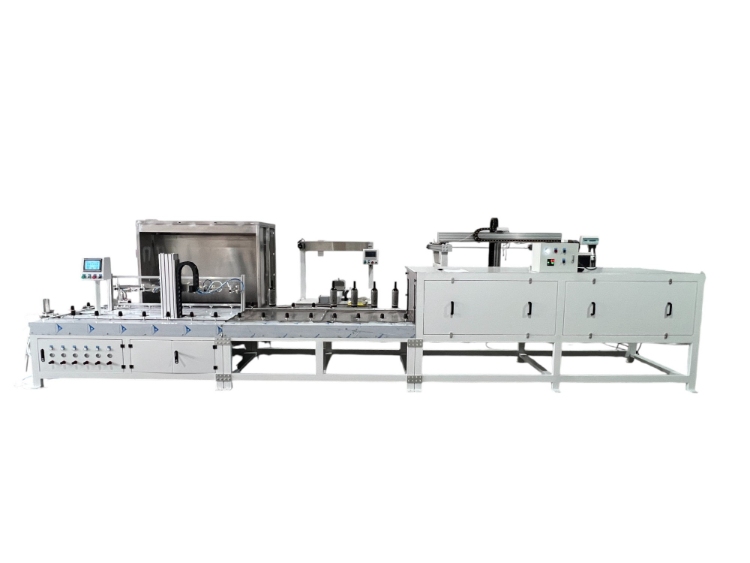

Chain circular motion, including spray booth, oven, and water curtain machine. Manually place the workpiece, drive the chain to the front of the water curtain for painting, and after painting, enter the oven for drying.

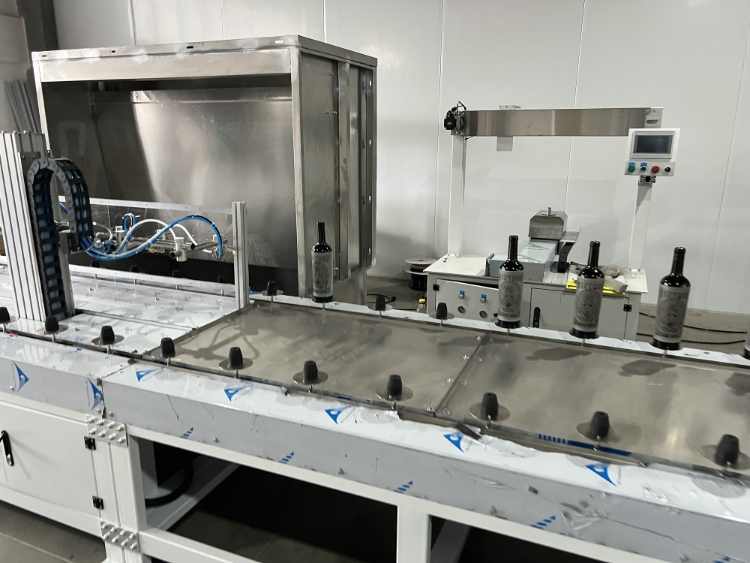

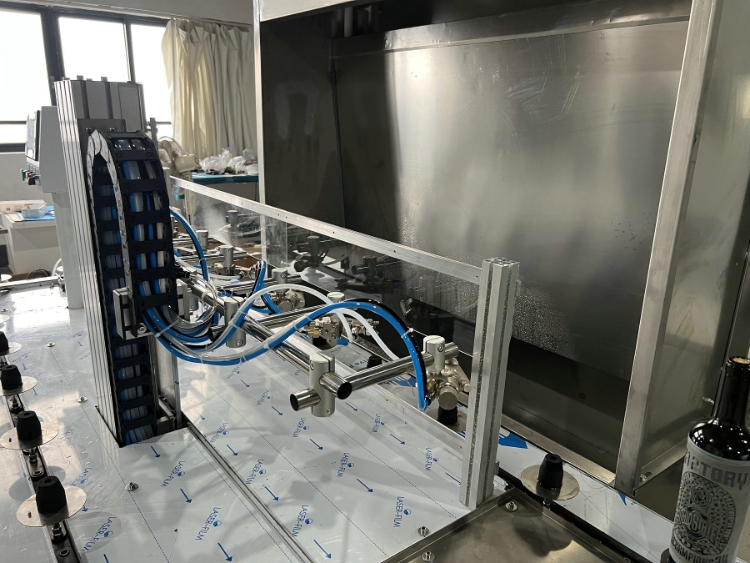

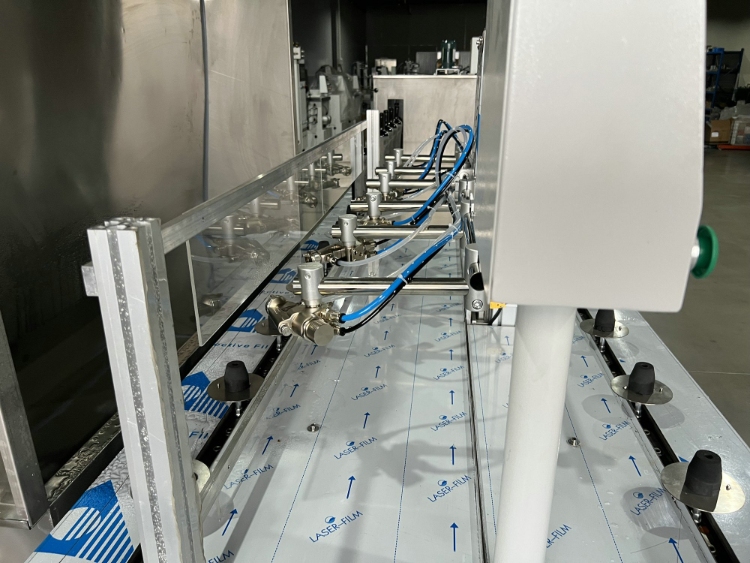

The conveyer is an intermittent motion, where the workpiece pauses before the spraying station, and the spray gun moves up and down to spray.

After spraying, the conveying moves to the next workstation, and the next spray painting process follows.

The revolution speed is adjustable, and the distance and speed of the spray gun can be adjusted up and down.

This machine adopts PLC control and touch screen operation.

The maximum processing diameter is 100mm,

The maximum processing height is 350mm,

The processing efficiency is 6pcs/min.

The power of the conveying motor is 1.0kw.

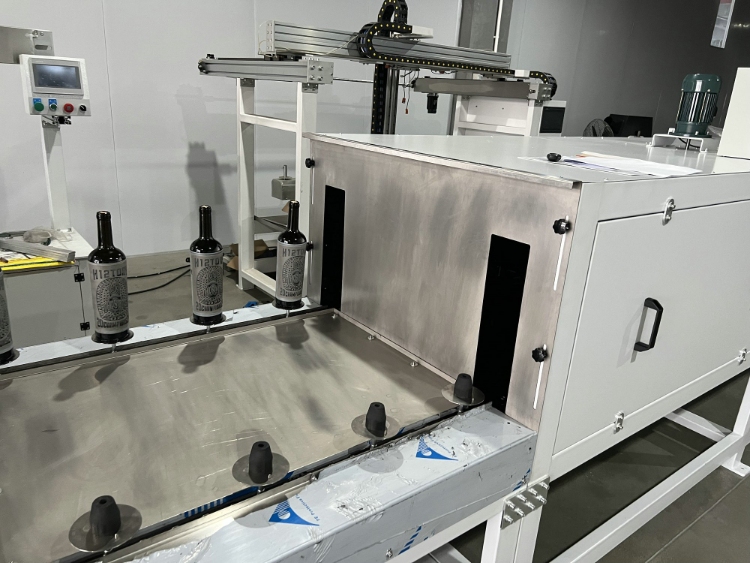

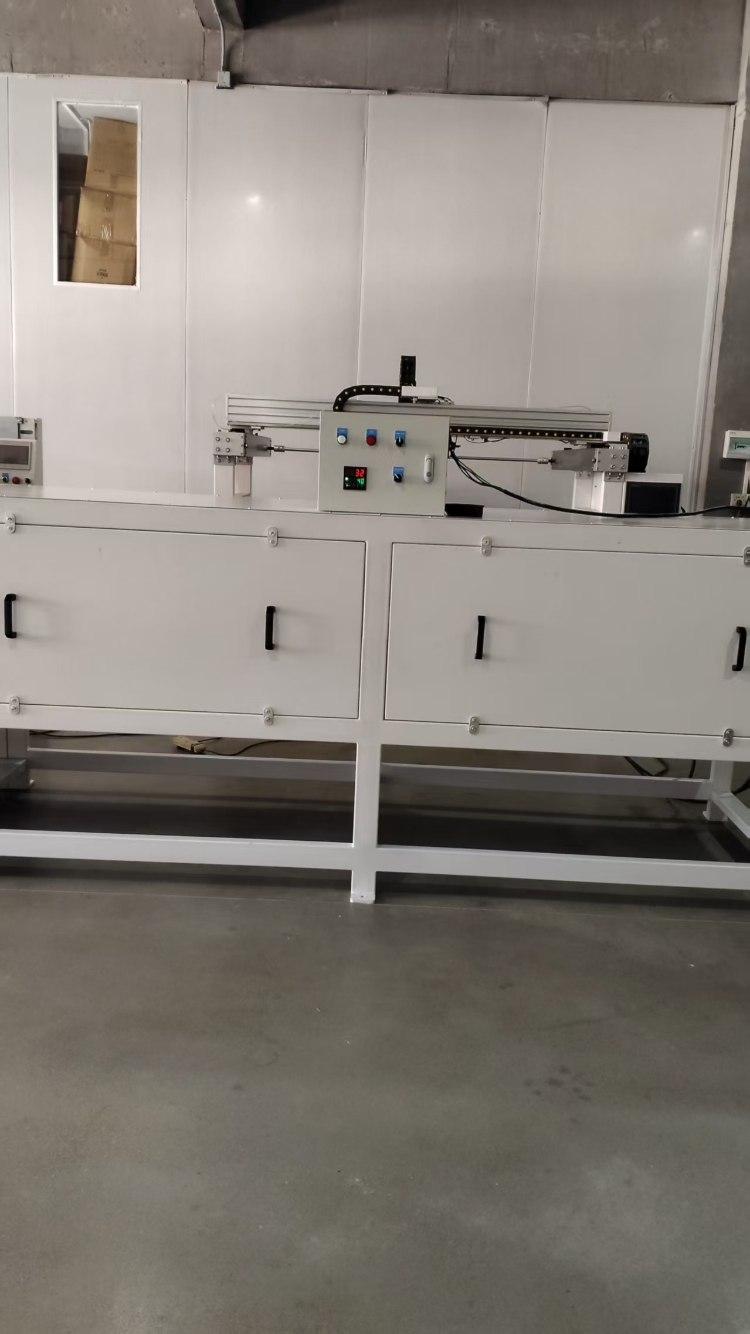

The oven is 3 meters per section and the total drying length is 6 meters.

Fan blowing cooling.

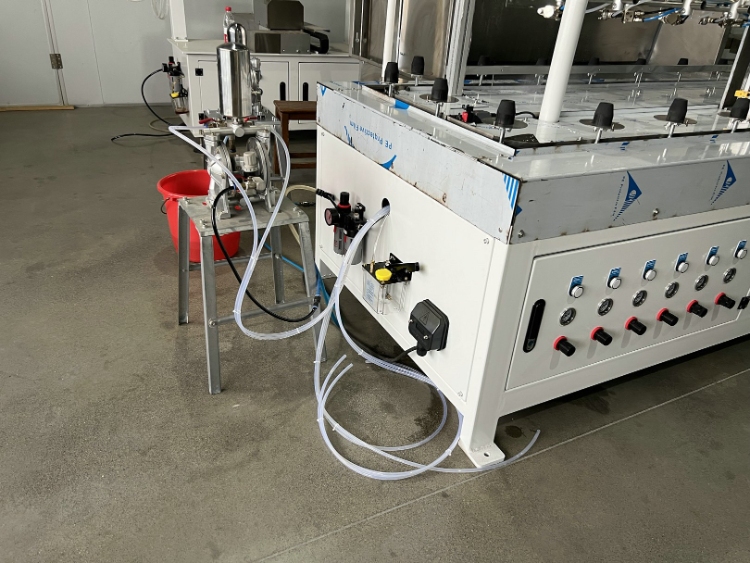

Configure one diaphragm pump and two spray guns.

Equip with one spray gun, five heating tubes, and two induction switches.

The key standard components are used domestic brands , and the key electrical components are used for imported brands .

Total power: 10kw, voltage requirement 380V, 50Hz.
