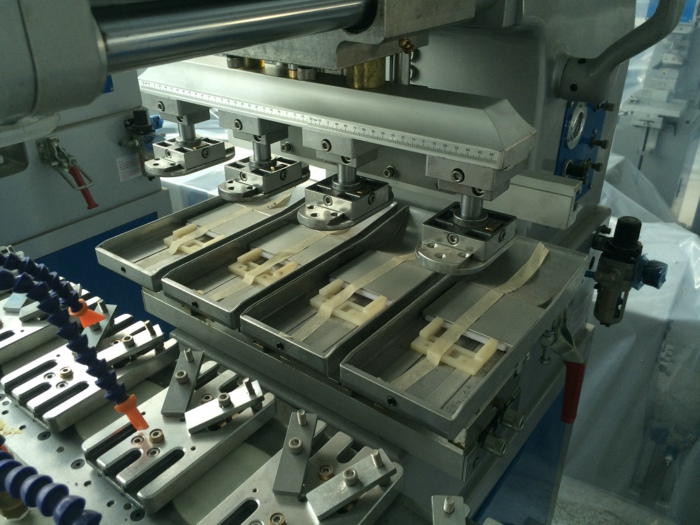

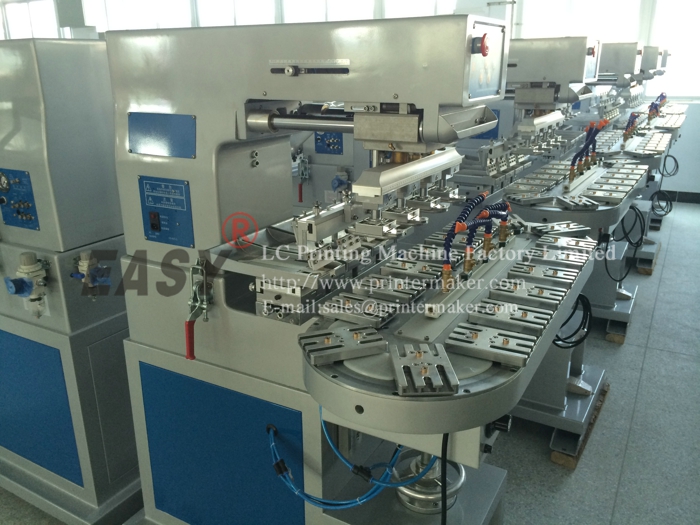

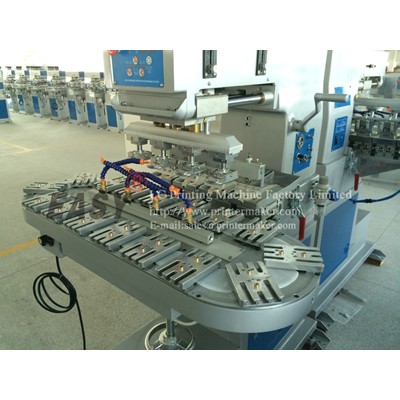

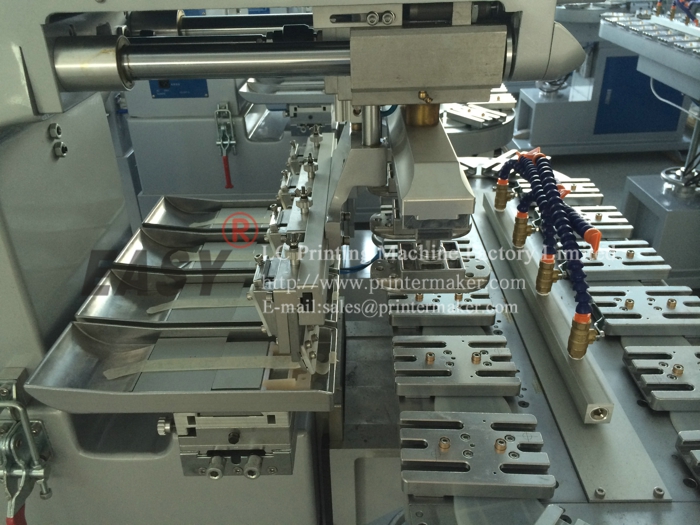

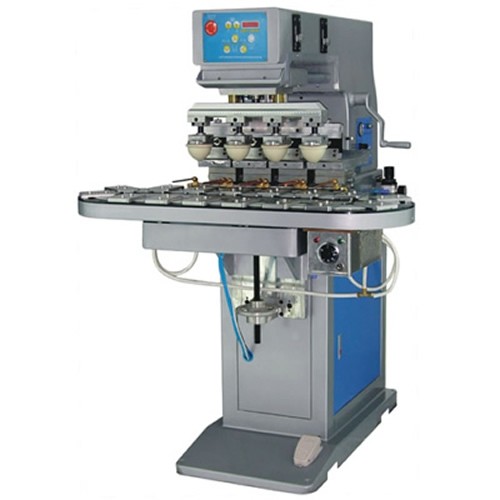

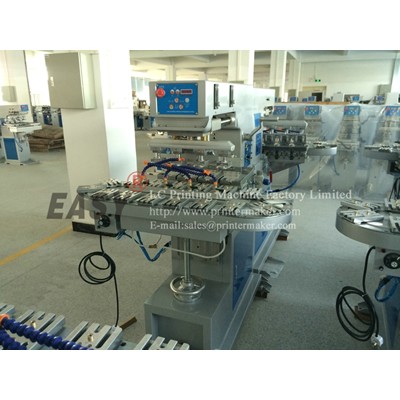

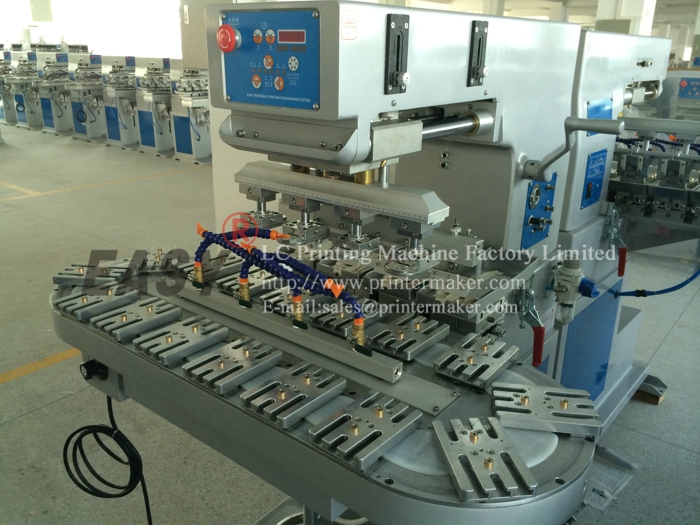

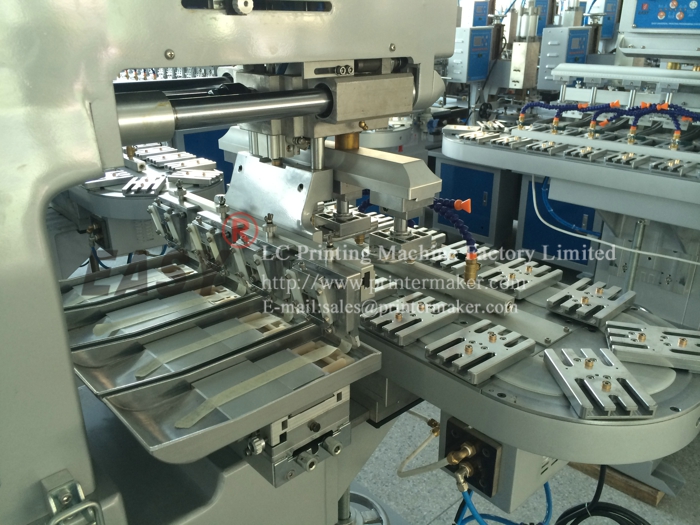

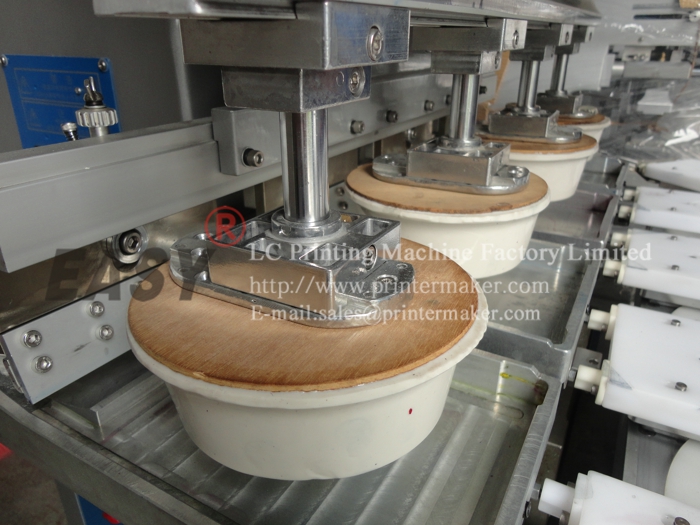

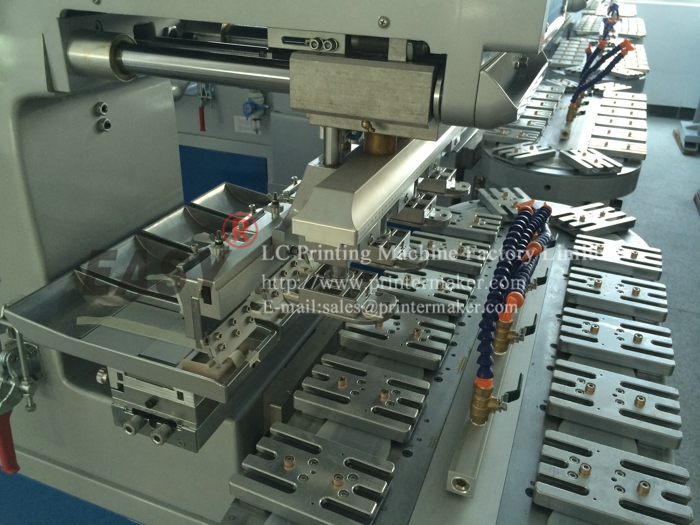

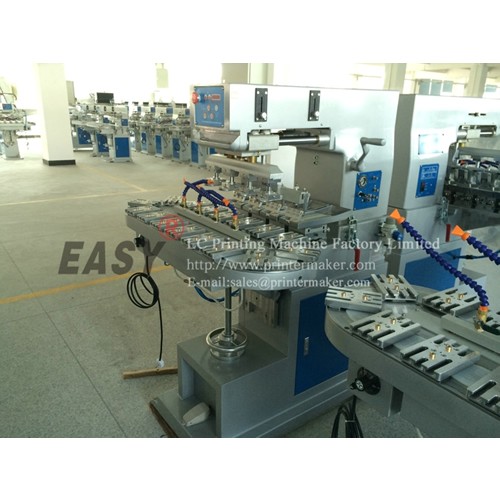

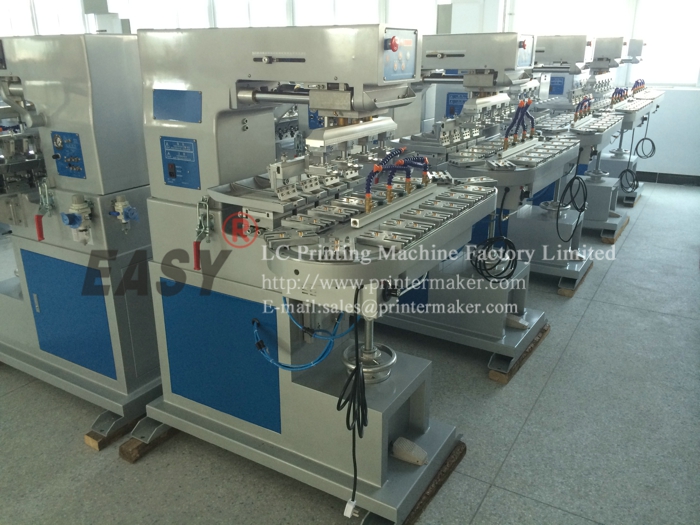

Product name:4 Color Pad Printer with Carousel
Model Number: M4-C
4 Color Pad Printer with CarouselSpecifications:
M4/C
Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100×200mm;
2.Max Printing area: 85×130mm;
3.Max. worktable area: 90×125mm;
4.Max. printing speed: 1200pcs/h;
5.Printable colours:4;
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.
9.Machine size(LxWxH):1220x1080x1500m
Advantages:
1.Total microcomputer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller ;
4.Fully coin aluminum structure which is sturdy and long life
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get thicker ink covering;
8. Japen SMC Cylinder & Germany FESTO Pneumactic Parts
Machine Fittings:
1. Four Pad plates,
2. Four pads
3. Two blades
4. A tool box.
Application:
Applicable for small round surface as well as flat surface printing, such as cell phone button,golf, toy, Pens, PC Mouse, Small electronic accessories etc.
