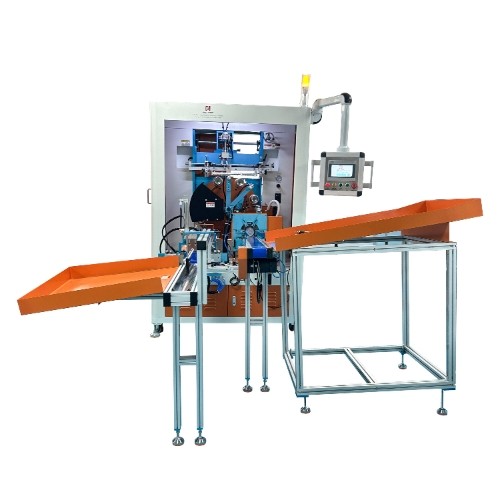

Plastic&Paper Cups High Speed Fully Automatic Silk Screen Printer Machine With LED &Corona Treatment

Model Number: MSP-400LED
Product price: US$:negotiated
Category: Cylindrical Screen Printer
Views: 6366

Product Description：This machine is a high speed LED UV round screen printer with auto feeding and auto unloading for printing logos on disposable plastic cup, PP cup, PET cup, paper cup, U type cups...

PRODUCT DETAIL
Video
Packing Photo

Product name:Plastic&Paper Cups High Speed Fully Automatic Silk Screen Printer Machine With LED &Corona Treatment

Model Number: MSP-400LED

Parameter:
1:Max Printing diameter: 120mm (it can be customized by the product diameter )
2:Product appearance: Round
3:Voltage power： 220V/ 50HZ (110V,60HZ is optional)
4:Air pressure: 6-8 Bar
5:Printing Speed：3000 PCS/Hr
6:Loading mode: Automatic Feeding
7:Unloading mode：Automatic unloading and auto stacking
8:Pre-Treatment: Flame or Corona treatment
9:Drying Way:2KW LED Curing system
10:Machine Net/Gross Weight：1000kg/1200KG
11:Machine Dimension：3684 x2408 x2186mm
12:Packing size:2680 x1870 x 2200MM

Features:
1. Fully automatic loading and unloading as well as stacking for packing system; packaging function is optional
2. Automatic alignment sensor to avoid the paper cup joining line for positioning printing.
Optical Sensor for multi colors printing for second/third/fourth... circle running through.
3. No product no print for perfect stable working condition
4. High-strength vacuum system to maintain printing accuracy
5. Controlled by touch screen + electronic cam EtherCAT bus compiled program.
6. Fully automatic design, operating in automatic mode.
7. Pre-print corona treatment to improve product adhesion.
8. Equipped with precision servo motors to ensure product quality.
9. Dia.600mm diameter, rotary table type printing operation.
10. LED instant drying, finished products can be packed directly after printing.
11. Complete set of cylinder components from well-known brands.
12. 8 stations, screen printing with color registration.
13. Printing speed: single color 40-60 PCS/min (subject to actual printing pattern).

14. Multi-color registration: 30-35 PCS/min (subject to actual printing pattern).

Automatic vertical curved screen printing machine is a full-automatic circular product screen printing machine designed for high speed and high precision printing. According to the all-link mechanical structure, driven by servo motor, high-speed operation without any vibration, advanced structure, the rotation of the rotary table to realize the switch of each station, electronic color marker sensor precise positioning, In order to meet the customer's high precision, high speed and high quality requirements.
