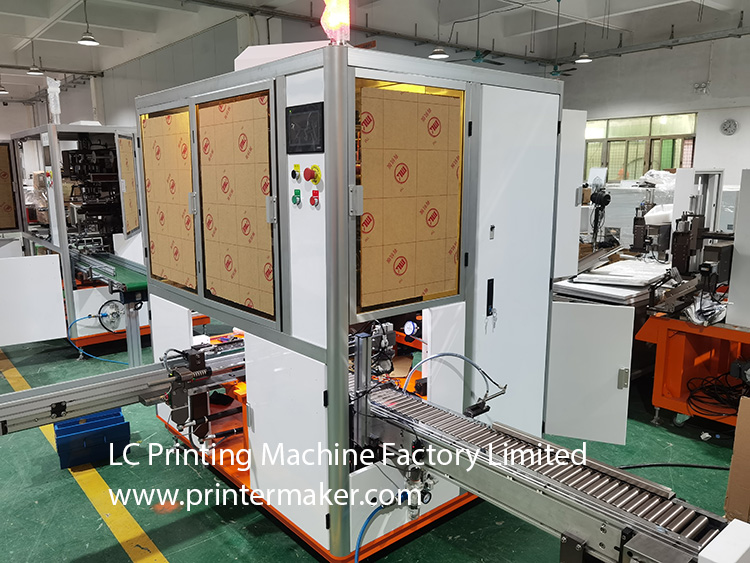

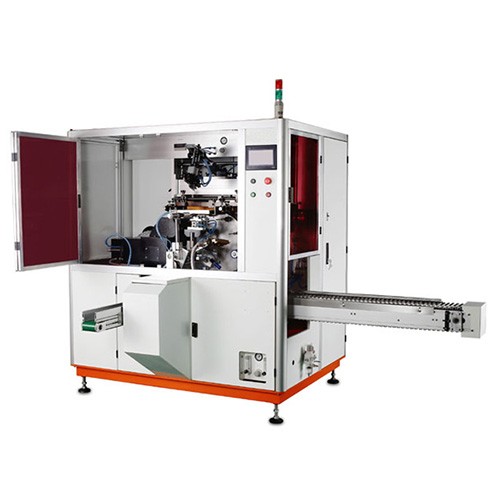

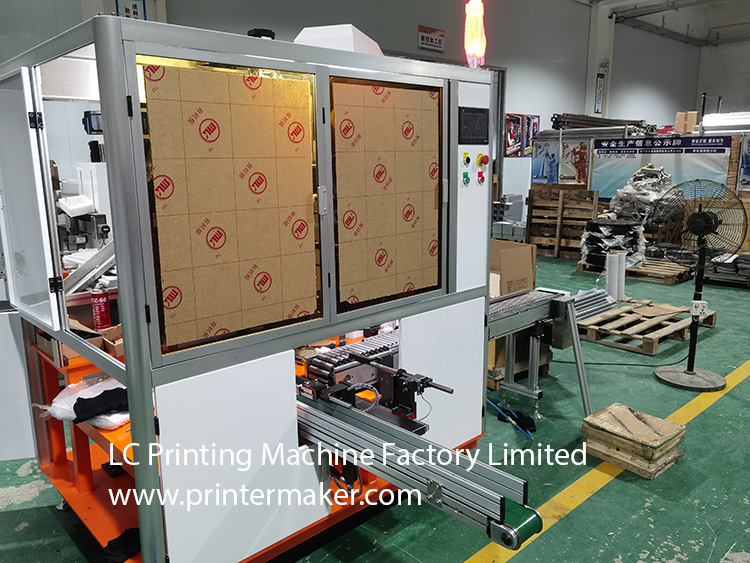

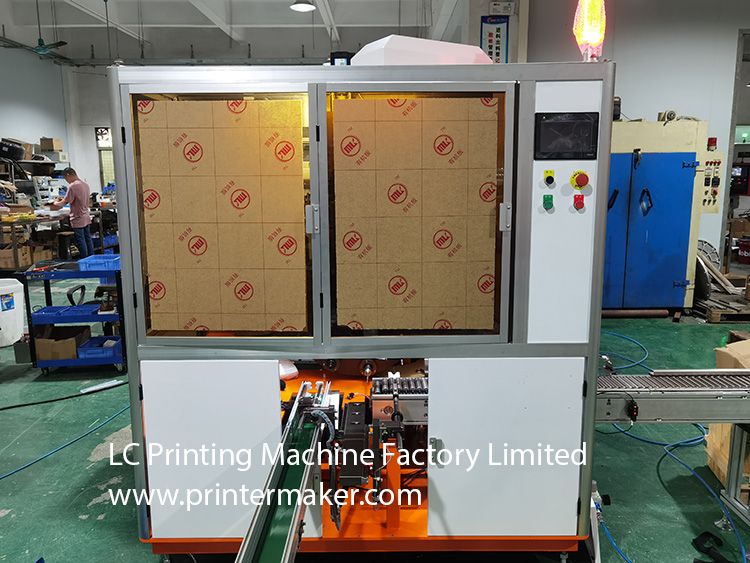

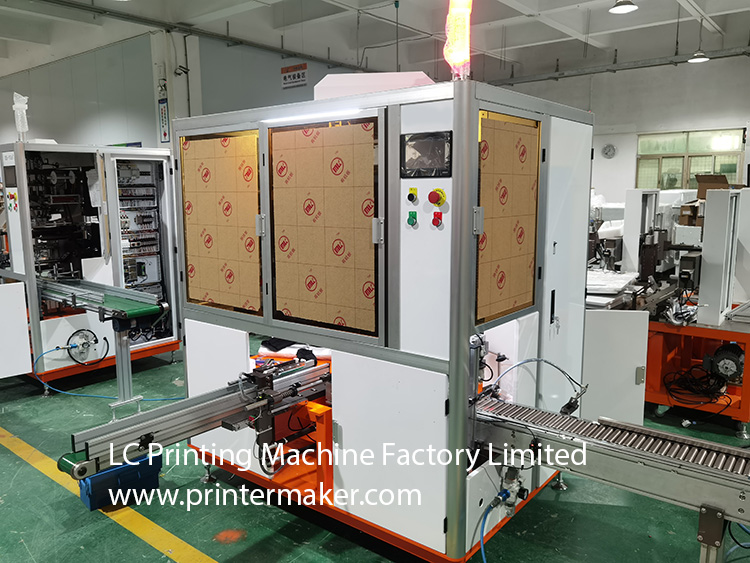

Automatic UV screen printer on plastic tubes&Jars

Model Number: SCUV-175
Product price: US$:negotiated
Category: Automatic Screen Printing Machine
Views: 3562

Product Description：Automatic pen rod screen printing machine；cosmetic tubes automatic UV screen printer; glass jar automatic UV screen printing machine, Cosmetic jar automatic UV screen printing machines; bottle tubes

PRODUCT DETAIL
Video

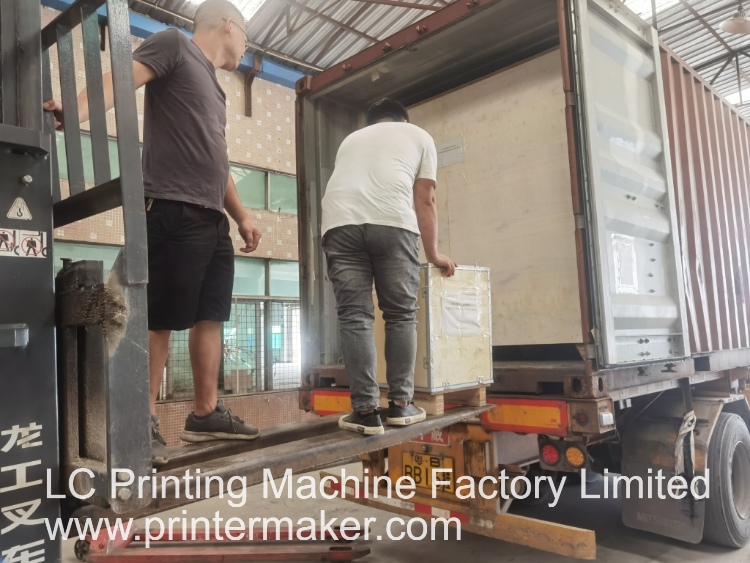

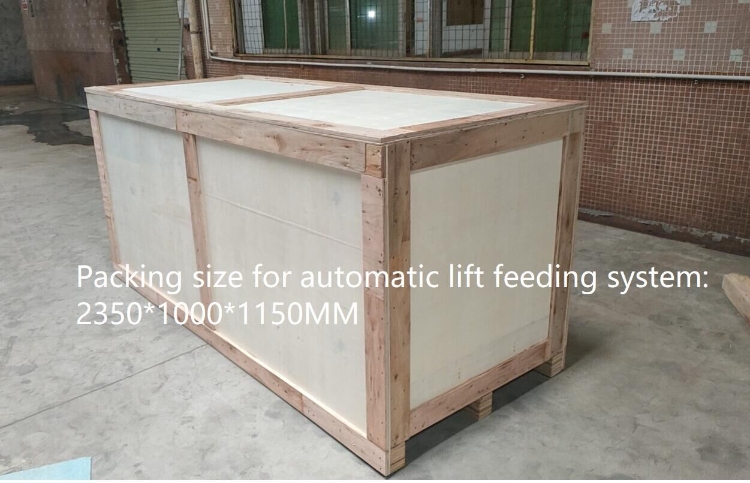

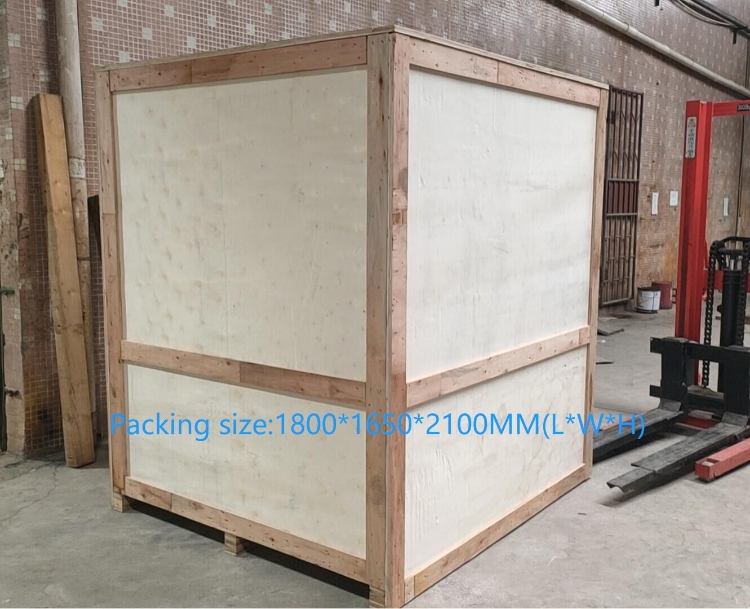

Packing Photo

Product name: Automatic UV screen printer on plastic tubes&Jars

Model Number: SCUV-175

Automatic UV screen printer on plastic tubes&Jars
Model: SCUV-175

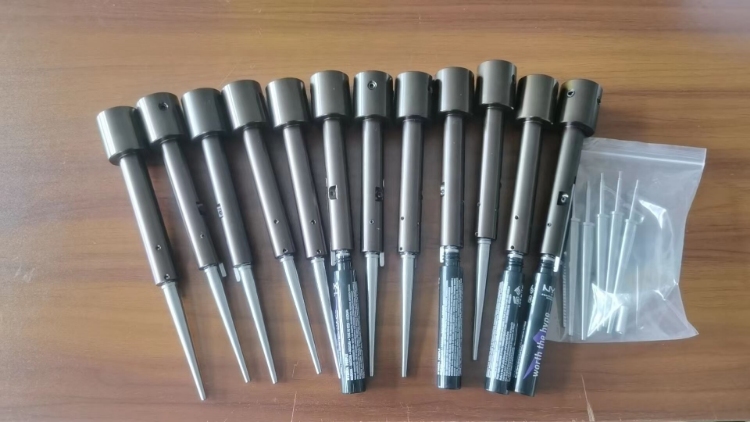

Keyword:Automatic pen rod screen printing machine；cosmetic tubes automatic UV screen printer; glass jar automatic UV screen printing machine, Cosmetic jar automatic UV screen printing machines; bottle tubes automatic UV screen printer,

pharmaceutical bottles automatic UV silkscreen printing machines on plastic bottles; dropper bottles automatic UV silkscreen printing machines, two colors automatic UV silkscreen printing machines on medical Cryotubes, syringe-barrel automatic UV silkscreen printing machines, automatic UV silkscreen printing machines on medical Cryotubes, automatic UV silkscreen printing

Machine Parameter:

1:Printed Object Dimension: 10mm-75mm.L:20mm-230mm
2: Power Supply：380V. 3Phase，50Hz.4.5Kw
3: Air Supply：6-8Bar
4: UV Lamp Power:2.4Kw / 3.2Kw
5: Max.Printing Speed:4800Pcs/hr
6: Machine Dimension:2500(L) x1700(W) x 1900(H)mm
7: Total Power:3.8Kw / 4.6Kw
8: Gross Weight:1400Kg
9：Packing Size:1900*1650*2000MM

Features Description:
Specially designed for screen printing on circular objects, such as tubes, bottle caps, cosmetic jars and so  on. And also can achieve multi-color printing and precise color register.
Main drive system uses transmission equipments of famous brand from Europe with precise high-speed  indexer.,so that it can make operations more stable and reliable.
The maximum printing speed can reach up to  4800Pcs/hr..
Equipped with world famous PLC controller and convenient touch screen, therefore the whole  operation becomeseasy and simple.
Printing ink can be solidified by UV curing or infrared drying,and gain more idea solidification effect on the  base of ensuring stable performance and power saving.
Be provided with automatic monitoring function such as ionic wind dedusting, "no object,no printing",  automaticalarm due to low air pressure and waste or wrong material, etc.
With automatic feeding system and discharge manipulator, not only ensure continuous and stable printing  operation,but also avoid scratching surface of printed object during printing process and guarantee operator's  safe peration.

Machine optional configuration (according to customers' requirements):
a. Automatic feeder (can save manpower and realize fully automatic production)
b. Servo & Cursor Positioning System (can achieve precise color register for offset printing and hot stamping) c. Mechanical positioning device (can realize multi-color overprinting)

d.Transformation function between screen printing and hot stampinge. Automatic capping device
