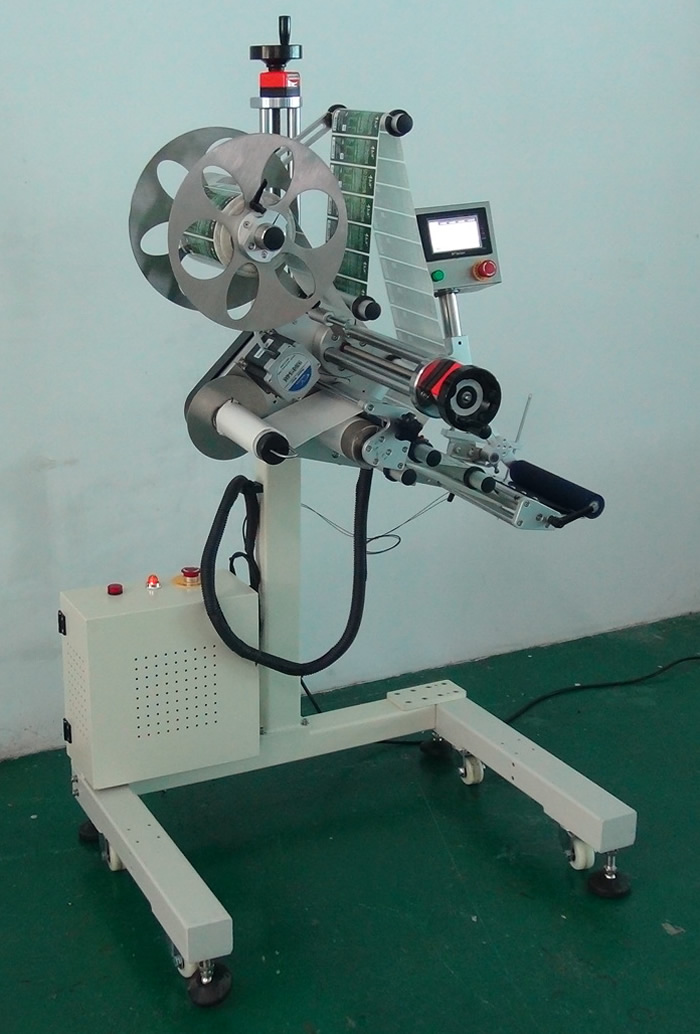

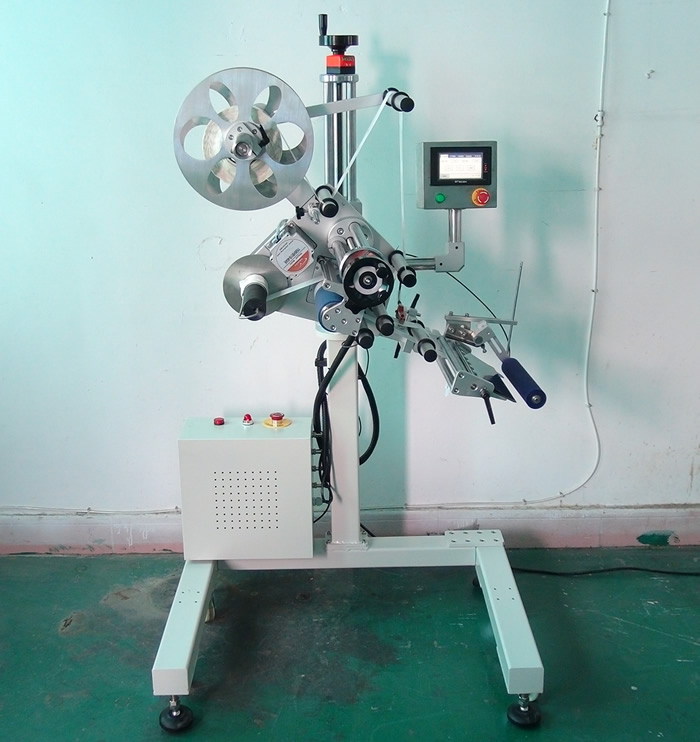

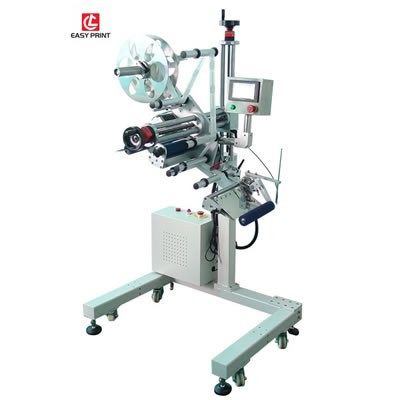

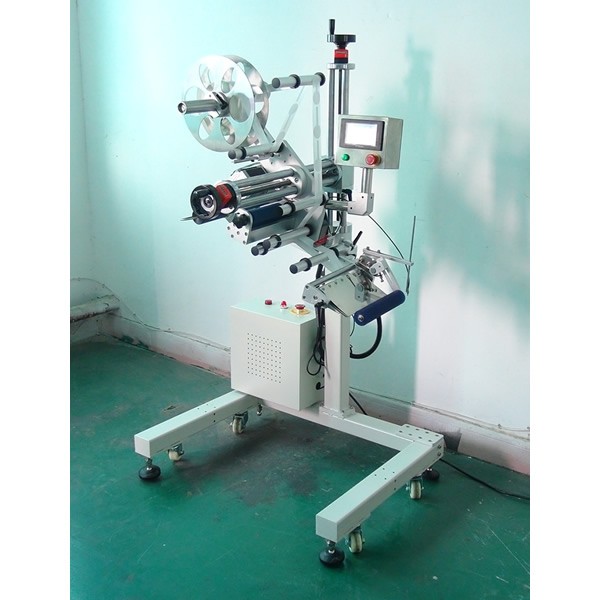

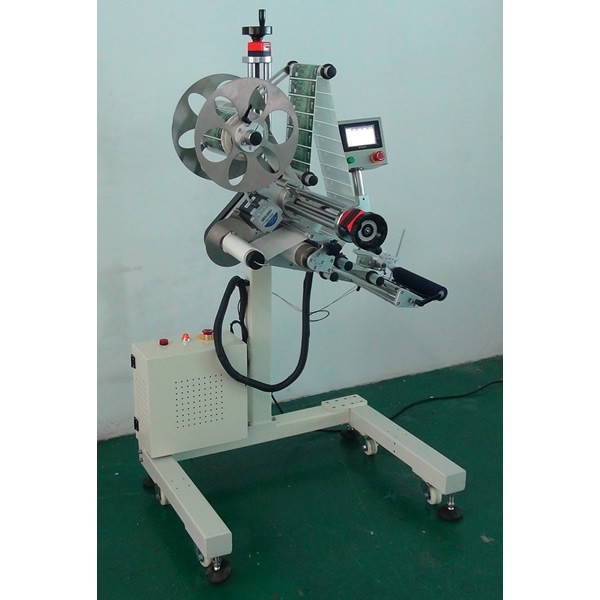

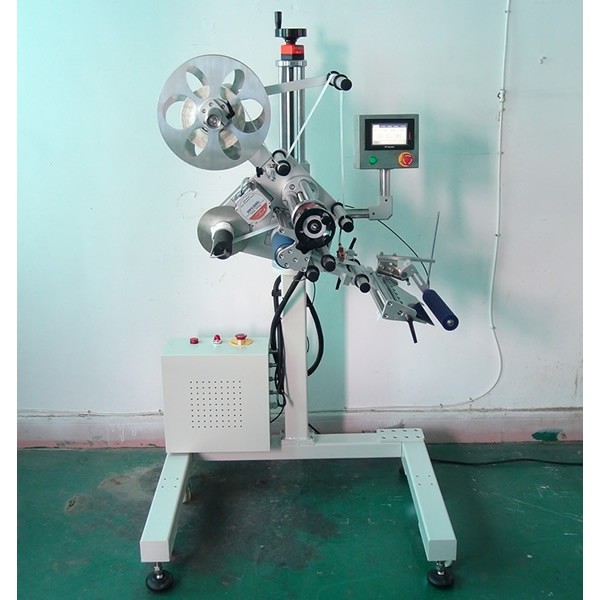

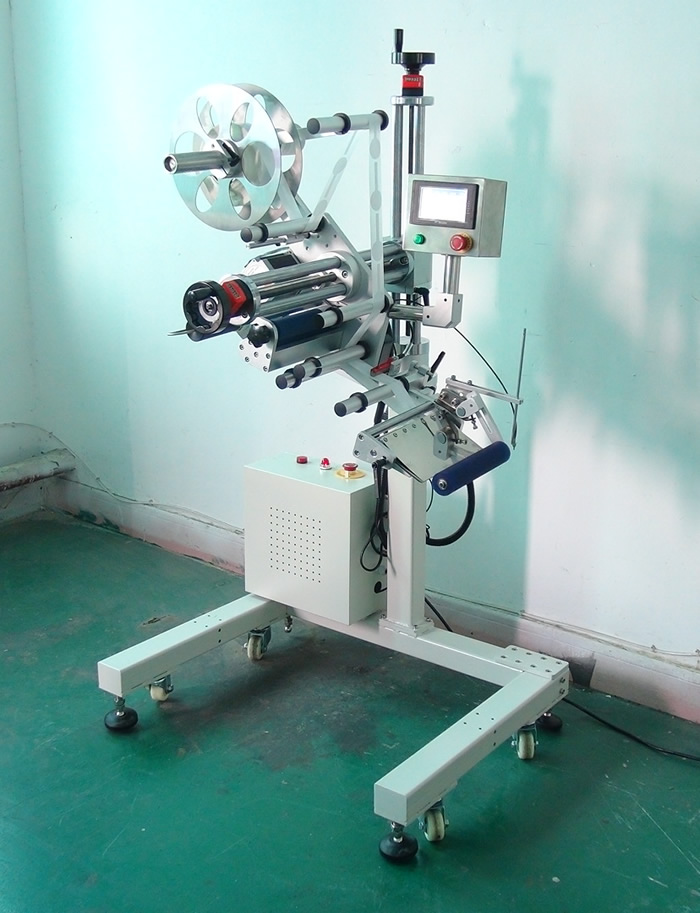

Flat Labeling Head for Automatic Assembly Line

Product name:Flat Labeling Head for Automatic Assembly Line

Model Number: ALM-51100

Flat Labeling Head for Automatic Assembly Line
Application
It is ideal for stand-alone applications on existing packaging lines, as well as the labeler of choice for a Quadrel high speed open frame system.
Semi-auto Flat Labeling Head can be equipped on assembly line for labeling flat face , cambered surface products.
Specification:
1.Label width: 6-130mm
2.Label length:6-250mm
3.Products Diameter: Any size

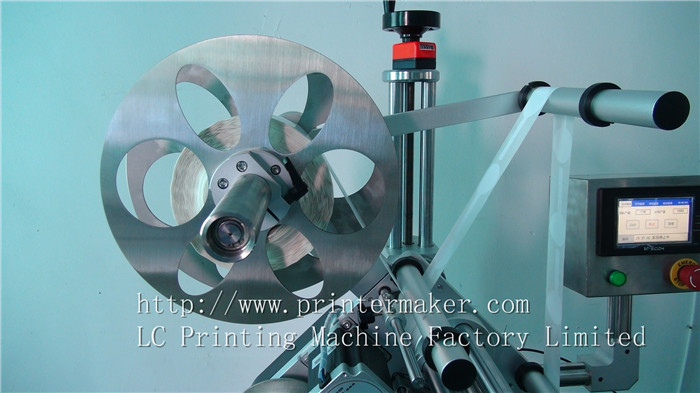

4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed:150pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 400W
9.Machine Dimension: 1100mm x 700mm x 1450 mm
10. Machine Net Weihgt : 80 KG Gross weiht : 100KG
11.Packing Size:110*100*162CM
