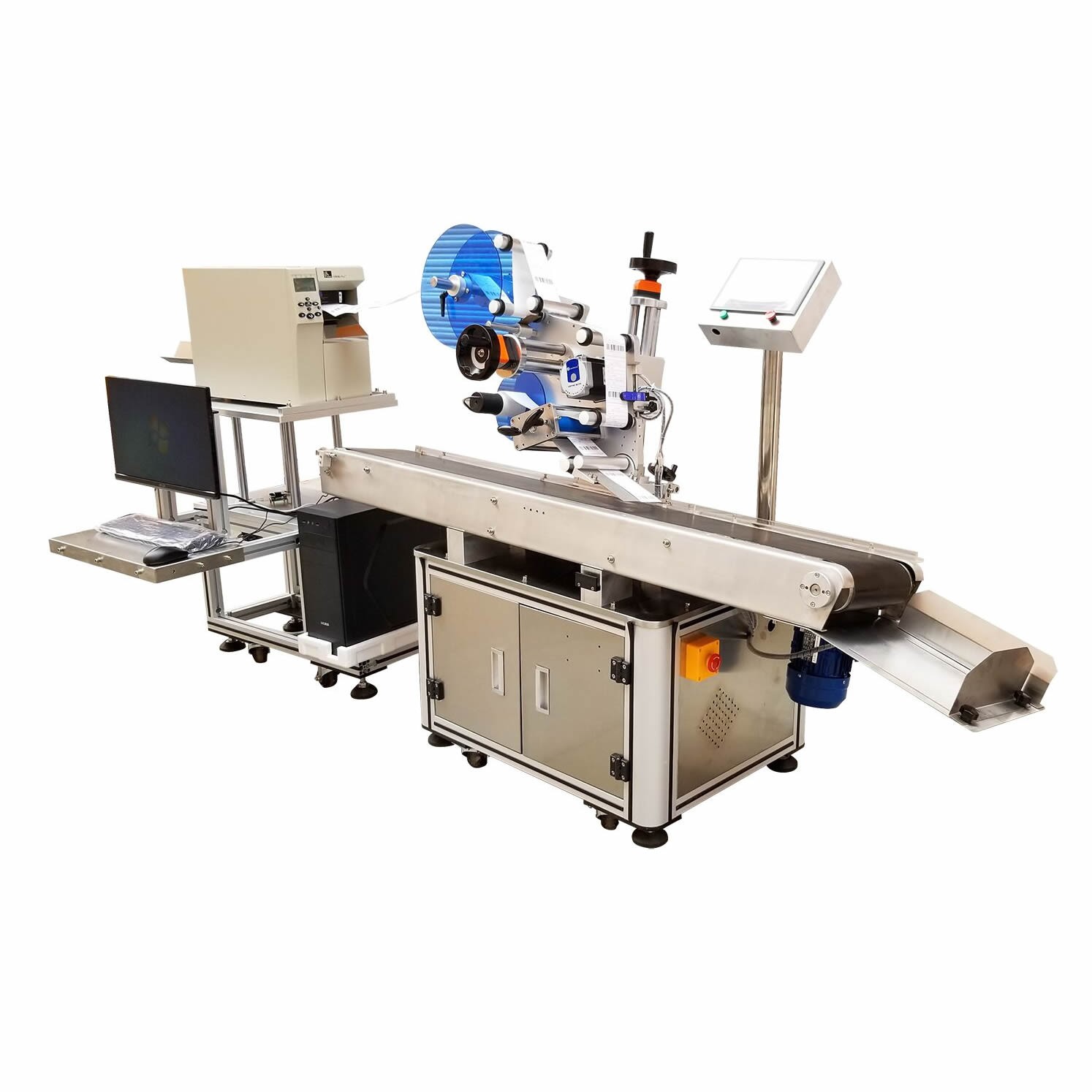

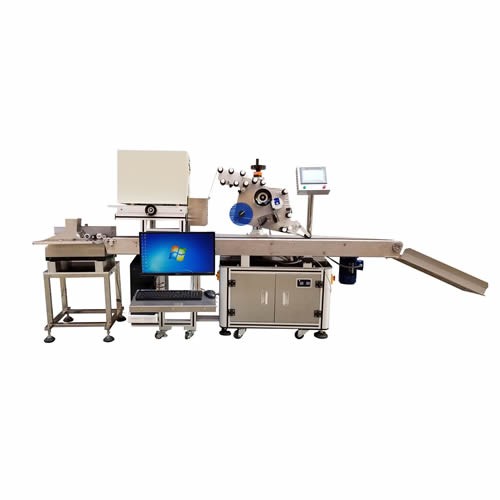

Flat Automatic Labeling Machine for plastic bags

  • Flat Automatic Labeling Machine for plastic bags
  • Flat Automatic Labeling Machine for plastic bags
  • Model Number: ALM-115P
  • Product price: US$:negotiated
  • Category: Automatic Labeling Machine
  • Views: 6526
  • Product Description:automatic labeling machine on plastic bags, automatic labeling machine paper; automatic labeling machine on cardboard paper;,automatic labeling machines on card
  • PRODUCT DETAIL
  • Video

Product name:Flat Automatic Labeling Machine for plastic bags

Model Number: ALM-115P

Parameters:
1: Labeling accuracy: ± 1mm (excluding product and label error);
2: Labeling speed: 30-80 pieces/min (related to product and label size);
3: Applicable product size: length: 40mm-300mm, width: 40mm-300mm, height: 0.2mm-2mm
4: Applicable label size: label length: 6 mm-300 mm width (width of backing paper): 10 mm-120 mm
5: Overall dimension: about 2450mm × 1200mm × 1350mm (L × w × h);
6: Applicable power supply: 220V / 50Hz;
7: Overall weight: about 330kg (subject to the actual machine weight).
8: Packing size: 2800*1200*1550MM
Main mechanism   configuration
Organization name, quantity, main materials, electrical name, quantity, model and specification
Head mechanism: 1 set of aluminum alloy, stainless steel, acrylic measuring eye, 1 set of Germany Sike
Paging mechanism 1 set of aluminum alloy, stainless steel PLC 1 set Panasonic
Touch screen box 1 set of stainless steel touch screen 1 set of Samkoon 7 inch color screen
Material receiving structure: 1 set of stainless steel conveying motor; 1 set of Chuanming variable frequency motor
Adjustment mechanism: 1 set of aluminum alloy and stainless steel transmission motor frequency converter; 1 set of
Delixi frequency converter
Conveying mechanism: 1 set; stainless steel/aluminum alloy measuring object eye: 1 set; Shengke
(including amplifier)
Guide mechanism: 1 set of acrylic traction
motor: 1 set of rexai stepping motor
Electric box: 1 set of aluminum alloy and stainless steel traction motor driver; 1 set of rexai driver
1 set of European state motor
Attached with a set of computers, screens, software for the online printer for barcode, QR code printing, Date coding.
Main electrical configuration
Electrical name, quantity, model and specification
1 set of measuring eye
PLC 1 set Panasonic
Touch screen 1 set of Samkoon 7-inch color screen
Conveying motor: 1 set of Chuanming variable frequency motor
Transmission motor frequency converter 1 set Delixi frequency converter
1 set of SembCorp (including amplifier)
Traction motor: 1 set of rexai stepping motor
Traction motor driver 1 set of rexay driver
Auto feeder 1 set of European state motor

Flat Automatic Labeling Machine for plastic bags
