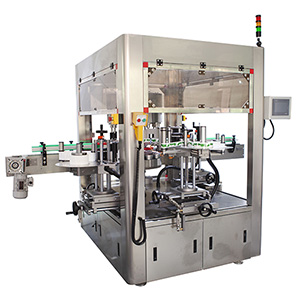

Rotary High Speed bottles&Neck Automatic Labeling Machine ALM-B0808

Model Number: ALM-B0808
Product price: US$:negotiated
Category: Automatic Labeling Machine
Views: 1922

Product Description：Rotary High Speed bottles&Neck Automatic Labeling Machine

PRODUCT DETAIL
Video

Product name:Rotary High Speed bottles&Neck Automatic Labeling Machine ALM-B0808

Model Number: ALM-B0808

1. Power supply: 380V 50 Hz 6000W,3 phrases
2. Machine dimension: 3000mm * 1500 * 2233MM (L*W*H)
3. Machine line speed: 60 meters/min (transmission line speed can be adjusted according to the actual production situation)
4. Two labeling heads; one for bottles circle, one for bottles neck
5. Speed adjustment mode: stepless speed regulation
6. Maximum label release speed: 100 meters/min
7. Maximum labeling speed: 8000 PCS/hour
8. Lable releasing accuracy: ±1mm
9. Labeling accuracy: ±1mm
10. Bottle size :275ml
11. Maximum label width: 120mm
12. Maximum label length: 250mm
13. Maximum label roll diameter: 400 mm
14. Paper core diameter: 74 mm
15. Label type: self-adhesive label
16. Labeling stations: 8 stations

17.Gross Weight: about 2000 Kg

Equipment composition

A: Main frame

1:750W Honeywell high speed servo motor
2: Honeywell servo amplifier
3: SIEMES PLC
4: Schneider 7-inch color screen man-machine interface
5: German SICK light transmission detection label sensor
6: Kyenese fs-n18 product detection photoelectric switch

B: Mechanical part
1: Main machine conveying mechanism: 1500W transtecno AC motor (equipped with transtecno reducer), frequency converter speed regulation;
2: Conveying mechanism: 750W Wanxin AC motor (equipped with Wanxin reducer), frequency converter speed regulation; Industrial nylon chain conveyor belt
3: Bottle separating mechanism: Industrial screw bottle separating mechanism
4: Bottle feeding mechanism: cooperate with screw bottle separation mechanism and star wheel positioning feeding mechanism to ensure the accuracy and stability of feeding
5: Positioning mechanism: mechanical pre positioning;
6: Labeling mechanism: the rotary turntable drives the bottle to label in the process of rotation
7:Label sending mechanism: high speed servo self-adhesive label sending system
8:Pressure marking mechanism: silicone plate Teflon sticking cloth combination
9: Bottle guide mechanism: profile guide rail with double coordinate adjustment
