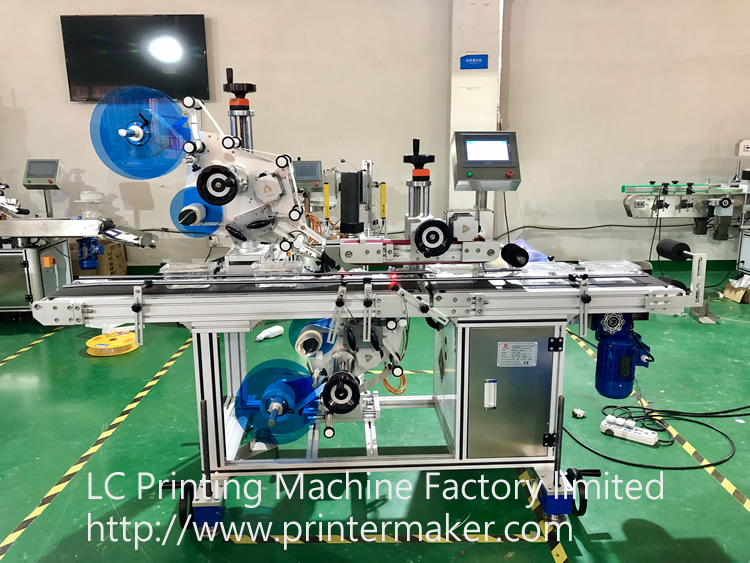

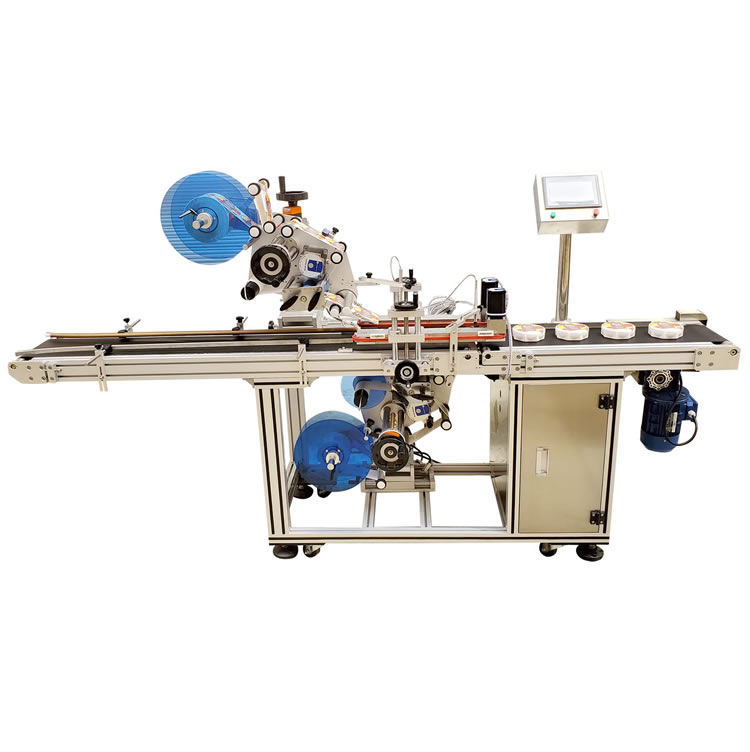

Automatic Top and Bottom Labeling Machine

  • Model Number: ALM-836
  • Category: Automatic Labeling Machine
  • Views: 378
  • Product Description:Automatic Top and Bottom Labeling Machine
  • PRODUCT DETAIL
  • Video

Product name:Automatic Top and Bottom Labeling Machine

Model Number: ALM-836

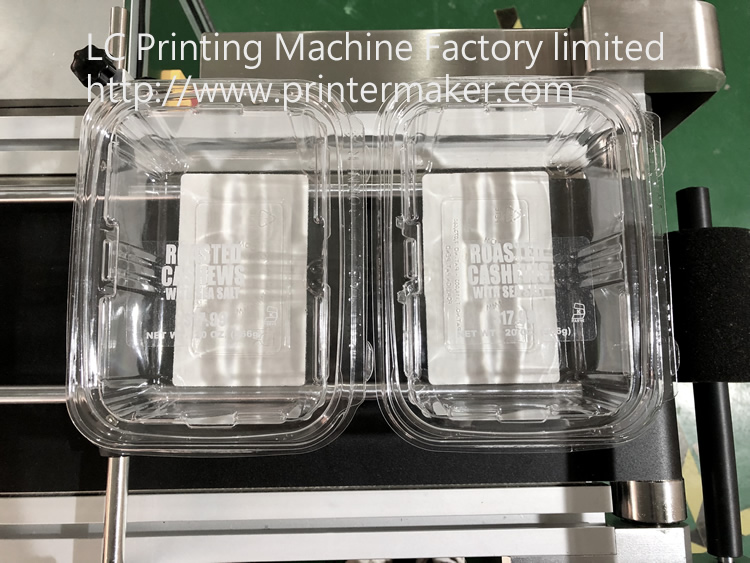

Automatic Labeling Machine for top and bottom
Parameter:
Technical parameters:
Labeling accuracy: ± 1mm (excluding product and label error);
Labeling speed: 40-120 pieces / min (related to the proficiency of product and label size personnel in releasing products);
Applicable product size: length: 40mm ~ 400mm, width: 40mm ~ 200mm, height: 0.2mm ~ 150mm
Applicable label size: length: 6mm-320mm width (width of backing paper): 15mm-220mm (label suitable for 200mm width according to customer requirements)
Overall dimension: About 3000mm × 780mm × 1400mm (length × width × height); (subject to the actual machine)
Applicable power supply: 220V / 50Hz;
Overall weight: About 250kg
Organization configuration:
Organization name, quantity, main materials used, organization name, quantity, main materials used
Conveying mechanism: 1 set of aluminum alloy, stainless steel guide structure: 2 sets of aluminum alloy
Traction mechanism: 2 sets of aluminum alloy and stainless steel guide mechanism: 1 set of acryli

Electric box: 1 set; paint electric box: label covering mechanism: 2 sets; brush
Unwinding mechanism 2 sets of aluminum alloy, stainless steel, saigang stripping mechanism 2 sets of stainless steel
Coiler mechanism 2 sets of saigang, stainless steel, acrylic adjustment mechanism 2 sets of stainless steel
Coping mechanism 1 set of stainless steel aluminum alloy / //
Electrical configuration:

Electrical name, quantity, model and specification, electrical name, quantity, model and specification
1 set of measuring eye, 1 set of German Sike conveying motor, 1 set of Chuanming variable frequency motor
2 sets of measuring eye, 2 sets of Panasonic Shenshi traction motor, 2 sets of leisai stepping motor
PLC: 1 set of Panasonic driver and 1 set of rexay driver

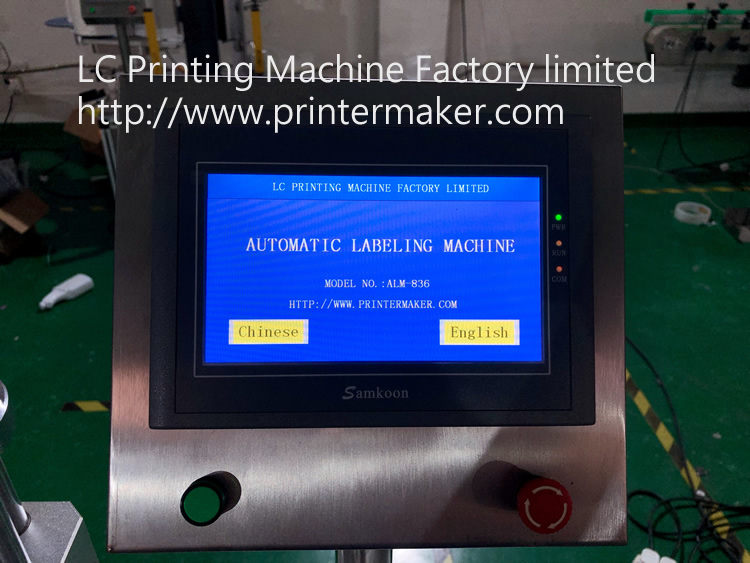

Touch screen, 1 set of Samkoon 7-inch color screen, conveying drive, 1 set of Delixi frequency converter
Switching power supply: 1 set of Mingwei power supply: 1 set of Mingwei
Coping motor 1 set of rexai stepping motor
Distribution: one set of Allen wrench
