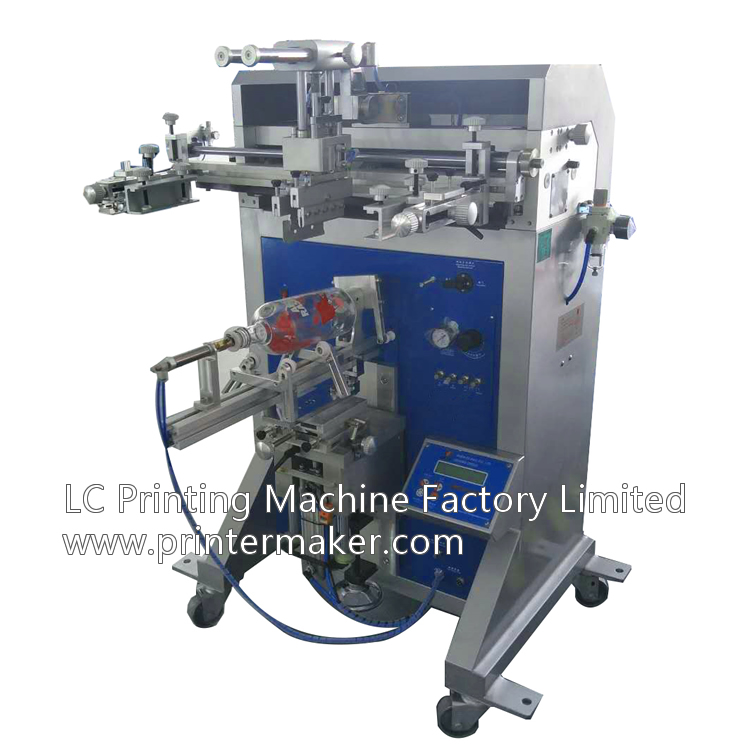

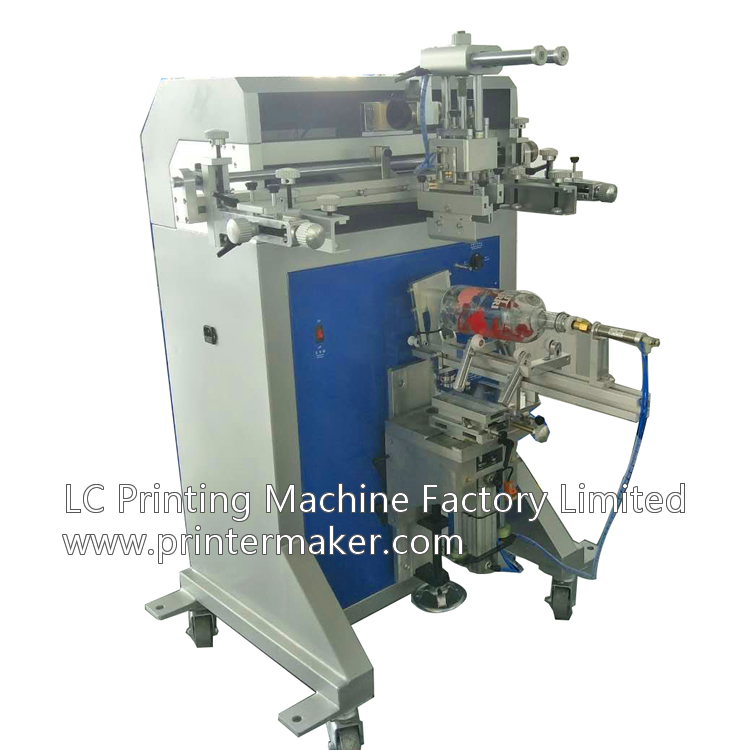

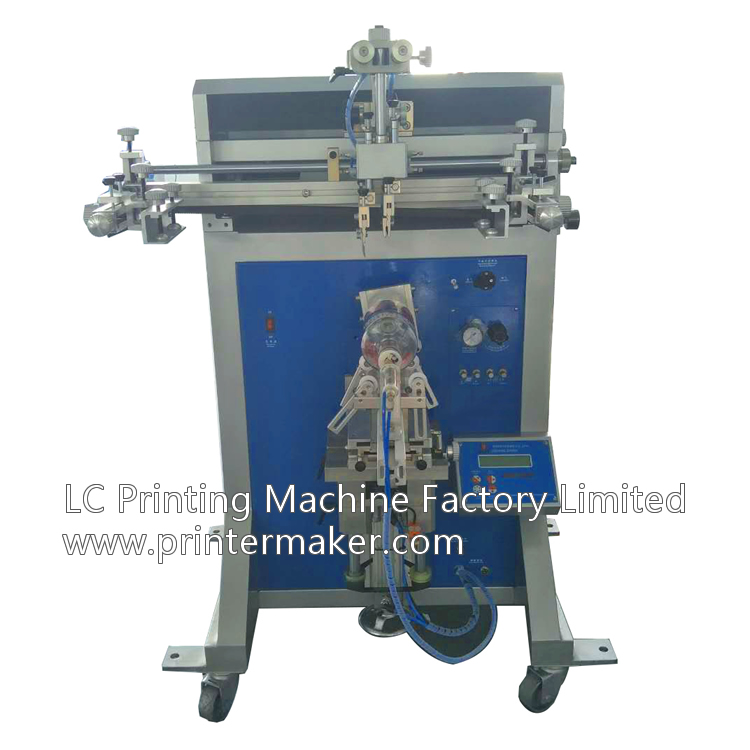

Glass Bottle Printing Machine

Product name:Glass Bottle Printing Machine

Model Number: 400G

Glass Bottle Screen Printing Machine, Wine Glass Bottle Printing Machine, Mutti functional silkscreen Printing Machine For Glass Bottles; Perfume Bottles Silkscreen Printing machine; Multifunctional silkscreen printing machines, Glass Jar Silkscreen printing machine, plastic bottles screen printing machines; Glass Cup Silkscreen Printing Machine

Multi-Functional Silkscreen Printer on Glass Bottles

Specifications:

1.Max printing thickness ：250mm

2.Power support：220V 50HZ

3.Air consumption：500 Litre/Min

4.Max product diameter：Φ120mm*250mm;350*250mm

5.Max product arc length：370mm

6.Max printing area：220x320mm

7.Max printing speed：1800Pcs/H r

8.Machine size：90X80X130CM(LxWxH)

9.Machine Weight:180KG

10.Gross Weight: 202KG

11: Packing Size: 94*87*144CM

12.Volume Weight:236KG

Advantages:

1. Controlled by microprocessor, easy operation, running stably, and accurately.

2. 4-digit auto counter built-in.

3. Cast aluminum machine outline frame, low weight, and high intensity adjust conveniently.

4. Separate adjustment of the pad up/down stroke speed.

5. ink scraper is auto balance keeping in printing.

6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.

7. The ink cup is turnable and adjustable in the vertical and horizontal directions.

8. With super long slide stroke to print large size workpiece.

9. Pneumatic part of the installation of the German FESTO tubes and Air valve, Ormon Sensor, SMC Cylinder.

Machine Fittings:

1. One frame,

2. One toolbox,

3. 1 Piece of the squeegee.

4. One jar.

Application Scope:

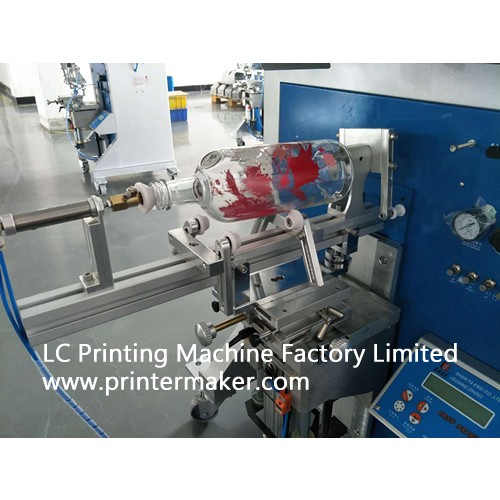

This machine is attached with oval, round, and flat working stations that are suitable for precise printing
substrates in Cylindrical, Conical Oval, and Flat shapes which with a smooth curve surface and made of
various materials such as metal, plastic, ceramic, glass, wood, etc. Printing objects such as lipstick,
cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell, lunch box, ceramic mugs, flask, koozies,

jars, shot glasses cups, stadium cups, paper cups, etc.
