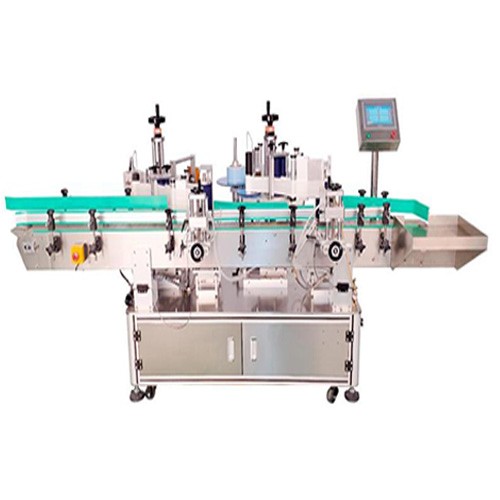

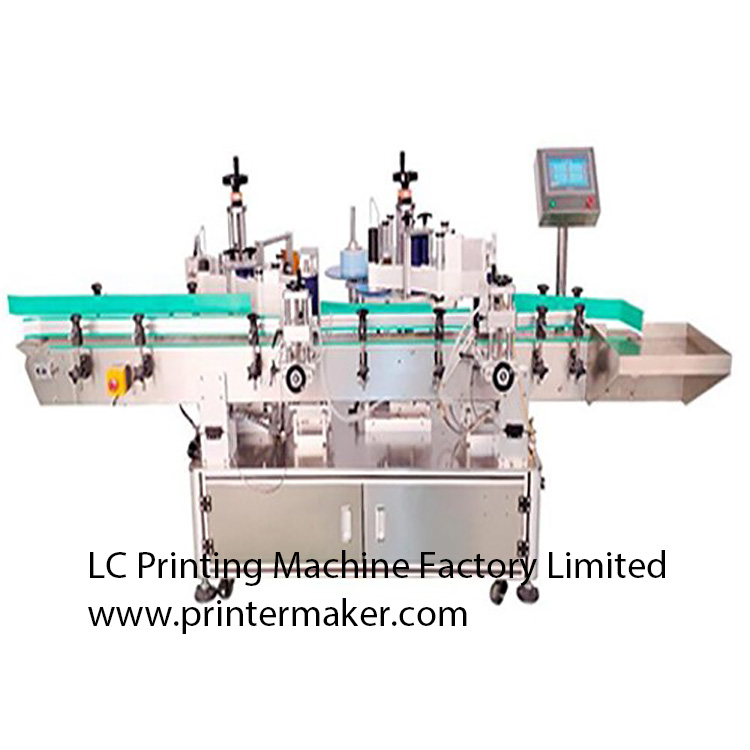

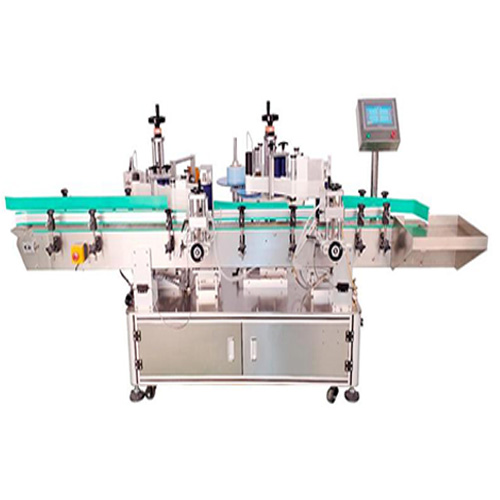

Automatic vertical round bottle with double heads

  • Model Number: ALM-21200D
  • Product price: US$:negotiated
  • Category: Automatic Labeling Machine
  • Views: 2618
  • Product Description:Parameter configuration of automatic vertical round bottle with double heads
  • PRODUCT DETAIL
  • Video

Product name:Automatic vertical round bottle with double heads

Model Number: ALM-21200D


Parameter configuration of automatic vertical round bottle with double heads

Standard configuration details (the following is the standard model configuration, which can be selected according to the customer's situation)

Main organization configuration

Main electrical configuration

Mechanism Name

Quantity

Main materials used

Electrical name

Quantity

Model and specification

Label head mechanism

2set

Aluminum alloy, stainless steel acrylic

measuring sensor

2set

Sick, Germany / Hampson, USA

Adjusting seat

2set

Aluminum alloy, brass, stainless steel

PLC

1set

Panasonic

Conveying mechanism

1set

stainless steel

touch screen

1set

Samkoon  7 inch  multicolored screens

Touch screen box

1set

stainless steel

Traction motor

2set

Bester stepping motor

Receiving tray

1set

stainless steel

Traction motor driver

2set

Bester stepping driver

Adjustment mechanism

1set

Aluminum alloy, stainless steel

Overlying motor

2set

Bester stepping motor

Bid review mechanism

1set

Aluminum alloy, stainless steel covered roller

Overlying  motor driver

2set

Bester stepping driver

Electric box

1set

Aluminum alloy, stainless steel

Positioning cylinder

2pcs

Xingchen cylinder

Guiding mechanism

1set

stainless steel

Object measuring electric eye

2set

 PURUIXING

Traction mechanism

1set

Aluminum alloy, rubber coated shaft

Conveying motor

1set

OPG Speed regulating motor

Discharging mechanism

1set

Aluminum alloy, acrylic

Bottle separating motor

1set

OPG 25w Motor

Bottle separation motor governor

1set

OPG split governor

Conveyor motor governor

1set

OPG split governor


Technical parameter
1.Labeling accuracy: ± 1mm (excluding product and label errors);
2.Labeling speed: 15 ~ 25 pieces / min (related to product and label size);
3.Applicable product diameter (for round bottles) and height:
Diameter: φ 15mm~ φ 100mm height: 25mm ~ 300mm
4. Applicable label size: length: 20mm ~ 300mm,
width (bottom paper width): 20mm ~ 170mm
5. 0verall size: about 2550mm × 1100mm × 1440mm (long × wide × High);
6. Applicable power supply: 220V / 50Hz;
7. overall weight: about 285kg.
