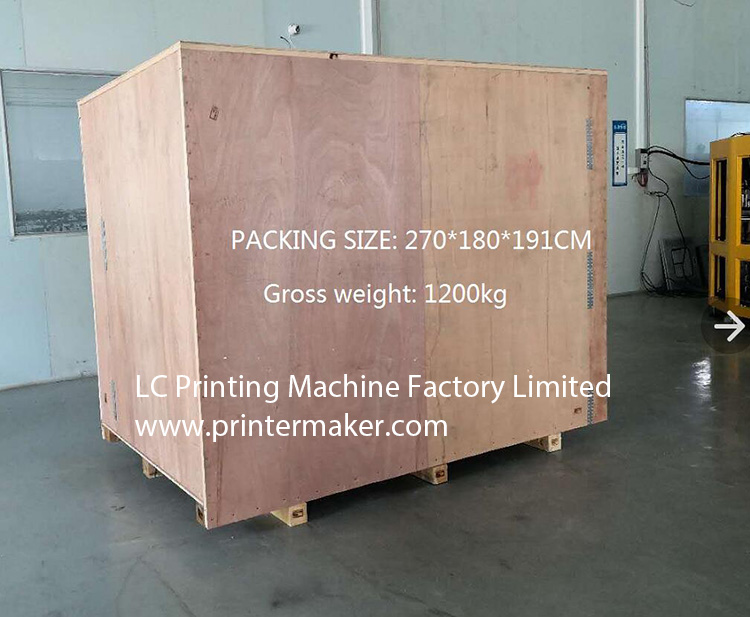

  • Packing Photo

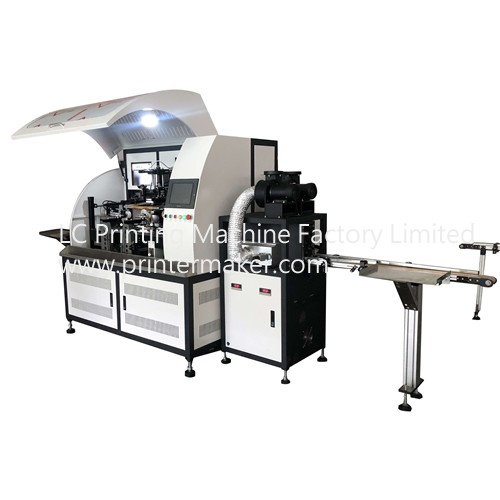

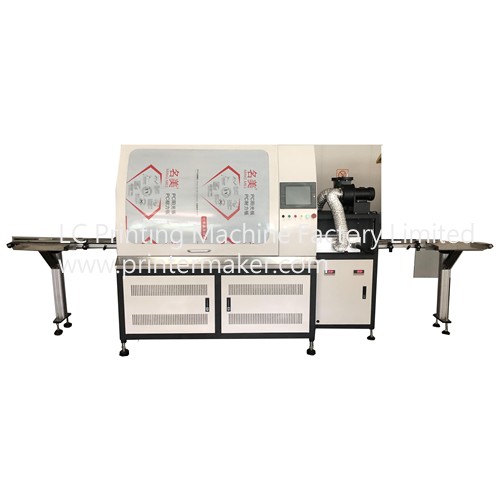

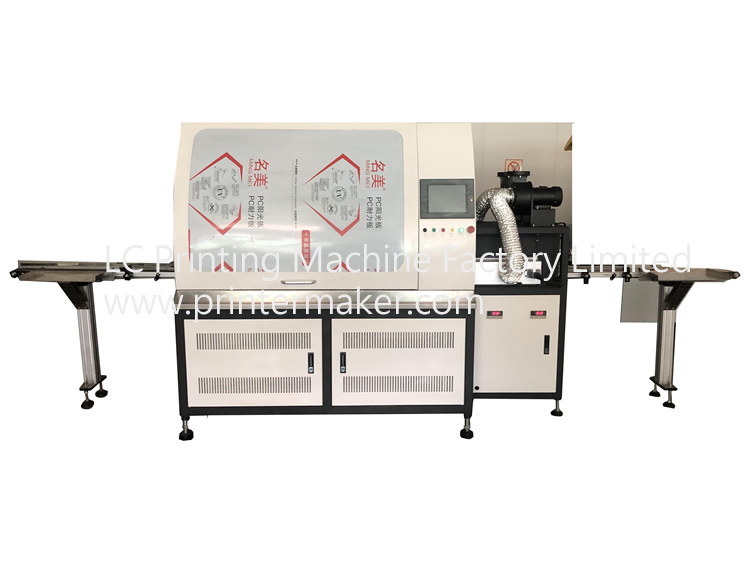

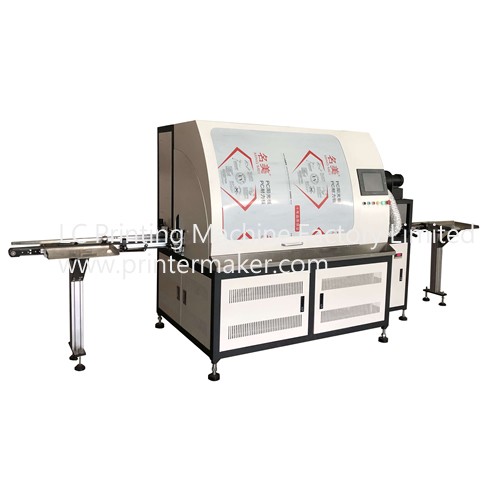

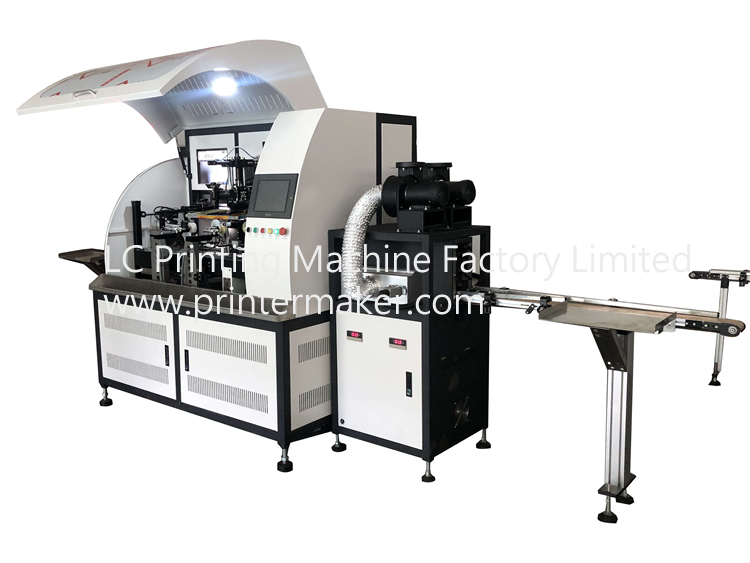

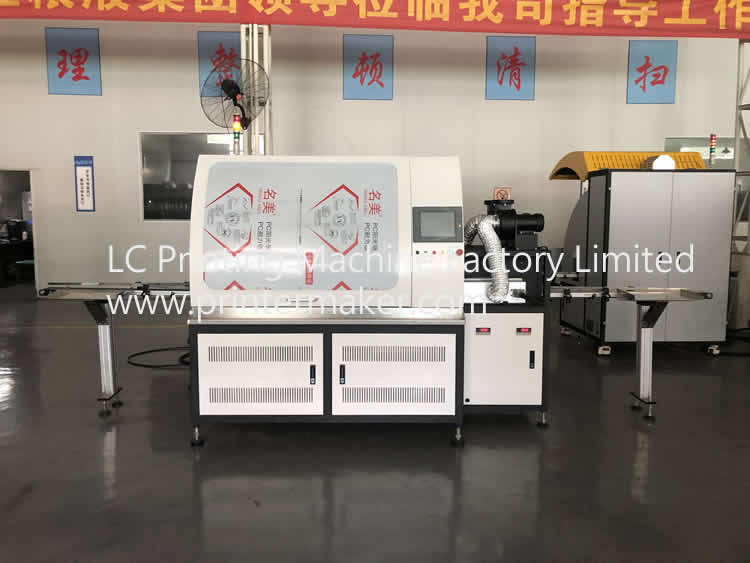

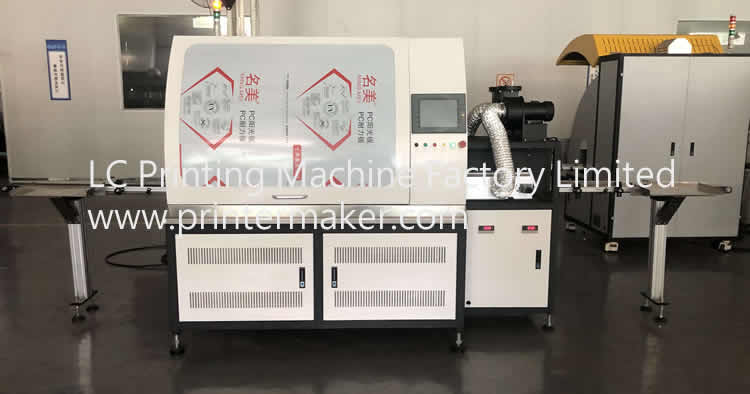

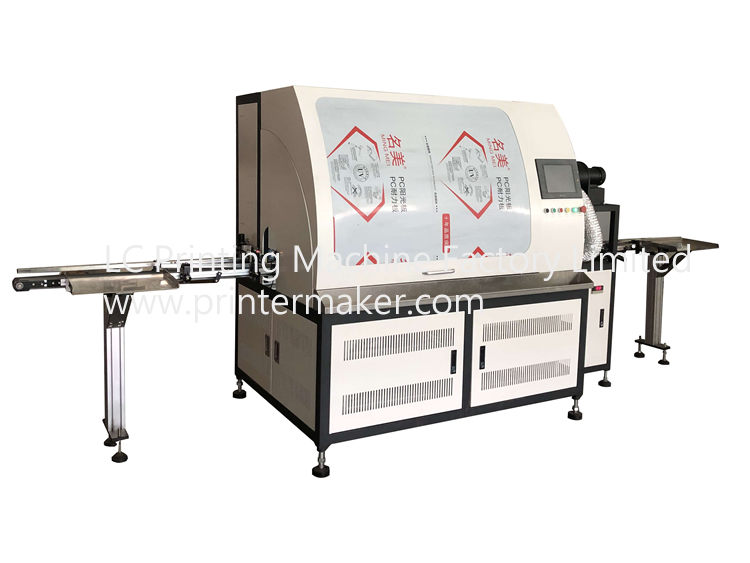

Product name:Multi-function CNC UV Screen Printer on Glass Mugs

Model Number: SGL-PT04-UV

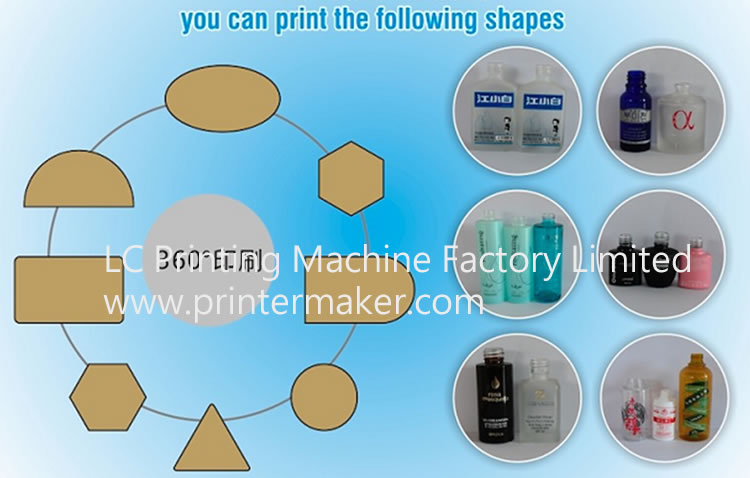

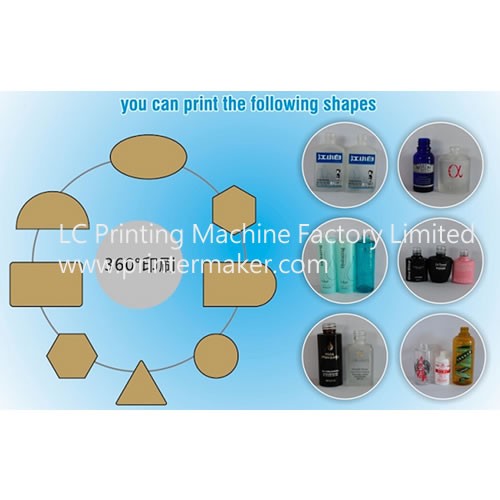

1:Printing size: Round bottle: φ20-φ90mm length:25-200mm
Oval bottle:width:25-120mm, length:25-170mm
2: Speed: Round&Cone Shape bottle:2400pcs/h.
Square bottle(one side):3000pcs/h.
Square bottle(multi sides):1500-2500pcs/h.
Oval bottle(One side): 2600pcs/H.
Oval bottle(Two sides or full round):1500-2000pcs/h
3.Air Pressure: 0.6Mpa
4.Power: 380V 3phase 50Hz 30Kw
5.Machine Size:2400*1500*1700mm
Features

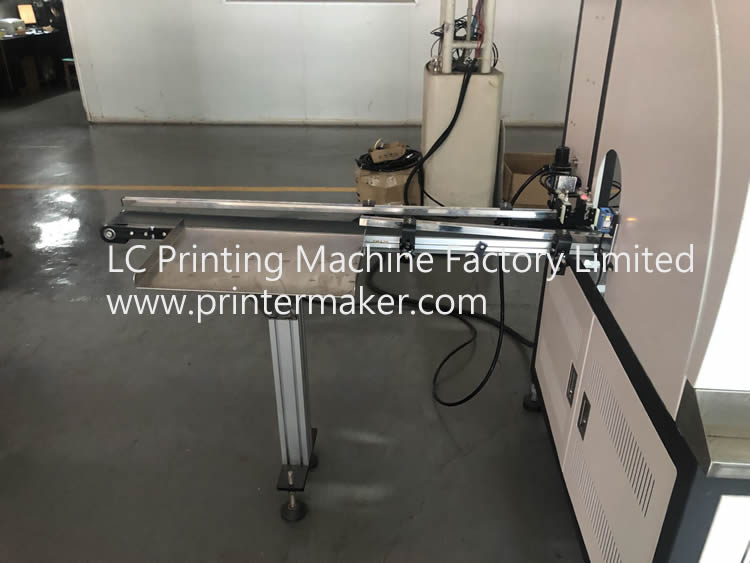

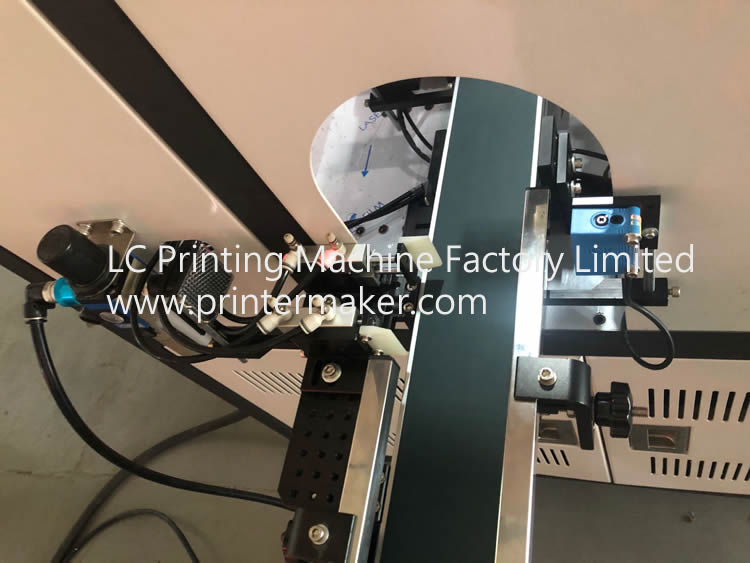

1. Auto loading and unloading with multi axis servo robot

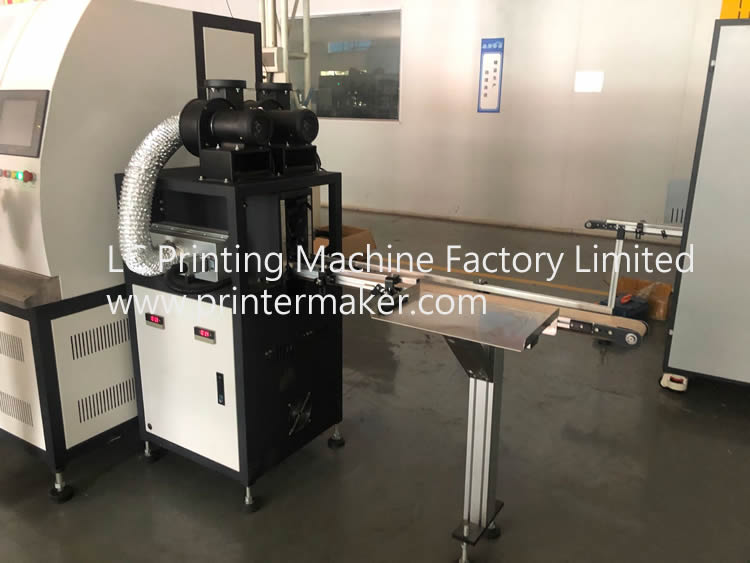

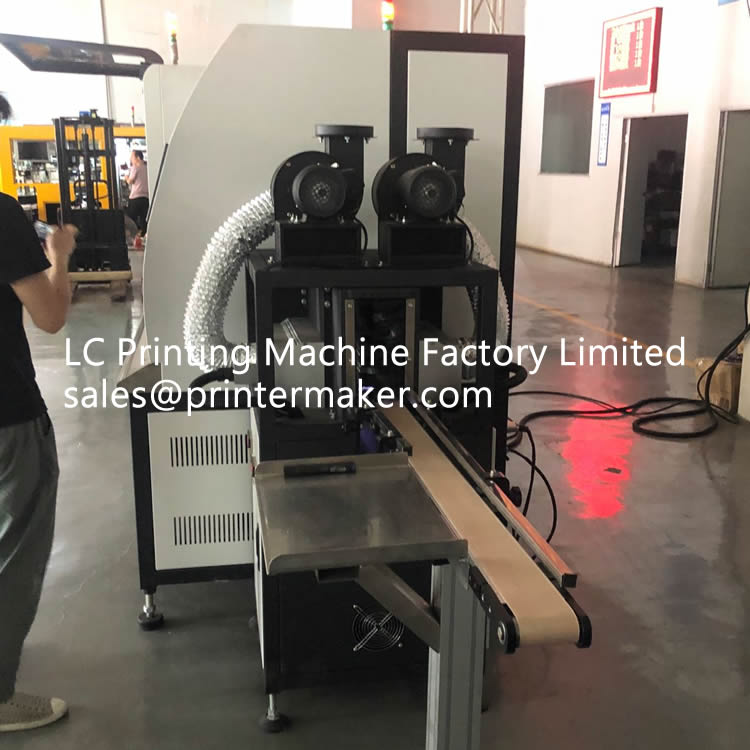

2. 2 Sets Auto 5KW UV curing with high efficicy elecrode UV system from europe in Italy eletrical driven style

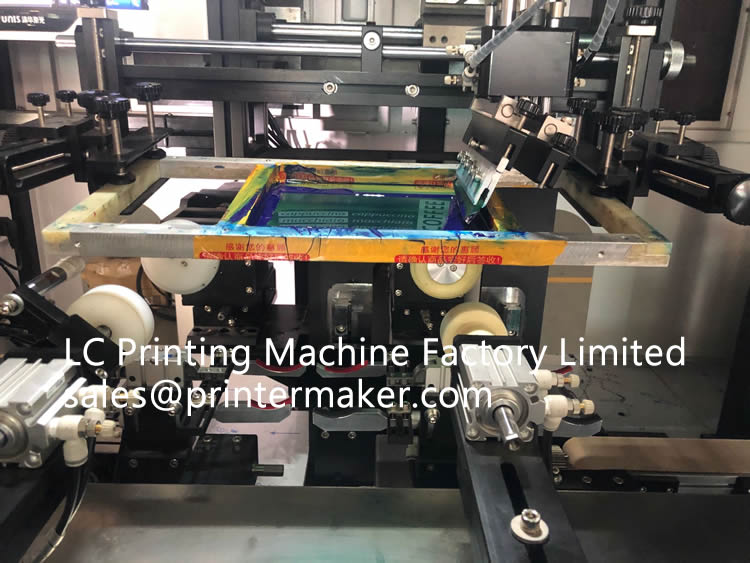

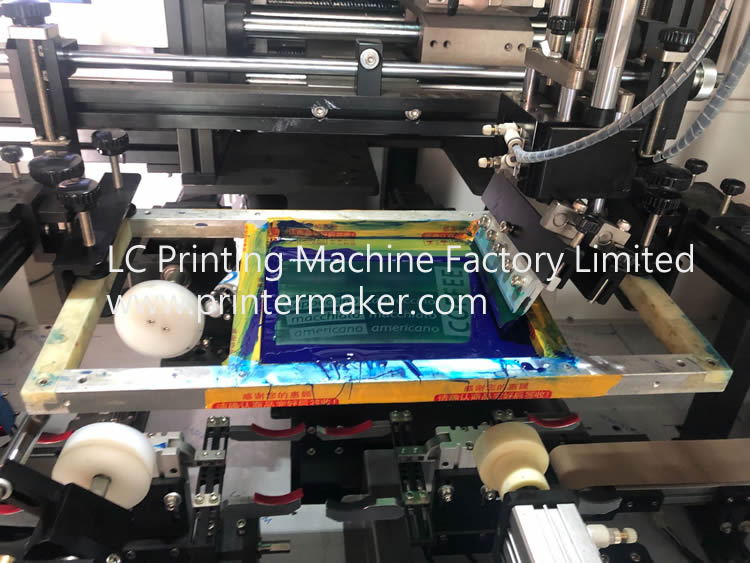

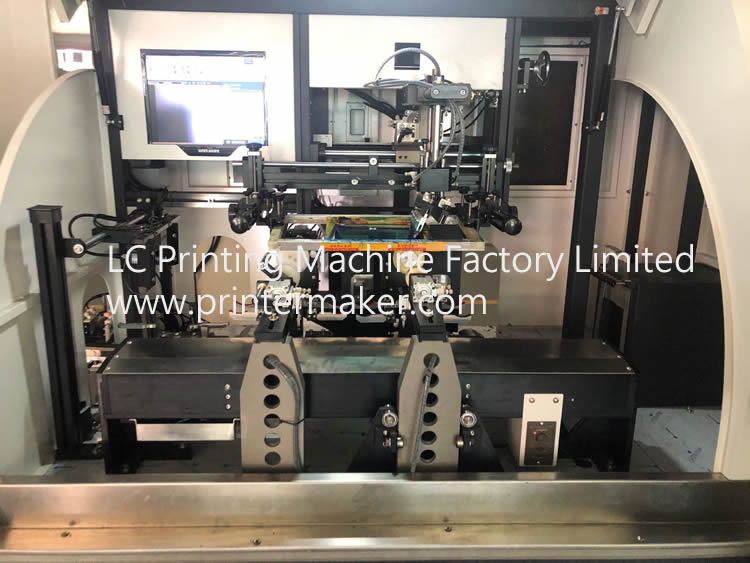

3. Auto printing system with all servo driven: printing head, mesh screen frame, rotation etc4. Fast tooling changeover time, it is about 20 mins for tooling changeover

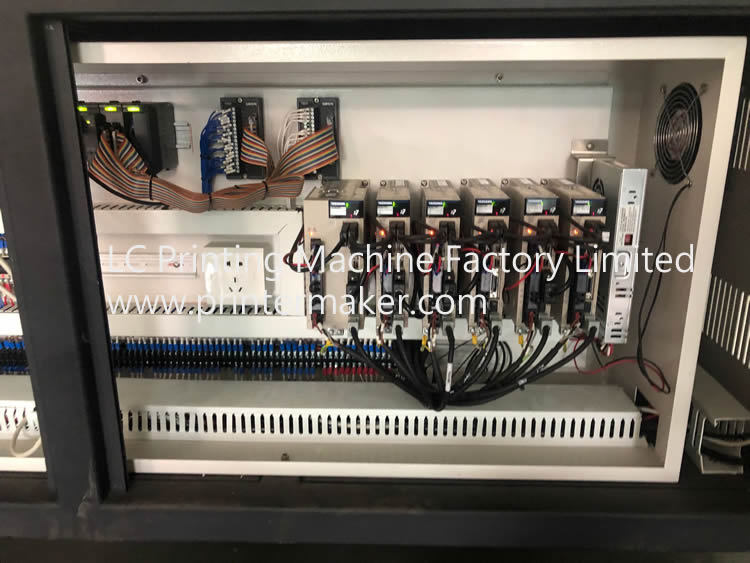

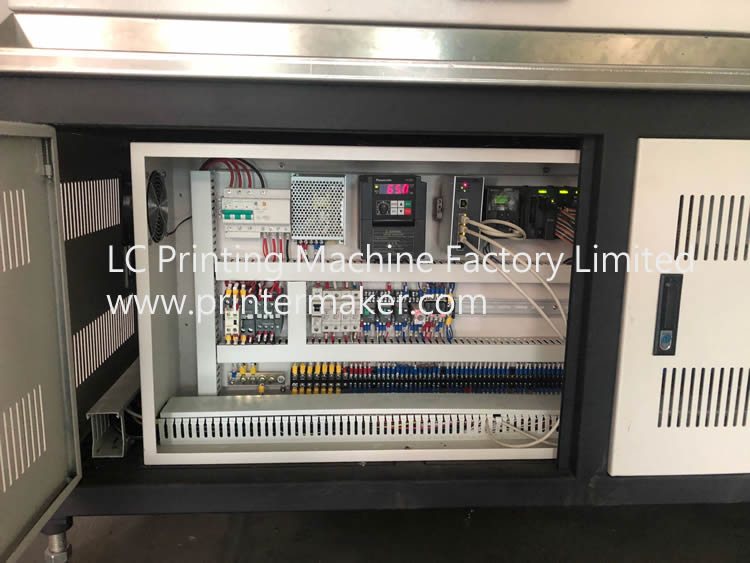

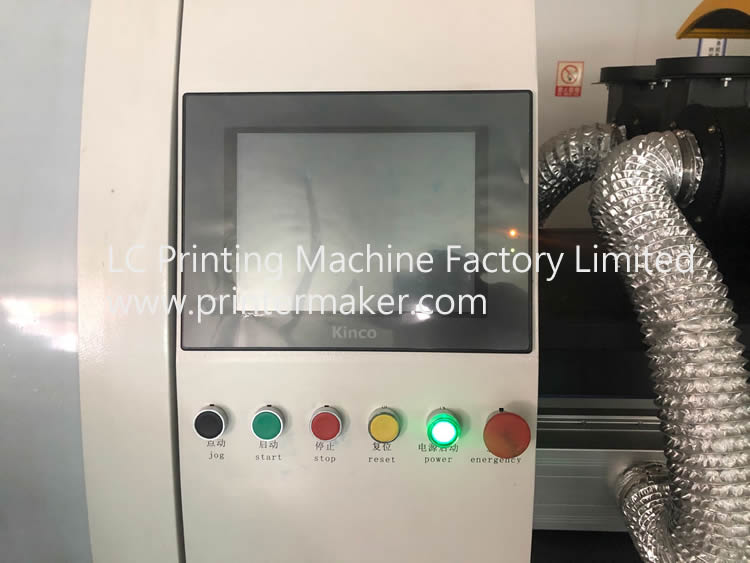

5. All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available, easy for future maintenance and upgrading
6. Safety operation with CE
7. Can use thermoplastic ink or UV ink
8. The CNC screen printer equip with visual registration as per customer requirement

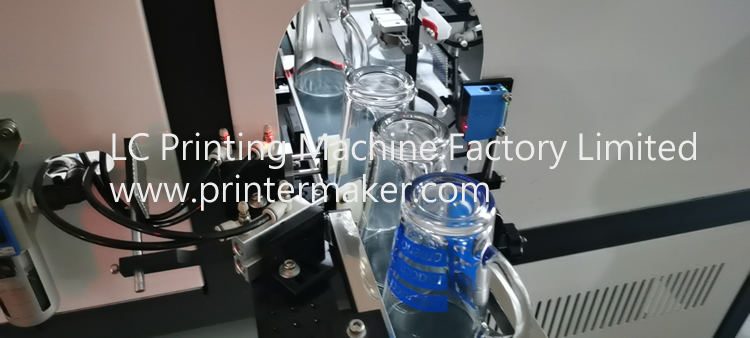

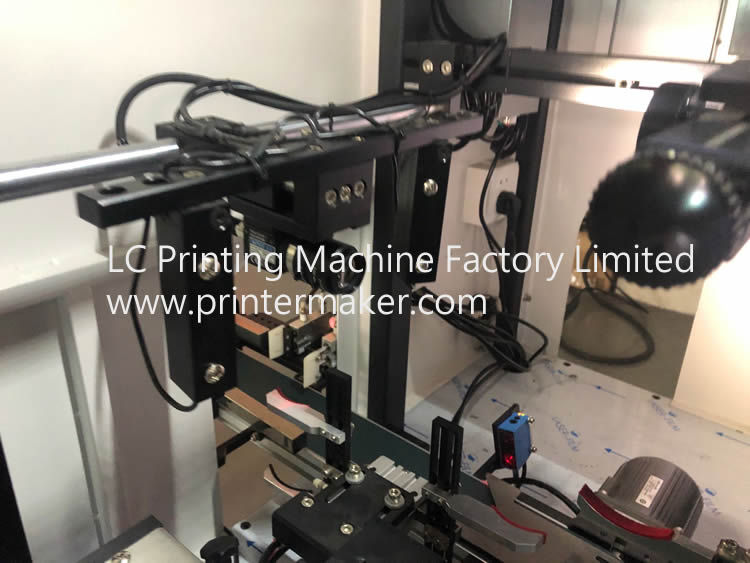

9. CCD Registration system for round bottles in multi colors printing
