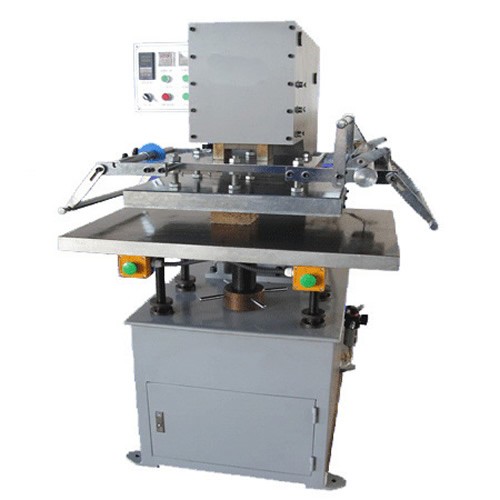

Product name:Large Size Flat Hot Stamping Machine

Model Number: H-TC-300/400/500/600

Description:
Automatic Large Size Flat Hot Stamping Machine
Technical Parameter:
H-TC-300
1. Max. Stamping Size:300 ×400 mm (12×16 inch)
2. Working table area:500 ×650mm
3. Max printing pressure:8000 Kg
4. Up and down distance:70mm
5. Heat wattage: 3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
8.Pack Size:105*100*170cm
9.Gross Weight: 500KG
H-TC-400
1. Max. Stamping Size:400 × 400 mm (16×16 inch)
2. Working table area:500 ×650mm
3. Max printing pressure:15,000 Kg
4. Up and down distance:70mm
5. Heat wattage: 3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
8: Packing Size:1045*1045*1765mm
9: Gross Weight: 600KG
H-TC-500
1. Max. Stamping Size:400 ×500 mm (16×20 inch)
2. Working table area:800 ×520mm
3. Max printing pressure:20 tons
4. Up and down distance:200mm(8 inch)
5. Heat wattage: 3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-400oC .
8.Gross Weight:700KG
H-TC-600
1. Max. Stamping Size:400 × 600 mm (16×24 inch)
2. Working table area:800 ×520mm
3. Max printing pressure:20 tons
4. Up and down distance:200mm(8 inch)
5. Heat wattage: 3000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-400oC .
8.Gross Weight:800KG
Production Advantage :
1.Vertical Pressure design ensures big pression;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable slight adjustment ensure precision stamping;
4.The height of the stamping head adjustable ;
5.Automatic foil feeding and collecting.
6.Photecell installed to finsih heat transfer process.
Caution: Pay attention to High temperature state when Machine running. Aviod Putting your hand on the woking table while Machine starting.
Stamping Plates Materials: Silicon Rubber Edition ;
Copper-Zincograph;

Magnesium Edition.

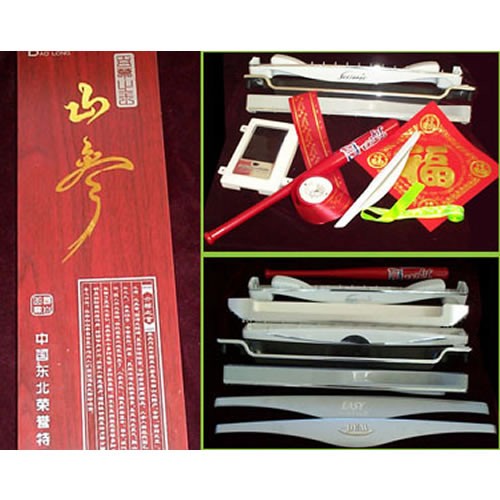

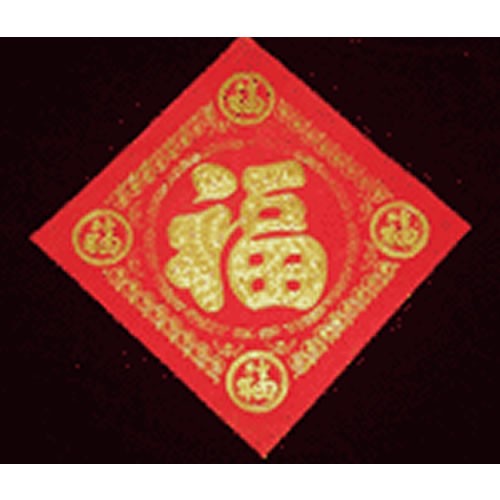

Product Description: Mobile screen , Household appliances Panel , Thick paper card, PVC board Etc large dimension Flat substrate stamping and Bronzing.

Woodiness objects baking-burns and Impress;

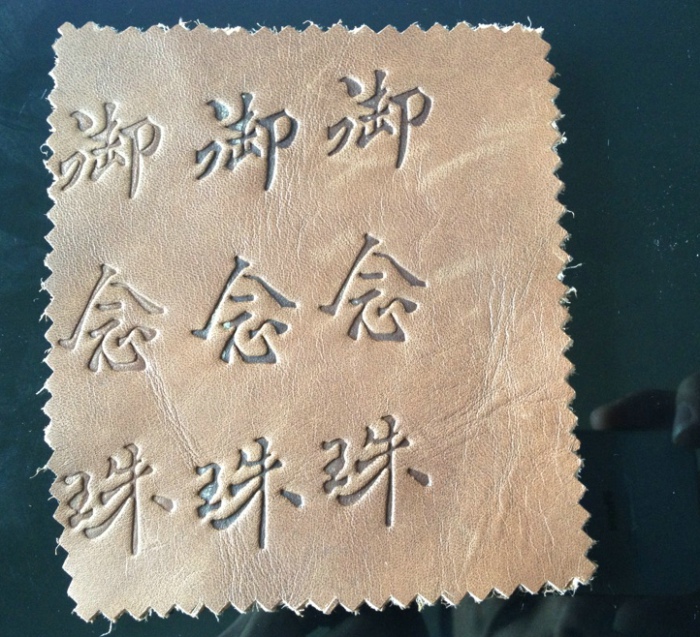

Leather bronzing and Molding;
Paper products concavo indentation.

Graduated disc of clock bronzing

Large Size Flat Hot Stamping Machine
