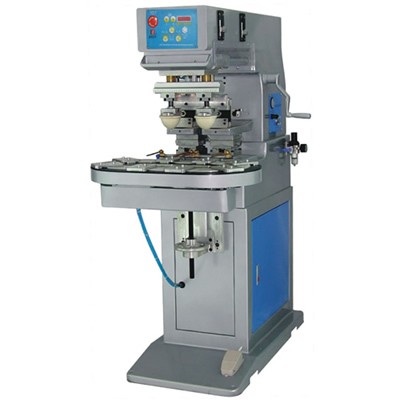

Product name:2 Color Tampografia with Conveyor
Model Number: L2-C2 Color Tampografia with Conveyor
Two Color ink Tray Pad Printer With Conveyor
Parameter:1.Max. plate size : 150 X 250 mm ;
2.Max. worktable area : 160 X 200 mm ;
3.Max. printing area : 130×220mm ;
4.Max printing speed : 700pcs/hr ;
5.Printable colour :2;
6.Stroke of table shuttle: 200mm.
Microcomputer program controlling , Touch-screen operating technique ;
1.Streamline design ensure dexterous Appearance impressions;
2.Coin aluminium structure frame coated blue-sky colour paint;
3.Shuttle working table installed to get more precision overprint;
4.Independency pressure adjustment of pad press-printing and picking up ink;
5.Either testing or running mode to operate ;
6.Opened inkwell to store and coating ink , easily adjust the character of pad ink.
7.Automatism digital count function;
8.Double colours pad printing with drying through blowing hot air:
9.Ten grade printing speed setting, auto,semi-auto,testing operation mode setting;
10.The function of blade only move front to back for mixxing ink ;
11.Automatics balance blade to remove the ink completely;
12.“twice-picking, one printing” mode to get thick ink film;
13.Widen ink-tray installed to print more larger dimension.
14.Festo tubes, SMC Cylinder, Omron electromagnetic valve,Casting Structure for assuring machine's most working stability and longest life span.
1. Two plates,
2. Two pads
3. Two blades
4. A tool box.
1. Package dimension:1130×710×1610mm
2. Gross weight: 275kg
Ship Date:By sea:
Ship on aboard within 20 days after receive T/T .
1. 110V or 220V power supply.
2. 5-7 bar compress air.
3. Etching plate 2 pcs.
4. Fixture 1pcs.
5. 5-10 pcs product samples
