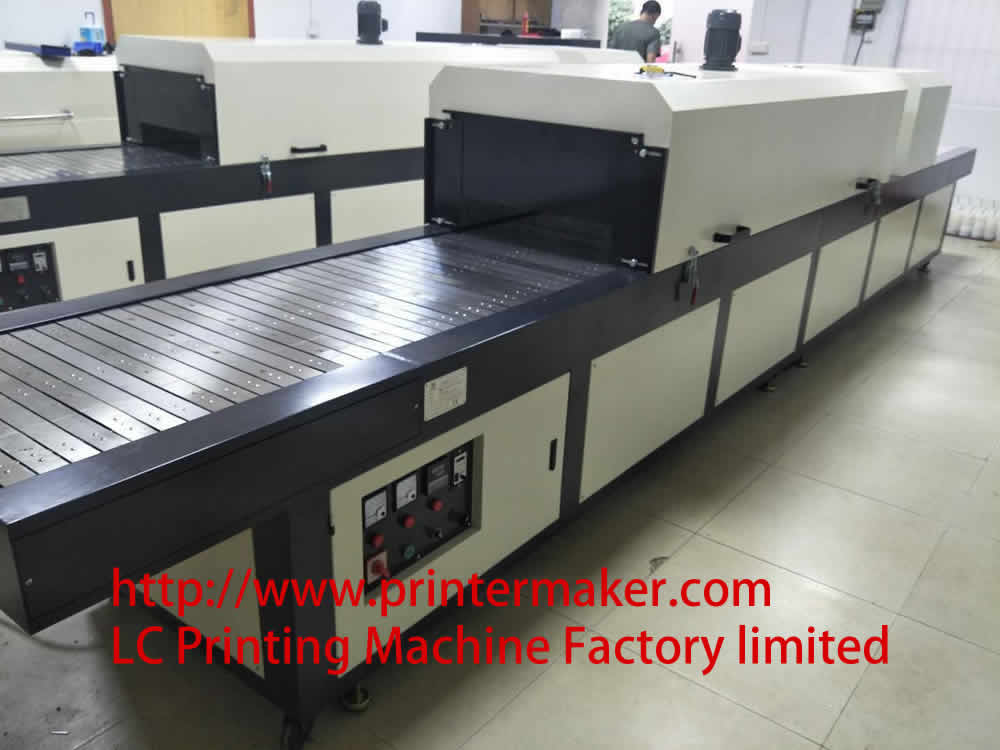

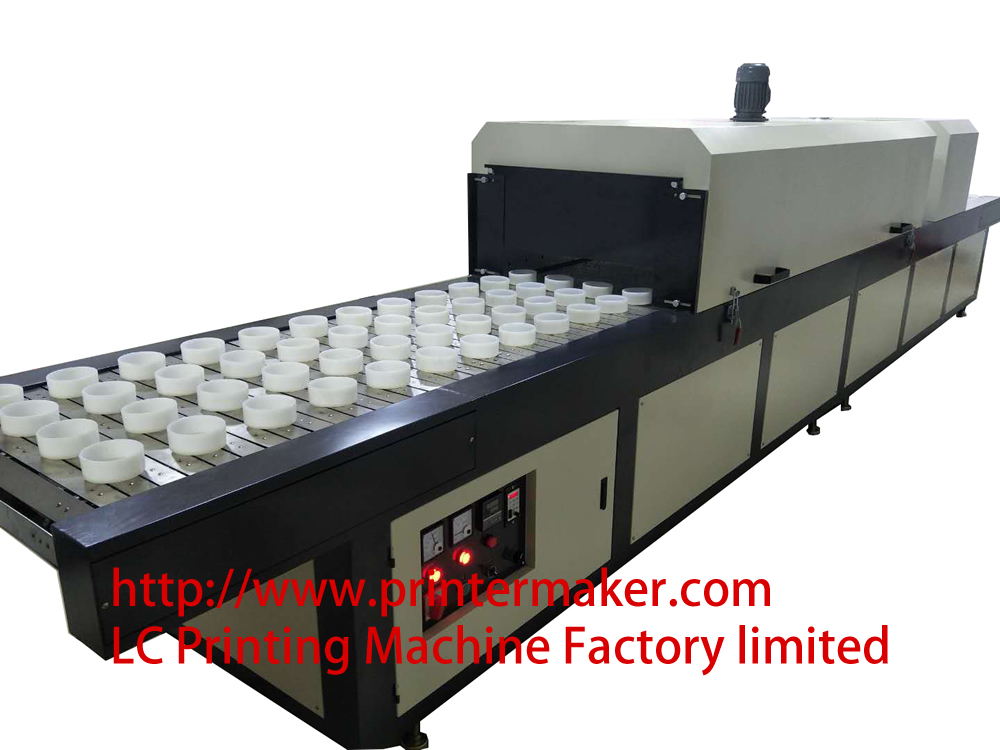

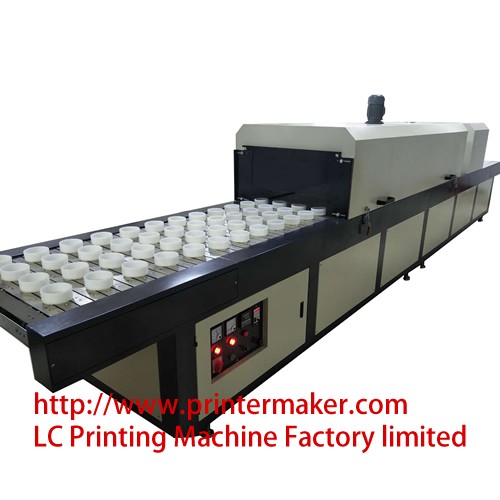

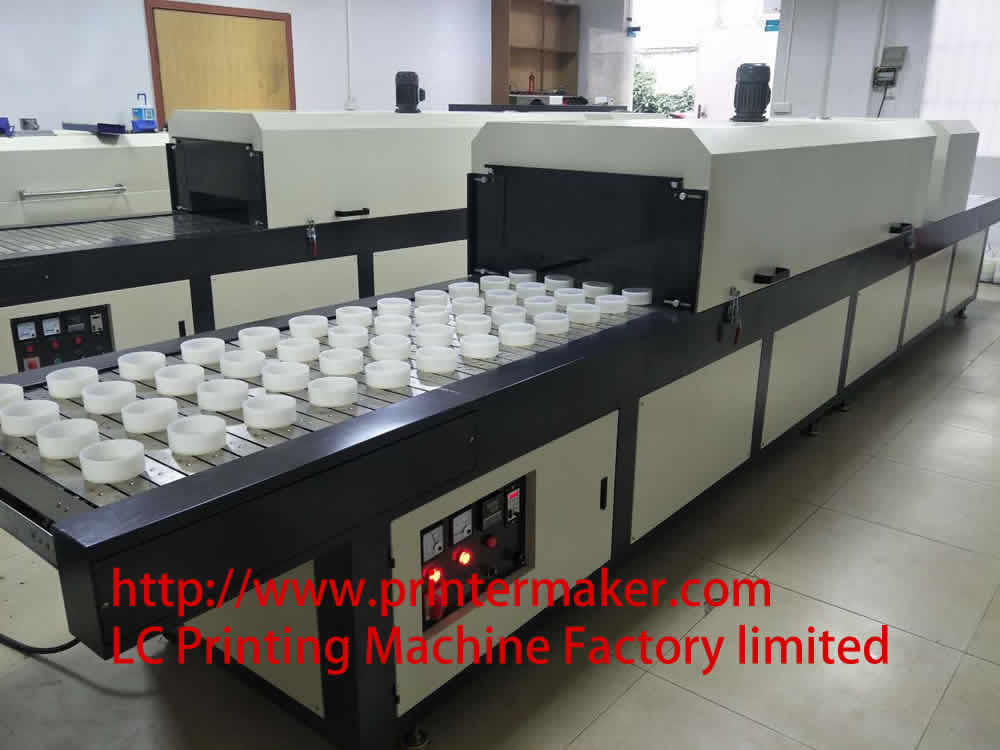

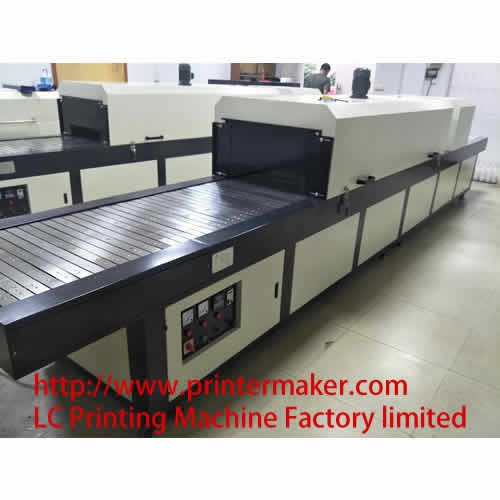

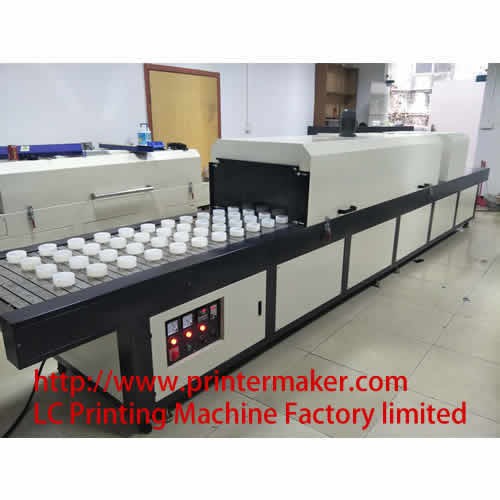

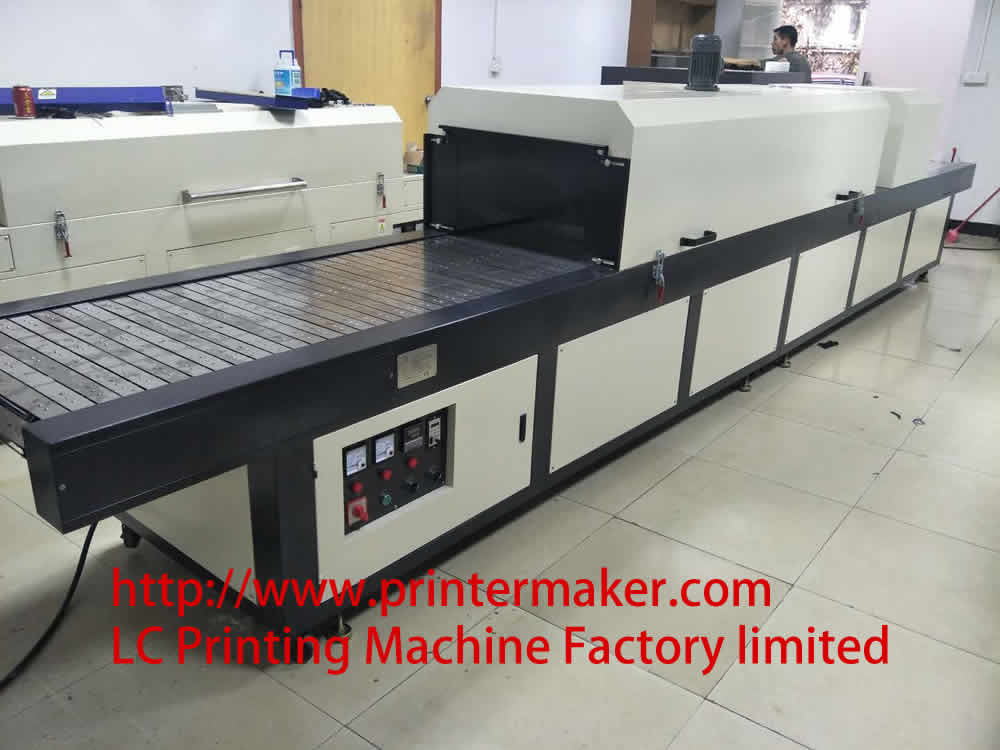

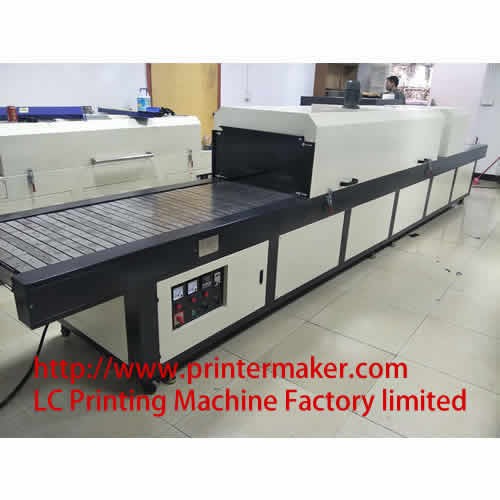

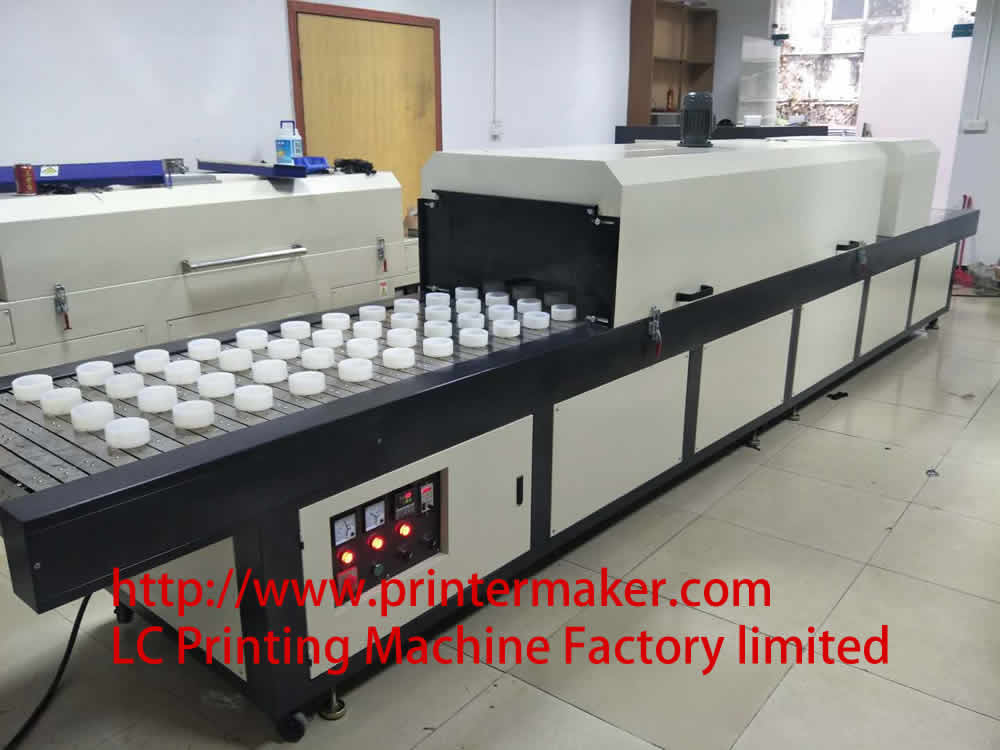

Infrared Drying Tunnel For Sports Bottle

  • Infrared Drying Tunnel For Sports Bottle
  • Infrared Drying Tunnel For Sports Bottle
  • Infrared Drying Tunnel For Sports Bottle
  • Infrared Drying Tunnel For Sports Bottle
  • Model Number: M-650BO
  • Category: Drying Oven
  • Views: 86
  • Product Description:Infrared Drying Tunnel For Sports Bottle
  • PRODUCT DETAIL

Product name:Infrared Drying Tunnel For Sports Bottle

Model Number: M-650BO

Technical Parameters:

1:Model No:         M-650BO

2:Conveyer size: width: 650mm;

infeed length:1800mm;

heating zone: 2500mm*1 zones;

cooling zone:700mm+300mm,

outfeed length at 1300mm

total length at 6.6 meters;

Max.infeed height at 250mm

3:Total wattage:   12KW

4:Circulating air motor 750W@43CM height

5:Conveyer motor wattage:200W;velocity rate:50RPM,every 70 seconds

6:Heating temperature:0-200degree; Heating tube length:620mm*15pcs;tubes power rate: 450W

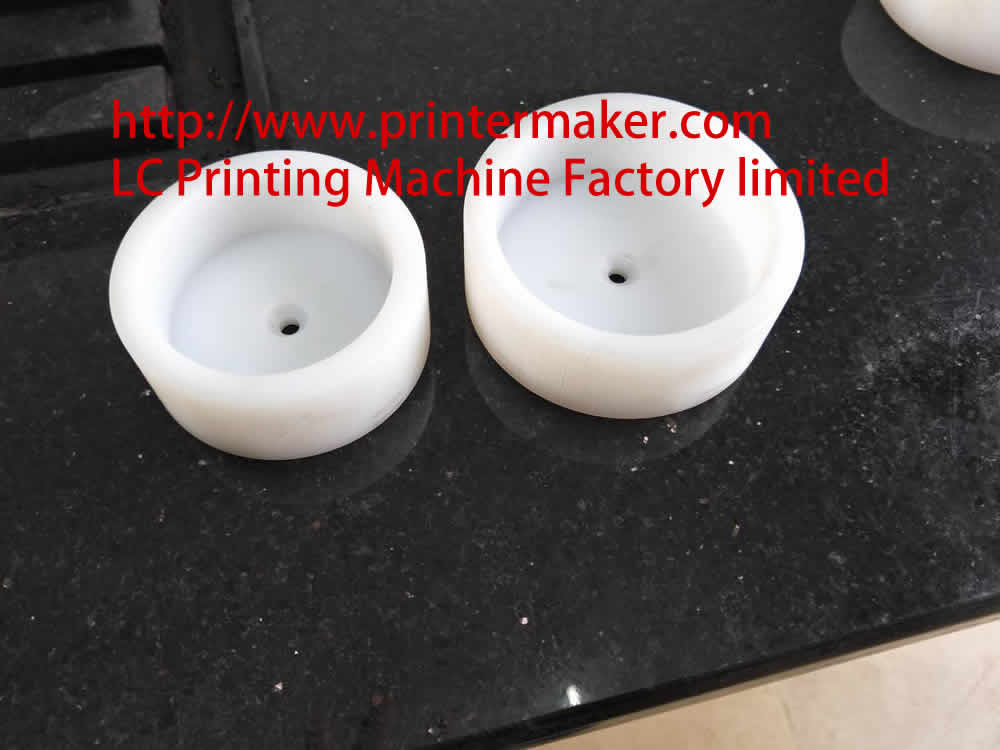

7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt; mandrill in Teflon materials for resisting of 200-degree maximum; the mandrill maximum height at 30CM height.

8:Machine dimension:  910mm width*6300mm length *1900 height(lxwxh)

9:Gross/Net weight:   2620KG/2100KG

10:Package:  Export PolyWooden case

11:Automatic Grade:  Manual

12:Warranty       :  2years

13:Usage:Round,Oval and flat plastic or glass bottles

14: packing sizeL3 wooden case

195*260CM *195CM

285*205*93CM

385*188*93CM

Infrared Drying Tunnel For Sports BottleInfrared Drying Tunnel For Sports BottleInfrared Drying Tunnel For Sports Bottle
