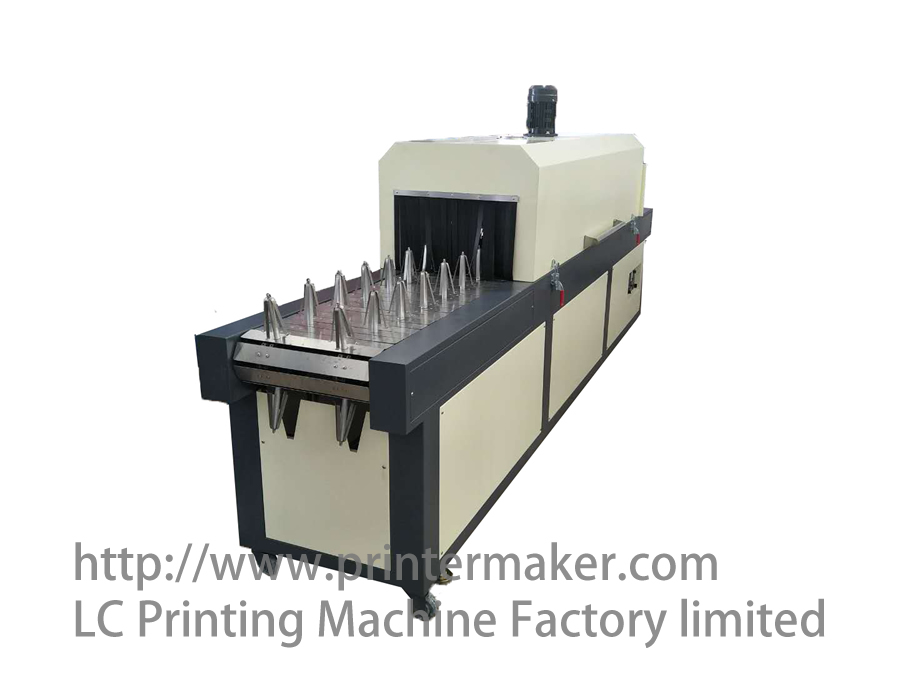

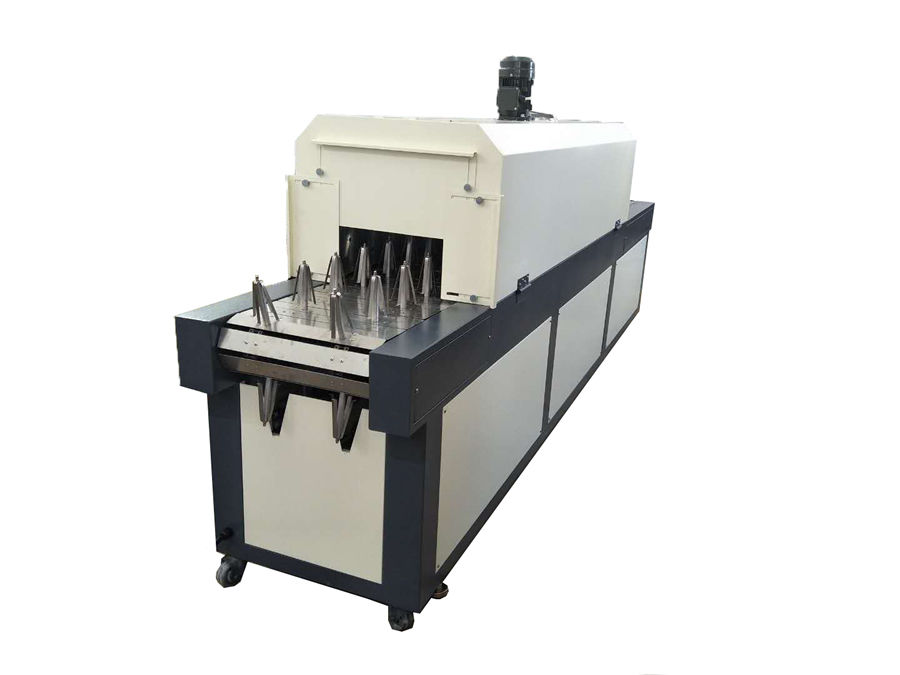

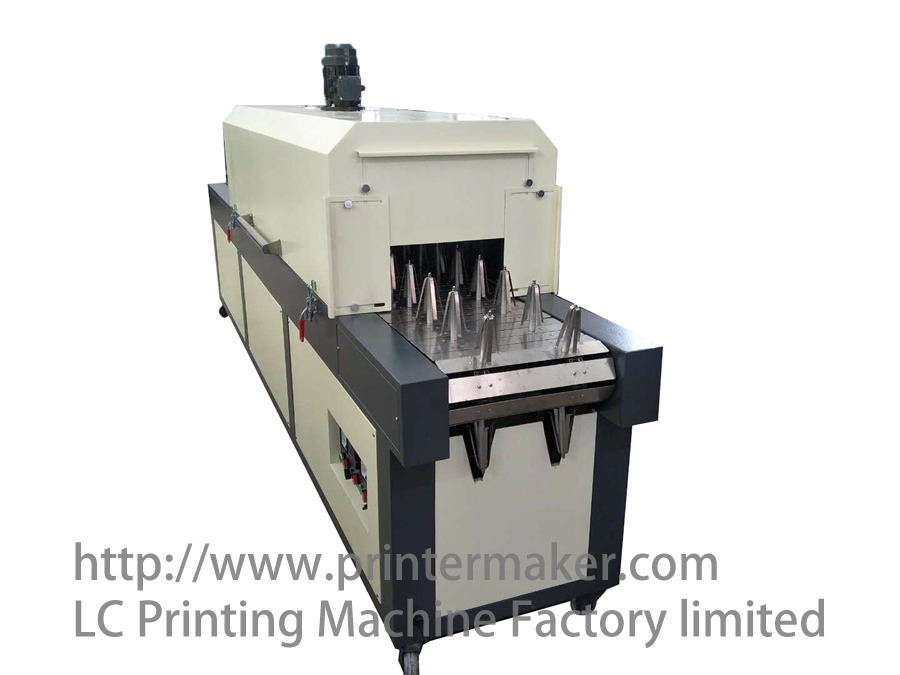

  • Infrared Drying Tunnel For Bottles - Image 1 - Infrared Drying Tunnel For Bottles photo 1

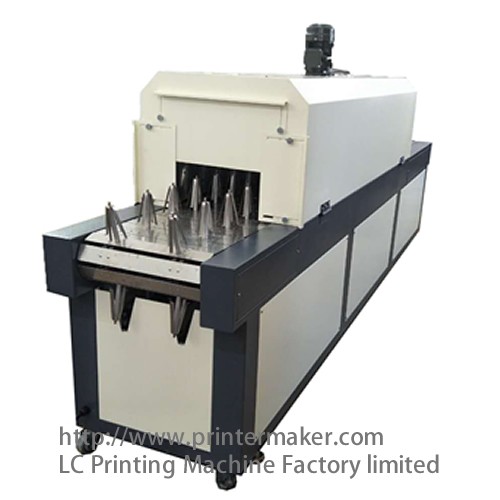

  • Infrared Drying Tunnel For Bottles - Image 2 - Infrared Drying Tunnel For Bottles photo 2

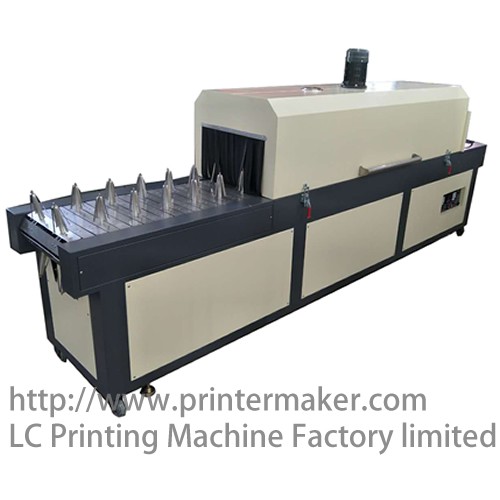

  • Infrared Drying Tunnel For Bottles - Image 3 - Infrared Drying Tunnel For Bottles photo 3

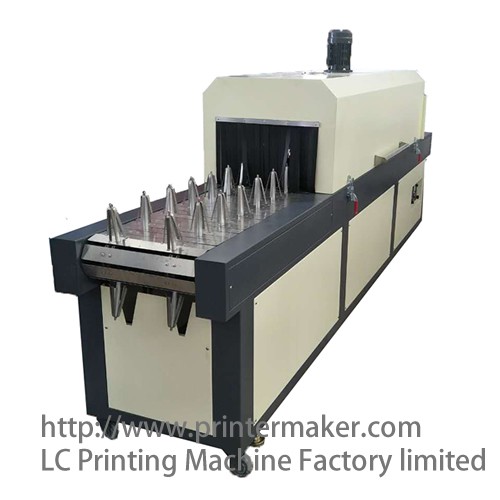

  • Infrared Drying Tunnel For Bottles - Image 4 - Infrared Drying Tunnel For Bottles photo 4
  • Model NumberM-500BO
  • Product PriceUS$: negotiated
  • Views13241
Share
  • Product Detail
  • Video
Infrared Drying Tunnel For Bottles
Technical Parameters:
1:Model No: M-500BO
2:Conveyer size: Total length at 5 meters;
Width: 500mm;
Infeed&outfeed Length:500mm;
Heating zone: 2000mm*2 zones;
Max.infeed height at 28CM
Fixtures: 200PCS
3:Total wattage:   12KW
4:Circulating air motor :550W*2=1100W
5:Conveyer motor wattage:160W;velocity rate:50RPM,every 70 seconds
6:Heating temparature:0-200degree;
Heating tube length:450mm*24pcs;
HeatingTubes power rate: 400W
7:Conveyer Speed adjustment: Stepless 0-40meters/minutes;
8:Machine dimension:  5000*680*1900mm(LxWxH)
9:Gross/Net weight:   1320KG/1100KG
10:conveyor plate width: 500mm
11:Automatic Grade:  Manual
12:Warranty       :  1 years
13:Usage:  Round,Oval and flat plastic or glass bottles
