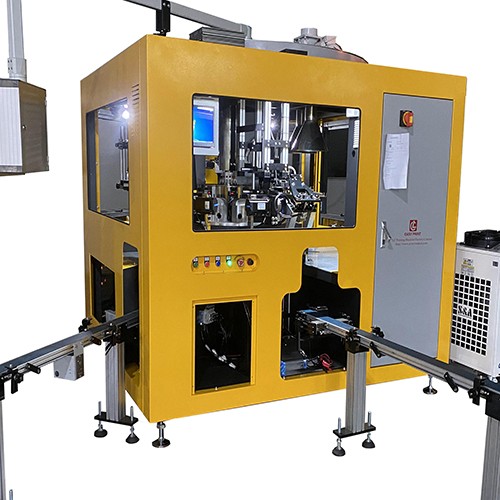

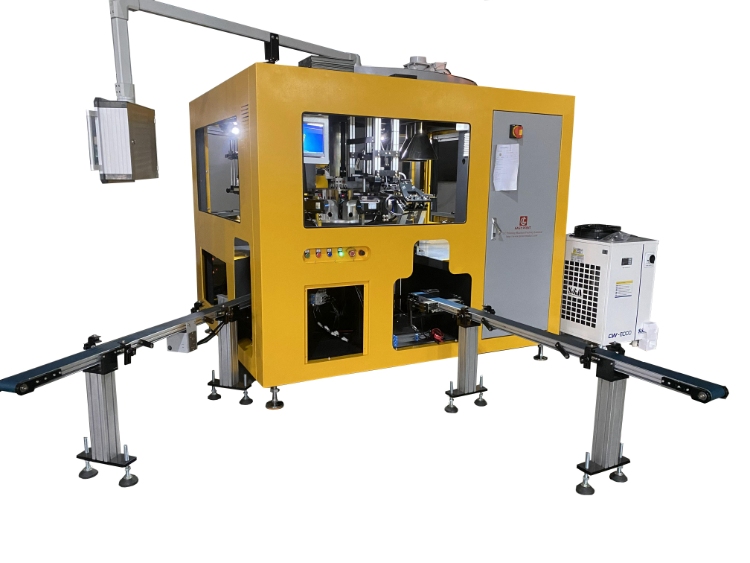

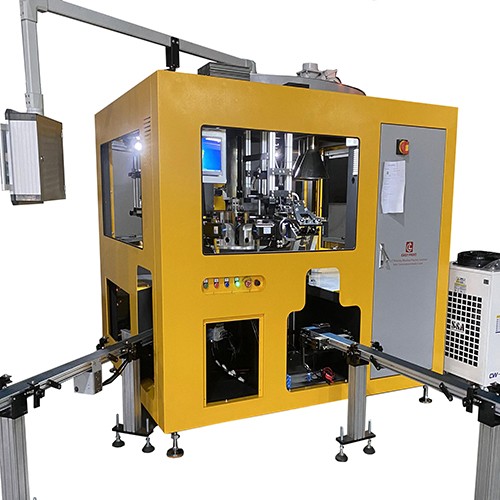

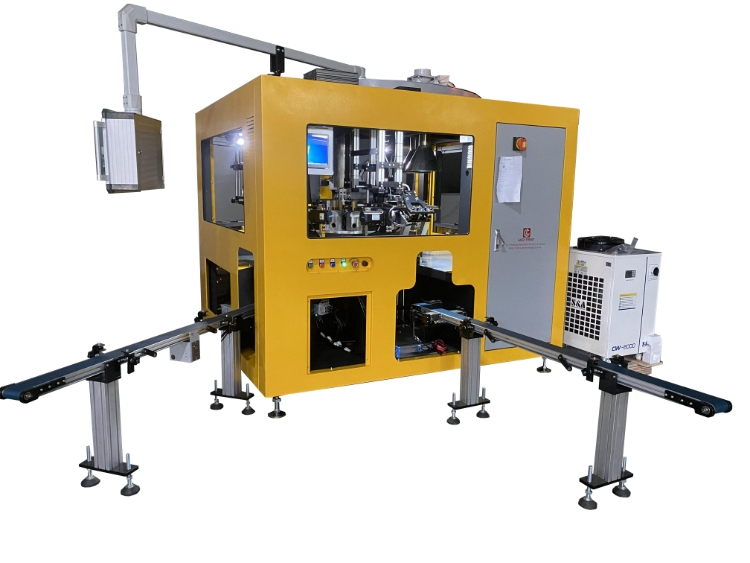

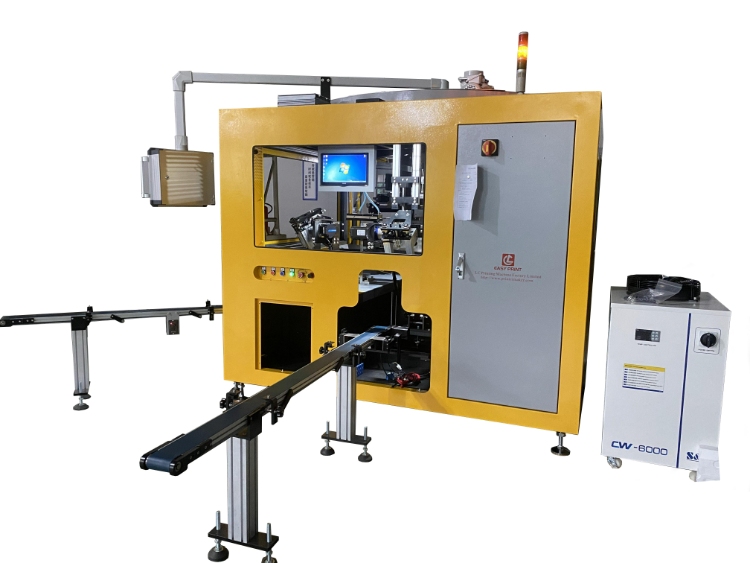

Product name:Glass Bottles Automatic CNC Printing Machine
Model Number: SGL-102Parameters:
1: Max.Printing size: Bottle Diameter: φ20mm—φ100mm Bottle height: 50-330mm
2:Printing Speed: 55pcs/min ，3300pcs per hour.
3:Air Pressure: 0.6-0.7 Mpa
4:Net Weight: 1500Kg, Gross Weight: 1800kg.
5:Power: 380V 50Hz 15Kw ( 220V, 3 Phrases, 60HZ and 480V, 3 phrases, 60HZ optional)
6:Machine Size(L*W*H): 2600mm*2200mm*2200mm

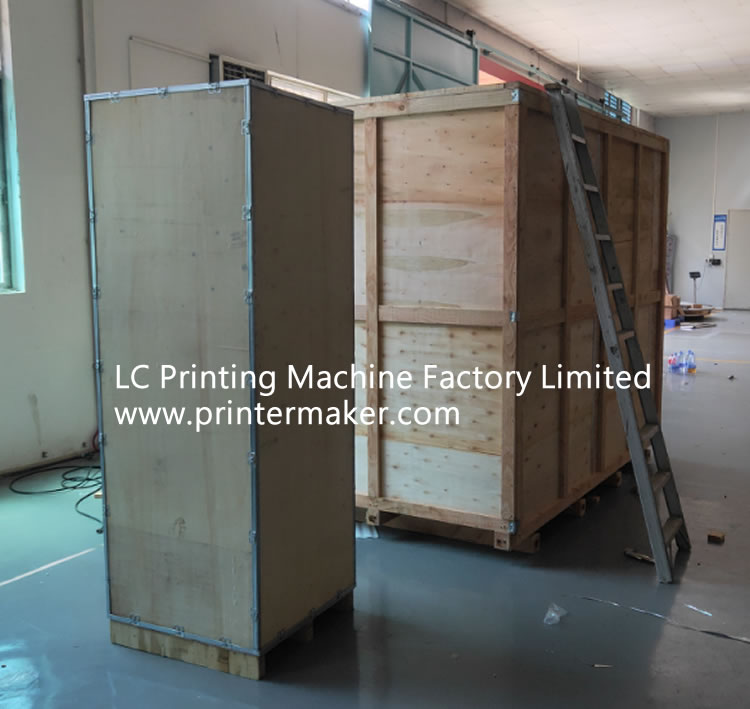

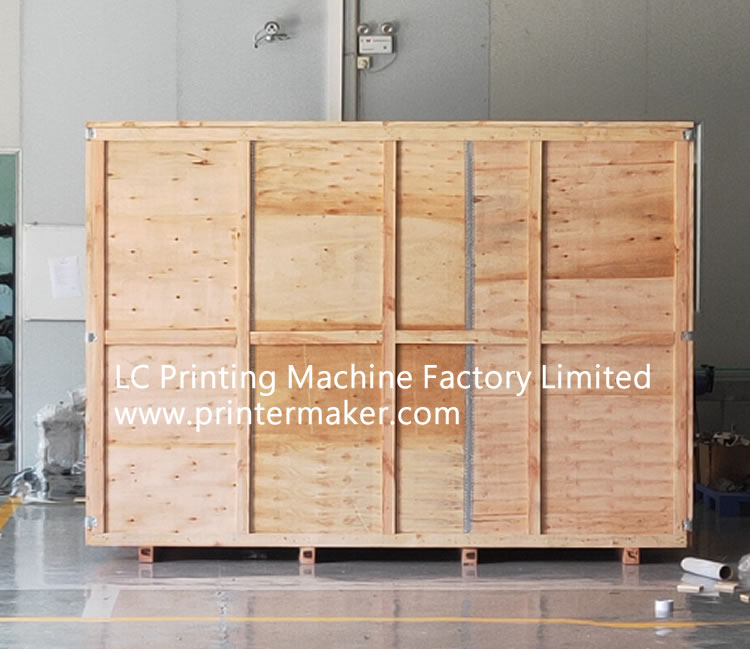

7: Packing size: 277*243*234CM
1.Automatic loading and unloading system by servo motor control
2.Automatic LED UV curing with high efficiency or UV system

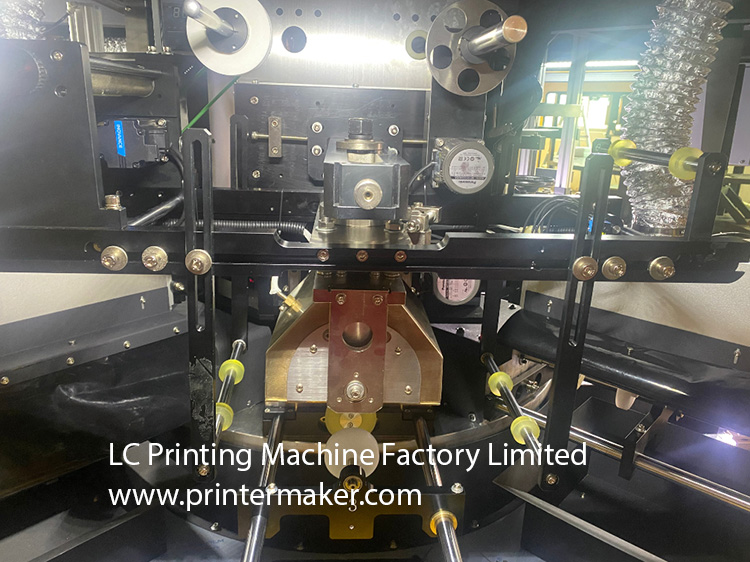

3.Automatic printing system with all servo driven: printing head, mesh frame,rotation mandrill
4.Fast tooling changeover time, it's about 10 minutes for each color. All parameters automatic

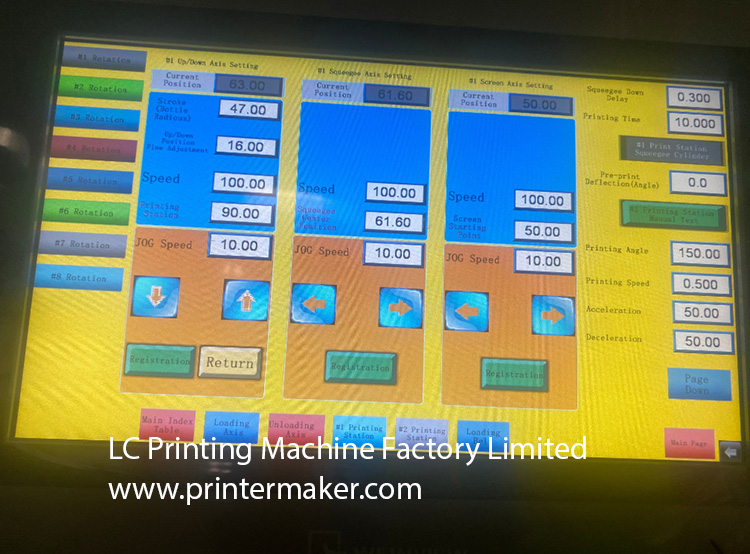

setting by touch screen and with 20 types of bottles papameter memory function.
5:Can use thermoplastic ink or UV ink or LED UV ink.(According to customer's convenient to get
the specific type of ink)
6: Machine is attached with 21 sets of servo motor control totally. All Ethercat servo motors with
industrial PLC control & touch screen operation system, internet cable connection available, easy
for future maintenance and upgrading

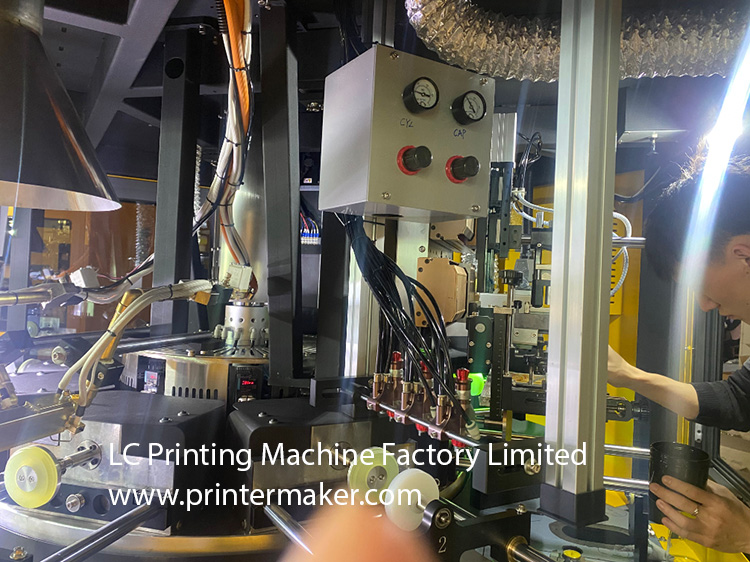

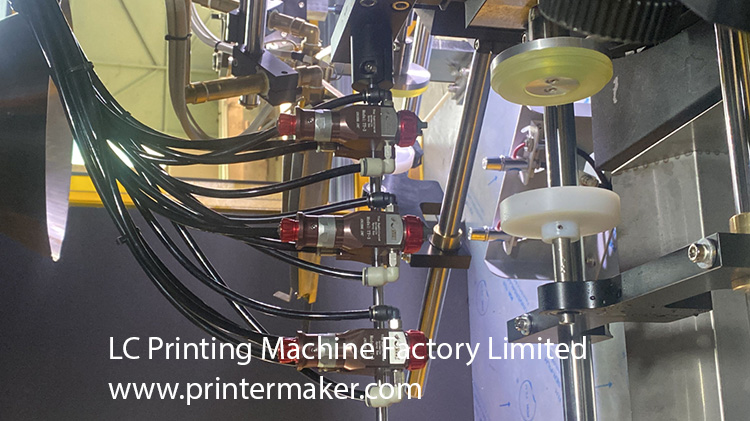

7: Two Flame treatment system for increase the ink ahension
8: UV curing system is driven and controled by Italy style eletrical UV curing system which is greatly
lasting the lifespan of the UV lamp and could be adusted from 10-100% UV indensity.
9: anti-static system is available
10: CCD ceramer registration system (optional)
11: Pyrosil system (Optional)
12: This machine has 4 patents
13:Safety operation with CE

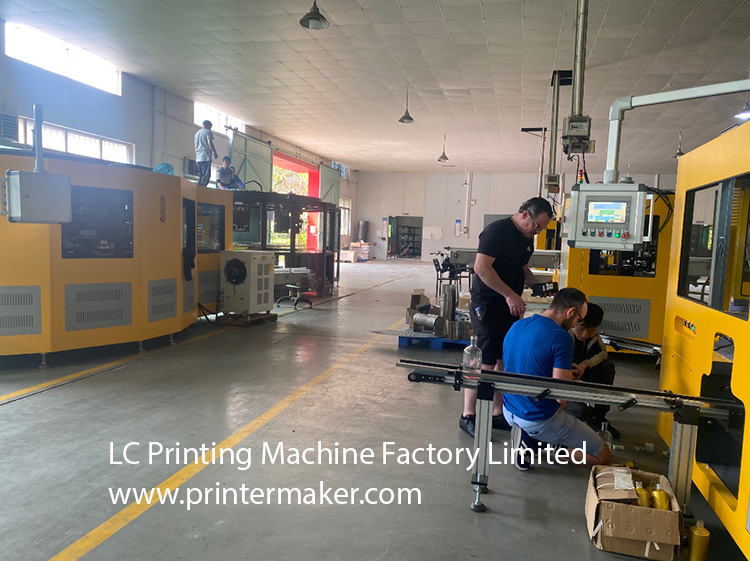

14: Training: Video training, Manual Instruction in english version, On-Line service group is available.

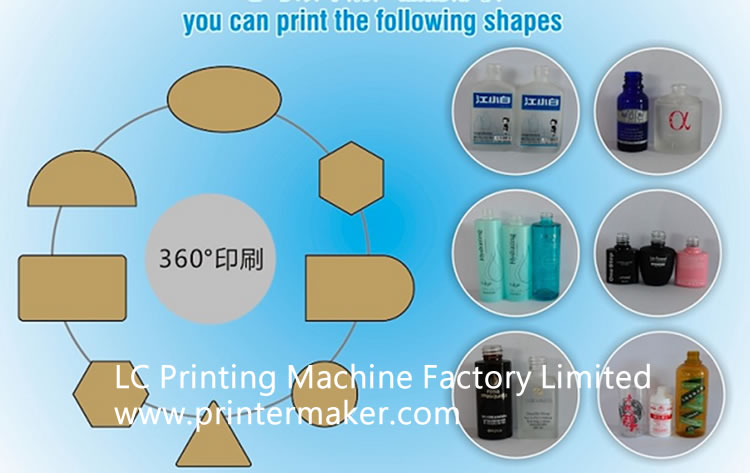

It’s Automatic LED UV Plastic Bottle Screen Printing Machine with two colors prinitng which is perfectly
printing on all kinds of those glass wine bottles, metal cans, cosmetic tubes and bottles etc.The machine could be made as 2 color plastic CNC screen printing machine or combined with 1 color hot stamping
Plus 1 color Screen Printing.
