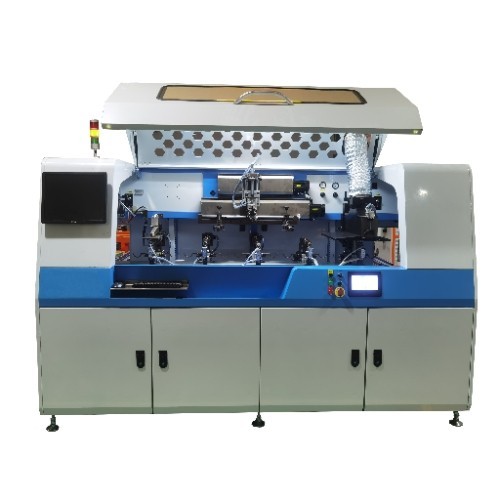

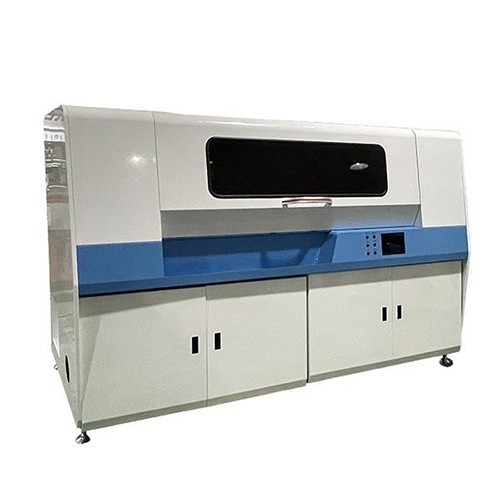

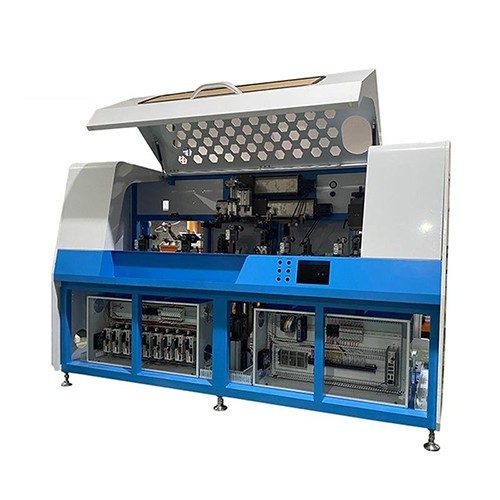

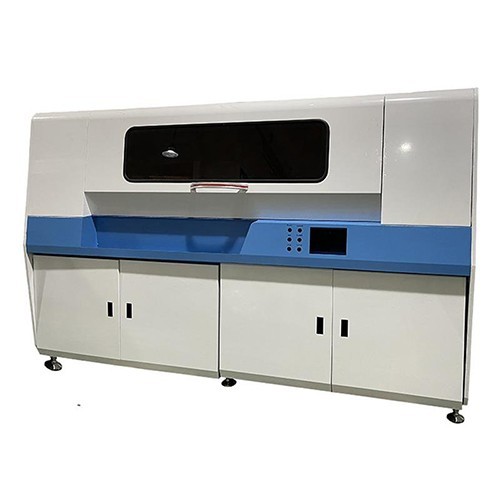

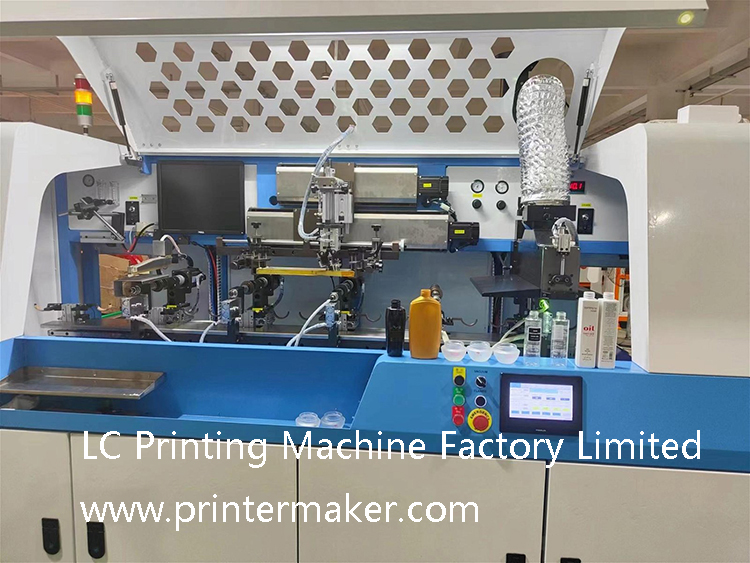

Automatic Silk Screen Printing machine For Glass Bottle JarCup plastic cup

Features

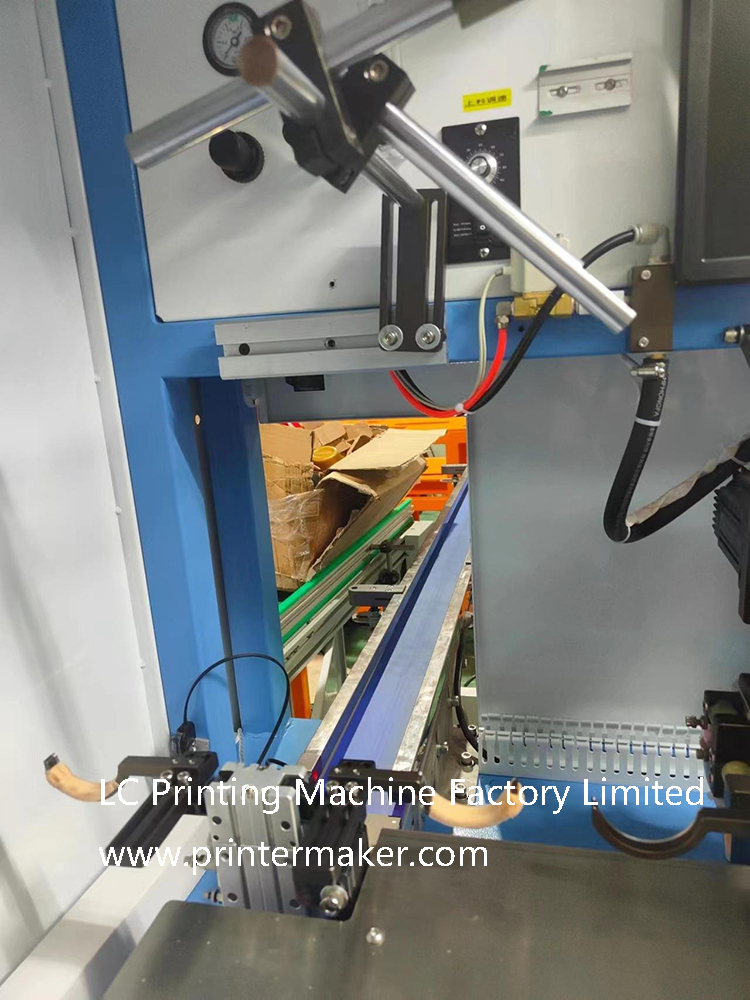

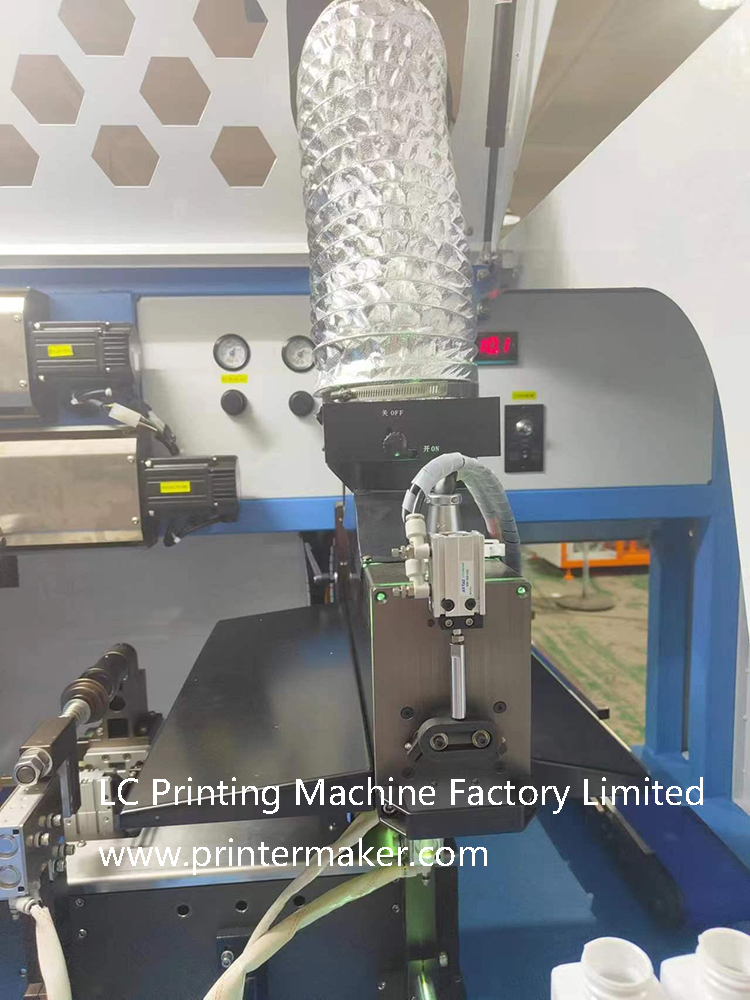

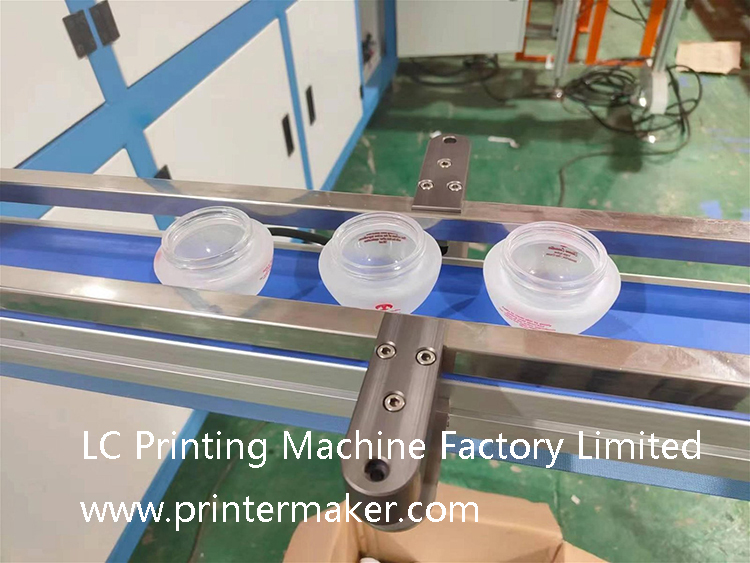

1.Auto loading and unloading .

2.Dust clean

3.Auto flame treatment before printing and UV curing after printing .

4.With servo control ,can print square shape bottles 4sides at one time .

5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.

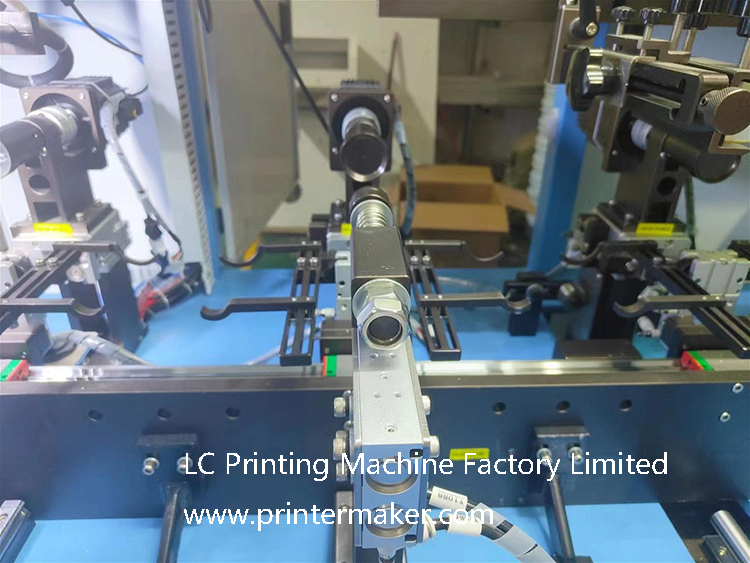

6.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.

7.Printing accuracy: ±0.02mm

8. Well built machine house with CE standard safety design.

Specifications

1. Model:3D-108

2. Printing color:1 color(can print multi color by multi times)

3. Product appearance:cylinder/flat/oval and other special shape, plastic glass bottles,jars ,cups ,cans

4. Operation:Full CNC Servo

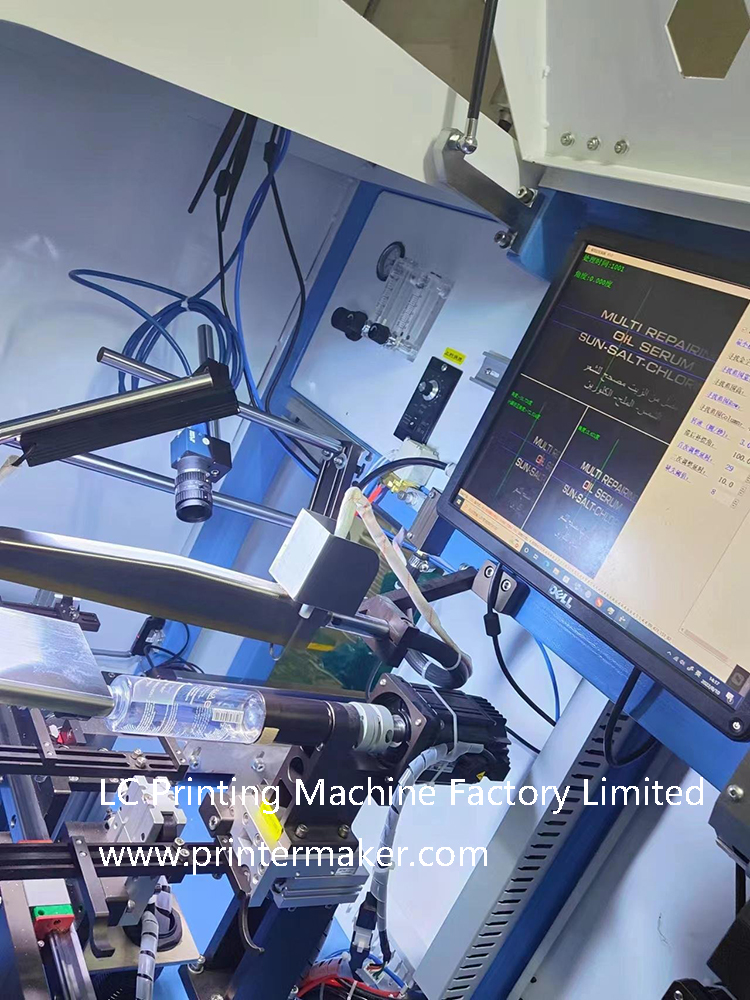

5. CCD image positioning

6. Diameter of circular printing: ф15mm~ф100mm

7. Circular printing height: 20mm~270mm

8. Flat printing diameter: R20mm~R180mm

9. Flat printing height: 20mm~270mm

10. The fastest printing speed: when printing round products, the fastest printing speed is about 50-60Pcs/min, and when printing flat bottles, the fastest printing speed is 70Pcs/min

11. Power requirements:AC380V 3Phase 50Hz /60Hz

12. Rated power: host 7.5KW

13. Air pressure requirement: 5～8bar

14 .Machine size: L2400*W2000*H1700 (Length can be customized)
