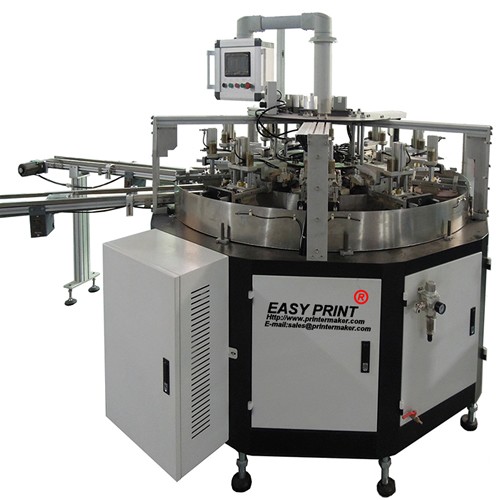

Automatic Glass Bottle Polishing Machine

  • PRODUCT DETAIL

Product name:Automatic Glass Bottle Polishing Machine

Model Number: SGL-PT12PM

Glass Bottle Polishing Machine
Product Name: Glass Bottle Polishing Machine
Model: SGL-PT12
Applications:
This machine is mainly for the square glass bottle surface treatment before printing.
It's function is to polish the glass surface to make it high smoothness.
Features:
1.The polishing machine is designed for the square and rectangle's surface treatment before printing.
2.Easy operation and fast adjusting.
3.Full Automatic and Stable running with good polishing effect.
4.It has the coarse grinding and fine grinding millstone.Polishing automatically
5.It with automatic water spary system.
6.Automatic reversing device
7.Using Cam indexing system.Auto loading and unloading with robot
Parameters:

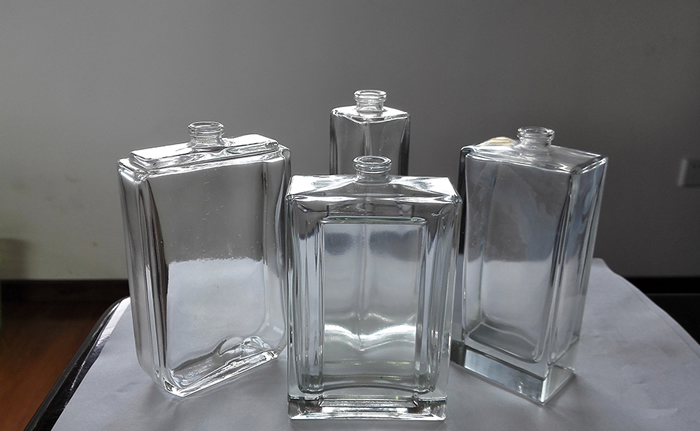

1.Polish the square bottles, rectangle bottles.
2.Product Size: Square:30-80mm   Rectangle: 30*31-79*80mm
3.Speed: 5-10pcs/min
4.Air Pressure: 0.5-0.6Mpa
5.Unit Power: 380VAC 50HZ
6.Total Power: 9.5kw

7.Machine size: 1200*1950mm
