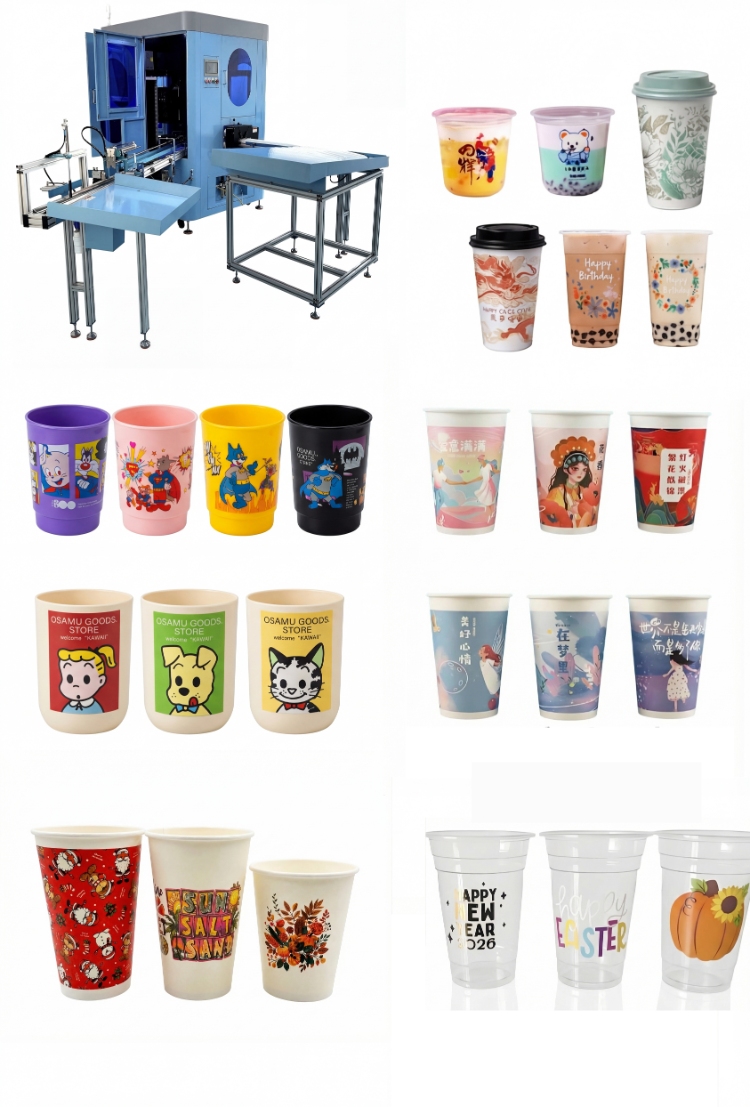

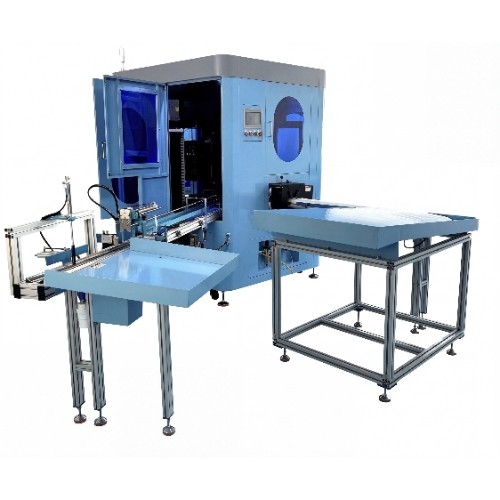

Digital UV Printing on Cup

Product name:Digital UV Printing on Cup

Model Number: EADY-DP-5P

Model: EADY-DP-5P

1. Printhead：Ricoh G5i
2. Ink：UV Ink
3. Color：C/M/Y/K+W
4. Feature：Directly Printing To Curved Surfaces
5. Printing Mode：CMYK+W 5-Color Printing ; CMYK 4-Color Printing ; Solid Color Printing
6. Printing Speed：Printing A Cup In 8 Seconds(3-6PCS per minute)
7. Printing Accuracy：4 pass:720×600  6 pass:720×900  8 pass:720×1200
8. Printing Width：Max 170mm
9. Technology：Piezo Direct Inkjet Printing
10. Printing Station：8
11. Used For：Cylindrical Or Conical Cups Of Any Material
12. Max Cup Diameter：Max 130mm
13. Printing Materials：Paper, Metal, Glass, PE, PP, PET...
14. Printer Size：1600mm*1400mm*1950mm
15. Solution Size：3500mm*2500mm*1950mm (with automatic feeding and unloading machine)
16. Printer Weight：900KG
17. Power Supply：7.0KW, 220V, 50/60Hz
18. Package Size：1800mm*1600mm*2100mm
19. Package Weight：1100KG

Machine Configuration:

1 Cup dividing wheel, customized, 1 set

2 Corona treatment unit, customized, 1 set

3 Upper and lower assembly line, customized, 1 set

4 Material hopper / receiving hopper, customized, 1 set

5 LED curing unit, customized, 1 set

6 Fixture, material: AL6061 with black anodized finish, 1 set

7 Ricoh Gen5i printhead, 1 set

Description:

This Digital Printer is with 5 colors UV digital printing included CMYK+White Color.

No plate making is required, and you can customize the printed cups as you wish in any printing artwork.

Compared with silk screen and offset printing, it effectively realizing the color that you want to print.

Digital printing can achieve the original color output of the original picture.

Suitable for disposable paper cups, plastic cups, milk tea cups, coffee cups, PP cups, PET cups and other materials.

UV Digital Printer vs. Screen Printer for Cup Printing

UV digital printers do have many significant advantages over screen printers when printing on cups:

Advantages of UV Digital Printers

· Strong personalized customization capability

o Capable of printing any complex patterns and photos

o Support customization for small batches or even single cups

o Quick pattern change without replacing printing plates

· Higher printing quality

o Resolution up to 2880dpi for outstanding detail performance

o Rich color layers and natural gradient effects

o Support CMYK + white ink for stronger color expression

· Simpler production process

o No screen plate making required, saving plate-making time and cost

o Instant drying after printing with no additional drying equipment needed

o Easy operation with low technical requirements for operators

· Wider material adaptability

o Printable on cups made of ceramic, stainless steel, plastic and other materials

o Suitable for irregular-shaped cups such as curved and tapered cups

o Direct printing without pre-treatment

· Better environmental performance

o UV inks contain no VOC harmful substances

o Eco-friendly curing process with no odor

o Low pollution during production

o

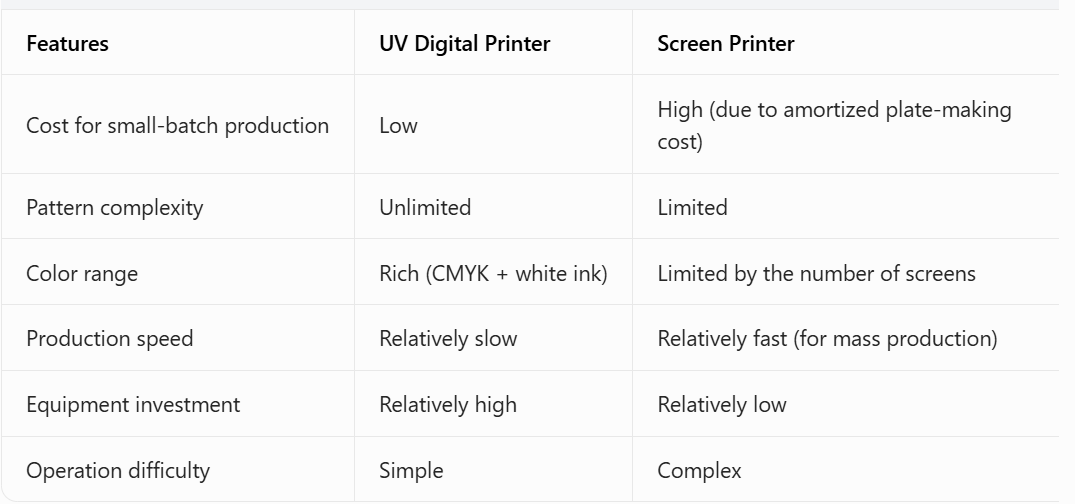

Comparison with Screen Printers

UV digital printers are especially ideal for:

· Personalized gift customization

· Corporate promotional cup customization

· Tourist souvenirs

· Art collectibles

· Small-batch and diversified production

Screen printers are more suitable for:

· Mass standardized production

· Large-scale printing of simple patterns

· Cost-sensitive conventional products

In summary, if you prioritize personalization, small-batch production and high quality, a UV digital printer is a better choice. For large-scale standardized production, screen printing may be more economical.
