Servo Flat Hot Stamping Machine

Model Number: 2AS-PLC
Product price: US$:negotiated
Category: Hot Stamping Machine
Views: 408

Product Description：

PRODUCT DETAIL
Video

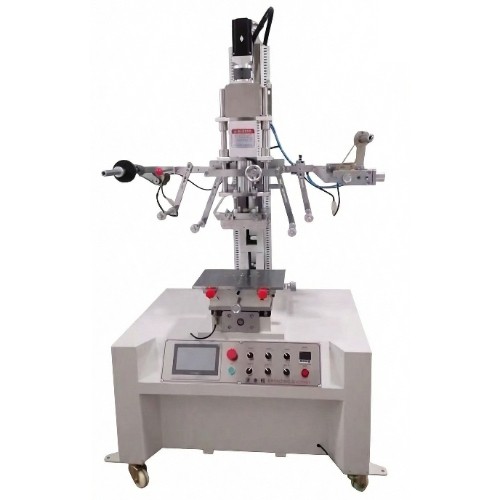

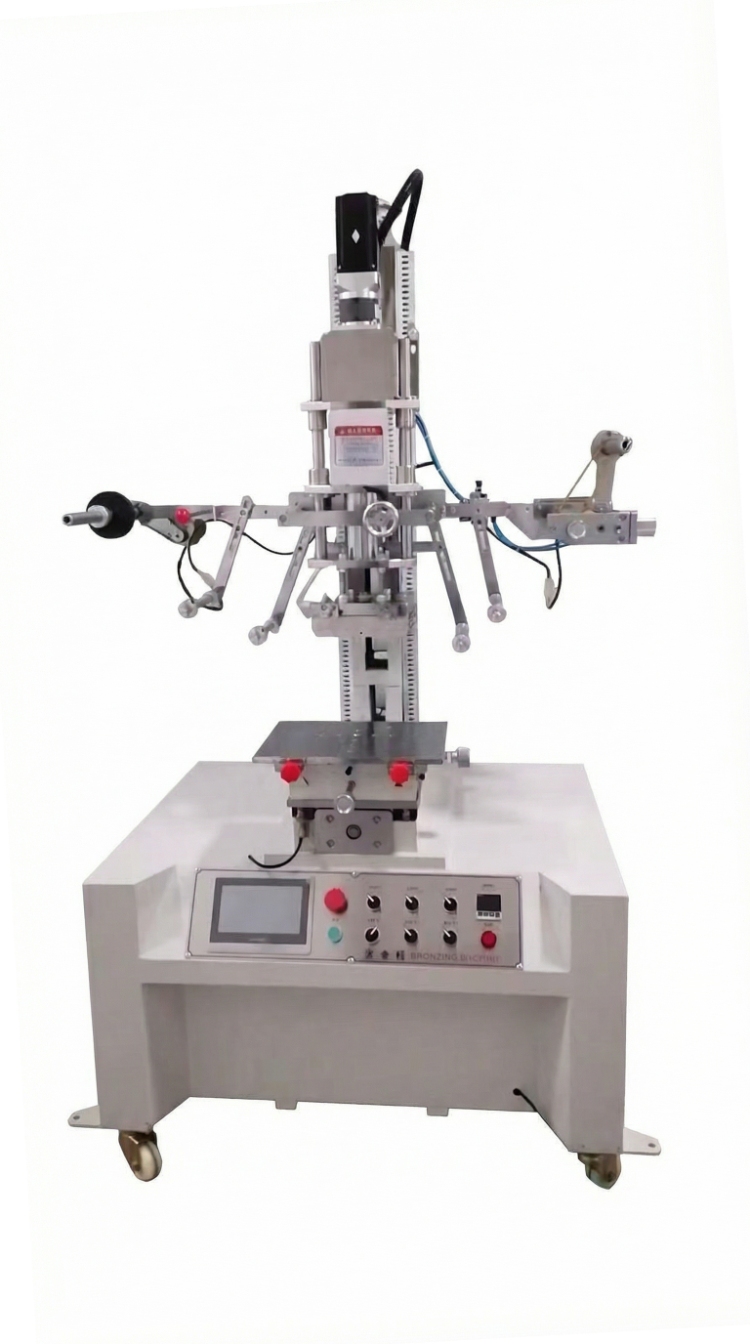

Product name:Servo Flat Hot Stamping Machine

Model Number: 2AS-PLC

Servo Flat Hot Stamping Machine

Feature:
1. Adopts PLC control and HMI Control
2. Operates with full servo motors; Machine's up and down, front and back motion are by servo driven.
3: Shuttle working table for easy feeding parts.
Parameters
1. The hot stamping head motor uses a 750W motor with a box; the stroke of the gearbox is 80
2. The shuttle table adopted by 750W, with a precision screw guide rail and a stroke of 250mm
3. Hot stamping head size: 160x200mm, power: 2000W; Workbench size: 260x350mm
4. Maximum size of hot-stamped products: 250MM
5. Foil collection adopts a stepper motor with adjustable speed
7. Machine size: 1000X800x900mm
8. Machine weight: 400 kg
9. Machine power: 4000W
10. Power supply voltage: 220v/50hz
