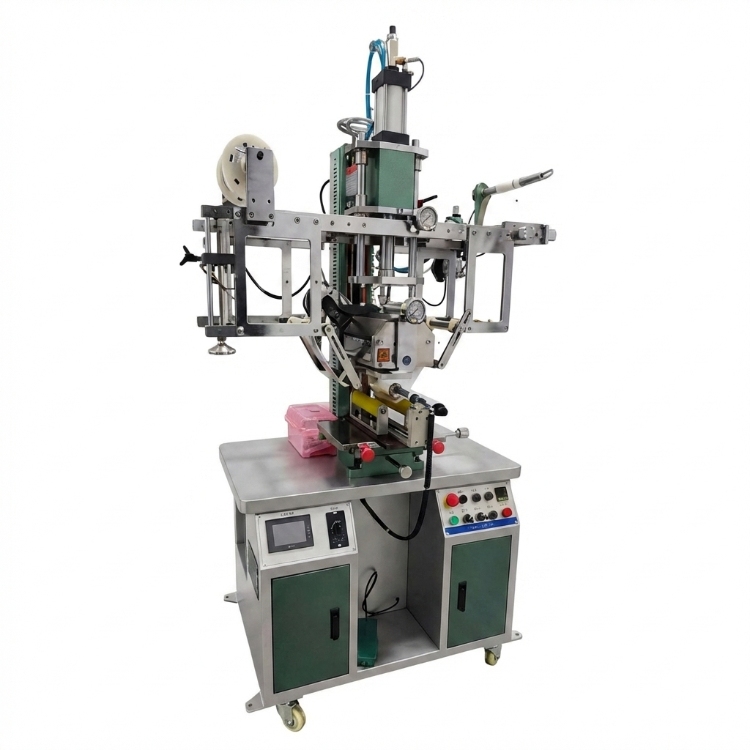

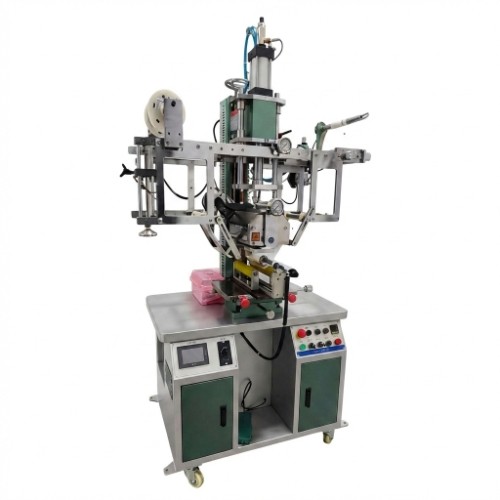

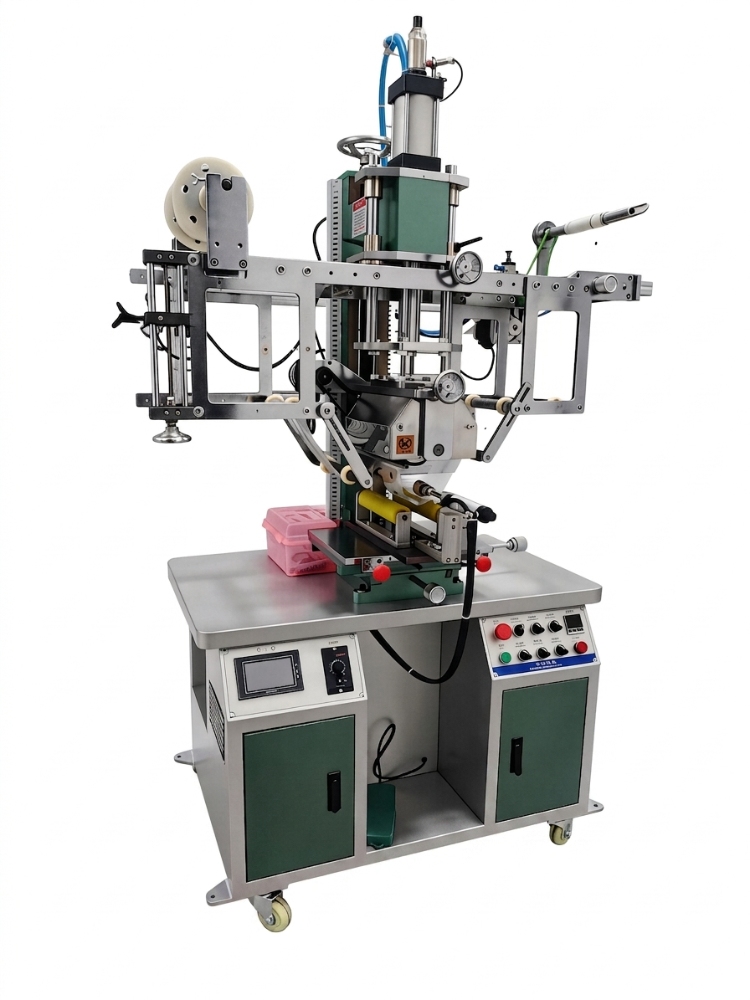

Cylinder HeatTransfer Machine

Specification:

1. Machine Name: Cylinder HeatTransfer Machine

2. Model: EASY-300C

3. Max. Printing Area: 240mm

4. Max. Processing: 200 mm

5. Control System: PLC + HMI

6. Special Features: Equipped with corresponding jigs, it can perform heat transfer printing on curved surfaces.

7. Typical Applications: It is suitable for pattern transfer on the surface of various cylindrical plastic products.

8. Power Supply/Total: 220V / 50Hz / 2500W

9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 1.4 × W 0.95 × H 1.9 m / 300 kg
