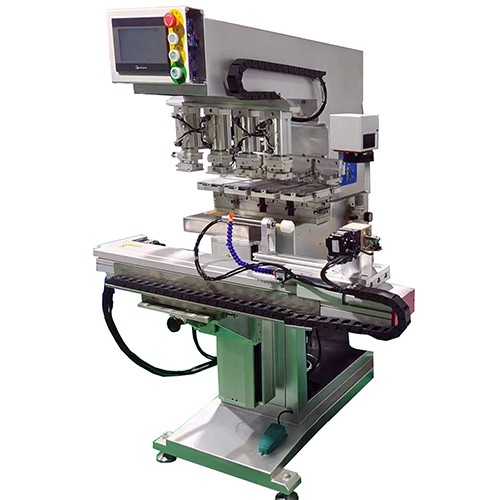

4 Colors Servo Ink Cup Pad Printer with Independent Head

Product name:4 Colors Servo Ink Cup Pad Printer with Independent Head

Model Number: M4-400T (PLC)

Model Number: M4-400T (PLC)
1.Max. plate size: 120×400；
2..Max. printing area: 100×250mm；
4.Max. printing speed: 1500pcs/hr；
5.Printable colors:4;
7. Stroke of table shuttle: 125mm.
8: Packing Size:1200*740*1620mm
9: Power Supply: 110/220V/60HZ/50HZ 1-PHASE 2000W

Feature:
1. PLC Servo Motor control for the shuttle table;
2. Touch Screen Control easy operation;
3. Independent rubber pad printing head,The two ink cup can be independently adjusted for color registration;
4. Coin aluminum structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating environment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. 4-color,2-color, 1-color printing available,
10.  Longer front and back printing stroke at 300mm for large printing size.

This machine is perfect for larger products with 4 colors printing, it is fitting on the control pannel, IC Board, rice oven, Mircro Oven, and other eletrical product control pannels in single and multi colors printing.
