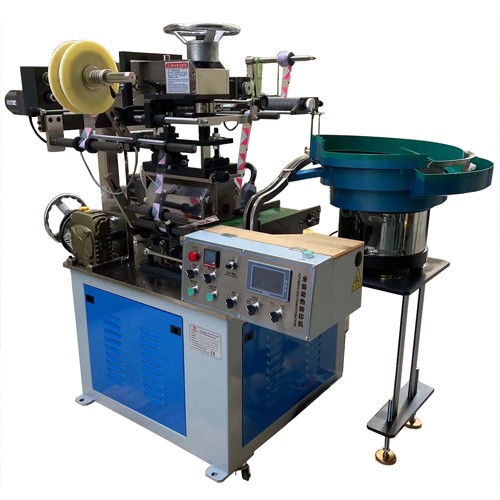

Fully Automatic Heat Transfer Machine

  • Model Number: AHR-120A
  • Product price: US$:negotiated
  • Category: Heat Transfer Machine
  • Views: 350
  • Product Description: Heat Transfer Machine
  • PRODUCT DETAIL
  • Video
  • Packing Photo

Product name:Fully Automatic Heat Transfer Machine

Model Number: AHR-120A

Parameter:
1: Prodcut diameter: 6-35mm
2:Heat Transfer Print length 160mm
3:Working Capacity: 40-60/min
4:Power consumption : 3kw
5:Machine Dimension:  1250X1150X1450mm
6:Operating Weight:  350kg
7:Power supply 220v/50hz/60hz
8:Main motor:  Y902/0.75kw
9:Film collecting stepping motor (25K):  4NM
10: Rubber wheel motor (36K) : 40w
11:Unloading conveyor motor (75K) : 15w
12:Discharge belt feeding motor (100K): 15w
13:Film tension motor (50K): 15w
14:Heating power rate: 1.8kw
15: Packing size:144x126x168CM
Lipstick Automatic Heat Transfer Machine,fully automatic lipstick automatic heat transfer machine,Lipgloss Automatic heat transfer machine, mascara automatic heat transfer machine, lipstick, powders automatic heat transfer machine, pen rod automatic heat transfer machine, automatic heat transfer machine on pen barrels, automatic heat transfer machine on mark pens, automatic heat transfer machine on cosmetic tubes, PP pen rods automatic heat transfer machine, scale tubes automatic hot stamping machine
Features:
1: PLC controls all functional actions, Touch Screen operation, simple and convenient operation;
2: The rubber roller rotates for heat transfer hot stamping, and the hot stamping head can adjust the front and back slope, so it also fit to print on small taper round tubes;
3: Hot stamping pressure, temperature and speed can be adjusted;
4: A high-precision optical sensor (electric eye) is set to track and control the transfer film with contacts in place, and the transfer film without contacts is fed regularly;
5: Automatic feeding and unloading, Fully automatic production, suitable for large volumn printing production on stationery and cosmetic tubes etc.
6: Using the vibrating bowl Automatic loading and unloading design
7: The print head can be adjusted according to the diameter of actualy substrate prodcuts;
8: The Panasonic stepping motor for collecting the film for assuring the positioning accuracy and longest lifespan of the machine.

Usage:
It is suitable for automatic transfer printing on stationery (penholder), cosmetics industry (lipstick tube), etc. The whole machine is unattended, with fast transfer speed and good transfer quality. It is an indispensable equipment for stationary and cosmetic industry.
