Clam Shell Flat Bed Screen Printing Machine

  • Model Number: S-JY70100
  • Product price: US$:negotiated
  • Category: Flat Screen Printing Machine
  • Views: 4533
  • Product Description:Clam Shell Flat Bed Screen Printing Machine
  • Video

Product name:Clam Shell Flat Bed Screen Printing Machine

Model Number: S-JY70100

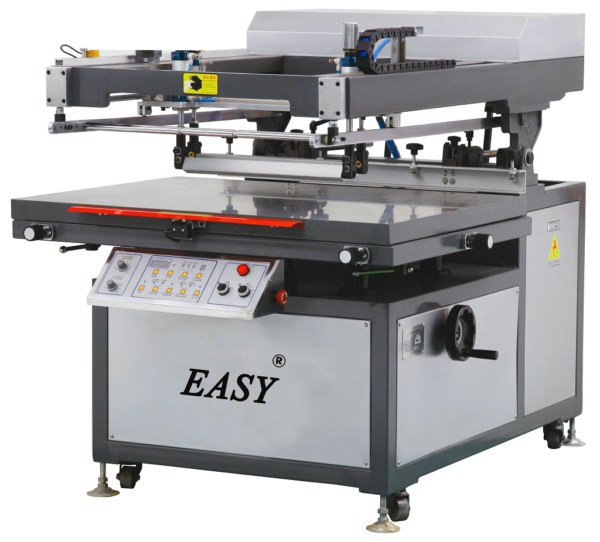

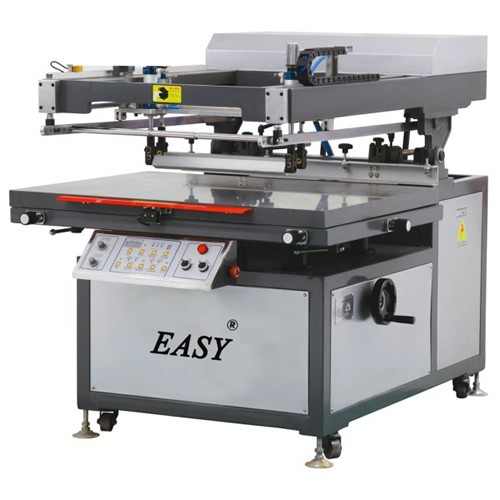

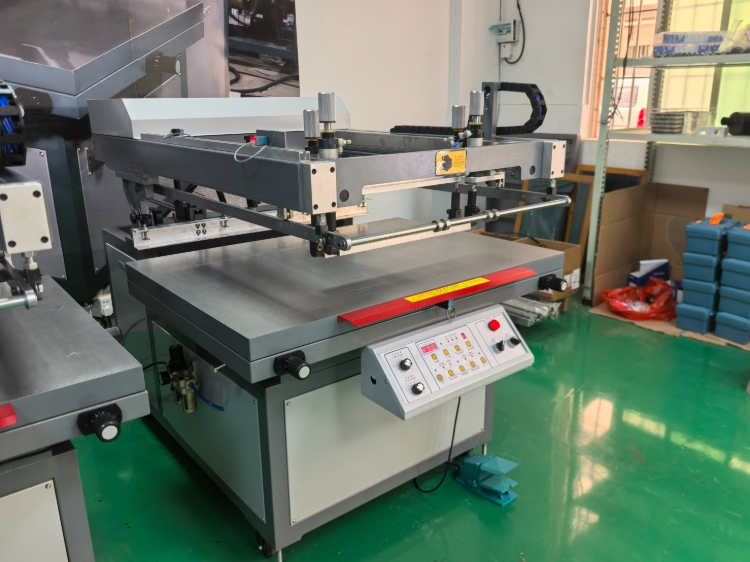

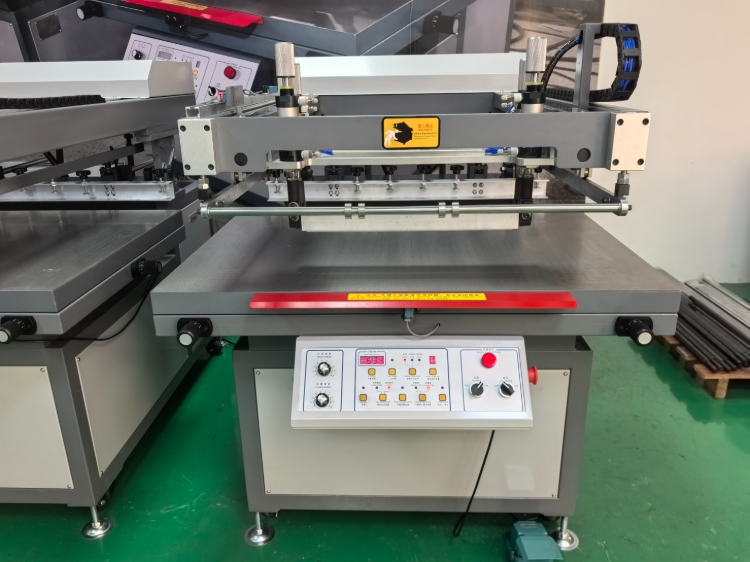

Clam Shell Flat Bed Screen Printing Machine
1.Working Table Size:800*1100MM
2.Max printing area:700X1000MM;
3.Max. Screen Size:1000*1300
4.Min.Screen size: 550*650mm
6.Frame Lift Height: 300mm
7.Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8.Air consumptions(0.6 mpa): 13/pcs
9.Max.Product thickness:0-20 MM;0-50mm 2
10.Power rate: 2.3KW
11.Voltage: 220V/50HZ, single phrase
12.Table Height: 820mm
13.Max. printing speed. 500-1200pcs/Hour
14.Machine dimension:1600*1350*1280mm
15.Machine weight: 480Kg

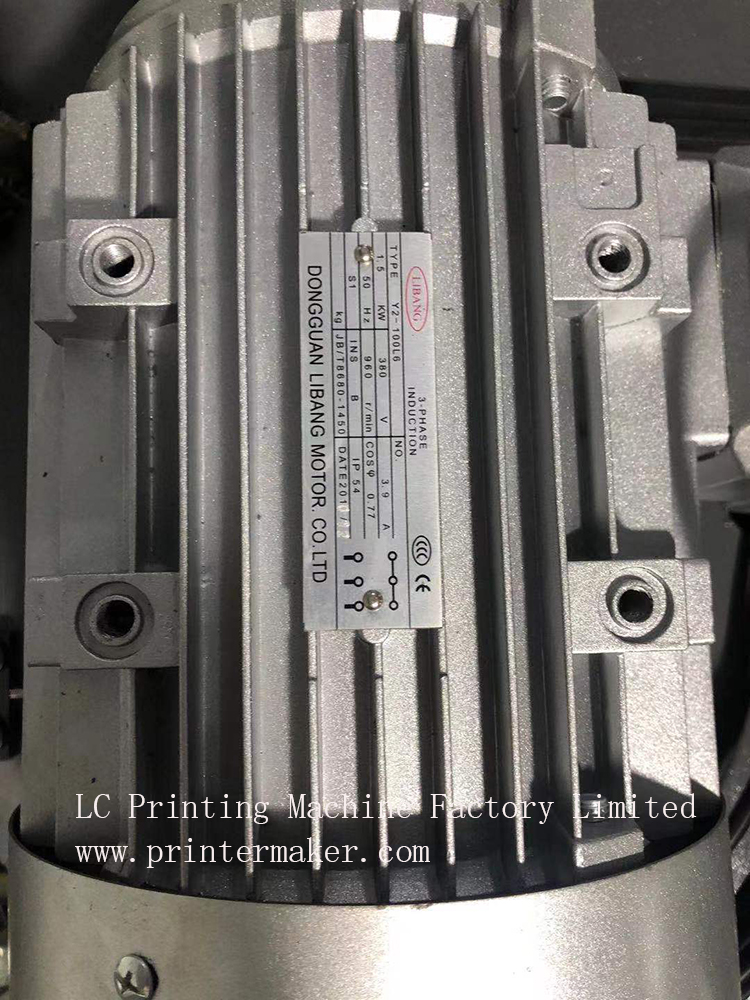

1: Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted

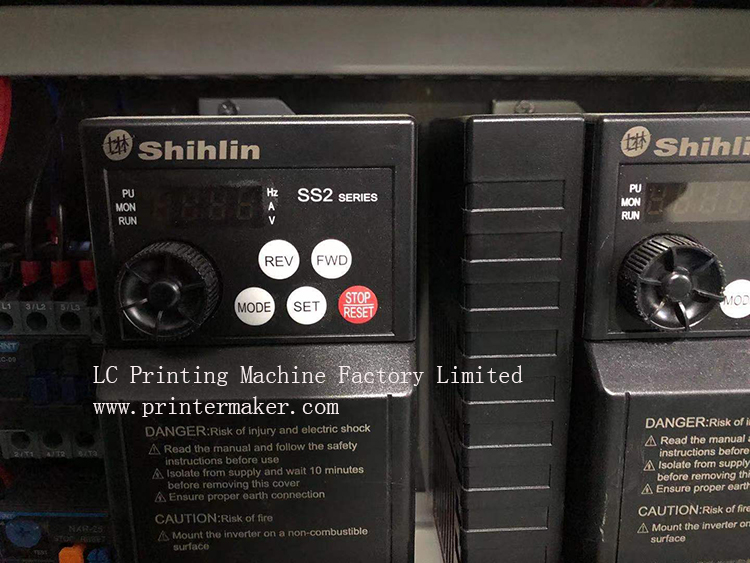

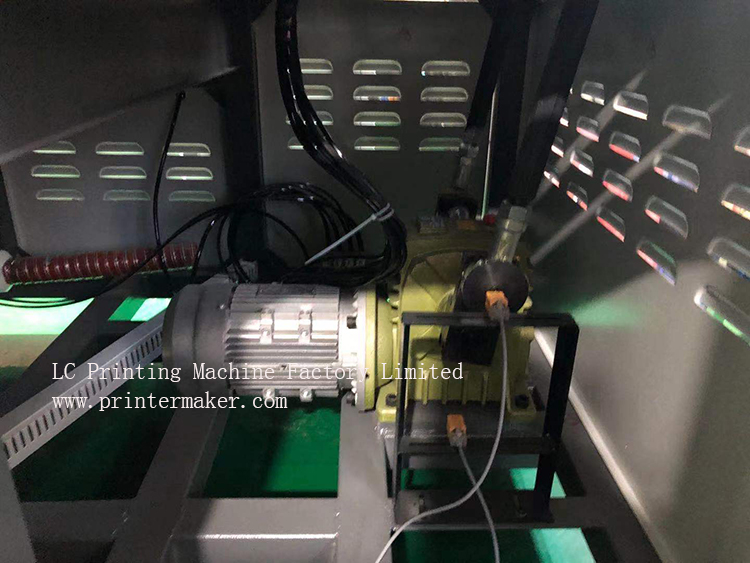

2: Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted
3: Adsorbing to fix printing substrate 4: The worktable has a venire regulation system( can move up and down, left and right, forward and backward) that makes registration more precisely and simply.

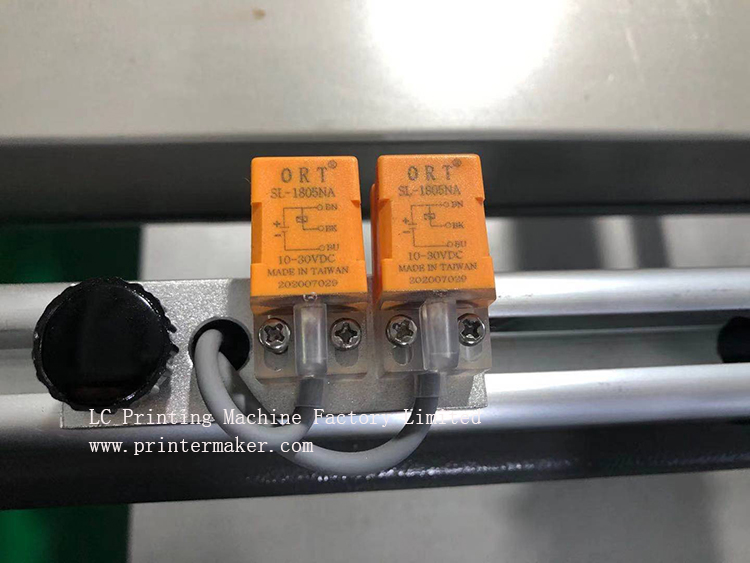

5: With security devices to make the head printing stop on the upper part position that is more reliable and safer
6: The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.
7: The front clip can be adjusted forward and back.

Product Description: This machine is fitting for paper board printing of cigarette, wine, gifts and cosmetics package, printing of trade mark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.
