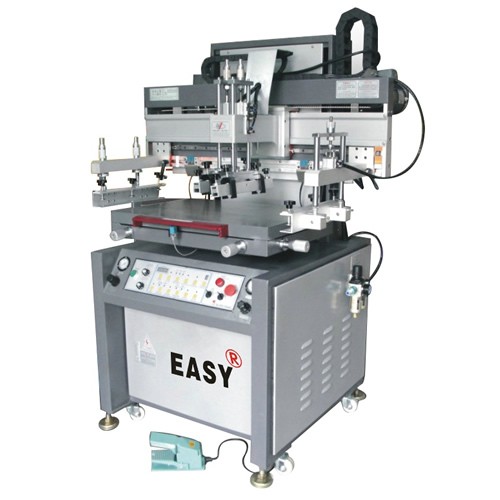

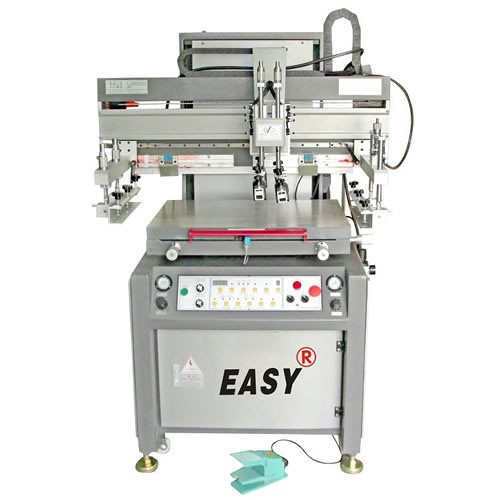

Precision Flat Screen Printing Machine
Paperboard printing of cigarette,wine,gifts and cosmetics package;printing of trademakerk,wall calendar,oil painting,computer keyboard,transfer paper,label-bond,credit card
Technical Parameter: NSP-6090
Workbench area: 700mm*1000mm
Max Printing Area: 600mm*900mm
Max Screen Size: 800mm*1200mm
Tickness of Material: ≦50mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure: 4.0-8.Kgf/C㎡
Operation Air Pressure: 0.3Mpa-0.5Mpa
Source Power: 2.3KW
Rated Voltage: 380V
Printing Speed: 400-600PCS/Hr
Packing size: 1670*1320*1920mm (4.2CBM)
1.Printing Transmission adpots moter drive,hight prcision linear lead rail and synchronous belt drive,movement sensitive,speed equality and can be adjusted.

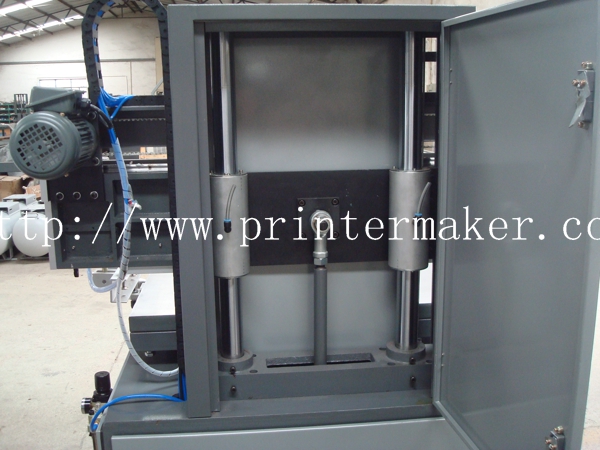

2.The up and down of machine arm is driven by moter,frequency control,move steady.

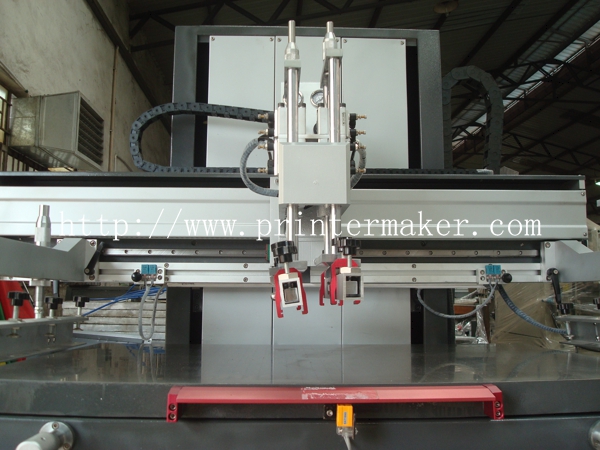

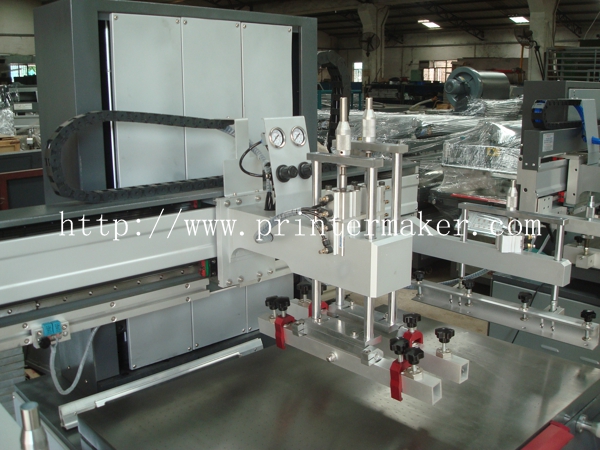

3.The printing blate and ink-return blate with a airpressure adjusted device and can rugulate printing thickness.

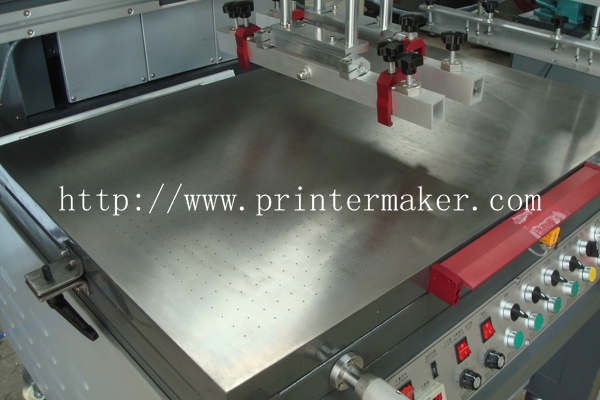

4.Vac-sobing to fix printing stocks.
5.With a up and down,left and right,front and back vernier device very convinient for register.With a safty device ,safe and reliable.6.ECU cebtralized control by the microcomputer,easy to operation,flexible and convinient for maintenance
