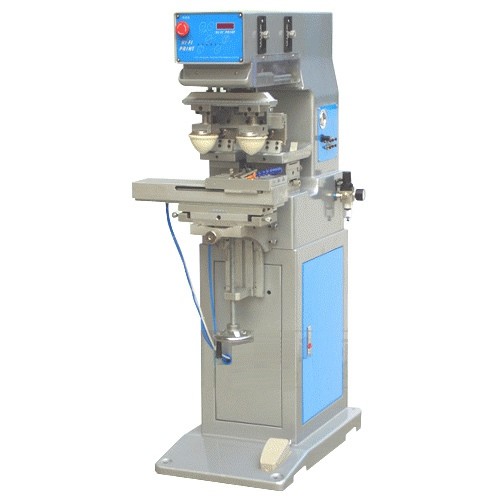

Economical 2 Color Tampo Printing Machine with Shuttle Working Table

  • Model Number: EP2S-150
  • Category: Tampo Printing Machine
  • Views: 353
  • Product Description:Economical 2 Color Tampo Printing Machine with Shuttle Working Table
  • PRODUCT DETAIL
  • Video

Product name:Economical 2 Color Tampo Printing Machine with Shuttle Working Table

Model Number: EP2S-150

Description:
Economical 2 Color Tampo Printing Machine with Shuttle Working Table

Specification
1. Model No. EP2S-150
2. Printing Colors: 2
3. Plate area: 100*150mm
4. Max Printing area: 85*135mm
5. Max printing speed: 1400PCS/H
6. Printing Wattage: 220V/ 50Hz 110V/60Hz
7. Air pressure: 0.4-0.6Mpa
8. Machine size: 860x470x1480mm

Machine fitting:
1. Two pcs steel plate
2. Two pcs rubber pad
3. Two pcs jig
4. Work box
5. English operating instruction

Feature
Two color pad printer it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware Parts.
1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable

Price Terms:FOB GuangZhou
Packing:Wooden Case
Standards Certificate︰ CE
Application area:toies, pens, Cosmetics package box, hardware Parts.
Main Parts:Airtac MADE BY TAIWAN

H.S.code:84439000

Economical 2 Color Tampo Printing Machine with Shuttle Working Table
