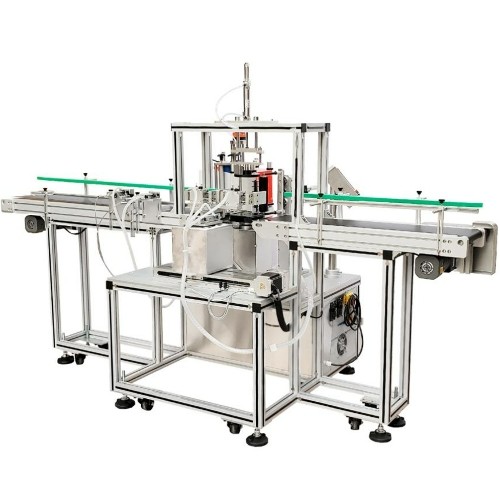

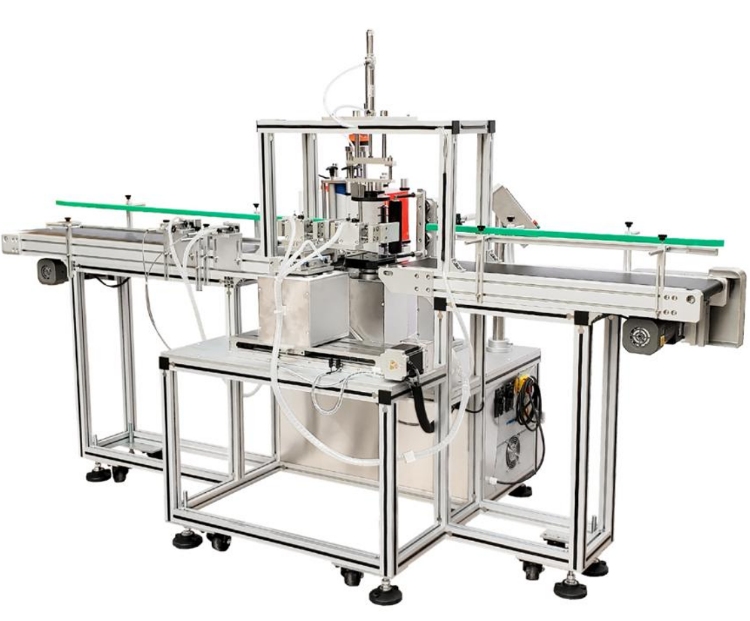

Automatic Square Bottle Labeling Machine

Automatic Square Bottle Labeling Machine
Model ALM-825
Parameter:
1. Labeling Accuracy:    ±1mm (errors caused by product and label are not concerned);
2. Labeling Speed:   10-15pcs/min（influenced by the size of the product and label）;
3. Applicable Product Diameter:25-100mm
4. Applicable Label :length:20mm～330mm, width（height of the release paper）:20mm～250mm
5. Applicable Label Roll: Inner diameter 76mm, Outer diameter≤280mm
6. Device Dimension(mm): 2200*1200*1420
7. Power:    220V/50HZ;
8. Weight:    about 220KG

Major Electronic Configurations：
1. Label Sensor, SICK, 1, Germany
2. Product Sensor, Pruixin, 1, China
3. PLC, Panasonic, 1, Japan
4. Strengthening Motor, Leashine, 1, China
5. Traction Motor, Panasonic, 1, Japan
6. Transmission Motor, Leashine, 1, China
7. Spacing Motor, OPG, 1, China
8. Power, Delta, 1, China
9. Touch Screen, Kutt, 1, China
10. Air Cylinder, Xingchen, 1, China

Collection platform, /, Set 1
Transparent Sensor(optional), /, Set 1
1Code Printer(Optional), /, Set 1
