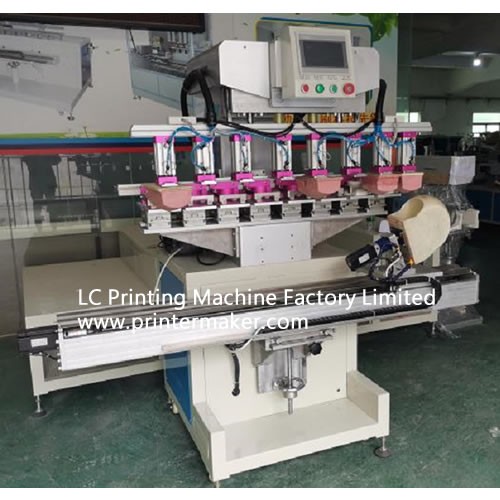

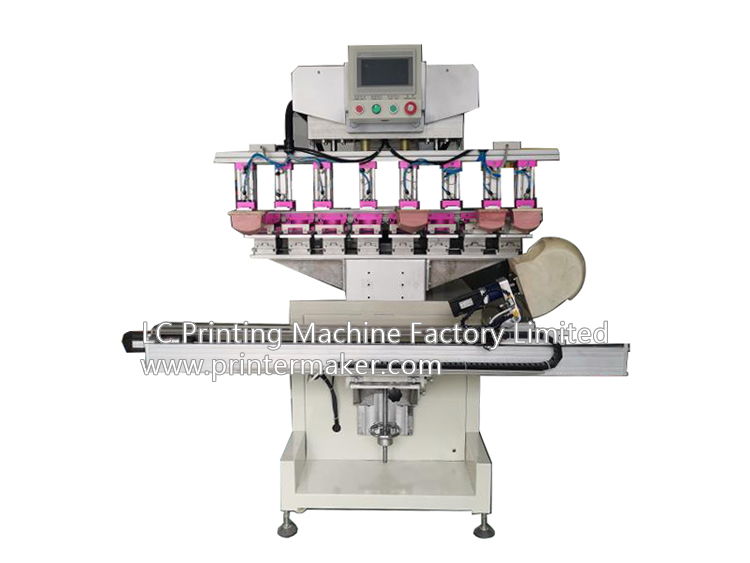

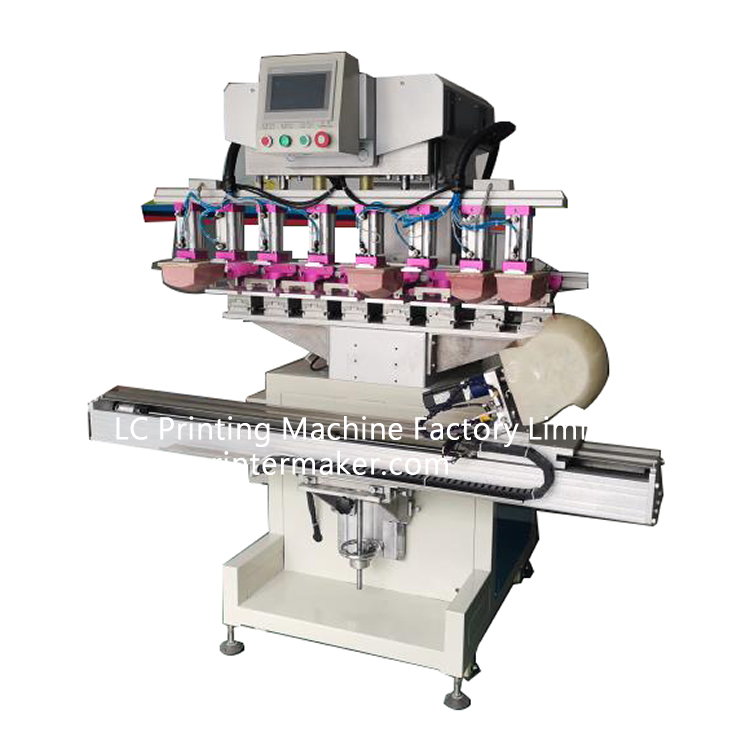

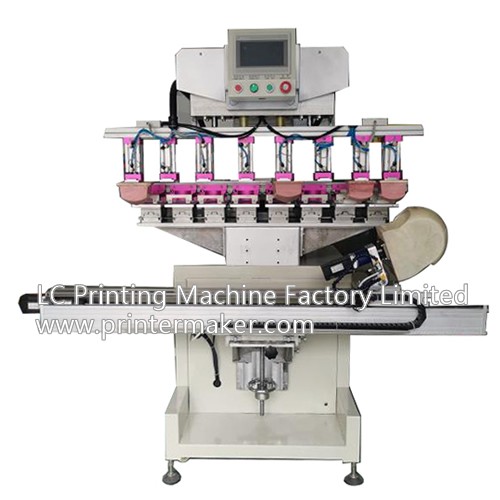

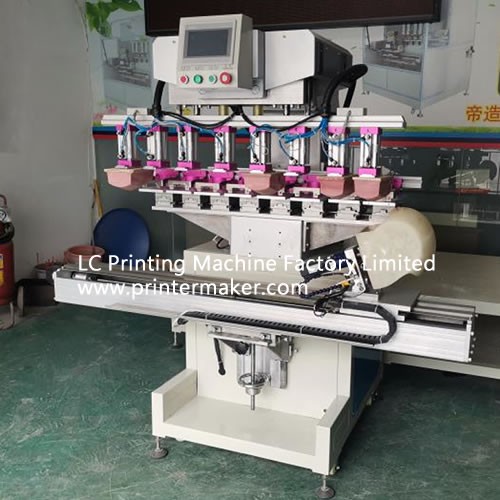

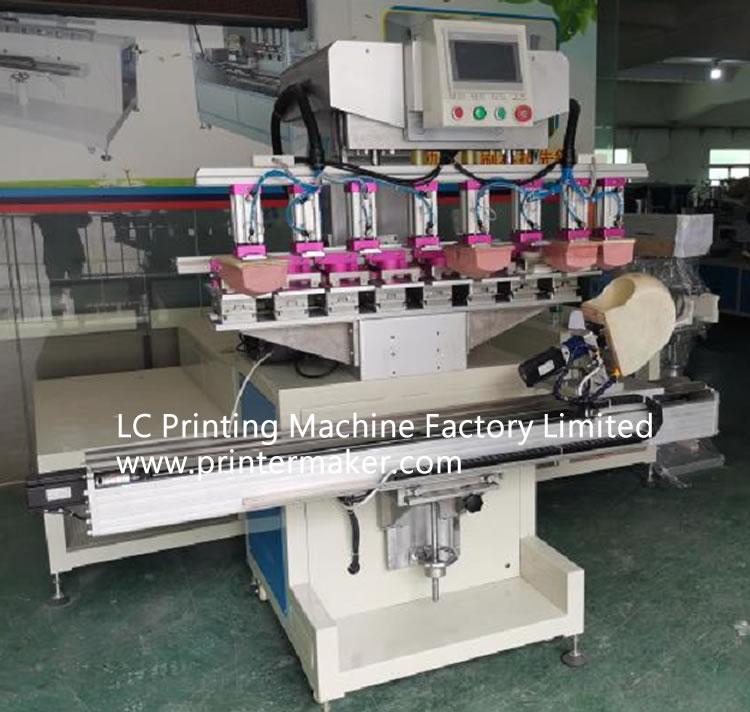

8-color ink cup pad printer with 8 independent pads head with servo table

  • 8-color ink cup pad printer with 8 independent pads head with servo table
  • 8-color ink cup pad printer with 8 independent pads head with servo table
  • 8-color ink cup pad printer with 8 independent pads head with servo table
  • 8-color ink cup pad printer with 8 independent pads head with servo table
  • Model Number: M8-250PLC
  • Category: Automatic Pad Printing Machine
  • Views: 149
  • Product Description:8 colors ink cup pad printer with servo shuttle table; Helmet ink cup pad printers, toy card ink cup pad printer, 8 colors ink cup pad printing machine; servo motor control ink cup pad printing machin
  • PRODUCT DETAIL
  • Video

Product name:8-color ink cup pad printer with 8 independent pads head with servo table

Model Number: M8-250PLC

Shuttle Worktable is driven by the servo motor with the very precision roll ball screw.
8 Rubber pads heads are independently controlled by cylinder and shuttle table is controlled by servo motor
Machine parameter:
1: Ink cup diameter(mm):  Φ90
2: Steel plate size(mm):  100x250
3: Max. Printing pressure: 1150N6 bar
4: Max. Printing speed:  (pcs/hr) 400
5: Air consumption (L/min) :345
6: Rated power : 750 W
7: Rated voltage: 1ΦAC 220V±10% 50Hz
8: Rated current:  3A
9: Noise : (dB) <80
10: Machine dimension (mm) 1220x780x1707
11: Net Weight: 384kg;  Gross Weight: 430kg
Machine Features:
1.Available for the printing of all directions on the left/right position.
2. 4 pads moving up/down separately and suitable for a long substrate with multi-pictures printing.
3. PLC controls each operation,human-computer interface, and easy operation.
4. High speed and accurate orientation up to the precision ± 0.02mm.
5. High-quality aluminum alloy is used to make the structure solid and weight light.
6. Inking by ink cup, ink viscosity is stable and no need to add any solvents in 6 to 8 hours, low evaporation, no splashing.
Up to 50of ink-saving; Good working environment retains.
7. The safety hood is equipped to meet safety requirements.
8. Dwell time is adjustable to meet different requirements.
9. Convenient ink cup installation and removal for durable use.
10. Extra function “twice inking, once printing” is designed for thicker ink film.
11. The unique ink cup edge structure ensures clean ink scraping and produces a clear and sharp printing image.
12. Drying by auto air blower.
Applications:

This machine is designed for multi colors printing on those irregular shape products such as mugs, helmet,
toys card, etc. pad printing with servo motor control on both shuttle working table and 8 independent rubber
pads driven by cylinder which is flexible for any angle and position’s printing in multi-colors.
