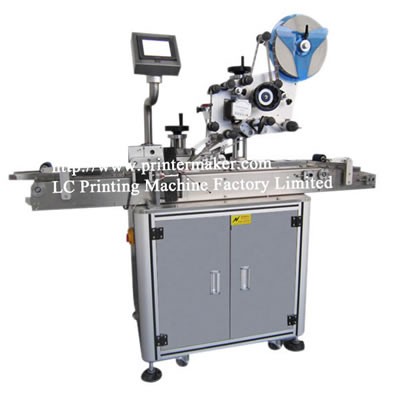

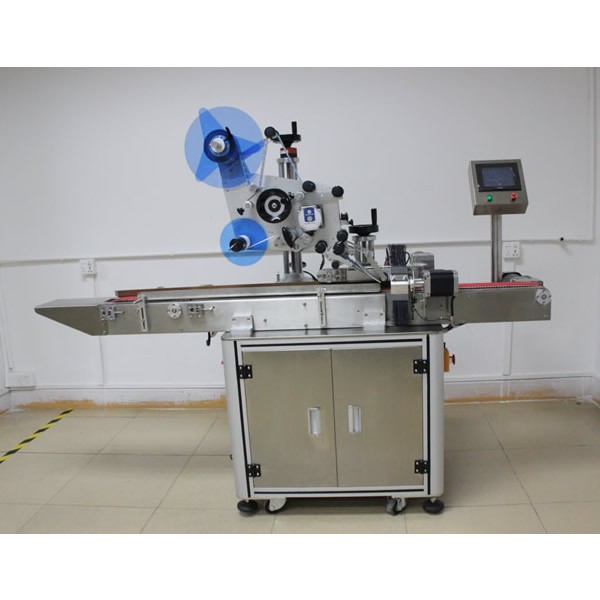

Packaging box Corner Automatic Labeling Machine ALM-11600

  • Packaging box Corner Automatic Labeling Machine ALM-11600
  • Packaging box Corner Automatic Labeling Machine ALM-11600
  • Model Number: ALM-11600
  • Product price: US$:negotiated
  • Category: Automatic Labeling Machine
  • Views: 5454
  • Product Description:Automatic Corners Labeling Machine for Small Box Cartons,labeling machine,labeling machinery,labeling machine bottle,,labeling applicator machine,automatic labeling machine,labeling machine automatic,
  • PRODUCT DETAIL
  • Video

Product name:Packaging box Corner Automatic Labeling Machine ALM-11600

Model Number: ALM-11600

Automatic Corners Labeling Machine for Small Box Cartons
Specification
1.Label width: 20-130mm
2.Label length:20-100mm
3.Products Diameter:
Length: 20mm-300mm
Width: 20mm-200mm
Height: 10mm-100mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 320pcs /min
7.Accuracy of labeling:±0.5mm
8.Power: 220V/110V 50/60Hz    1200W
9.Air Pressure: 4- 6 bar  or  0.4 -0.6 Mpa
10.Machine Net Weihgt : 72KG
11.Machine Dimension: 1700mm x 650mm x 1550 mm
Application
1. Applicable Tags: stickers, adhesive film, electronic monitoring code, bar code.
2. Application: various types of cartons, such as poker box, phone box.
3.Application industry: Widely used in printing, food, daily chemical, electronics, pharmaceutical and other industries.
4.Application Example: Nestle box tamper labeling, poker tray tamper labeling NIC box tamper labeling.
Features
1. box corner labeling plane and lateral plane corner labeling on the box, from the tamper effect;
2. high speed, greatly improving production efficiency;
3. labeling firm, does not fall off. Label on the flat parts of the roller rolling cover stickers prison side of the flat part of the brush ask pressed firmly affixed;
4. high stability, and box conveying stability, labeling, cover marked effect;
5. Intelligent Control, automatic photoelectric tracking, with no object no labeling, no standard automatic calibration and tag auto detect, prevent leakage stickers and labels waste;
6. High stability German LEUZE labeling system, Panasonic PLC , Panasonic Signal transmission system.

Measured label sensor composed of advanced electronic control system, support equipment 7 × 24 hours of operation;

Automatic Corners Labeling Machine for Small Box Cartons
