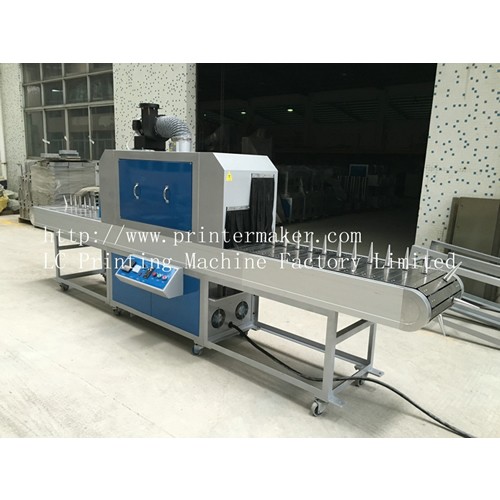

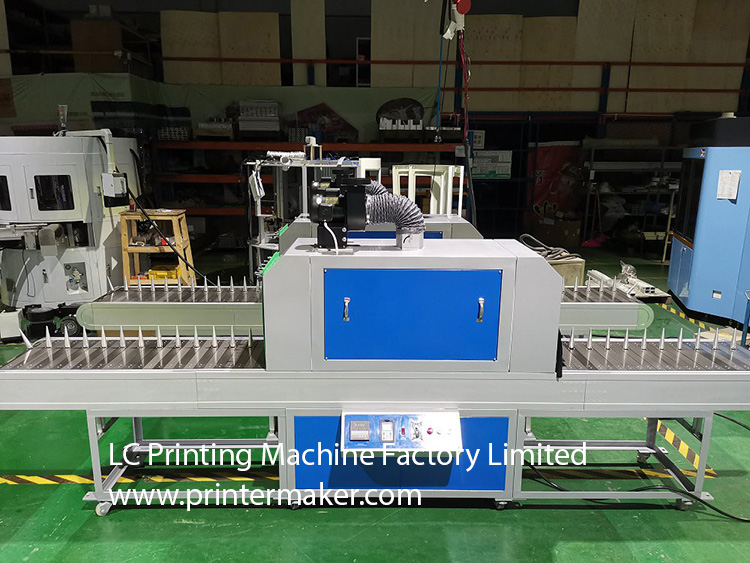

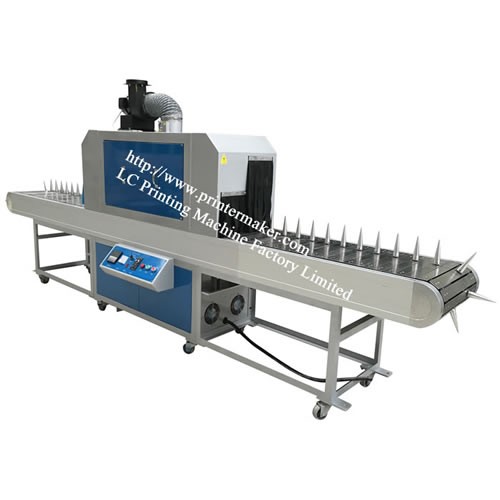

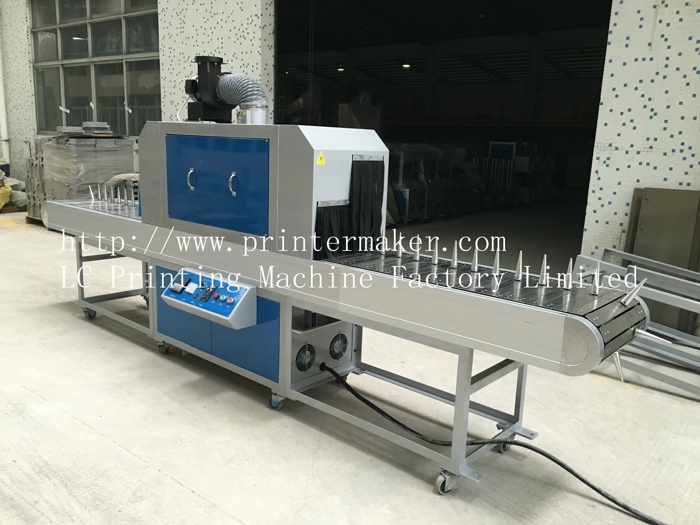

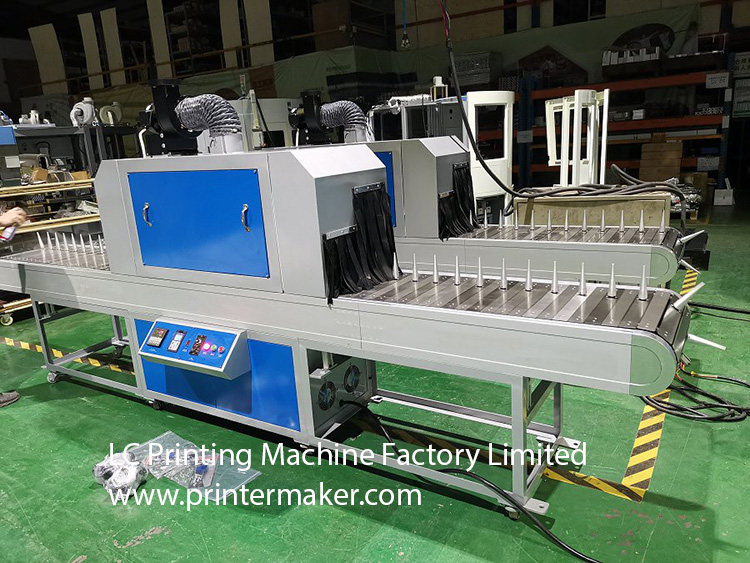

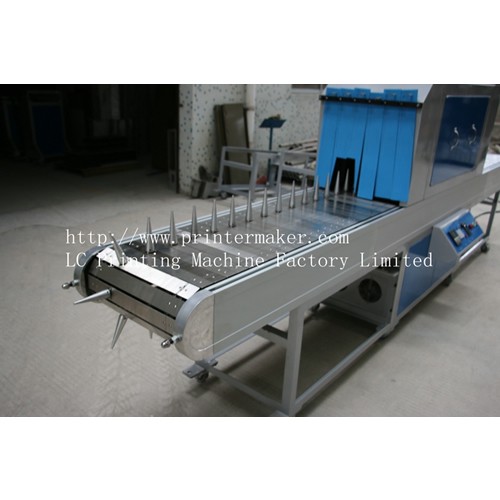

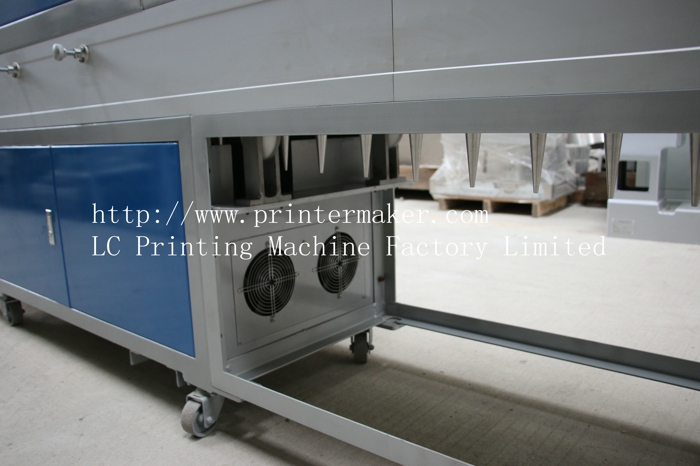

Cylindrical UV Curing Machine
1：Conyeyor width: 54.5CM
2: Conveyor total length: 427CM
3: Infeed length: 144CM and outfeed length: 131CM

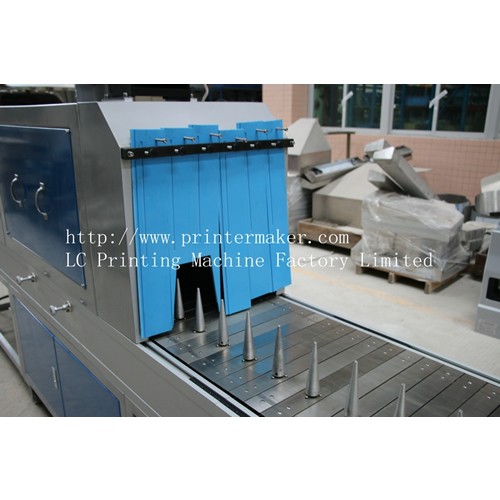

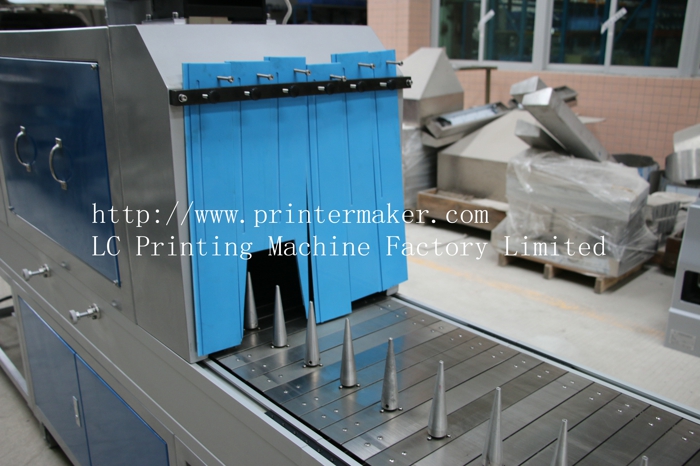

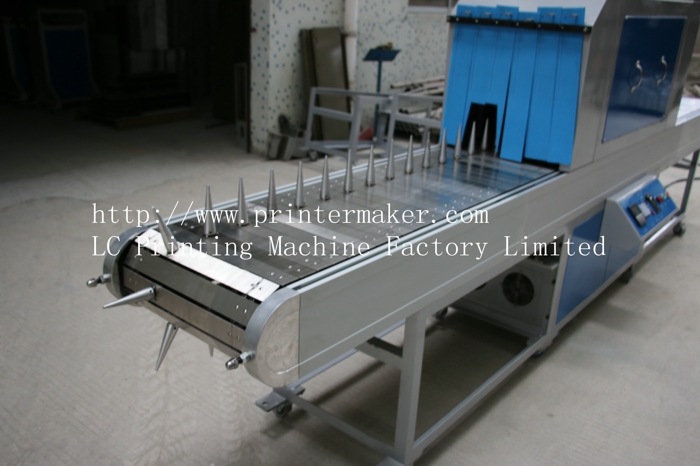

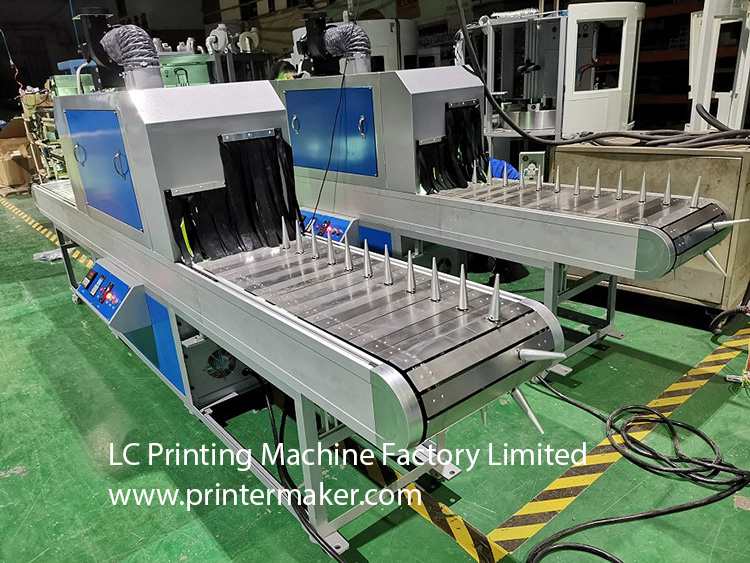

4: Mandrill for holding bottles: 105pcs
5: UV lamp model no.: PM2886;
6: Power rate at 5KW UV Lamp length at 475mm
7: Curing Product size ranges: H20-300MM, OD:10-25CM
8: Maximum infeed height: 45CM
9: Machine dimension: 427CM*54.5CM*172CM
11:Gross weight: 700kg
1.Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate.
2.By adjusting its lighting angle, it can also be used in the UV ink printing cure of flat or curved substrate; 3.Enclosure construction with conveyor. Apply half light (3KW) or full light (6KW) tubes, the distance is adjustable;

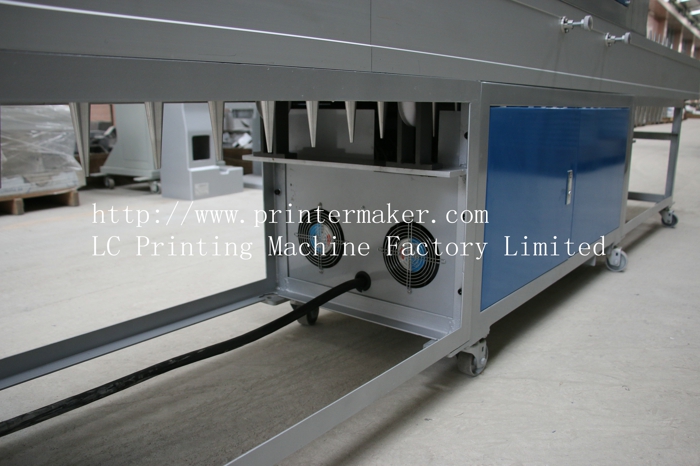

4.On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .
The machine is suitable for drying and curing the round, oval plastic or glass bottles. It is widely used in the cosmestic, house hold product bottles final step printing curing. The tooling holder is removable so it is also suitable for flat products curing.
