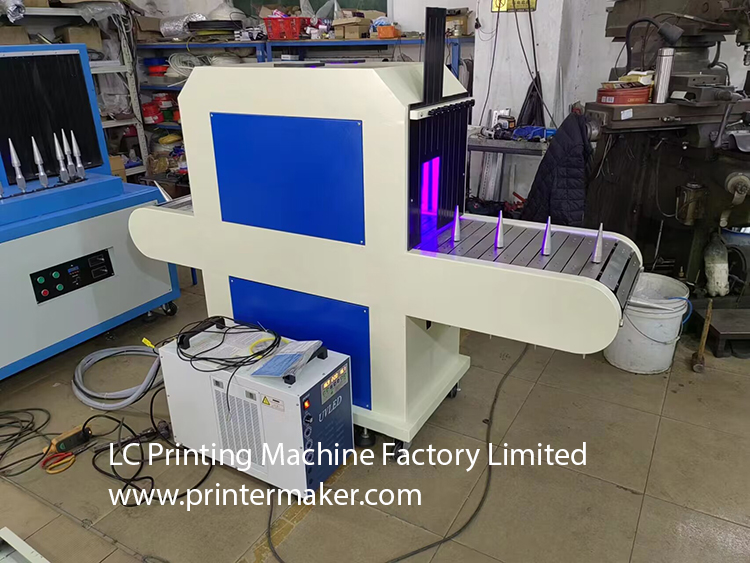

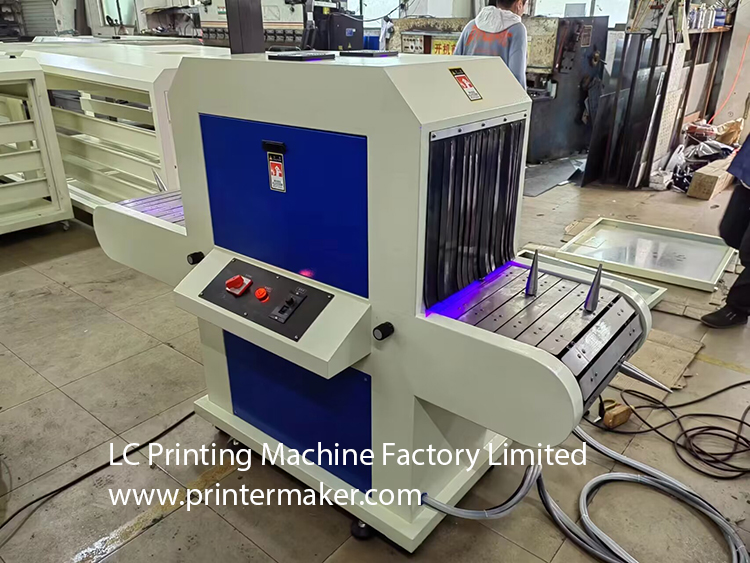

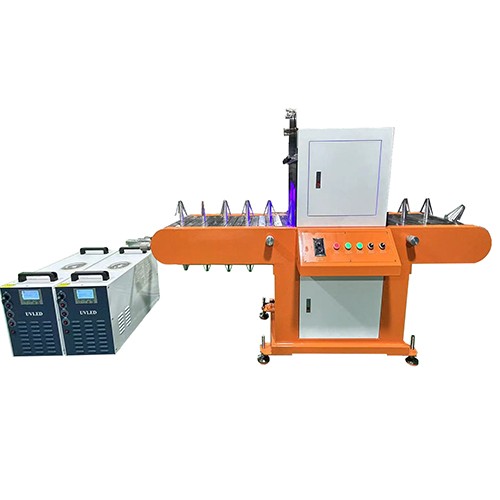

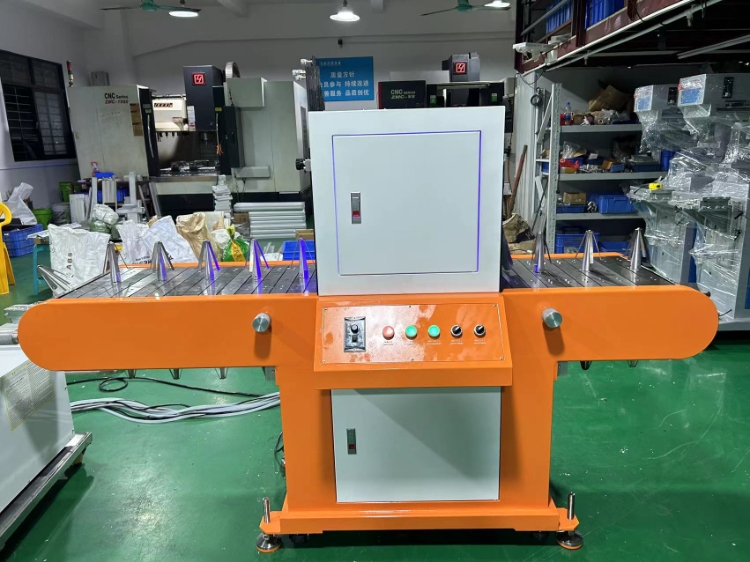

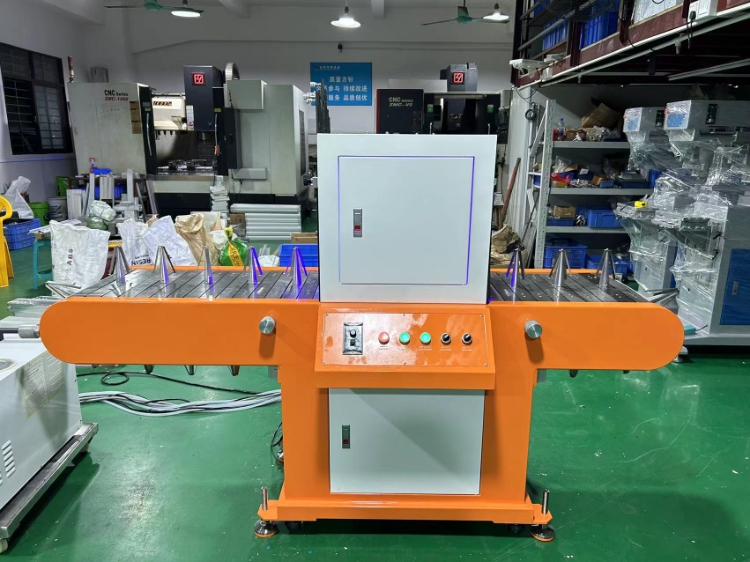

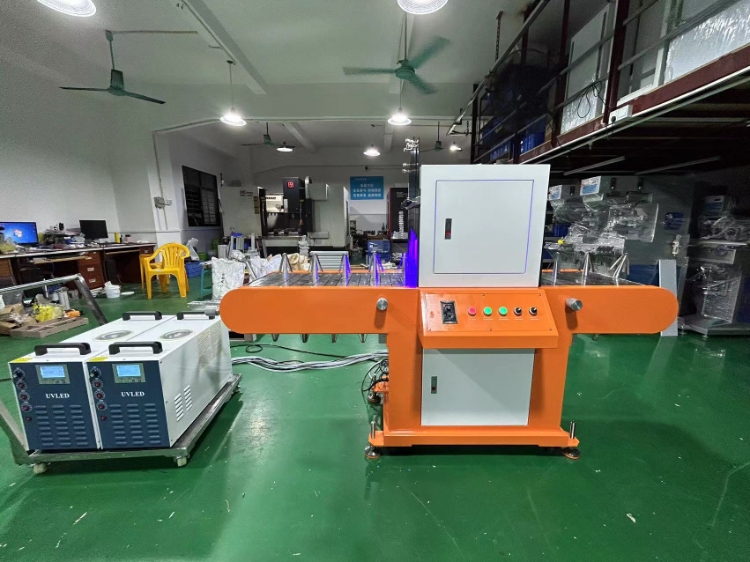

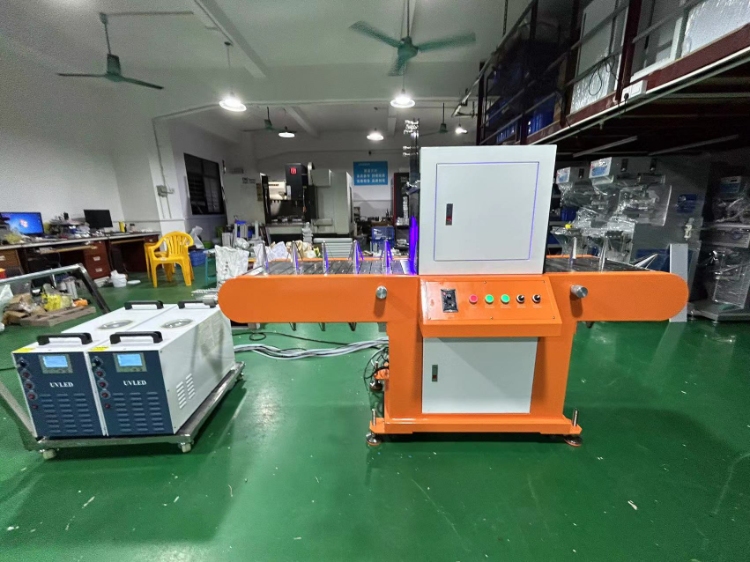

Product name:Flat&Round LED UV curing machine
Model Number: LEDUV-2600Flat&Round LED UV curing machine
1. Total length of conveyor belt: 4000mm; Belt width: 400mm
2. LED power rate: 2.6kw
3. Maximum product size: Bottle mouth diameter:Φ12-60mm
6:Machine dimension: 2000*800 *1500mm
7. Machine Voltage: 220V,single phrase
8:Wooden package size: 2150mm x850mm x1600m
1.Suitable for the LED UV Ink printing cure on round,oval,flat bottles and cylindrical substrate

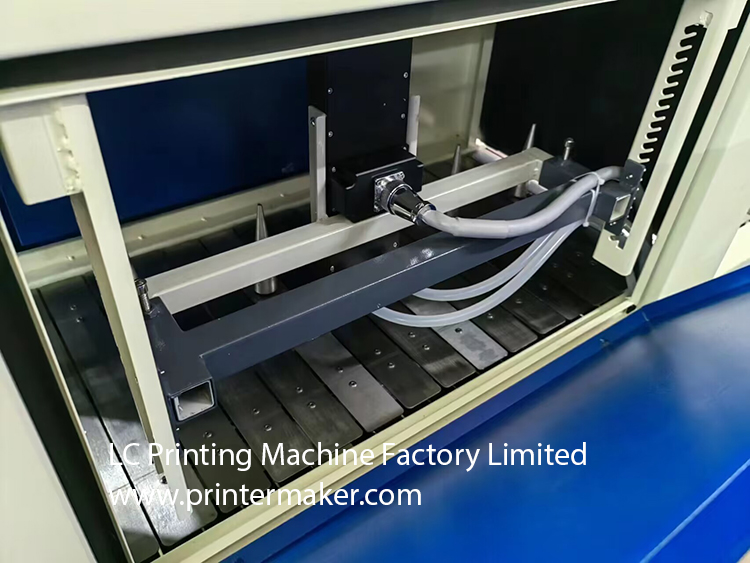

2.By adjusting its lighting angle, it can also be used in the LED UV ink printing cure of flat
or curved substrate;
3.Enclosure construction with conveyor.
4. Drying with 395 wave ink.
5. Water cooling system
The advantage of the LED UV curing machine:
Compare with UV curing, the UV LED Curing Is More Efficient than Mercury Vapor UV Curing.
The LED UV ink is good and no harmful to human's eye while mercury and metal UV lamps are
too strong by which operator better to ware the anti-UV glasses to protect the eyes.
A Growing Number of UV LED Inks Are Available in the screen printing market;
The LED UV ink is getting the exact same good result as the UV ink do.
The less power rate save the production cost.
The LED UV machine is suitable for drying and curing the round, oval plastic or glass bottles. It is
widely used in the cosmestic,house hold product bottles final step printing curing. The tooling
holder is removable so it is also suitable for flat products curing.
